Craftsman
Power Sander

Model # 315268191 Official Craftsman belt sander

Here are the diagrams and repair parts for Official Craftsman 315268191 belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

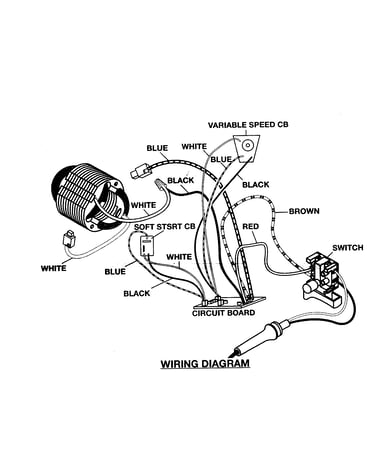

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Blade,retail N/A
#2

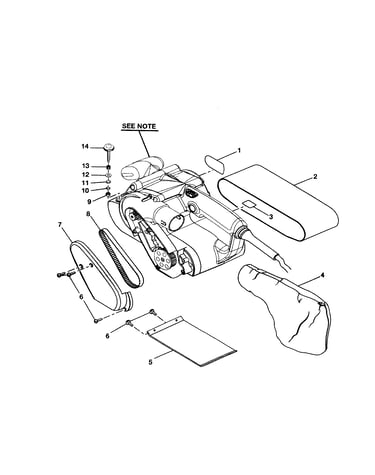

Sander diagram

Blade,retail

Part #N/A

The manufacturer no longer makes this part, and there's no substitute part

Screw 6627201
#40

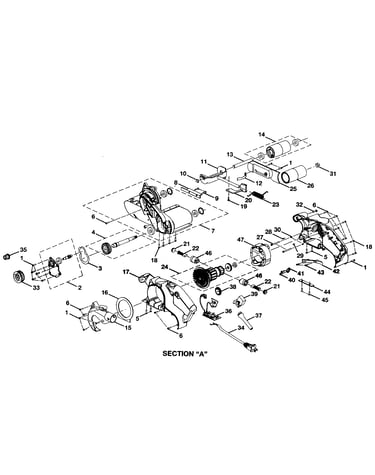

Housing assy diagram

Screw

Part #6627201

The manufacturer no longer makes this part, and there's no substitute part

Dial 400873003
#38

Housing assy diagram

Dial

Part #400873003

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 280013041
#36

Housing assy diagram

Pcb assembly

Part #280013041

The manufacturer no longer makes this part, and there's no substitute part

Housing Ay 200042012
#17

Housing assy diagram

Housing ay

Part #200042012

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 730393001
#34

Housing assy diagram

Ac cord

Part #730393001

The manufacturer no longer makes this part, and there's no substitute part

Ring 6939601
#10

Housing assy diagram

Ring

Part #6939601

The manufacturer no longer makes this part, and there's no substitute part

Shaft 620233001
#13

Housing assy diagram

Shaft

Part #620233001

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000748R
#NI

Sander diagram

Repair sheet

Part #983000748R

The manufacturer no longer makes this part, and there's no substitute part

Sander Tracking Knob 300898002
#14

Sander diagram

Sander tracking knob

Part #300898002

The manufacturer no longer makes this part, and there's no substitute part
