Model # 489474550 Official Sears 26" 18-speed bicycle

Here are the diagrams and repair parts for Official Sears 489474550 26" 18-speed bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

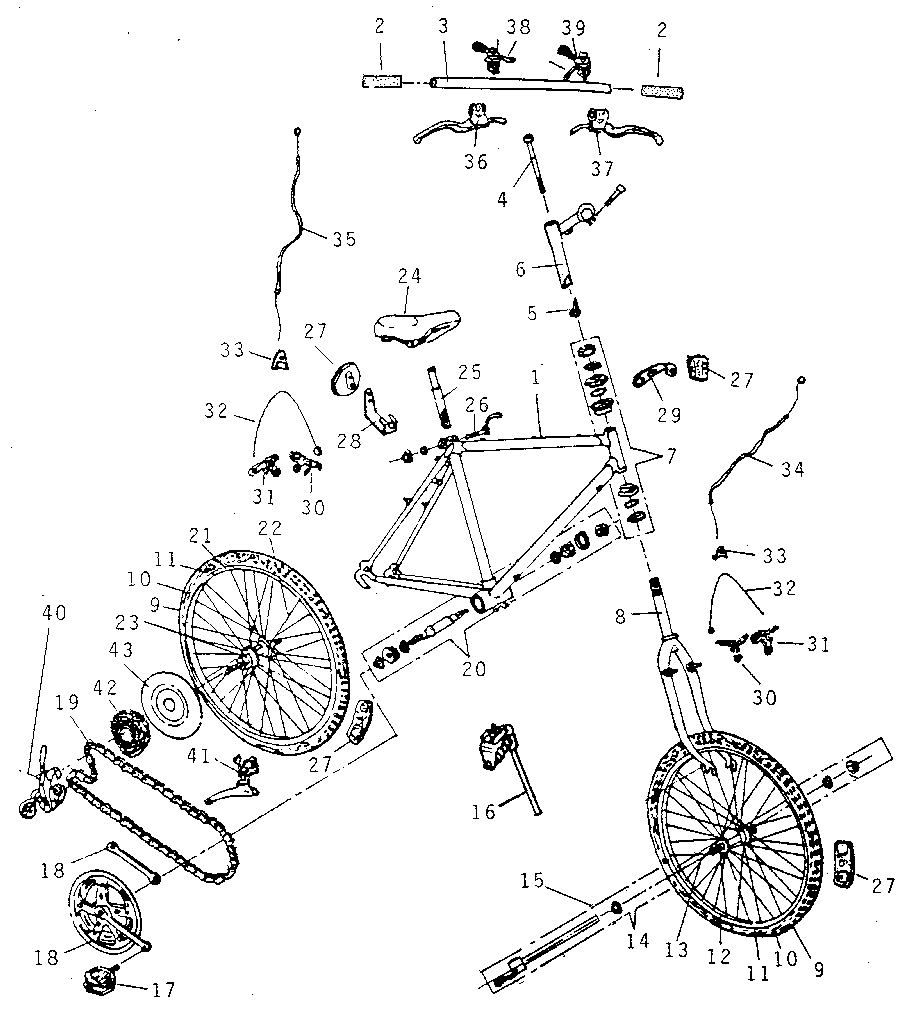

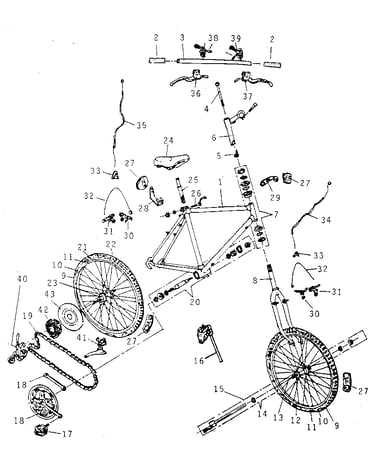

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Craftsman Bicycle Tire, 26 X 1.5-in 040021
#9

Unit parts diagram

Craftsman bicycle tire, 26 x 1.5-in

Part #040021

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Hvy Dty Tube 041014
#10A

Unit parts diagram

Craftsman hvy dty tube

Part #041014

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Seat Pin 034005
#26

Unit parts diagram

Lifestyler seat pin

Part #034005

The manufacturer no longer makes this part, and there's no substitute part

Crank Extrtr 103012

#NI

All parts diagram

Crank extrtr

Part #103012

The manufacturer no longer makes this part, and there's no substitute part

Shft Guide 088005

#NI

All parts diagram

Shft guide

Part #088005

The manufacturer no longer makes this part, and there's no substitute part

Huffy Grip, 2-pack (black) 015034
#2

Unit parts diagram

Huffy grip, 2-pack (black)

Part #015034

The manufacturer no longer makes this part, and there's no substitute part

Kent Front Wheel 045028
#12

Unit parts diagram

Kent front wheel

Part #045028

The manufacturer no longer makes this part, and there's no substitute part

Bca Tool 103017

#NI

All parts diagram

Bca tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Quik Release 115001
#15

Unit parts diagram

Ming ta quik release

Part #115001

The manufacturer no longer makes this part, and there's no substitute part

Spkt Cluster 075002
#42

Unit parts diagram

Spkt cluster

Part #075002

The manufacturer no longer makes this part, and there's no substitute part
