Model # FA3820 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen FA3820 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

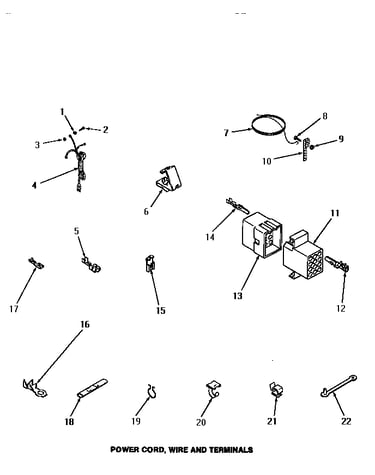

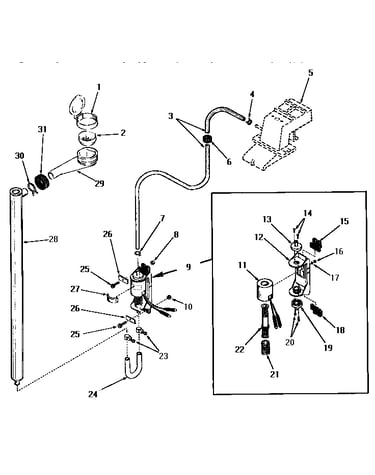

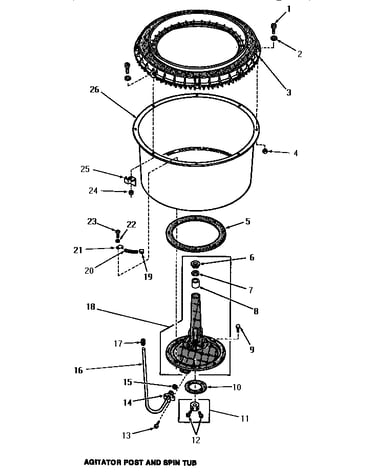

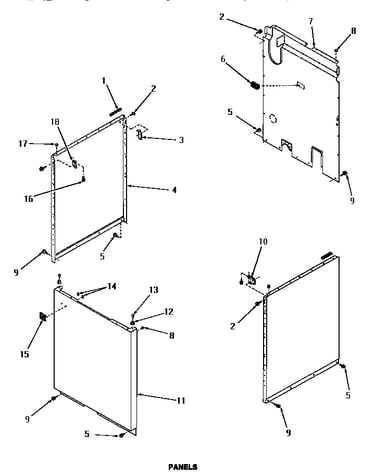

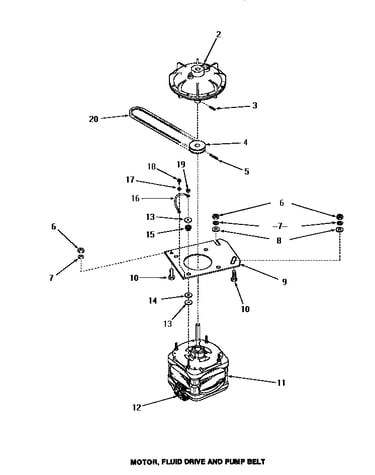

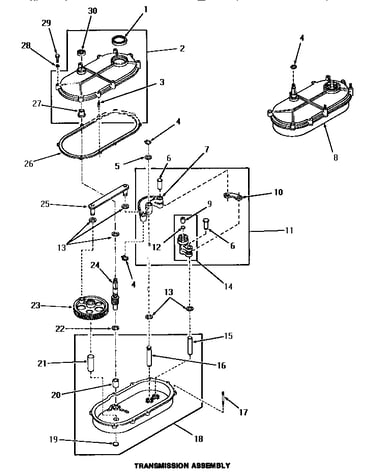

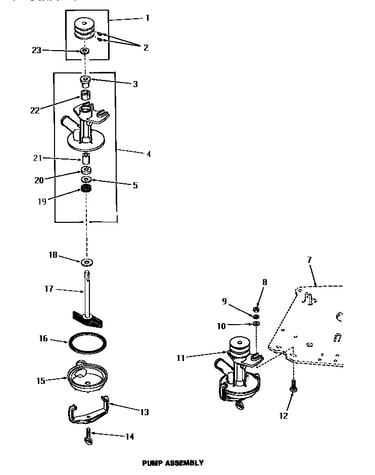

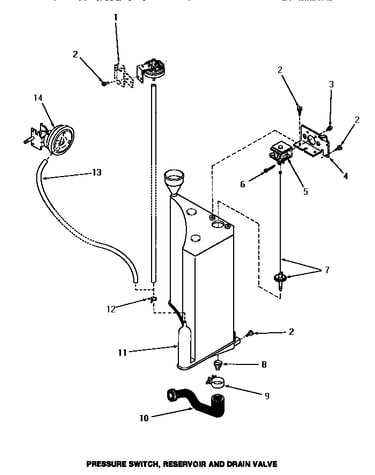

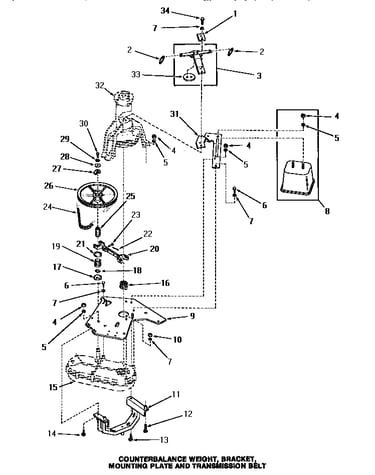

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 383 parts  |
Hose Clamp 22294
Hose clamp

Part #22294

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 52150
Screw

Part #52150

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 52150. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Foot 20409
#19

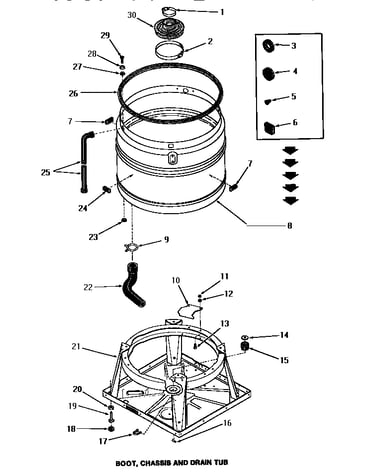

Boot, chassis & drain tub diagram

Foot

Part #20409

Replaced by #22003428

?
Manufacturer substitution
This part replaces 20409. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock

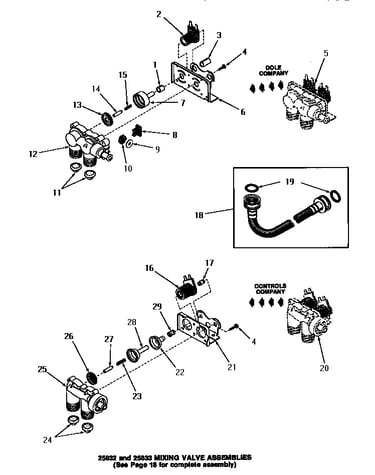

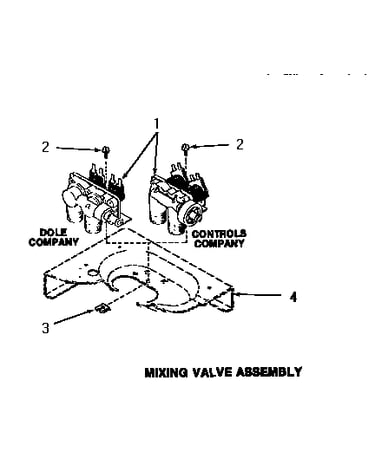

Speed Queen Screen Mixing Valve 24122
Speed queen screen mixing valve

Part #24122

$10.71
In Stock
Spring 20791
#11

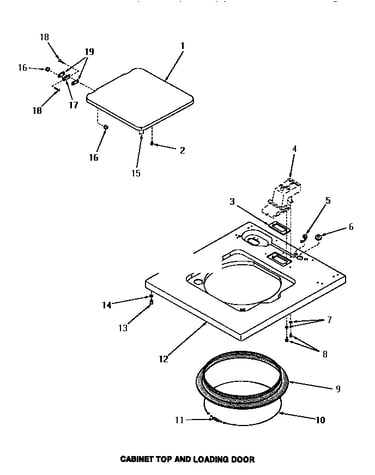

Cabinet top & loading door diagram

Spring

Part #20791

This item is not returnable
$2.51
In Stock
Washer 20492
#12

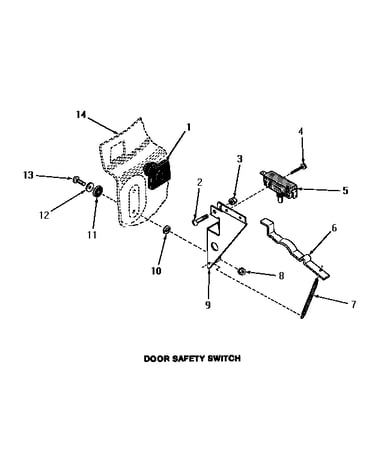

Door safety switch diagram

Washer

Part #20492

This item is not returnable
$2.16
In Stock
Foot 21749
#18

Boot, chassis & drain tub diagram

Foot

Part #21749

This item is not returnable
$5.89
In Stock
Switch 21300
#10

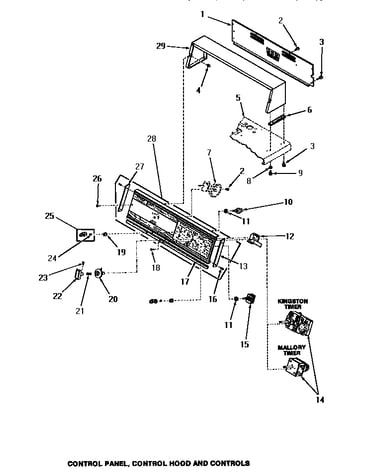

Control panel, control hood & controls diagram

Switch

Part #21300

$59.38
In Stock
Brake Disk 24599
#17

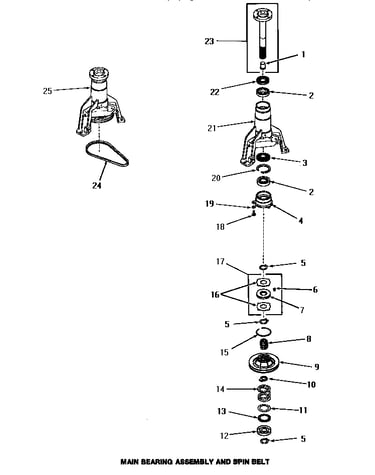

Main bearing assembly & spin belt diagram
