Kenmore
Central Air Conditioner

Model # 867818511 Official Kenmore blower package

Here are the diagrams and repair parts for Official Kenmore 867818511 blower package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Fan Wheel 72978
#21

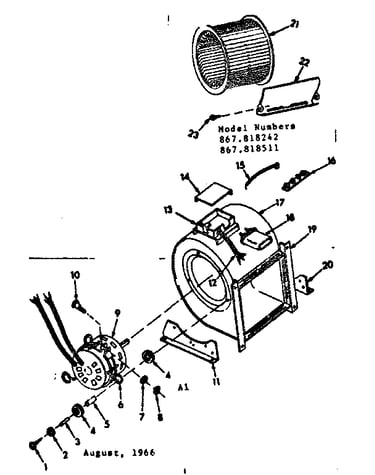

Blower assembly diagram

Fan wheel

Part #72978

Replaced by #600587

?
Manufacturer substitution
This part replaces 72978. Substitute parts can look different from the original.
$130.20 |
8% OFF Phone Price : $142.20
In Stock
Motor 1/4 Hp 84745
#9A

Blower assembly diagram

Motor 1/4 hp

Part #84745

The manufacturer no longer makes this part, and there's no substitute part

Motor 84747
#9B

Blower assembly diagram

Motor

Part #84747

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower 76793

#NI

All parts diagram

Air conditioner blower

Part #76793

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 74465
#14

Blower assembly diagram

Box cover

Part #74465

The manufacturer no longer makes this part, and there's no substitute part

Screw 9415817
#10

Blower assembly diagram

Screw

Part #9415817

The manufacturer no longer makes this part, and there's no substitute part

Jumper Wire 72299
#15

Blower assembly diagram

Jumper wire

Part #72299

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Foot 74793
#20

Blower assembly diagram

Air conditioner blower foot

Part #74793

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 72412
#18

Blower assembly diagram

Capacitor

Part #72412

The manufacturer no longer makes this part, and there's no substitute part

Grommet 84783
#4

Blower assembly diagram

Grommet

Part #84783

The manufacturer no longer makes this part, and there's no substitute part
