Model # MDC4000AWE Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag MDC4000AWE dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

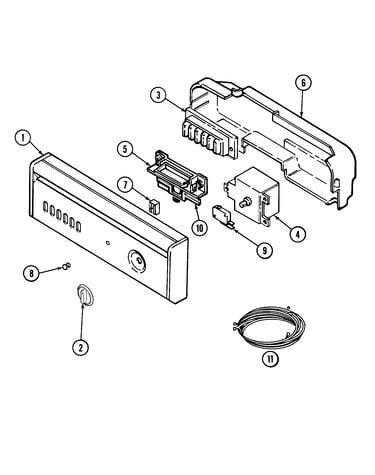

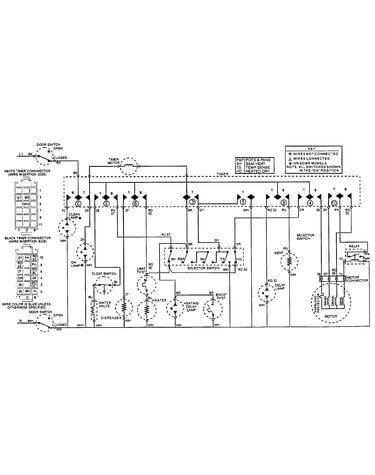

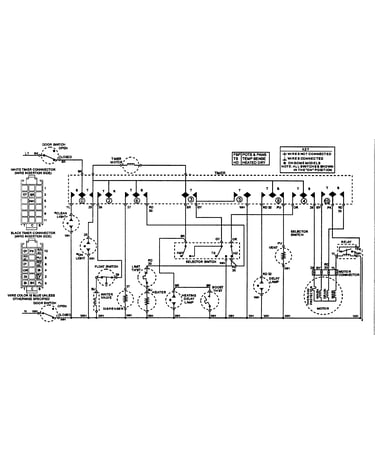

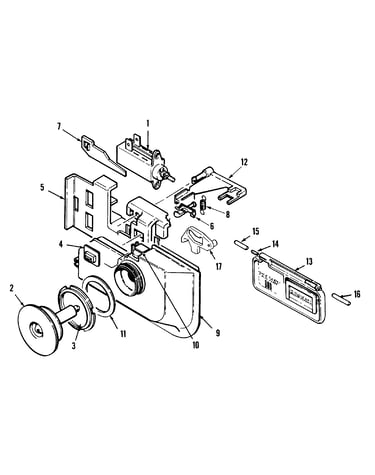

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |
Dishwasher Door Spring Link 912653
#12

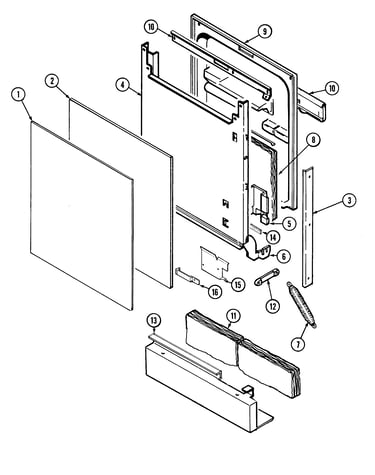

Door (mdc4000awe) diagram

Dishwasher door spring link

Part #912653

Replaced by #WP912653

?
Manufacturer substitution
This part replaces 912653. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Plate Screw 912365
Plate screw

Part #912365

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Door Screw 912620
#9A

Door (mdc4000awe) diagram

Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Dishwasher Spray Arm Assembly, Lower 99001788
#2

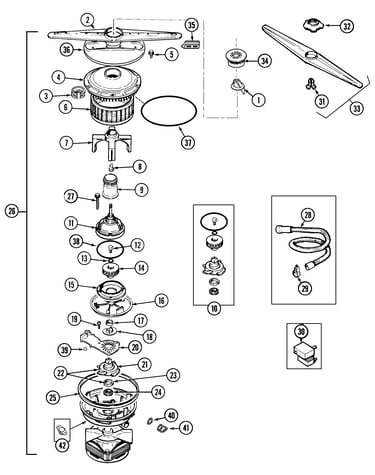

Pump & motor (mdc4000awe) diagram

Dishwasher spray arm assembly, lower

Part #99001788

Replaced by #WP99001788

?
Manufacturer substitution
This part replaces 99001788. Substitute parts can look different from the original.
$53.71 |
10% OFF Phone Price : $59.71
In Stock
Deflector, W 99001885
#15

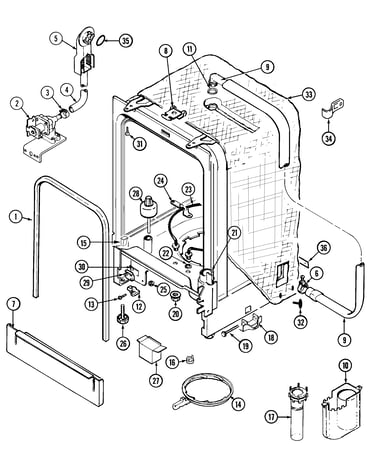

Tub (mdc4000awe) diagram

Deflector, w

Part #99001885

Replaced by #WP99001885

?
Manufacturer substitution
This part replaces 99001885. Substitute parts can look different from the original.
This item is not returnable
$7.79 |
11% OFF Phone Price : $8.79
In Stock
Dishwasher High-limit Thermostat 99001852
#16A

Tub (mdc4000awe) diagram

Dishwasher high-limit thermostat

Part #99001852

Replaced by #WP99001852

?
Manufacturer substitution
This part replaces 99001852. Substitute parts can look different from the original.
$35.47 |
14% OFF Phone Price : $41.47
In Stock
Rack Stop 912546
#18

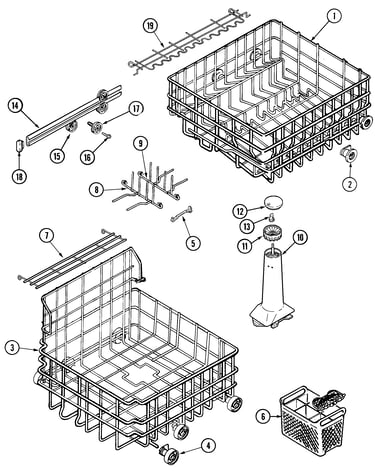

Track & rack assembly (mdc4000awe) diagram

Rack stop

Part #912546

Replaced by #WP99002135

?
Manufacturer substitution
This part replaces 912546. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Water Switch 900882
#29

Tub (mdc4000awe) diagram

Water switch

Part #900882

Replaced by #WP99002560

?
Manufacturer substitution
This part replaces 900882. Substitute parts can look different from the original.
$31.76 |
16% OFF Phone Price : $37.76
In Stock
Dishwasher Dishrack Wheel 903093
#2

Track & rack assembly (mdc4000awe) diagram

Dishwasher dishrack wheel

Part #903093

Replaced by #WP903093

?
Manufacturer substitution
This part replaces 903093. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock

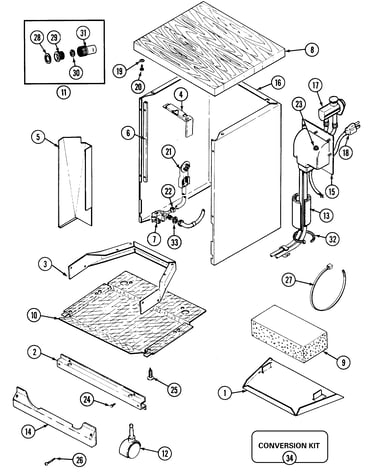

Dishwasher Hose And Coupler Assembly 99001868
Dishwasher hose and coupler assembly

Part #99001868

Replaced by #WP99001868

?
Manufacturer substitution
This part replaces 99001868. Substitute parts can look different from the original.
$111.52 |
10% OFF Phone Price : $123.52
In Stock
