Bosch
Electric Wall Oven

Model # HBN642AUC/01 Official Bosch electric oven

Here are the diagrams and repair parts for Official Bosch HBN642AUC-01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

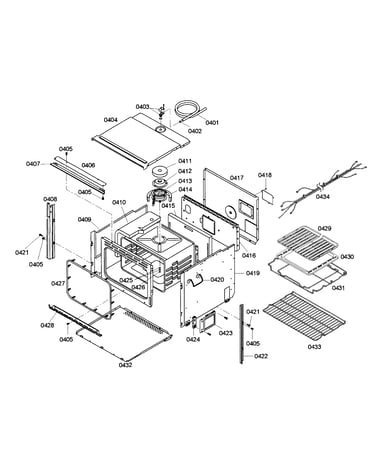

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Lamp 00420228
#238

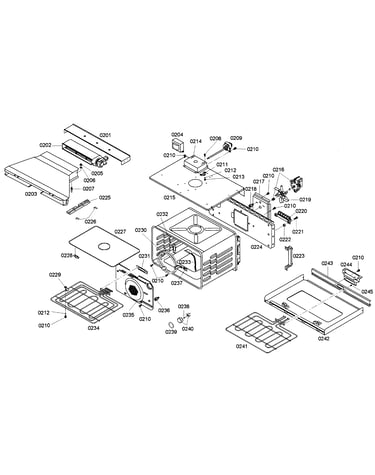

Cavity diagram

Lamp

Part #00420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 00420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Seal 00420222
#232

Cavity diagram

Seal

Part #00420222

The manufacturer no longer makes this part, and there's no substitute part

Screw 00420231
Screw

Part #00420231

The manufacturer no longer makes this part, and there's no substitute part

Motor 00490365
#301

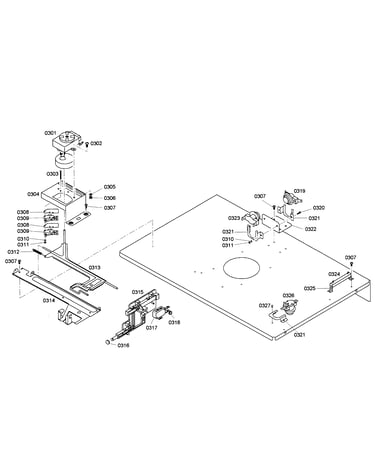

Latch diagram

Motor

Part #00490365

The manufacturer no longer makes this part, and there's no substitute part

Knob 00424625
#236

Cavity diagram

Knob

Part #00424625

The manufacturer no longer makes this part, and there's no substitute part

Heater Element 00239400
#230

Cavity diagram

Heater element

Part #00239400

The manufacturer no longer makes this part, and there's no substitute part

Lamp 00421004
#115

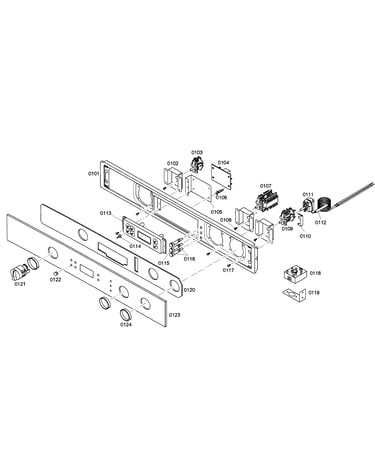

Control panel diagram

Lamp

Part #00421004

The manufacturer no longer makes this part, and there's no substitute part

Screw 00424153
#518

Door diagram

Screw

Part #00424153

The manufacturer no longer makes this part, and there's no substitute part

Door 00241735
#504

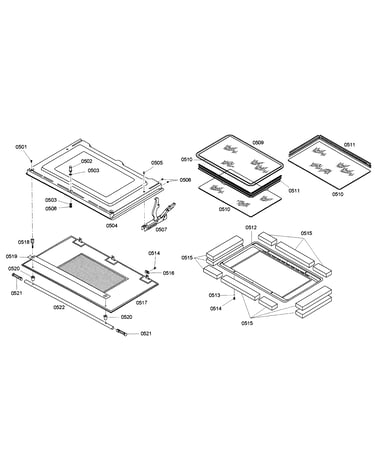

Door diagram

Door

Part #00241735

The manufacturer no longer makes this part, and there's no substitute part

Transformer 00490987
#204

Cavity diagram

Transformer

Part #00490987

The manufacturer no longer makes this part, and there's no substitute part
