Model # 58031054 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031054 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Screw 24421
#19

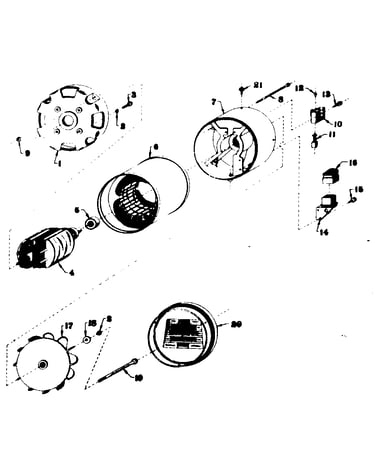

Stator assembly diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
$26.36
In Stock
Binding Post 25367
#6

Battery charging panel diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
$31.71
In Stock
Rectifier 24313
#13

Battery charging panel diagram

Rectifier

Part #24313

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 23364
#11

Battery charging panel diagram

Lock washer

Part #23364

The manufacturer no longer makes this part, and there's no substitute part

Adapter Housing 24381-A
#1

Stator assembly diagram

Adapter housing

Part #24381-A

The manufacturer no longer makes this part, and there's no substitute part

Box Back 24989
#3

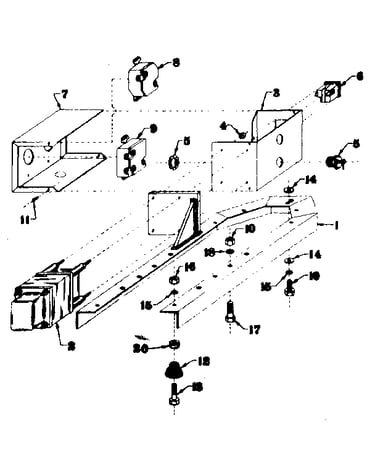

Mounting base diagram

Box back

Part #24989

The manufacturer no longer makes this part, and there's no substitute part

Spring 23594
#12

Mounting base diagram

Spring

Part #23594

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22336
#3

Stator assembly diagram

Cap screw

Part #22336

The manufacturer no longer makes this part, and there's no substitute part

Screw 24490
#19

Mounting base diagram

Screw

Part #24490

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 24246
Cap screw

Part #24246

The manufacturer no longer makes this part, and there's no substitute part
