Model # S3865 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3865 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Hoover Motor Assembly 741266001
#11

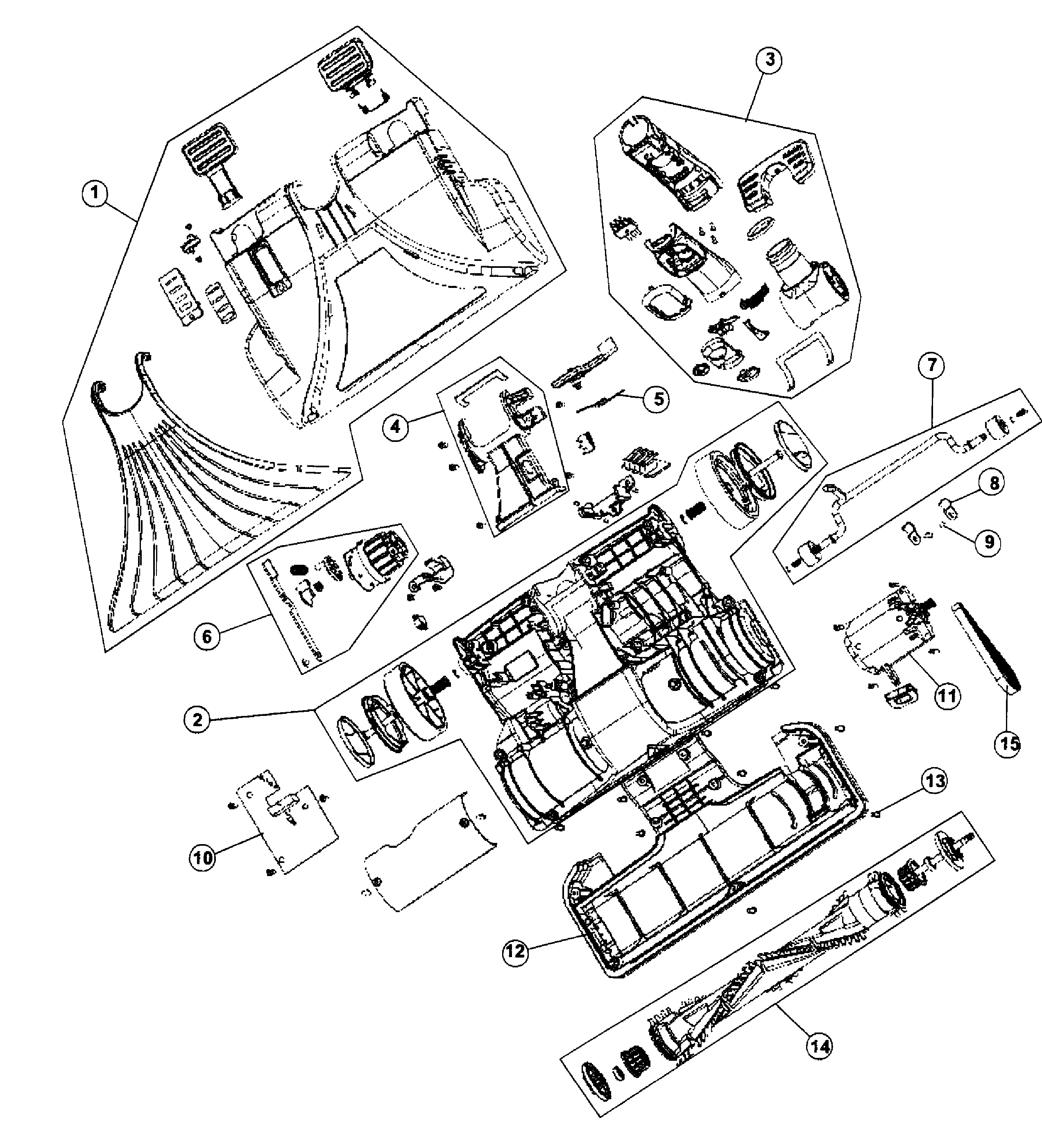

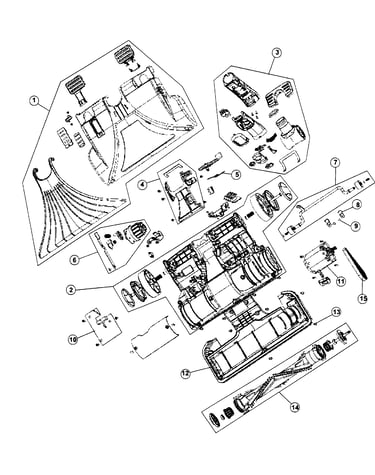

Base assy diagram

Hoover motor assembly

Part #741266001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 303090001
#7

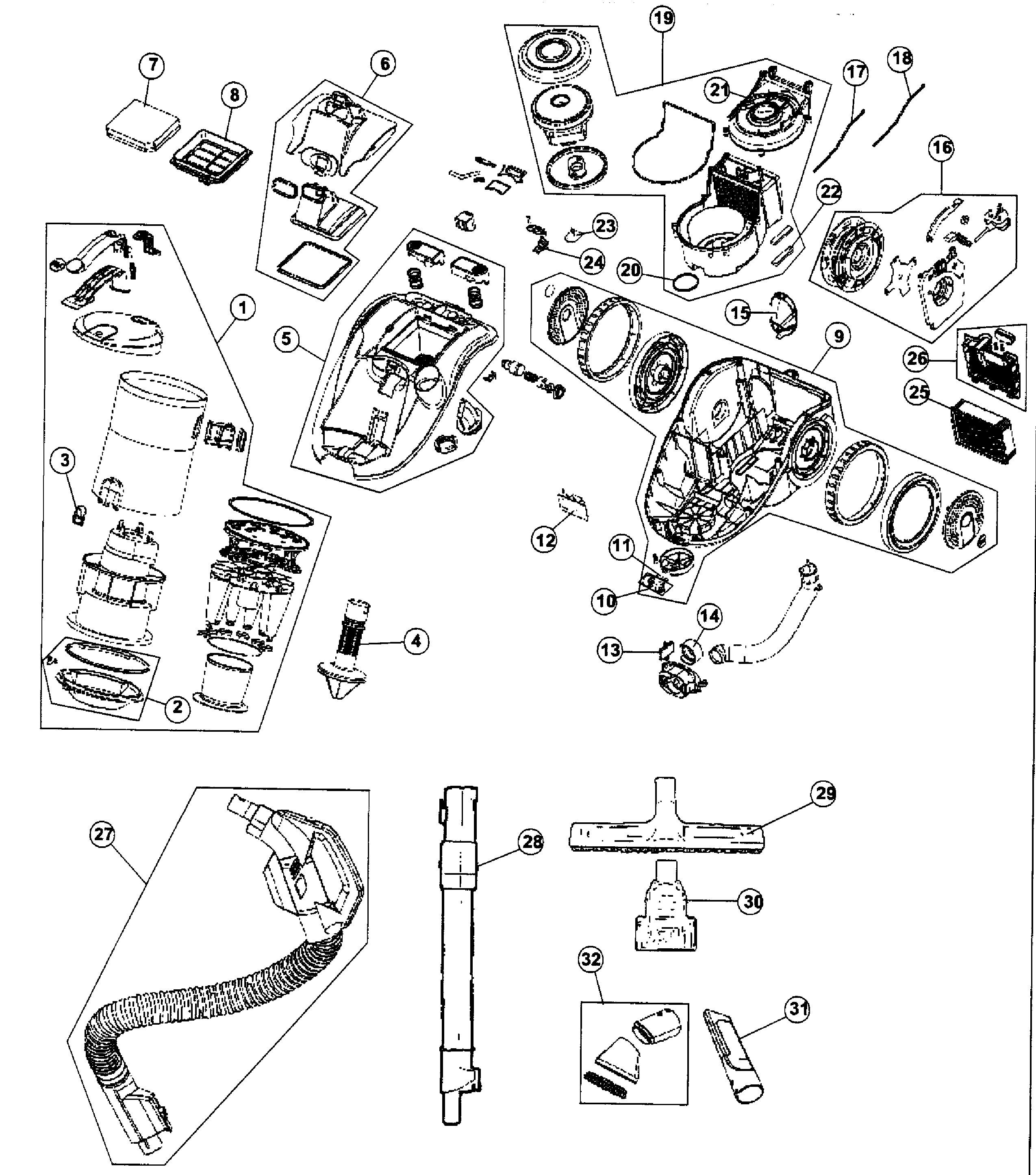

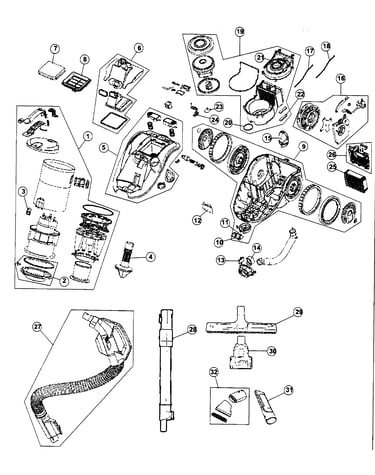

Main body diagram

Vacuum motor safety filter

Part #303090001

The manufacturer no longer makes this part, and there's no substitute part

Filter Cover 001695002
#26

Main body diagram

Filter cover

Part #001695002

The manufacturer no longer makes this part, and there's no substitute part

Hoover Low Housin 000868018
#9

Main body diagram

Hoover low housin

Part #000868018

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Reel Assembly 302458006
#16

Main body diagram

Vacuum cord reel assembly

Part #302458006

The manufacturer no longer makes this part, and there's no substitute part

Wire Set-w 290970001
#18

Main body diagram

Wire set-w

Part #290970001

The manufacturer no longer makes this part, and there's no substitute part

Telescoping Wand 303016001
#28

Main body diagram

Telescoping wand

Part #303016001

The manufacturer no longer makes this part, and there's no substitute part

Release Spring 672893001
#5

Base assy diagram

Release spring

Part #672893001

The manufacturer no longer makes this part, and there's no substitute part

Wheel Axle 620823001
#11

Main body diagram

Wheel axle

Part #620823001

The manufacturer no longer makes this part, and there's no substitute part

In Gasket 562077001
#14

Main body diagram

In gasket

Part #562077001

The manufacturer no longer makes this part, and there's no substitute part
