Gas Walk-Behind Mower

Model # 917374290 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374290 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Lawn Mower Blade Adapter 851514
#57

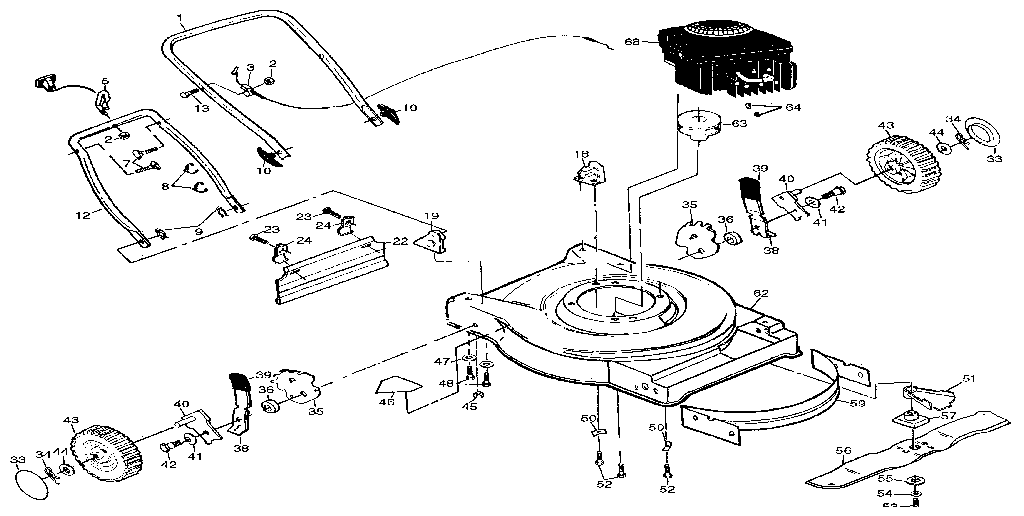

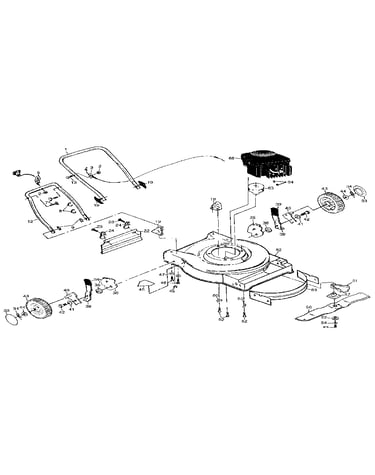

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Walk-behind Lawn Mower Selector Knob 87877
Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Spring 850855X004
#38

Main frame diagram

Spring

Part #850855X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 850855X004. Substitute parts can look different from the original.
$8.54
In Stock
Handle Knob 63688
#10

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Tapping Screw 750097
Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Lawn & Garden Equipment Bearing 77881
#7

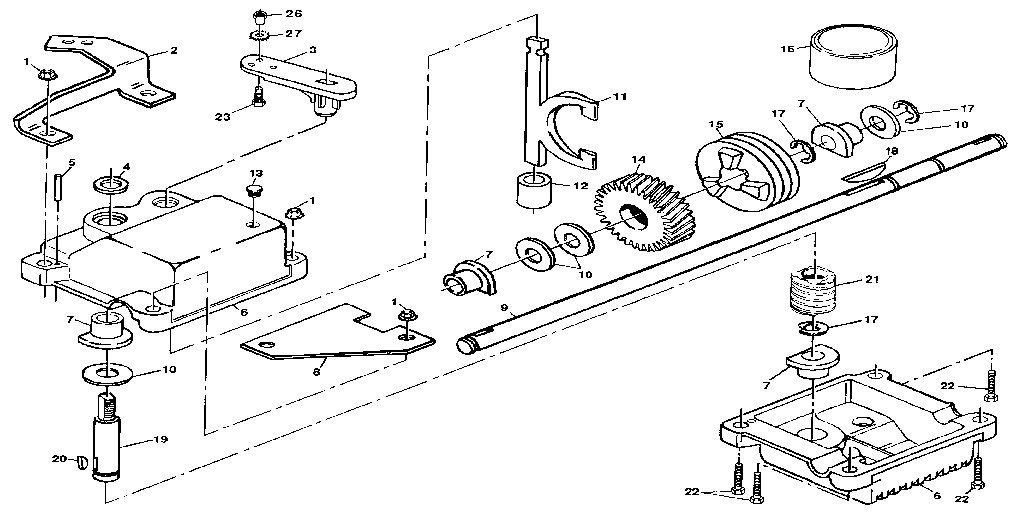

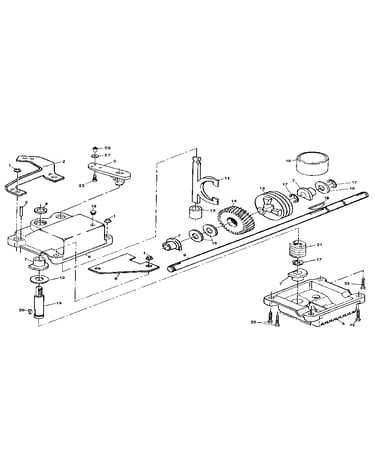

Gear case assembly part number 132232 diagram

Lawn & garden equipment bearing

Part #77881

Replaced by #532077881

?
Manufacturer substitution
This part replaces 77881. Substitute parts can look different from the original.
$33.31
In Stock
Blade 752234
#56

Main frame diagram

Blade

Part #752234

The manufacturer no longer makes this part, and there's no substitute part

Pipe Fitting 132010
#36

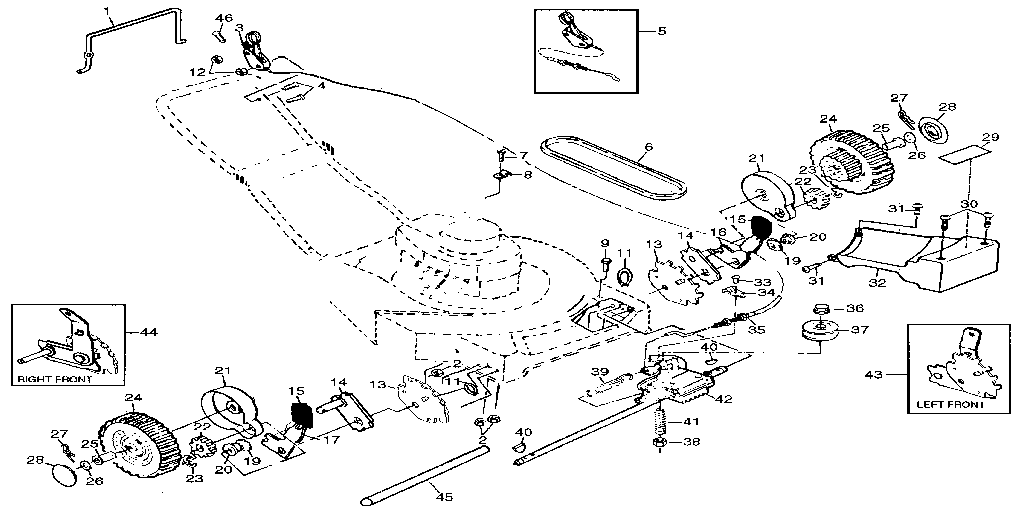

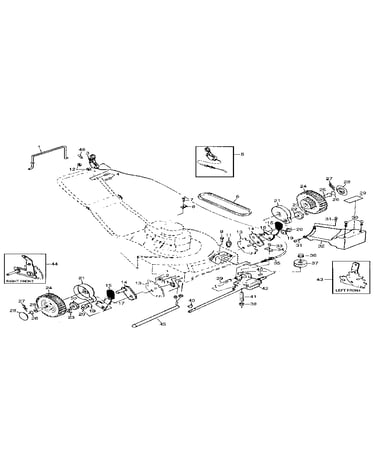

Drive assembly diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Drive Cover 137088
#32

Drive assembly diagram

Lawn mower drive cover

Part #137088

Replaced by #582952501

?
Manufacturer substitution
This part replaces 137088. Substitute parts can look different from the original.
$20.54
In Stock
Lawn Mower Transmission Axle 750430
#9

Gear case assembly part number 132232 diagram

Lawn mower transmission axle

Part #750430

Replaced by #532750430

?
Manufacturer substitution
This part replaces 750430. Substitute parts can look different from the original.
$66.64
In Stock
