Model # 80628545 Official Lifestyler exercise cycle

Here are the diagrams and repair parts for Official Lifestyler 80628545 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

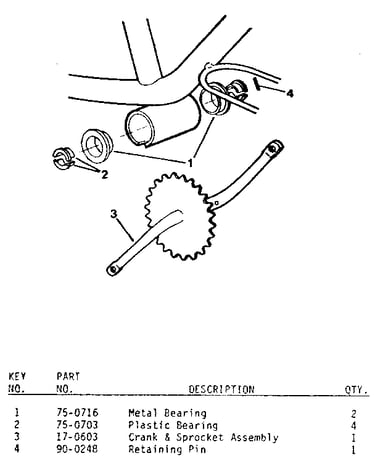

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Chain 42 90-0025
#10B

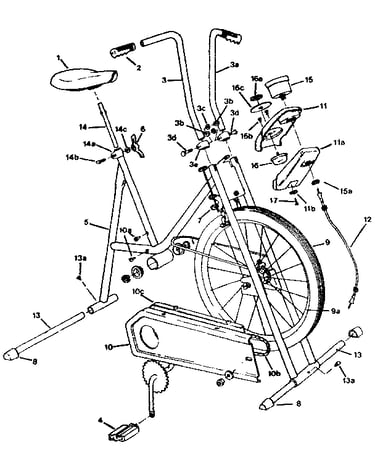

Frame assembly diagram

Chain 42

Part #90-0025

The manufacturer no longer makes this part, and there's no substitute part

Bolt HH-4901
Bolt

Part #HH-4901

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob HH-0259B
#16A

Frame assembly diagram

Timer knob

Part #HH-0259B

The manufacturer no longer makes this part, and there's no substitute part

Spdmtr Cable PP-7467
#12

Frame assembly diagram

Spdmtr cable

Part #PP-7467

The manufacturer no longer makes this part, and there's no substitute part

Pan Hd Screw HH-0259C
#16B

Frame assembly diagram

Pan hd screw

Part #HH-0259C

The manufacturer no longer makes this part, and there's no substitute part

Clpr/tnsn PP-6690
#7

Frame assembly diagram

Clpr/tnsn

Part #PP-6690

The manufacturer no longer makes this part, and there's no substitute part

Speedermeter PP-7466
#15

Frame assembly diagram

Speedermeter

Part #PP-7466

The manufacturer no longer makes this part, and there's no substitute part

Mntg Bolt HH-0764
#10A

Frame assembly diagram

Mntg bolt

Part #HH-0764

The manufacturer no longer makes this part, and there's no substitute part

Handlebar Rh 17-0534
#3

Frame assembly diagram

Handlebar rh

Part #17-0534

The manufacturer no longer makes this part, and there's no substitute part

Washer HH-1027
#5

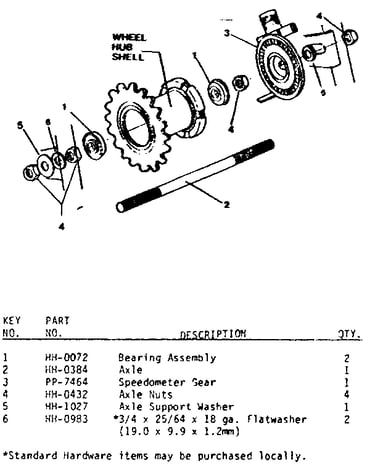

Front hub assembly diagram

Washer

Part #HH-1027

The manufacturer no longer makes this part, and there's no substitute part
