Model # GDPH4515AF0A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire GDPH4515AF0A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

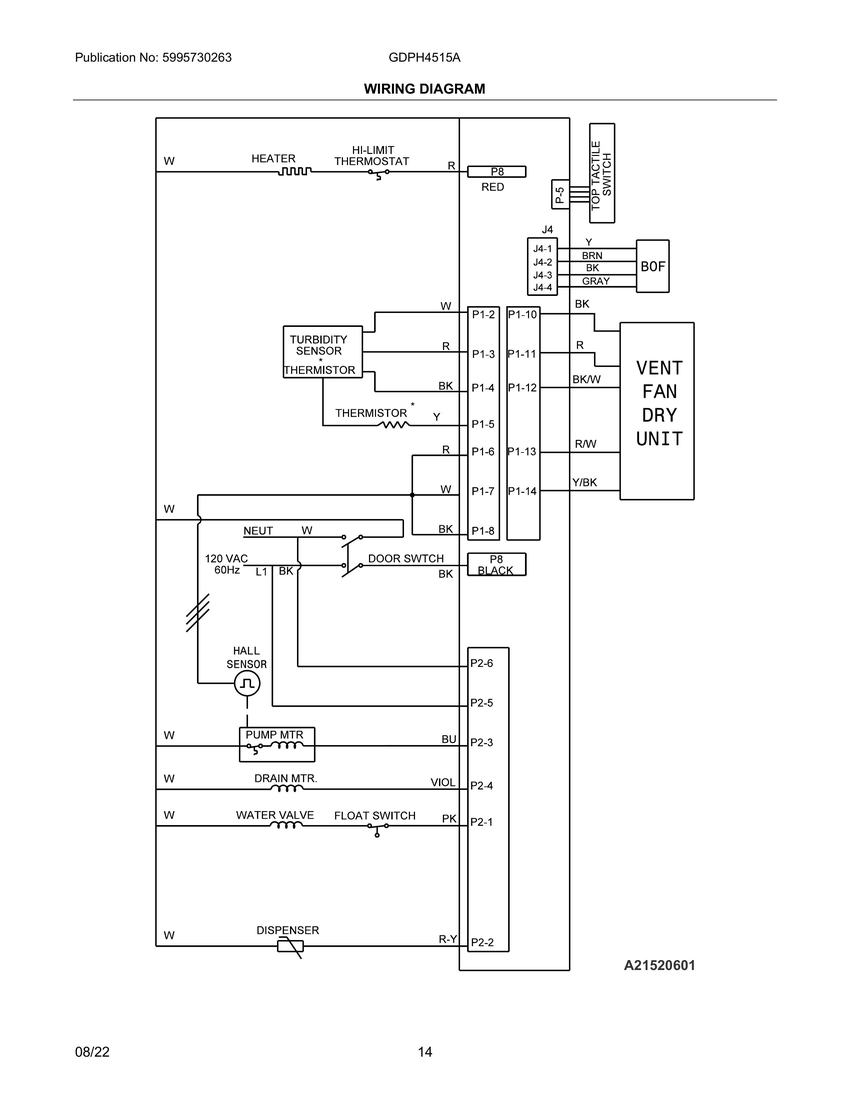

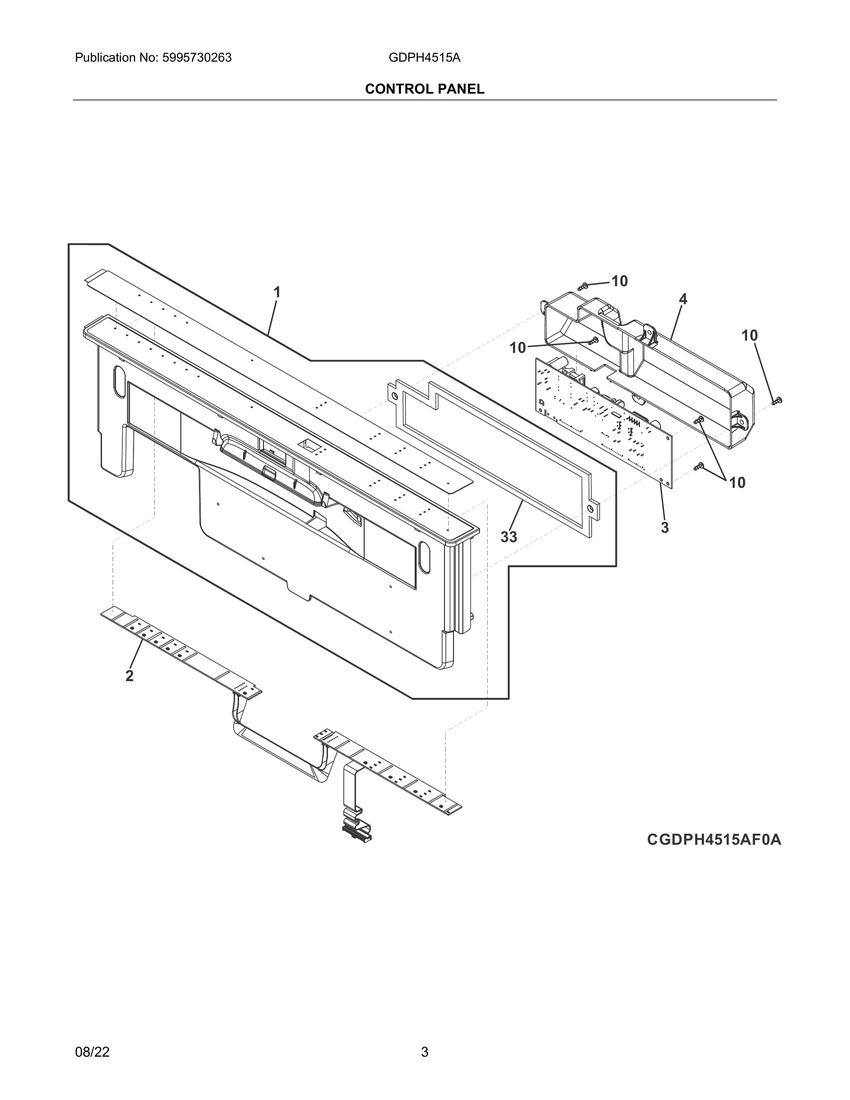

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Frigidaire Dishwasher Door Seal (replaces 154845301) 154827601
#3

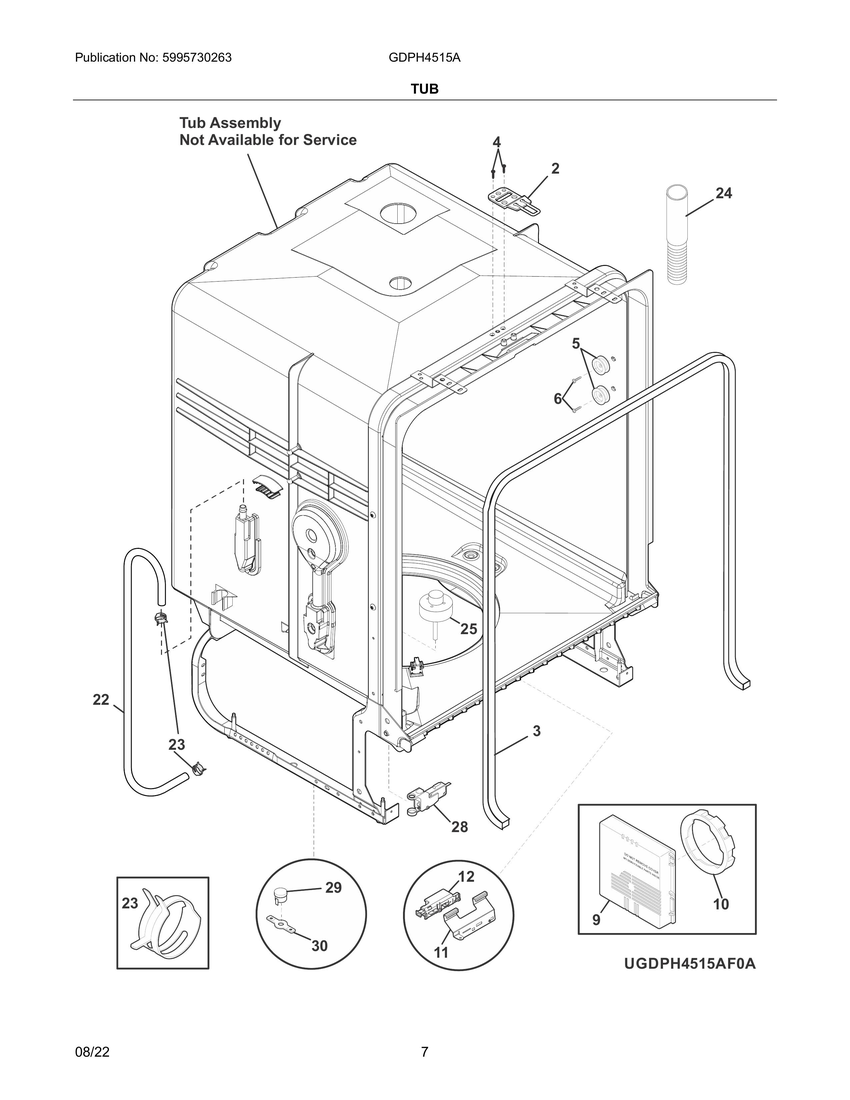

Tub diagram

Frigidaire dishwasher door seal (replaces 154845301)

Part #154827601

BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Dishwasher Door Latch (replaces 5304516818) 5304525218
#12

Door diagram

Dishwasher door latch (replaces 5304516818)

Part #5304525218

BEST SELLER
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Crosley Dishwasher Water Inlet Valve (replaces 5304521660) 5304525044
#3

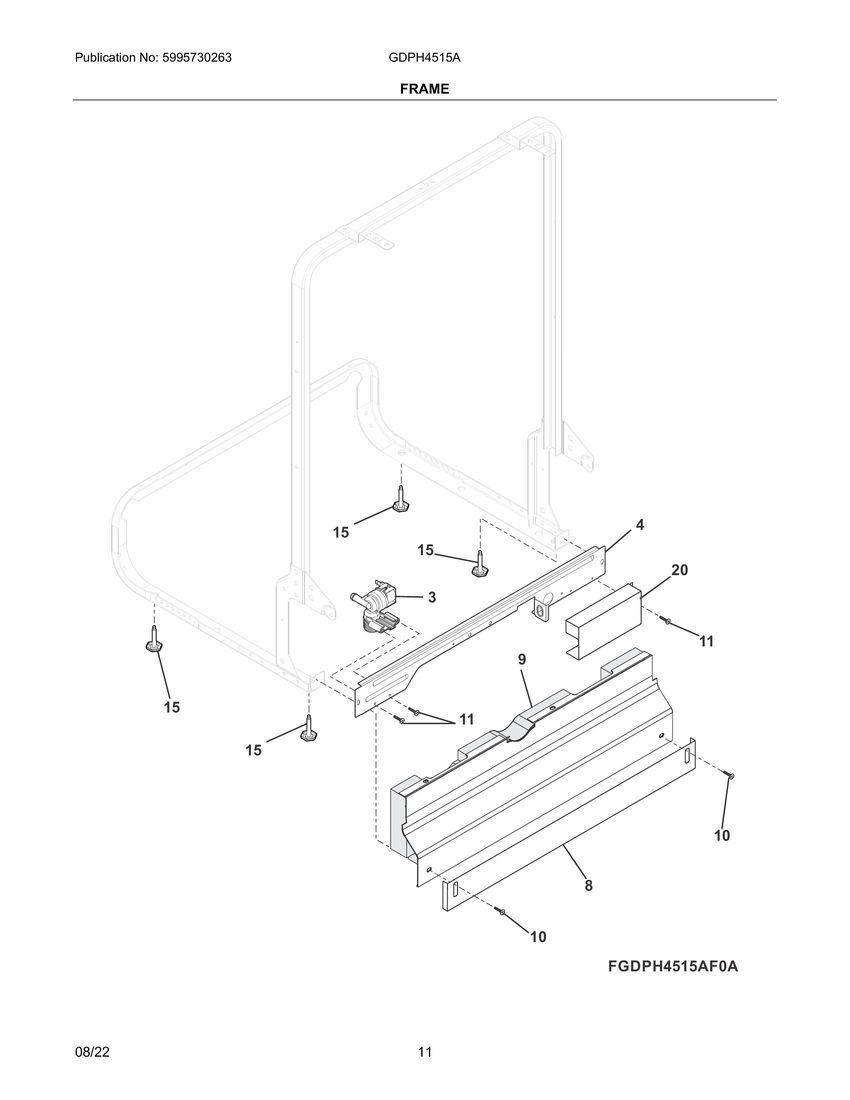

Frame diagram

Crosley dishwasher water inlet valve (replaces 5304521660)

Part #5304525044

BEST SELLER
$28.86 |
17% OFF Phone Price : $34.86
In Stock
Dishwasher Drain Hose (replaces 154753201) 807117001
#24

Tub diagram

Dishwasher drain hose (replaces 154753201)

Part #807117001

BEST SELLER
$30.73 |
16% OFF Phone Price : $36.73
In Stock
Crosley Dishwasher Dishrack Roller, Lower (replaces 5300809640, 5304521179) 5304532229
#7

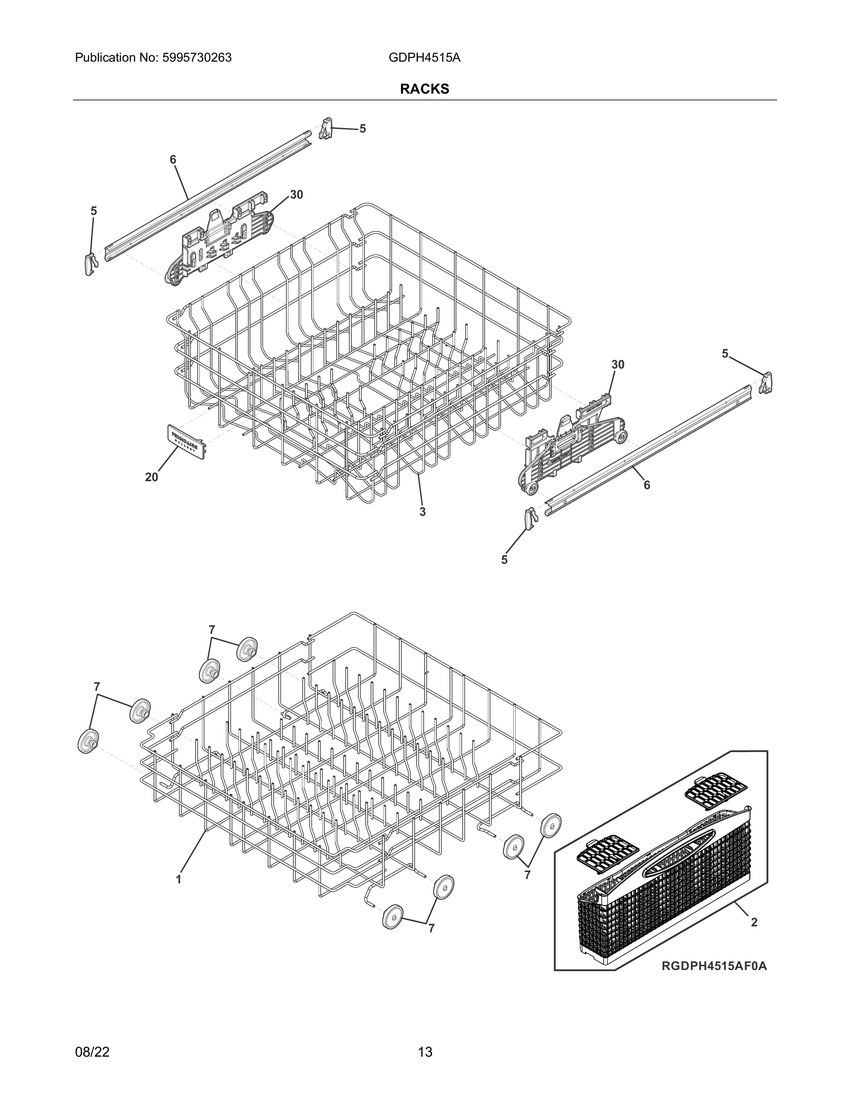

Racks diagram

Crosley dishwasher dishrack roller, lower (replaces 5300809640, 5304521179)

Part #5304532229

BEST SELLER
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Dishwasher Door Cable 154578801
#1A

Door diagram

Dishwasher door cable

Part #154578801

Replaced by #154756401

?
Manufacturer substitution
This part replaces 154578801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.66
In Stock
Dishwasher Pump Motor Bracket (replaces 154362301) 154595901
#55

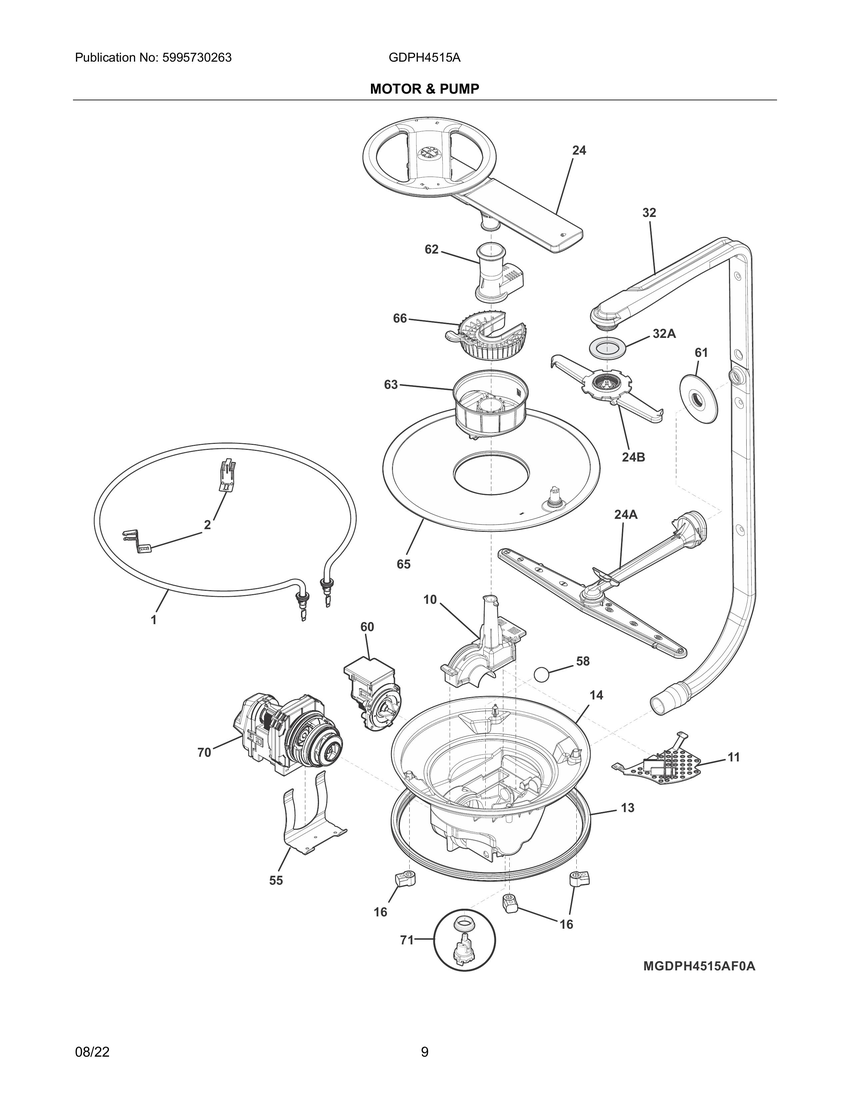

Motor & pump diagram

Dishwasher pump motor bracket (replaces 154362301)

Part #154595901

Replaced by #5304534830

?
Manufacturer substitution
This part replaces 154595901. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.34
In Stock
Dishwasher Vent Assembly (replaces 154861101) 5304523304
#9

Tub diagram

Dishwasher vent assembly (replaces 154861101)

Part #5304523304

BEST SELLER
$92.92 |
6% OFF Phone Price : $98.92
In Stock
Dishwasher Door Spring 154579101
#1

Door diagram

Dishwasher door spring

Part #154579101

BEST SELLER
$29.29 |
17% OFF Phone Price : $35.29
In Stock
Dishwasher Heating Element Nut (replaces 154106201, 5303351029) 154106202
#NI

Motor & pump diagram

Dishwasher heating element nut (replaces 154106201, 5303351029)

Part #154106202

BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
