Model # 29256 Official Craftsman cultivator

Here are the diagrams and repair parts for Official Craftsman 29256 cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Yard Machines Muffler 791-182174
#42

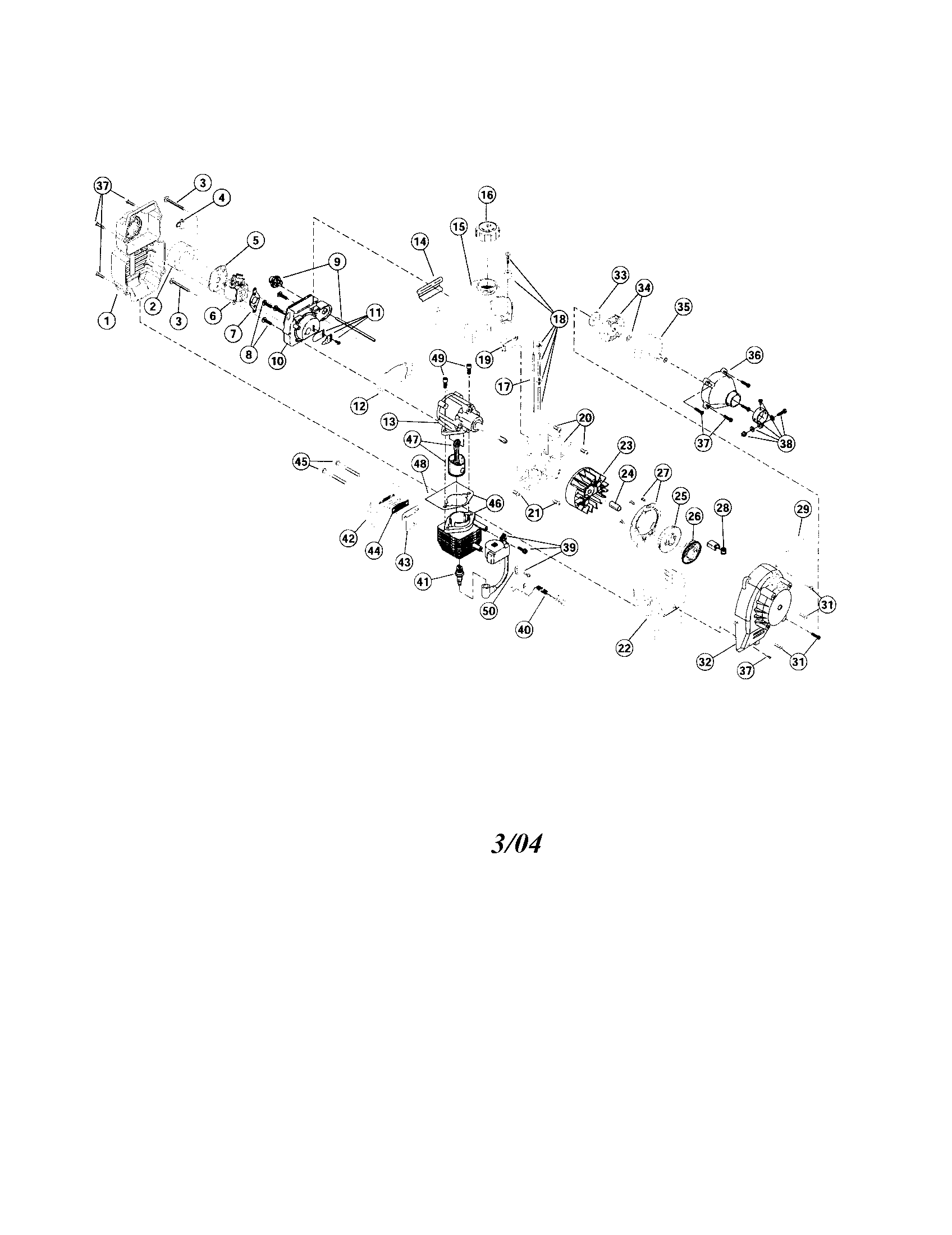

Engine parts diagram

Yard machines muffler

Part #791-182174

$107.72
In Stock
Yard-man Grip 791-181575
#16

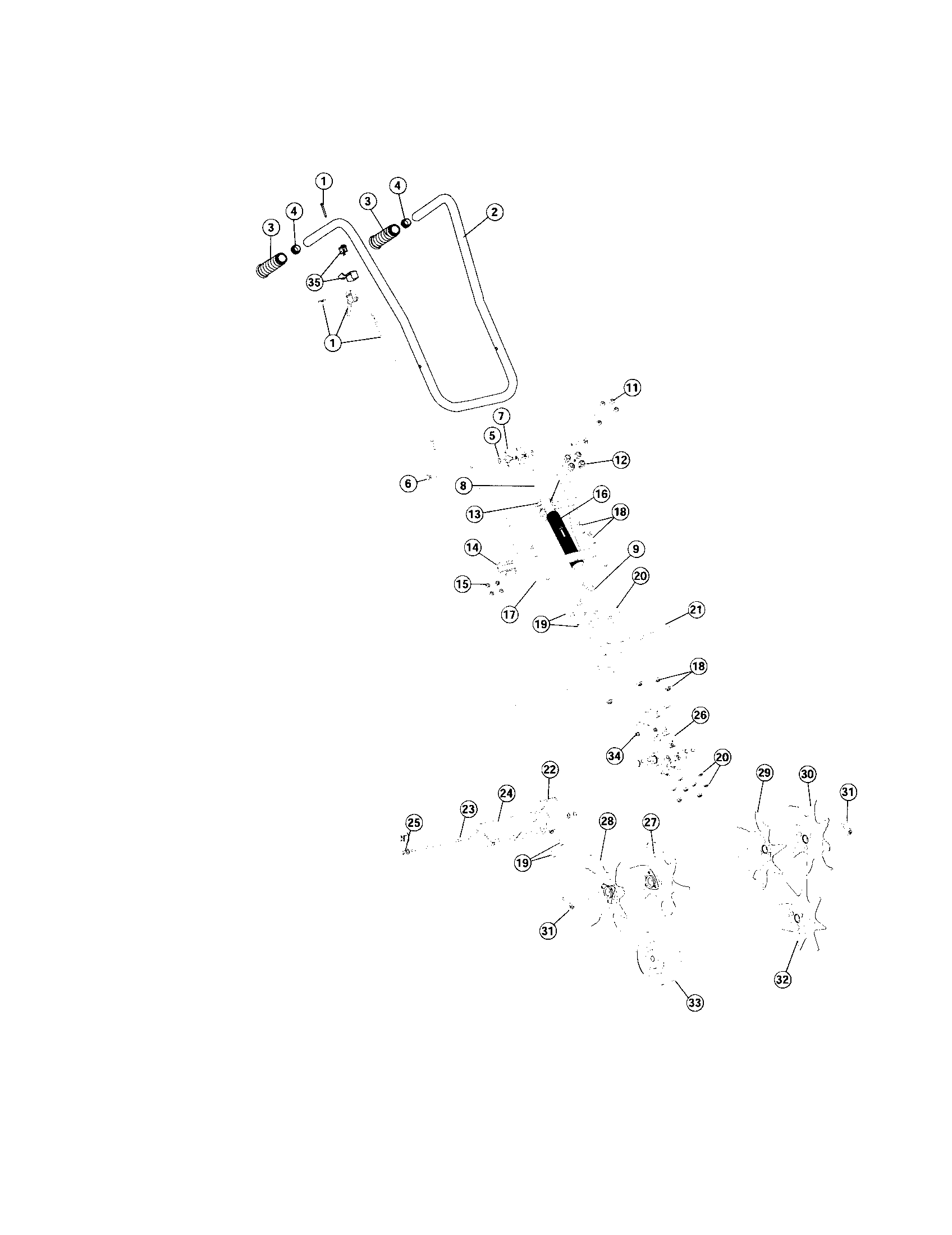

Cultivator and boom diagram

Yard-man grip

Part #791-181575

$26.82
In Stock
Lawn & Garden Equipment Washer 791-182678
#5

Cultivator and boom diagram

Lawn & garden equipment washer

Part #791-182678

Replaced by #4150

?
Manufacturer substitution
This part replaces 791-182678. Substitute parts can look different from the original.
This item is not returnable
$5.20
In Stock
3 Prong Knob 791-182898
#7

Cultivator and boom diagram

3 prong knob

Part #791-182898

Replaced by #791-182677

?
Manufacturer substitution
This part replaces 791-182898. Substitute parts can look different from the original.
This item is not returnable
$24.66
In Stock
Shroud Extension 791-182064
#22

Engine parts diagram

Shroud extension

Part #791-182064

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor Mounting Bracket 753-1196
#10

Engine parts diagram

Lawn & garden equipment engine carburetor mounting bracket

Part #753-1196

The manufacturer no longer makes this part, and there's no substitute part

Piston Rod 753-04367
#47

Engine parts diagram

Piston rod

Part #753-04367

The manufacturer no longer makes this part, and there's no substitute part

Bolt 791-182723
#49

Engine parts diagram

Bolt

Part #791-182723

The manufacturer no longer makes this part, and there's no substitute part

2 Cycl Oil 791-147543

#NI05

All parts diagram

2 cycl oil

Part #791-147543

The manufacturer no longer makes this part, and there's no substitute part

Shroud Assembly 791-683065
#20

Engine parts diagram

Shroud assembly

Part #791-683065

The manufacturer no longer makes this part, and there's no substitute part
