Model # D4CE060A06 Official York central air conditioner

Here are the diagrams and repair parts for Official York D4CE060A06 central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Capacitor 024-21060-000

#7

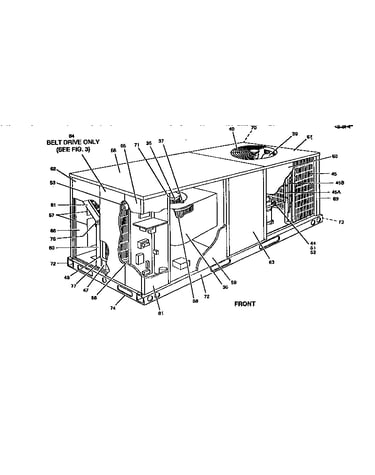

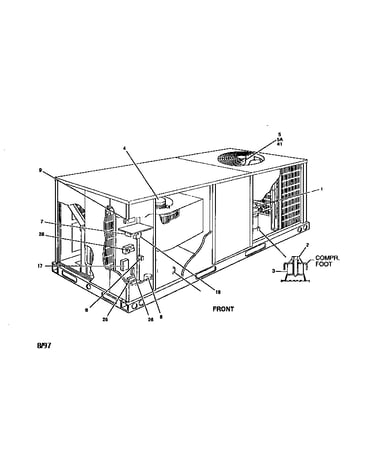

All parts diagram

Capacitor

Part #024-21060-000

Replaced by #12910

?
Manufacturer substitution
This part replaces 024-21060-000. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Belt 028-09573-000
#7

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Header, Discharge 373-18961-050

#45A

All parts diagram

Header, discharge

Part #373-18961-050

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical (cont) Electric Heater (480v) 10.1kw (460-3-60) 2CE04501046

#NI

All parts diagram

Accessories - electrical (cont) electric heater (480v) 10.1kw (460-3-60)

Part #2CE04501046

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Electric Heater (240v) 29.6kw (208/230-1-60) 2CE04503006

#NI

All parts diagram

Accessories - electrical electric heater (240v) 29.6kw (208/230-1-60)

Part #2CE04503006

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 373-03096-000

#63

All parts diagram

Access panel

Part #373-03096-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Electric Heater (240v) 15.9kw (208/230-1-60) 2CE04501506

#NI

All parts diagram

Accessories - electrical electric heater (240v) 15.9kw (208/230-1-60)

Part #2CE04501506

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Electric Heater (240v) 10.6kw (208-230-3-60) 2CE04501025

#NI

All parts diagram

Accessories - electrical electric heater (240v) 10.6kw (208-230-3-60)

Part #2CE04501025

The manufacturer no longer makes this part, and there's no substitute part

Coil Evaporator (includes Header And Distributor Valve Assembly. On Belt Drive Units, Use Presstite Or Reuse Protective Sleeving From Original Coil On Distributor Tubes) 373-18953-001

#47

All parts diagram

Coil evaporator (includes header and distributor valve assembly. on belt drive units, use presstite or reuse protective sleeving from original coil on distributor tubes)

Part #373-18953-001

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical (cont) Electric Heater (600v) 30.4kw (575-3-60) 2CE04503058

#NI

All parts diagram

Accessories - electrical (cont) electric heater (600v) 30.4kw (575-3-60)

Part #2CE04503058

The manufacturer no longer makes this part, and there's no substitute part
