Frigidaire
Dishwasher

Model # FFCD2418UW4A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FFCD2418UW4A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

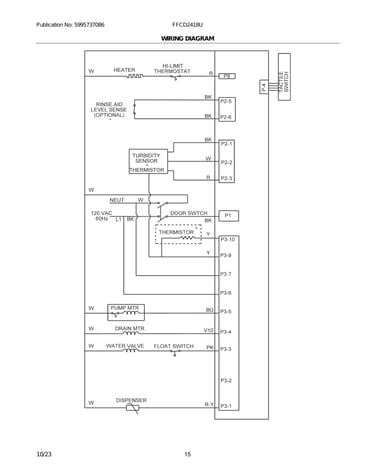

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Frigidaire Dishwasher Door Seal (replaces 154845301) 154827601
#3

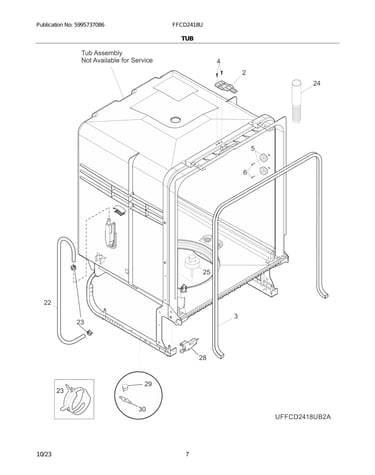

Tub diagram

Frigidaire dishwasher door seal (replaces 154845301)

Part #154827601

BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Frigidaire Dishwasher Spray Arm, Lower (replaces 154568001, 154568002, 5304506526) 5304517203
#24

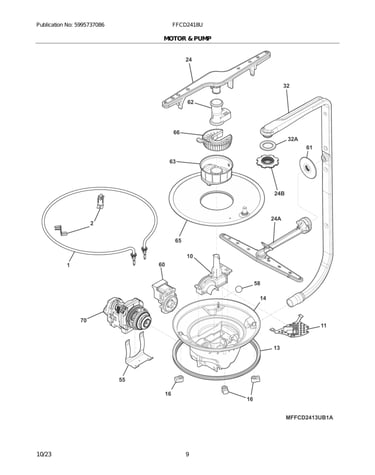

Motor & pump diagram

Frigidaire dishwasher spray arm, lower (replaces 154568001, 154568002, 5304506526)

Part #5304517203

BEST SELLER
$40.17 |
13% OFF Phone Price : $46.17
In Stock
Dishwasher Door Latch (replaces 5304516818) 5304525218
#12

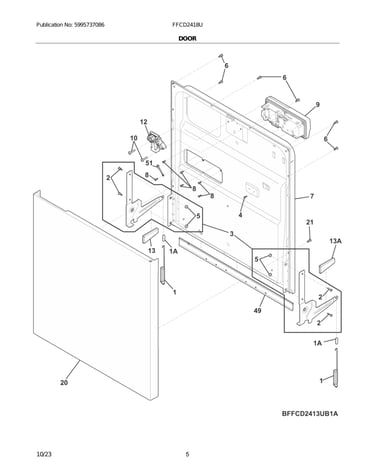

Door diagram

Dishwasher door latch (replaces 5304516818)

Part #5304525218

BEST SELLER
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Dishwasher Lower Spray Arm Support (replaces 5304506515) 5304518968
#62

Motor & pump diagram

Dishwasher lower spray arm support (replaces 5304506515)

Part #5304518968

BEST SELLER
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Dishwasher Door Bottom Seal 5304500204
#49

Door diagram

Dishwasher door bottom seal

Part #5304500204

BEST SELLER
$27.18 |
18% OFF Phone Price : $33.18
In Stock
Crosley Dishwasher Water Inlet Valve (replaces 5304521660) 5304525044
#3

Frame diagram

Crosley dishwasher water inlet valve (replaces 5304521660)

Part #5304525044

BEST SELLER
$28.86 |
17% OFF Phone Price : $34.86
In Stock
Dishwasher Drain Hose (replaces 154753201) 807117001
#24

Tub diagram

Dishwasher drain hose (replaces 154753201)

Part #807117001

BEST SELLER
$30.73 |
16% OFF Phone Price : $36.73
In Stock
Dishwasher Detergent Dispenser Assembly (replaces 154379202, 154860102) 5304506521
#9

Door diagram

Dishwasher detergent dispenser assembly (replaces 154379202, 154860102)

Part #5304506521

BEST SELLER
$58.78 |
9% OFF Phone Price : $64.78
In Stock
Crosley Dishwasher Dishrack Roller, Lower (replaces 5300809640, 5304521179) 5304532229
#7

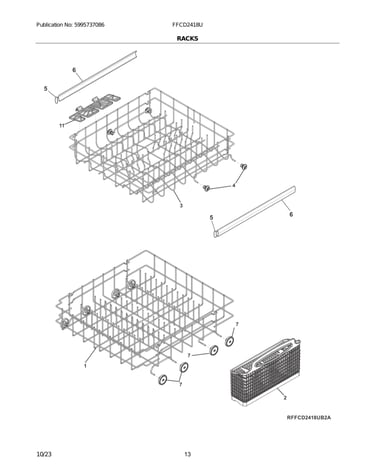

Racks diagram

Crosley dishwasher dishrack roller, lower (replaces 5300809640, 5304521179)

Part #5304532229

BEST SELLER
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Dishwasher Spray Arm Assembly (replaces 5304498136) 5304506740
#24A

Motor & pump diagram

Dishwasher spray arm assembly (replaces 5304498136)

Part #5304506740

BEST SELLER
$36.71 |
14% OFF Phone Price : $42.71
In Stock
