Model # AJCH08ACBM2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCH08ACBM2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Room Air Conditioner Control Knob WJ12X10072
#1086

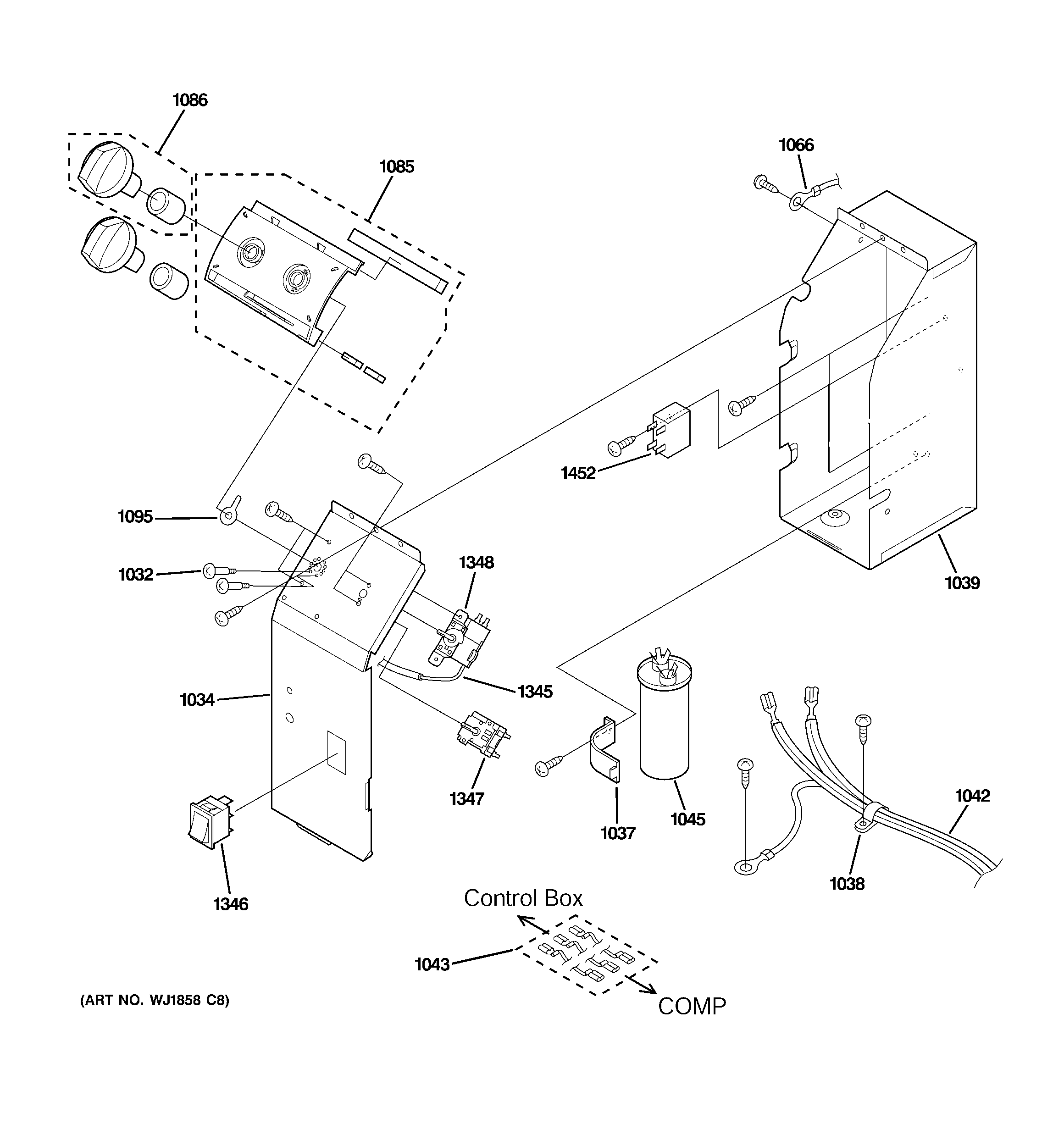

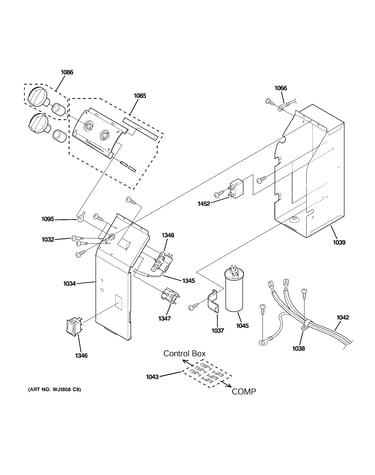

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Complete Cushion WJ01X10002
#1084

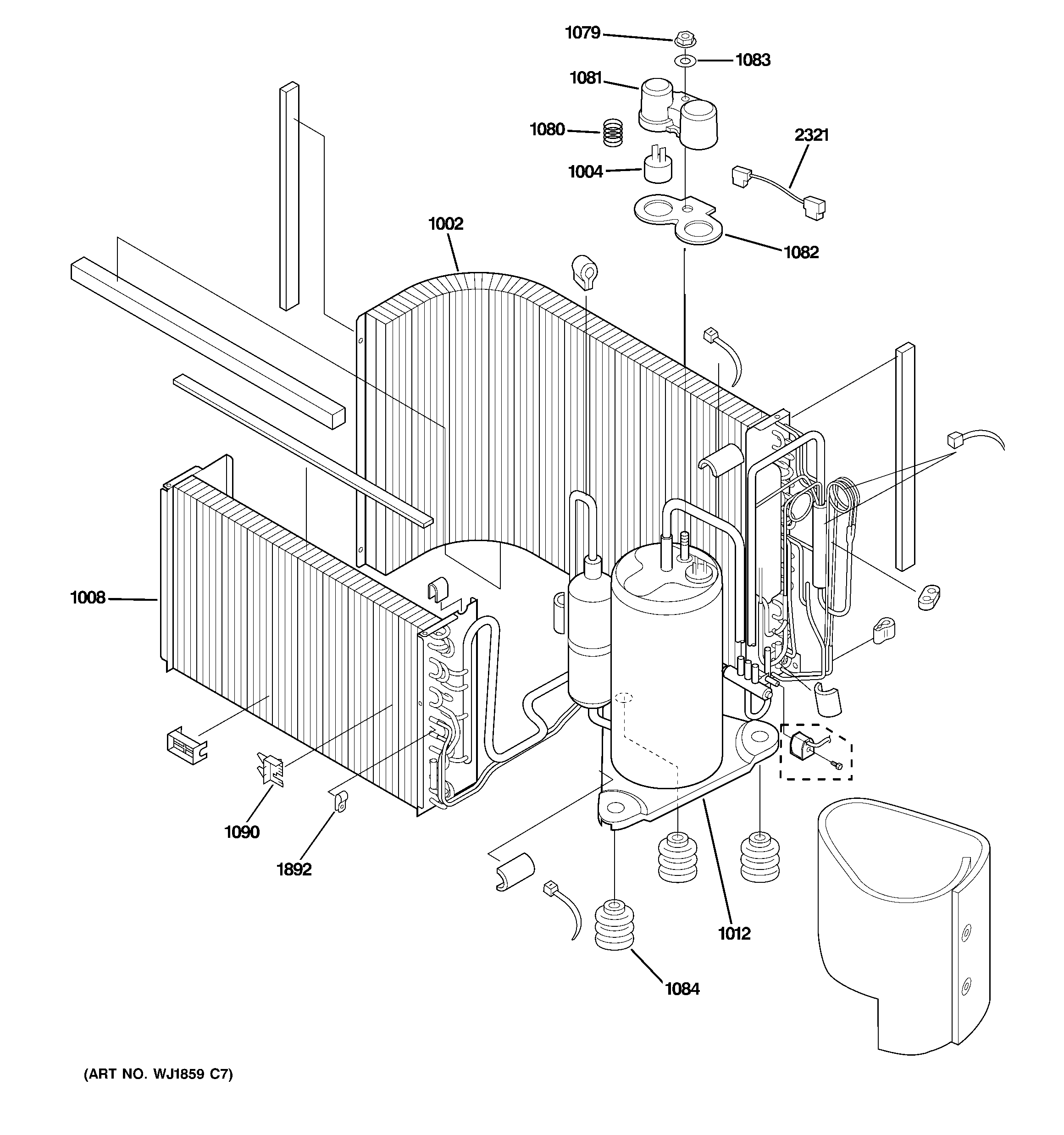

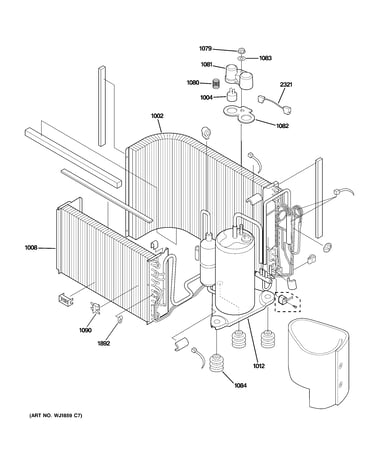

Sealed system & components diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Spacer WB02X11329
#1014

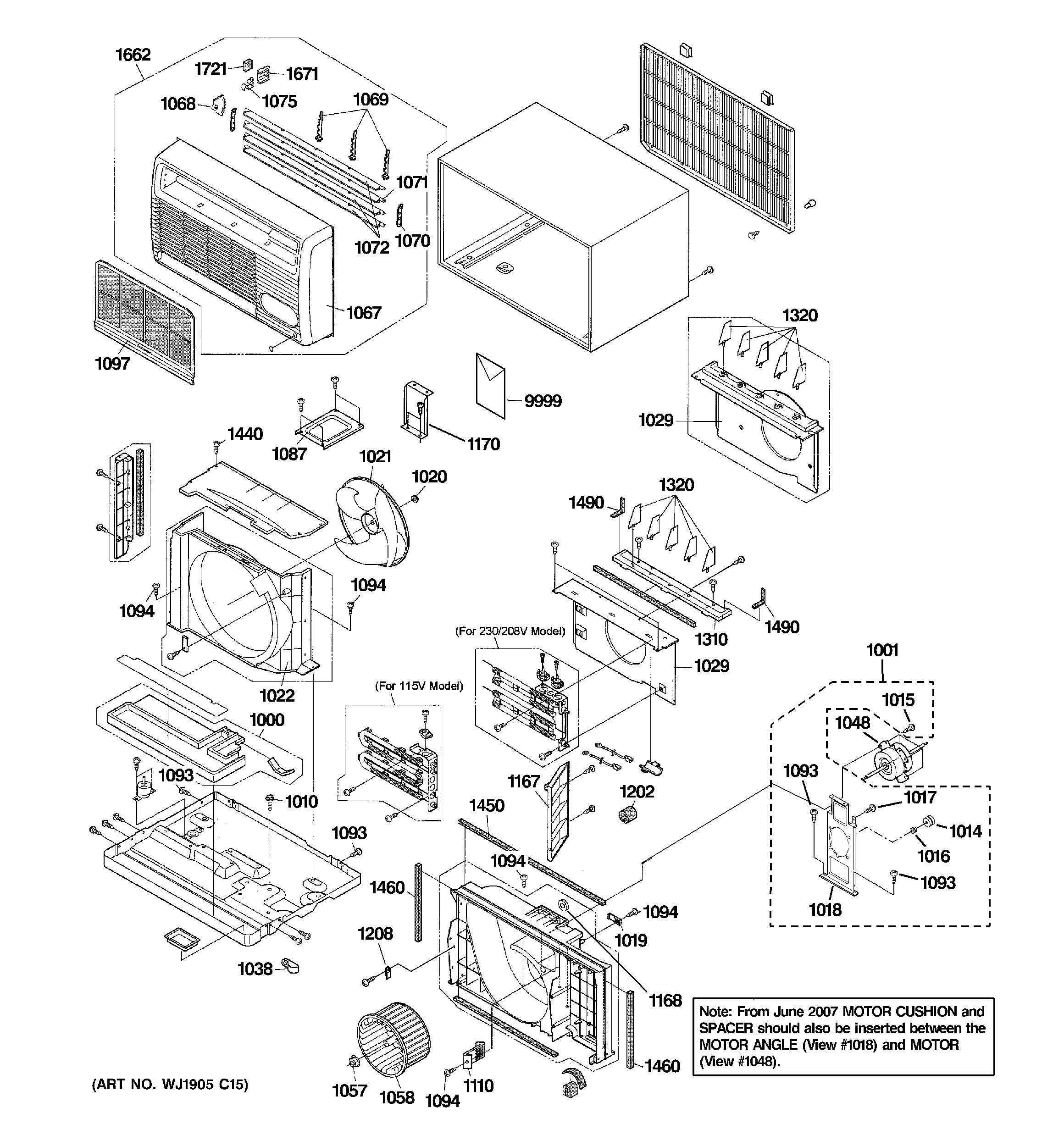

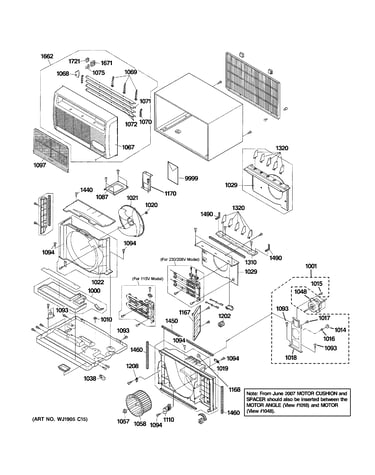

Cabinet & components diagram

Spacer

Part #WB02X11329

This item is not returnable
$2.20
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Om/ii J-mode 49-7542
#9999

Cabinet & components diagram

Om/ii j-mode

Part #49-7542

$17.99
In Stock
Special Nut WP01X10015
#1079

Sealed system & components diagram

Special nut

Part #WP01X10015

This item is not returnable
$4.35
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Gas Terminal WJ43X10003
#1082

Sealed system & components diagram

Gas terminal

Part #WJ43X10003

The manufacturer no longer makes this part, and there's no substitute part

Wire Holder WJ03X10009
#1892

Sealed system & components diagram

Wire holder

Part #WJ03X10009

The manufacturer no longer makes this part, and there's no substitute part

Compressor WJ98X10207
#1012

Sealed system & components diagram

Compressor

Part #WJ98X10207

The manufacturer no longer makes this part, and there's no substitute part
