Bissell
Steam Cleaner

Model # 1653 (1995) Official Bissell power steamer

Here are the diagrams and repair parts for Official Bissell 1653-1995 power steamer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

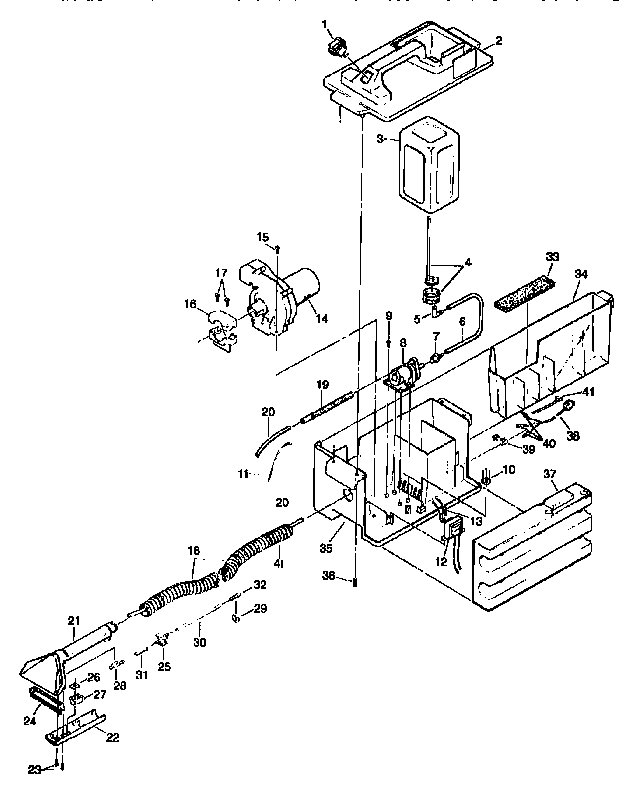

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Connector 010-2652
#40

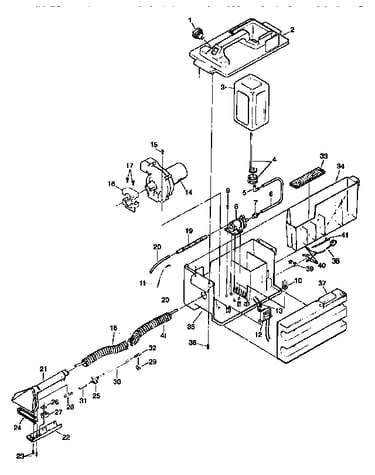

Clean machine diagram

Connector

Part #010-2652

The manufacturer no longer makes this part, and there's no substitute part

Short Tube 603-8459
#31

Clean machine diagram

Short tube

Part #603-8459

The manufacturer no longer makes this part, and there's no substitute part

Collar 603-7391
#16

Clean machine diagram

Collar

Part #603-7391

The manufacturer no longer makes this part, and there's no substitute part

Housing Si 603-3302
#37

Clean machine diagram

Housing si

Part #603-3302

The manufacturer no longer makes this part, and there's no substitute part

Switch 603-8844
#1

Clean machine diagram

Switch

Part #603-8844

The manufacturer no longer makes this part, and there's no substitute part

Connector 603-2605
#32

Clean machine diagram

Connector

Part #603-2605

The manufacturer no longer makes this part, and there's no substitute part

Grip Cover 603-2975
#2

Clean machine diagram

Grip cover

Part #603-2975

The manufacturer no longer makes this part, and there's no substitute part

Screw 880-7031
Screw

Part #880-7031

The manufacturer no longer makes this part, and there's no substitute part

Spray Grip 603-8454
#22

Clean machine diagram

Spray grip

Part #603-8454

The manufacturer no longer makes this part, and there's no substitute part

Motor Scroll 603-7157
#14

Clean machine diagram

Motor scroll

Part #603-7157

The manufacturer no longer makes this part, and there's no substitute part
