Model # 25370124000 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25370124000 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

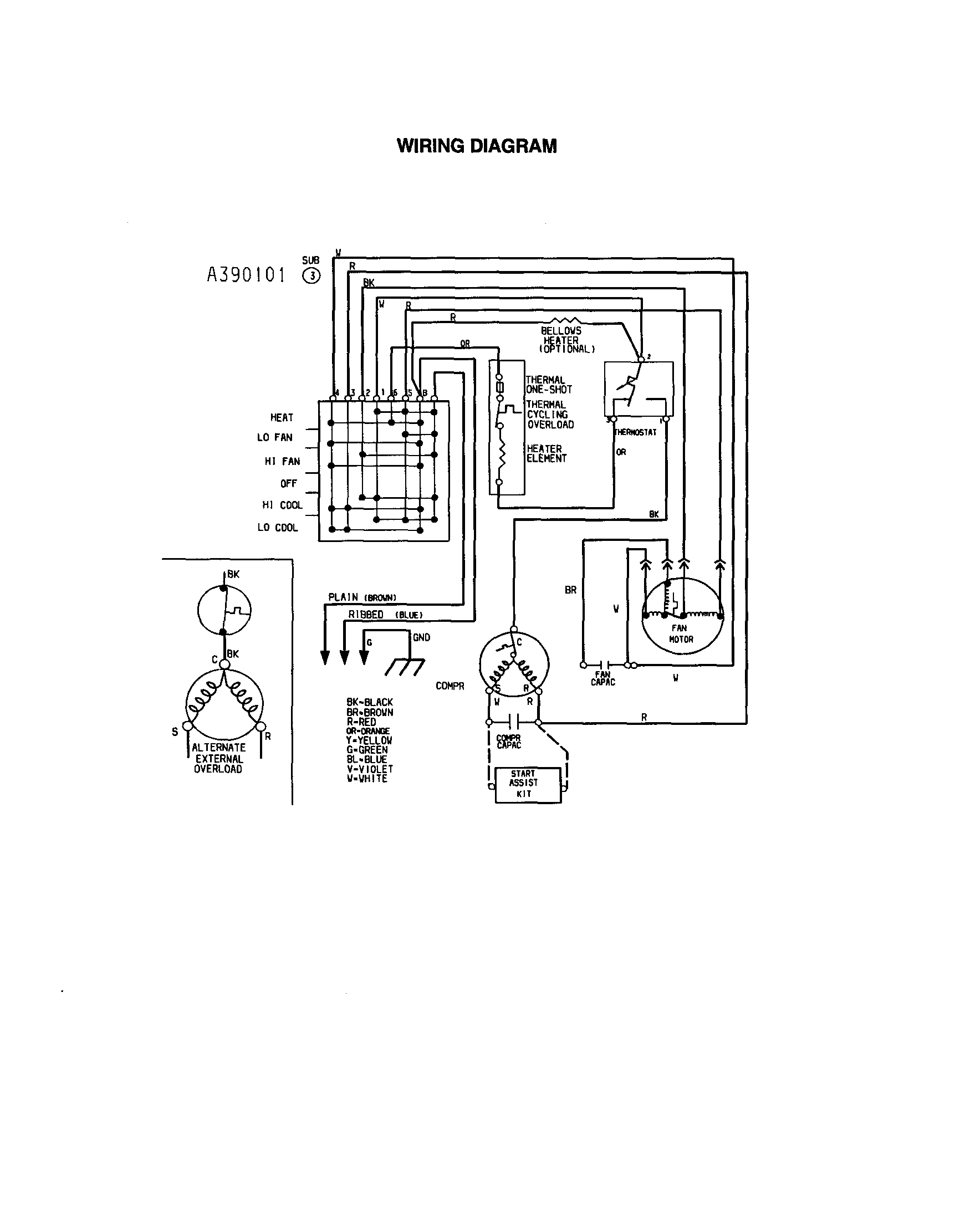

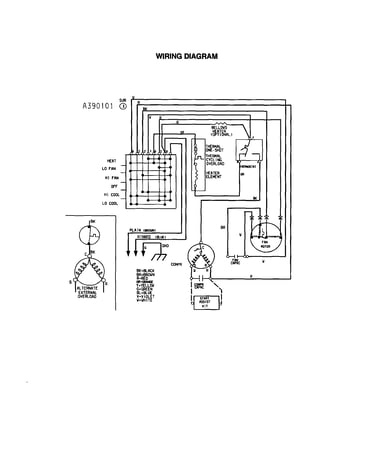

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Westinghouse Screw-wrapper 5303293767
#29

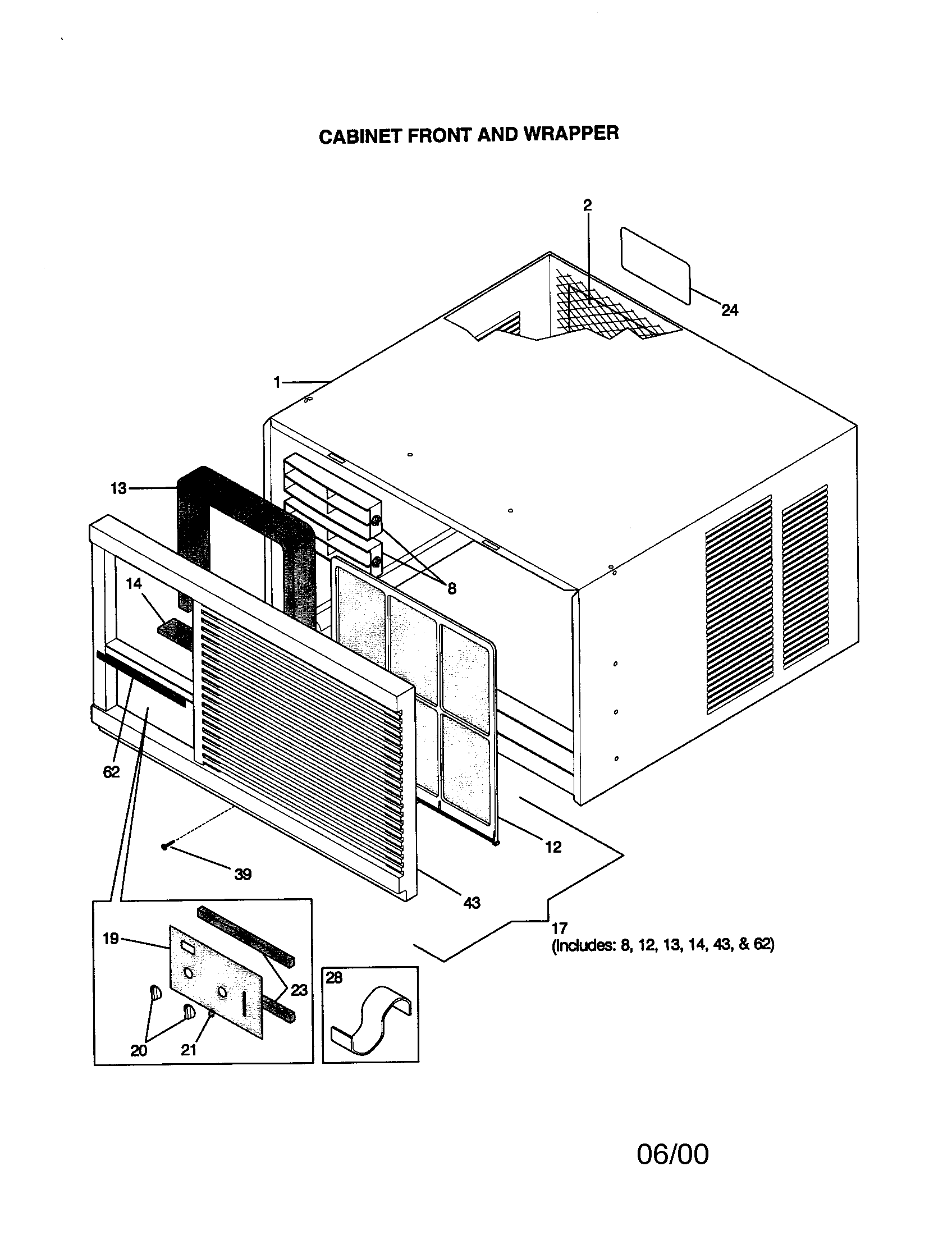

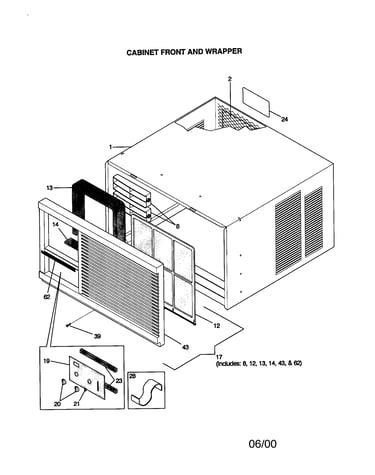

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Dial Switch 5304415177
#21

Cabinet front and wrapper diagram

Dial switch

Part #5304415177

This item is not returnable
$2.16
In Stock
Spacer 5303211009
#12

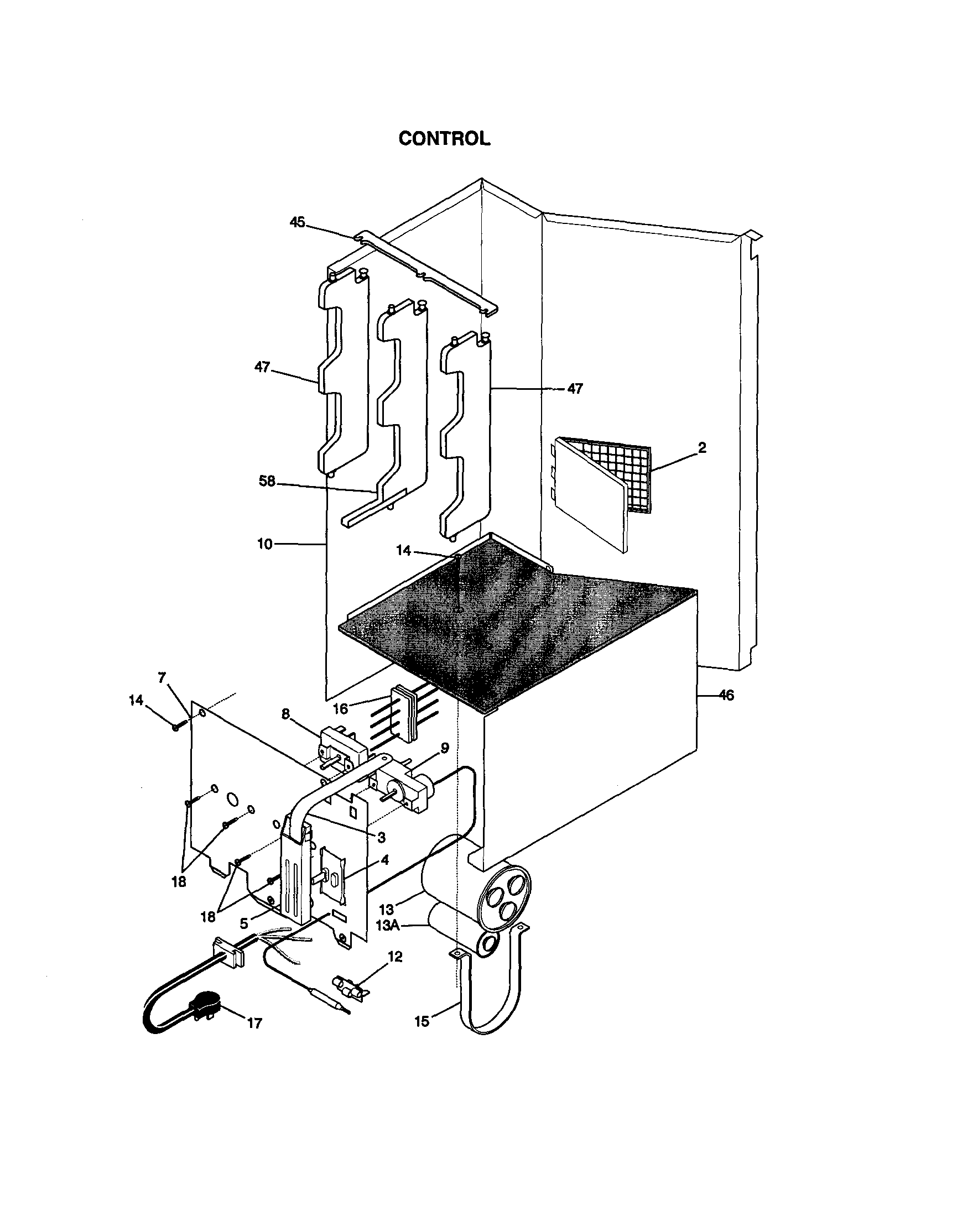

Control diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Foam Strip 5304407729
#1

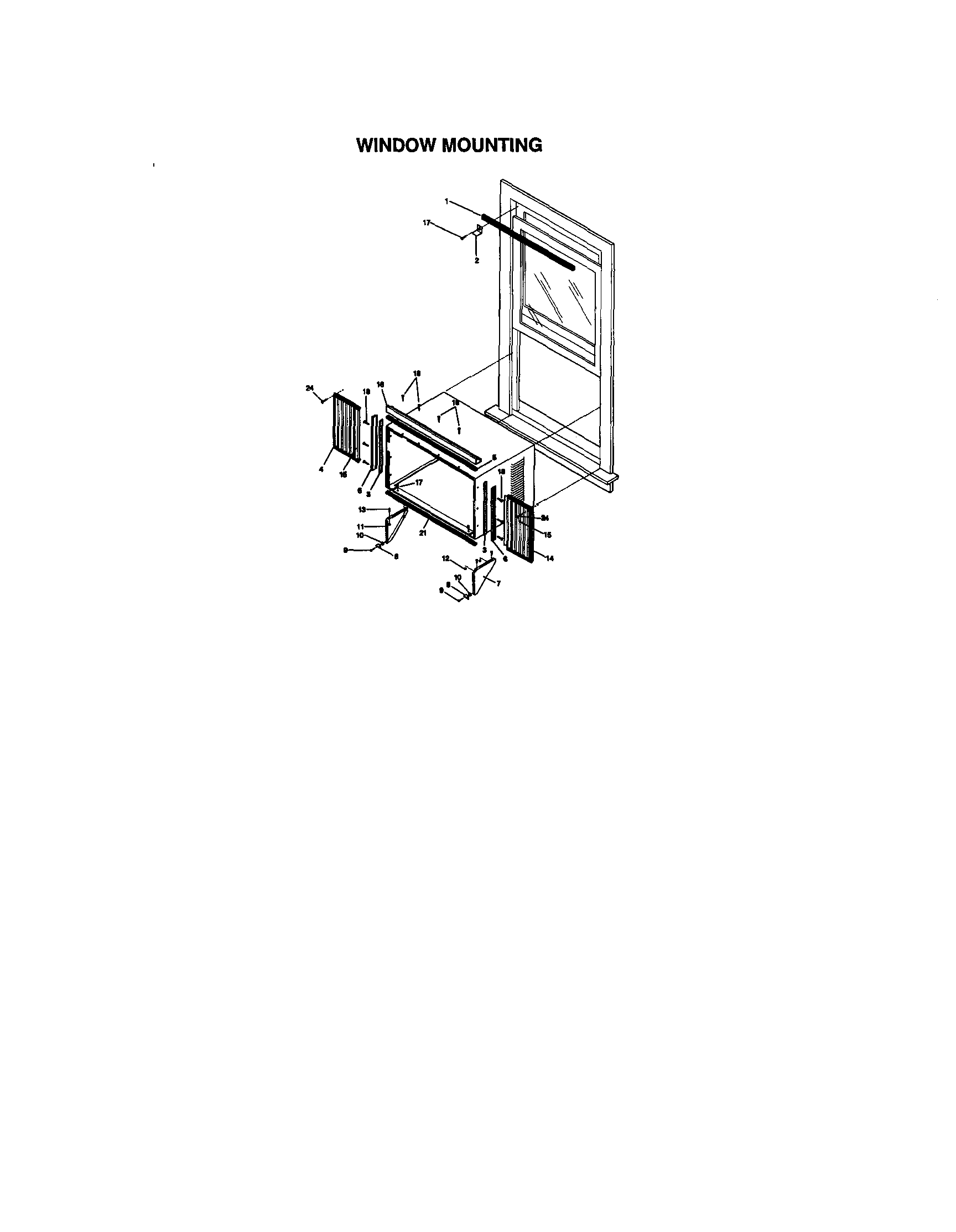

Window mounting diagram

Foam strip

Part #5304407729

$25.17
In Stock
Grille 5304415070
#2

Cabinet front and wrapper diagram

Grille

Part #5304415070

Replaced by #309632805

?
Manufacturer substitution
This part replaces 5304415070. Substitute parts can look different from the original.
$32.70
In Stock
Nut-hex 3017023
#12

Window mounting diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Screw 3202975
#2

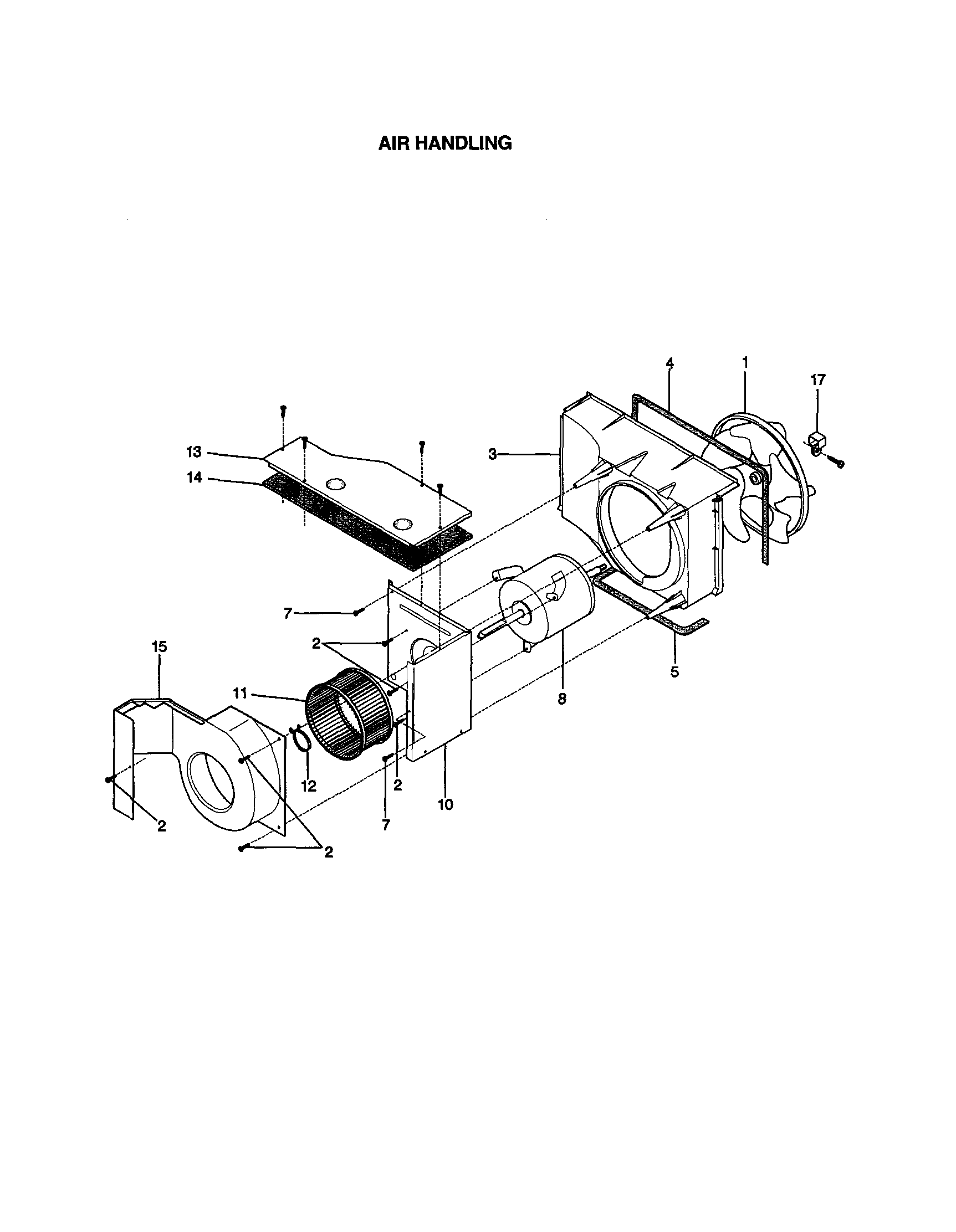

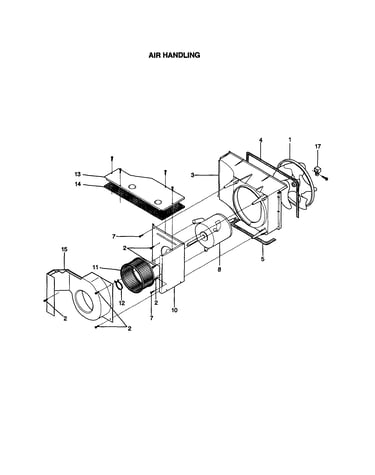

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Room Air Conditioner Compressor Overload Protector 5304408199
#8

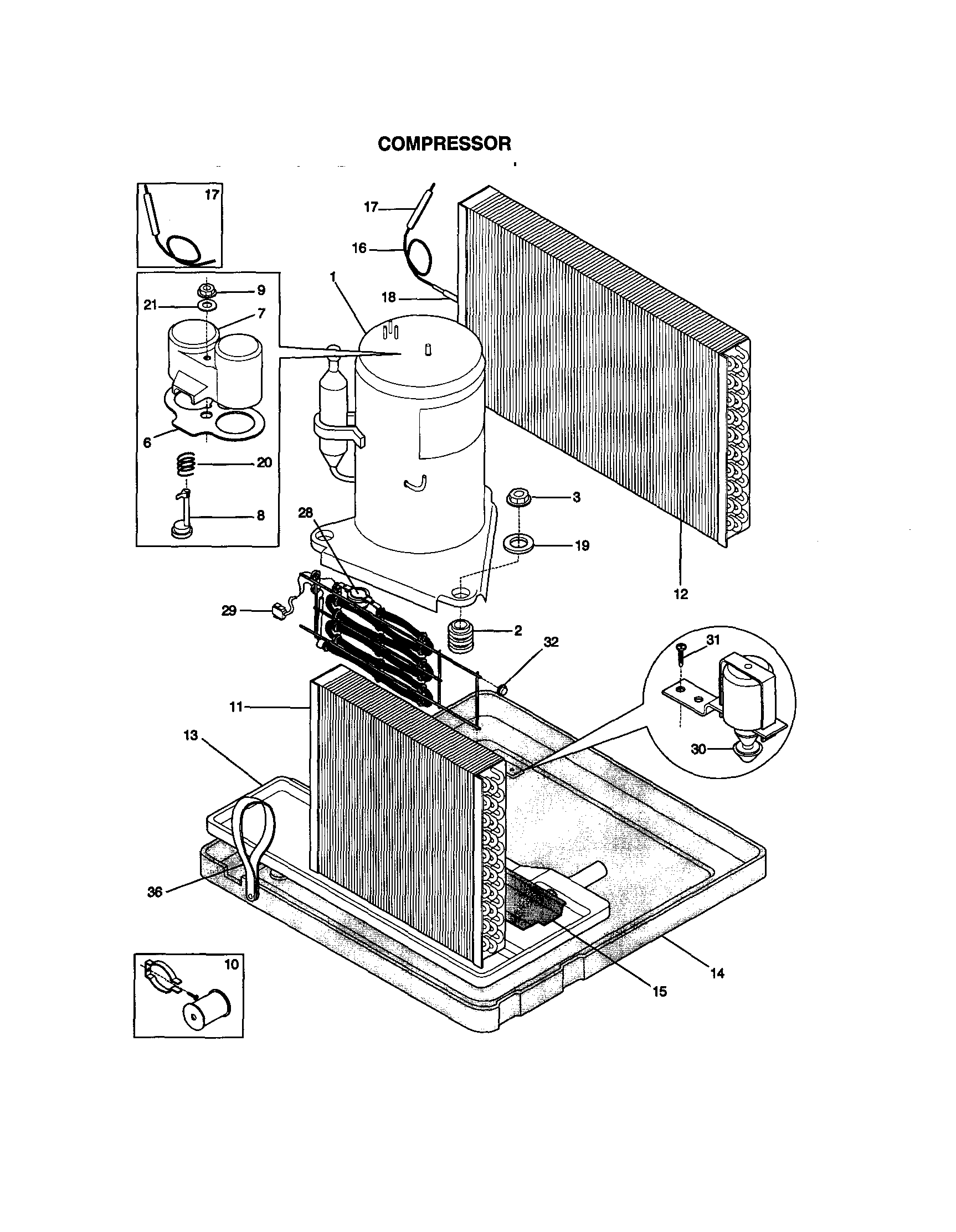

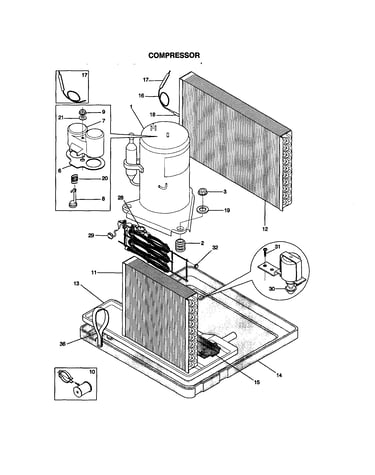

Compressor diagram

Room air conditioner compressor overload protector

Part #5304408199

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 5304415180
#12

Cabinet front and wrapper diagram

Air filter

Part #5304415180

The manufacturer no longer makes this part, and there's no substitute part
