Kenmore
Carpet Cleaner

Model # 1758190180 Official Kenmore power spray carpet cleaner

Here are the diagrams and repair parts for Official Kenmore 1758190180 power spray carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

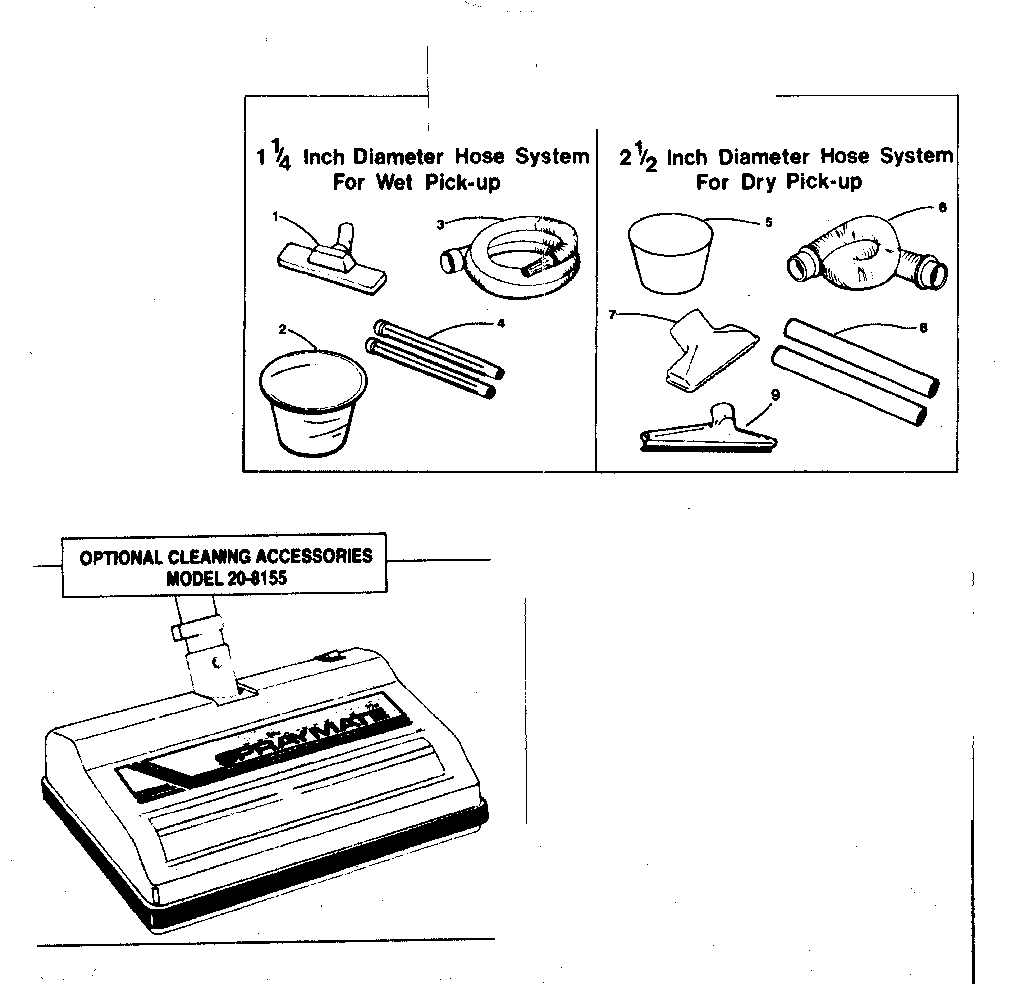

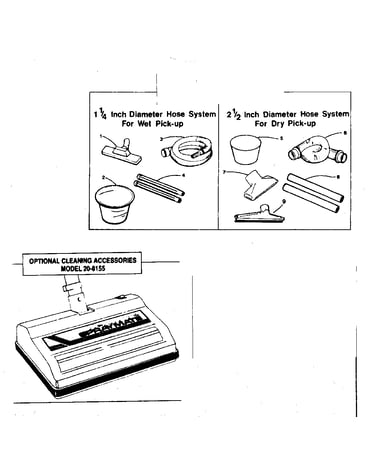

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Panel Nut 644773-004
#32

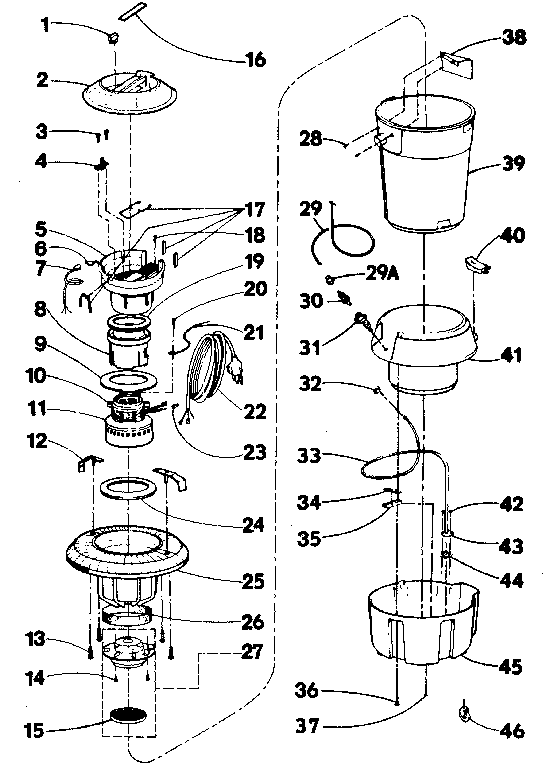

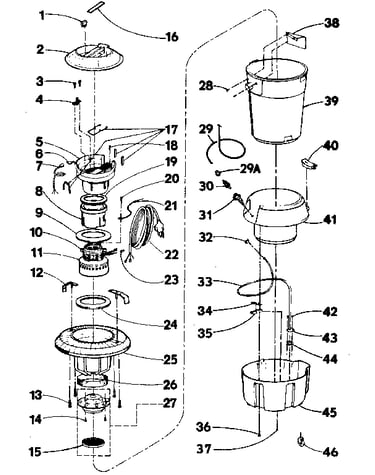

Base assembly diagram

Panel nut

Part #644773-004

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 643863-001
#73

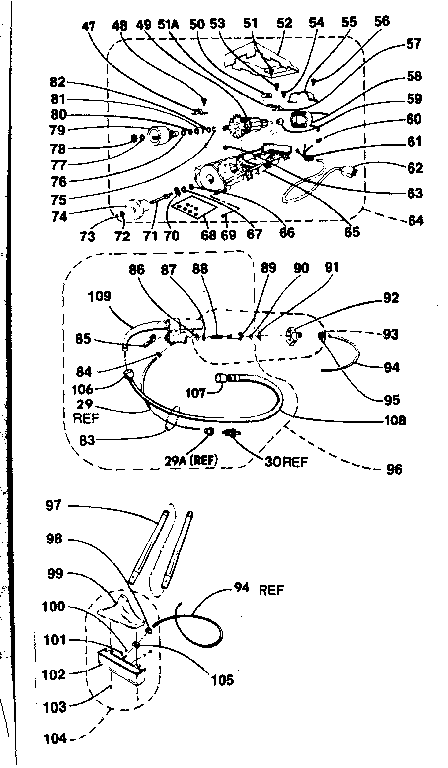

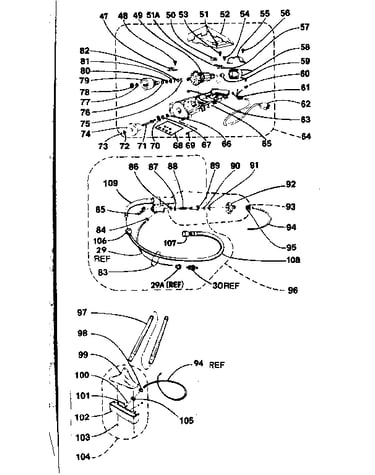

Motor and pump assembly diagram

Retaining ring

Part #643863-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 640145-007
#100

Motor and pump assembly diagram

Screw

Part #640145-007

The manufacturer no longer makes this part, and there's no substitute part

Screw 642409-002
#28

Base assembly diagram

Screw

Part #642409-002

The manufacturer no longer makes this part, and there's no substitute part

Baffle 642447-000
#38

Base assembly diagram

Baffle

Part #642447-000

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 644500-056
#110

Motor and pump assembly diagram

Owner's manual

Part #644500-056

The manufacturer no longer makes this part, and there's no substitute part

Screw 641798-002
#18

Base assembly diagram

Screw

Part #641798-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 640145-005
#13

Base assembly diagram

Screw

Part #640145-005

The manufacturer no longer makes this part, and there's no substitute part

Screw 643579-002
#14

Base assembly diagram

Screw

Part #643579-002

The manufacturer no longer makes this part, and there's no substitute part

Tubing 643562-002
#33

Base assembly diagram

Tubing

Part #643562-002

The manufacturer no longer makes this part, and there's no substitute part
