Model # C2094FB Official Eureka commercial upright vacuum

Here are the diagrams and repair parts for Official Eureka C2094FB commercial upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

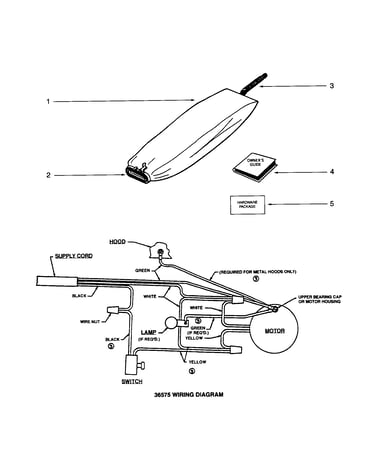

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Retainer 54256
#8

Wheels and axle diagram

Retainer

Part #54256

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Fan 12988
#22

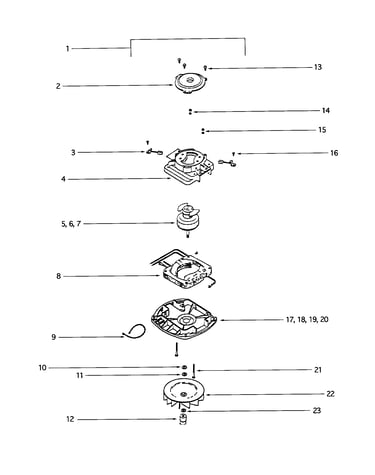

Motor diagram

Vacuum fan

Part #12988

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 54396
#4

Motor diagram

Motor cover

Part #54396

The manufacturer no longer makes this part, and there's no substitute part

Pulley 37012-2
#12

Motor diagram

Pulley

Part #37012-2

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw 53143
#1

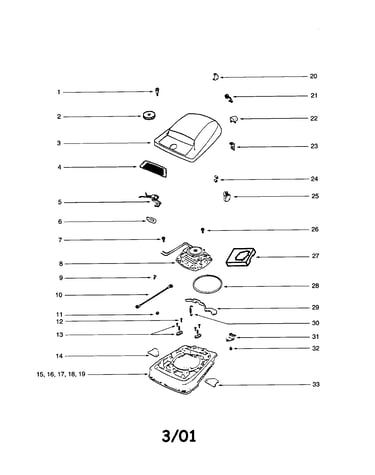

Hood diagram

Upright vacuum screw

Part #53143

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 53121
#2

Wheels and axle diagram

Push nut

Part #53121

The manufacturer no longer makes this part, and there's no substitute part

Wheel And Axle 60161
#11

Wheels and axle diagram

Wheel and axle

Part #60161

The manufacturer no longer makes this part, and there's no substitute part

Bearing Retainer 20217E
Bearing retainer

Part #20217E

The manufacturer no longer makes this part, and there's no substitute part

Cam 24965A-1
#17

Hood diagram

Cam

Part #24965A-1

The manufacturer no longer makes this part, and there's no substitute part

Lower Handle Tub 12637-8
#12

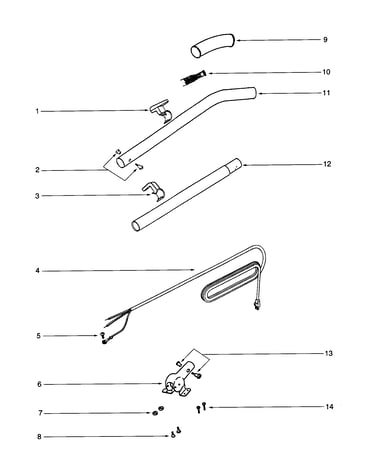

Handle diagram

Lower handle tub

Part #12637-8

The manufacturer no longer makes this part, and there's no substitute part
