Jenn-Air
Electric Wall Oven

Model # JJW8127AAB Official Jenn-Air electric oven

Here are the diagrams and repair parts for Official Jenn-Air JJW8127AAB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

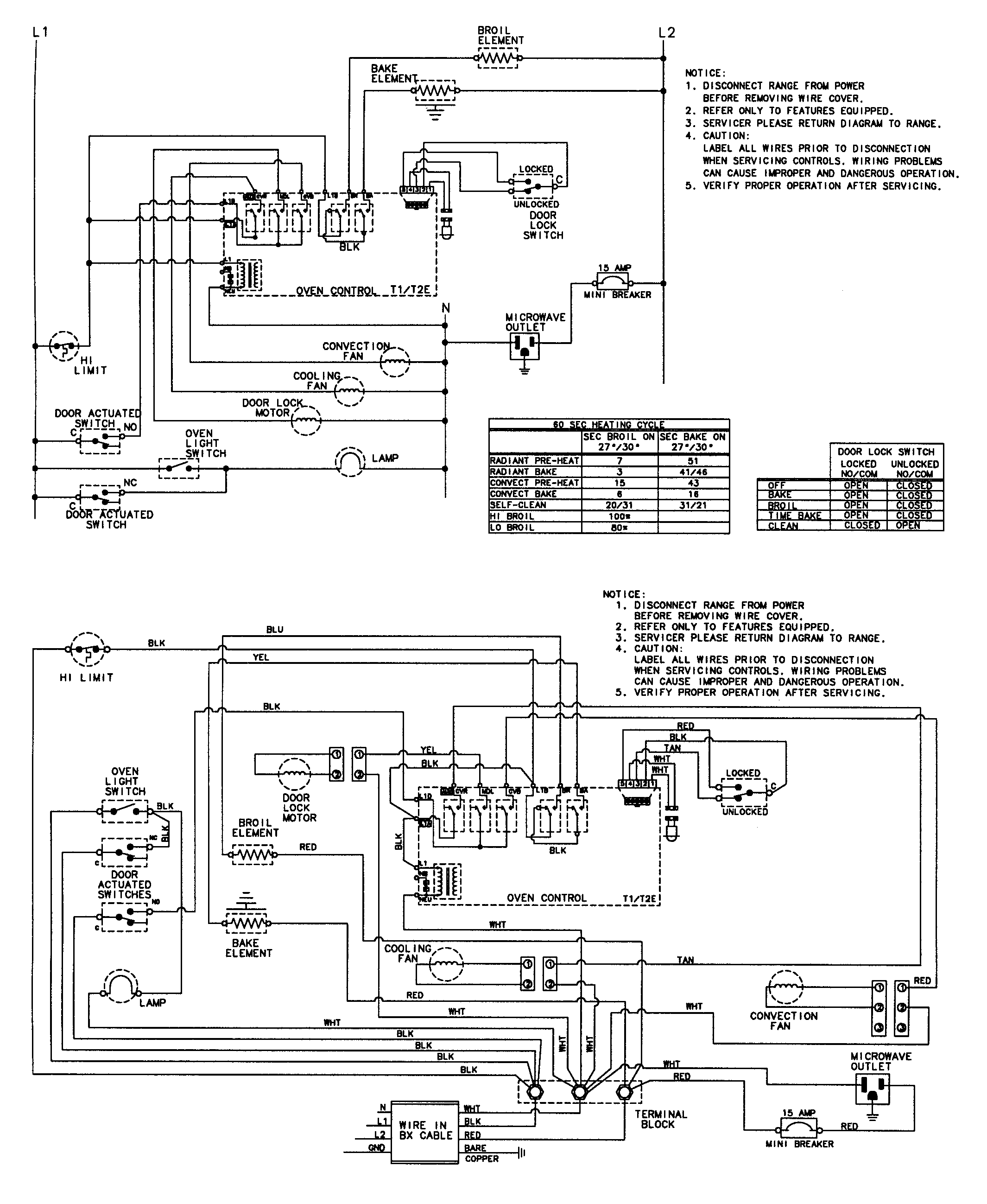

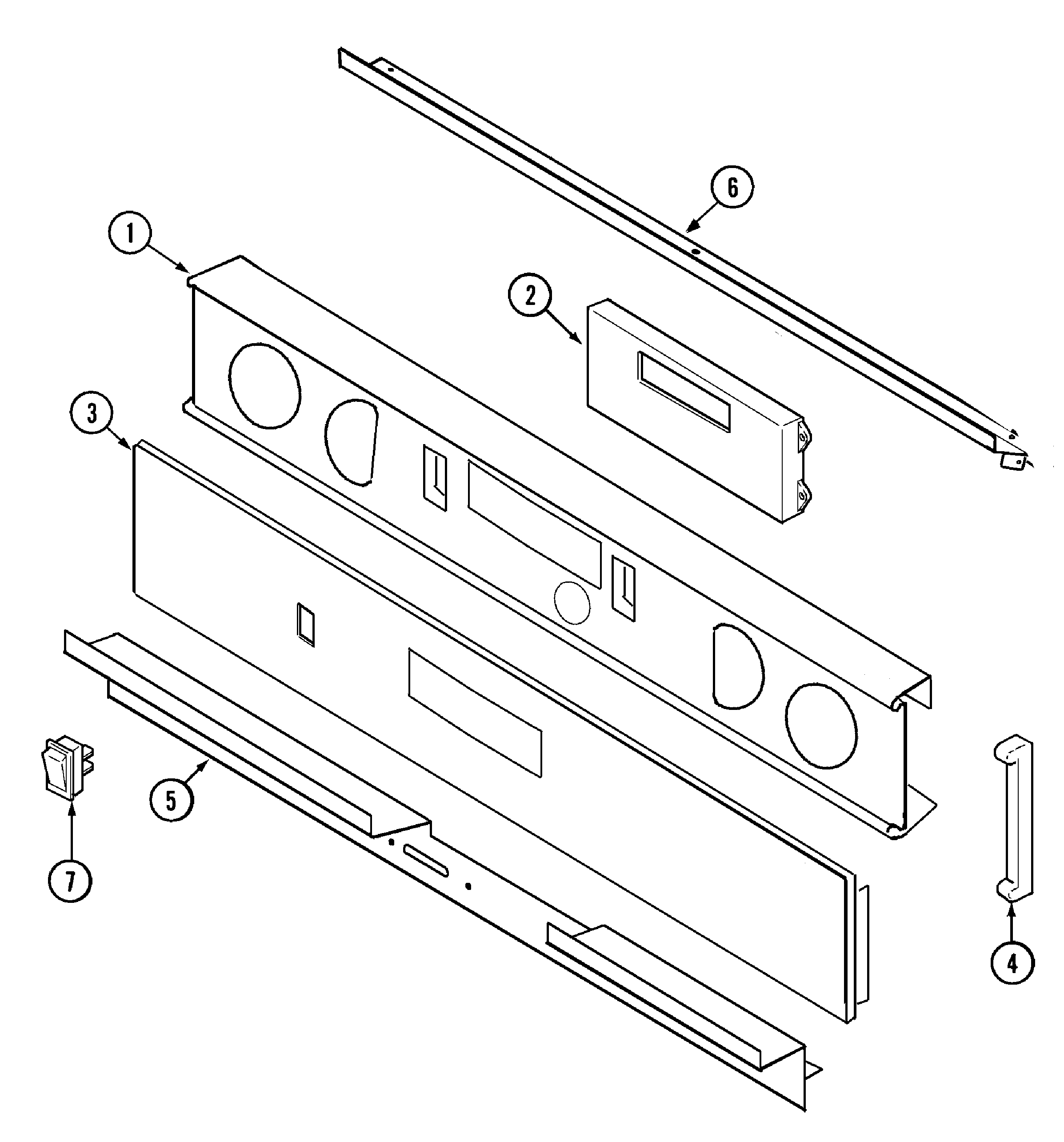

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Terminal Block 7401P039-60
#11

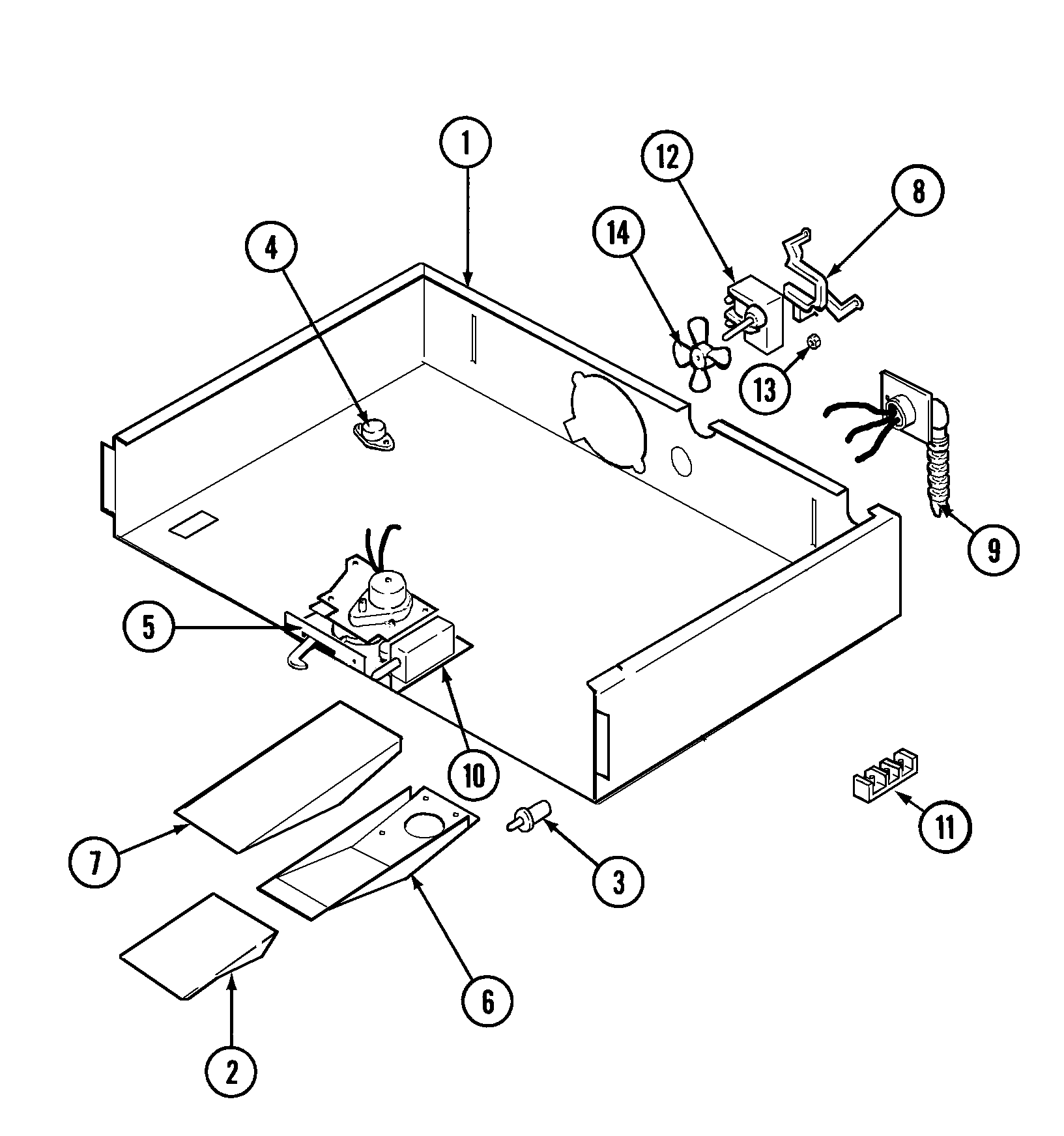

Internal controls diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 71003083
#12

Oven diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Door Switch 71001129
#3

Internal controls diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Cable Tie 701678
#13A

Internal controls diagram

Cable tie

Part #701678

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 701678. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Receptacle 71001866
#9

Oven diagram

Receptacle

Part #71001866

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 71001866. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Washer 702592
#4A

Oven diagram

Washer

Part #702592

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 702592. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Receptacle 71001828
#7

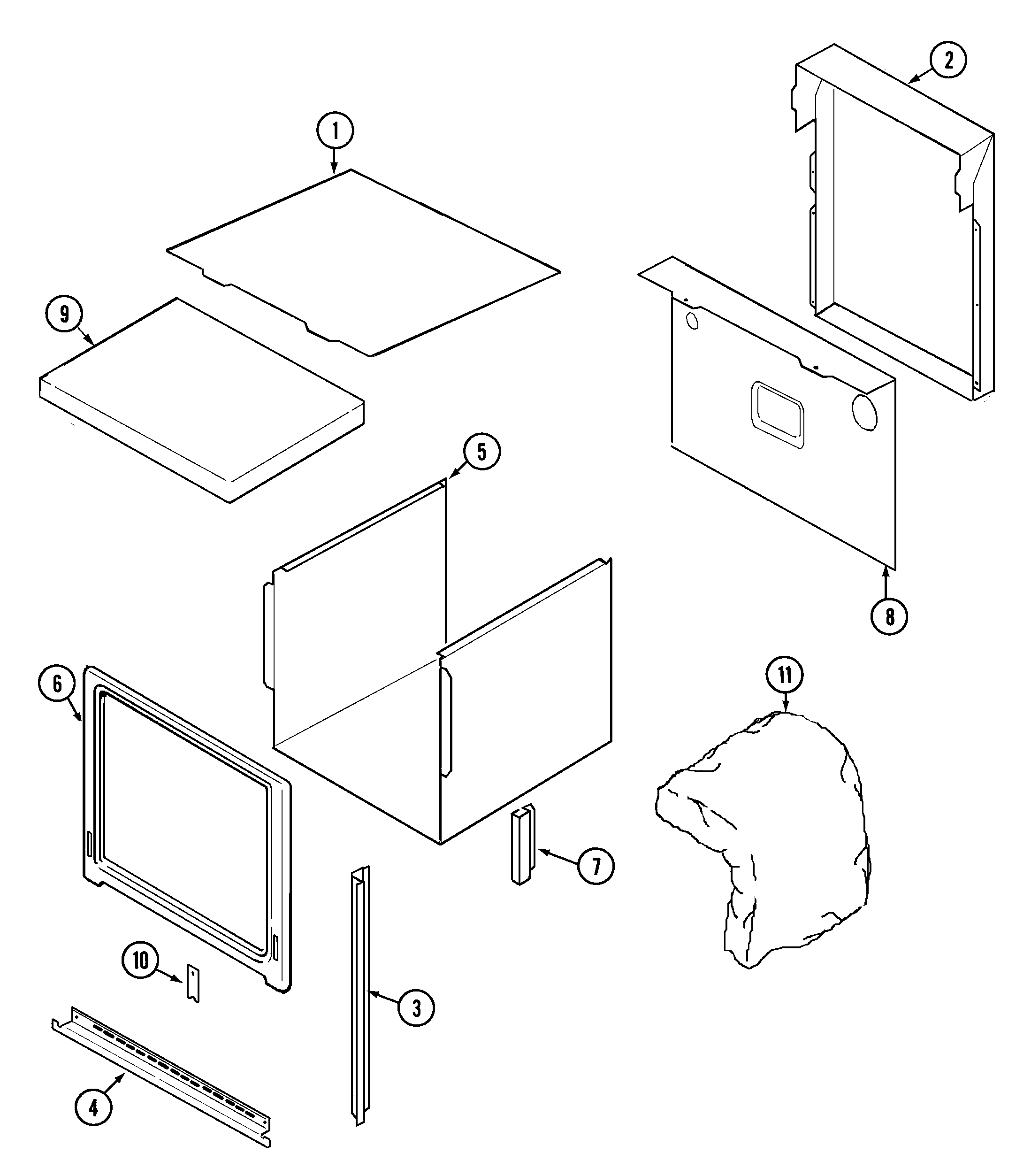

Body diagram

Receptacle

Part #71001828

Replaced by #WP74008015

?
Manufacturer substitution
This part replaces 71001828. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Screw 74003976
#4

Oven diagram

Screw

Part #74003976

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 74003976. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Seal 71001970
#6

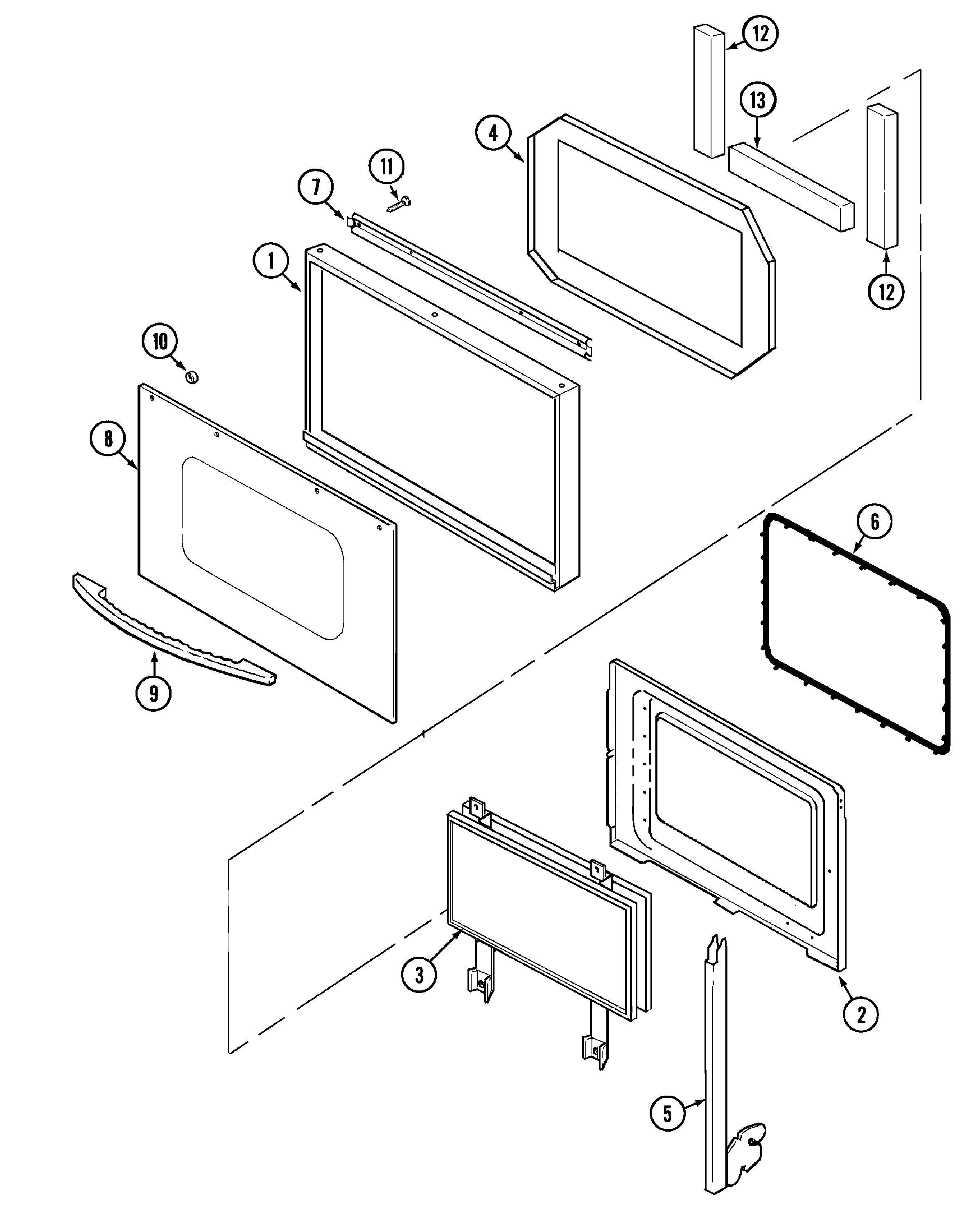

Door diagram

Door seal

Part #71001970

Replaced by #WP71001970

?
Manufacturer substitution
This part replaces 71001970. Substitute parts can look different from the original.
$74.13 |
7% OFF Phone Price : $80.13
In Stock
