Skil
Circular Saw

Model # 5155 Official Skil 7-1/4" circular saw

Here are the diagrams and repair parts for Official Skil 5155 7-1/4" circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

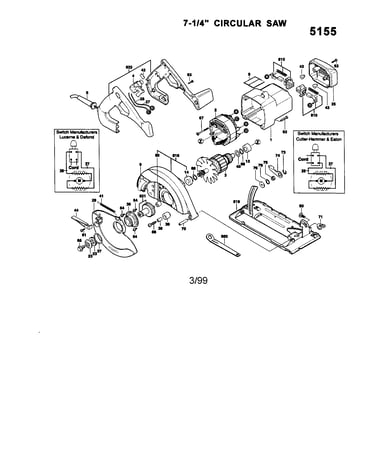

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Armature With Fan, 120-volt 2610341306
#3

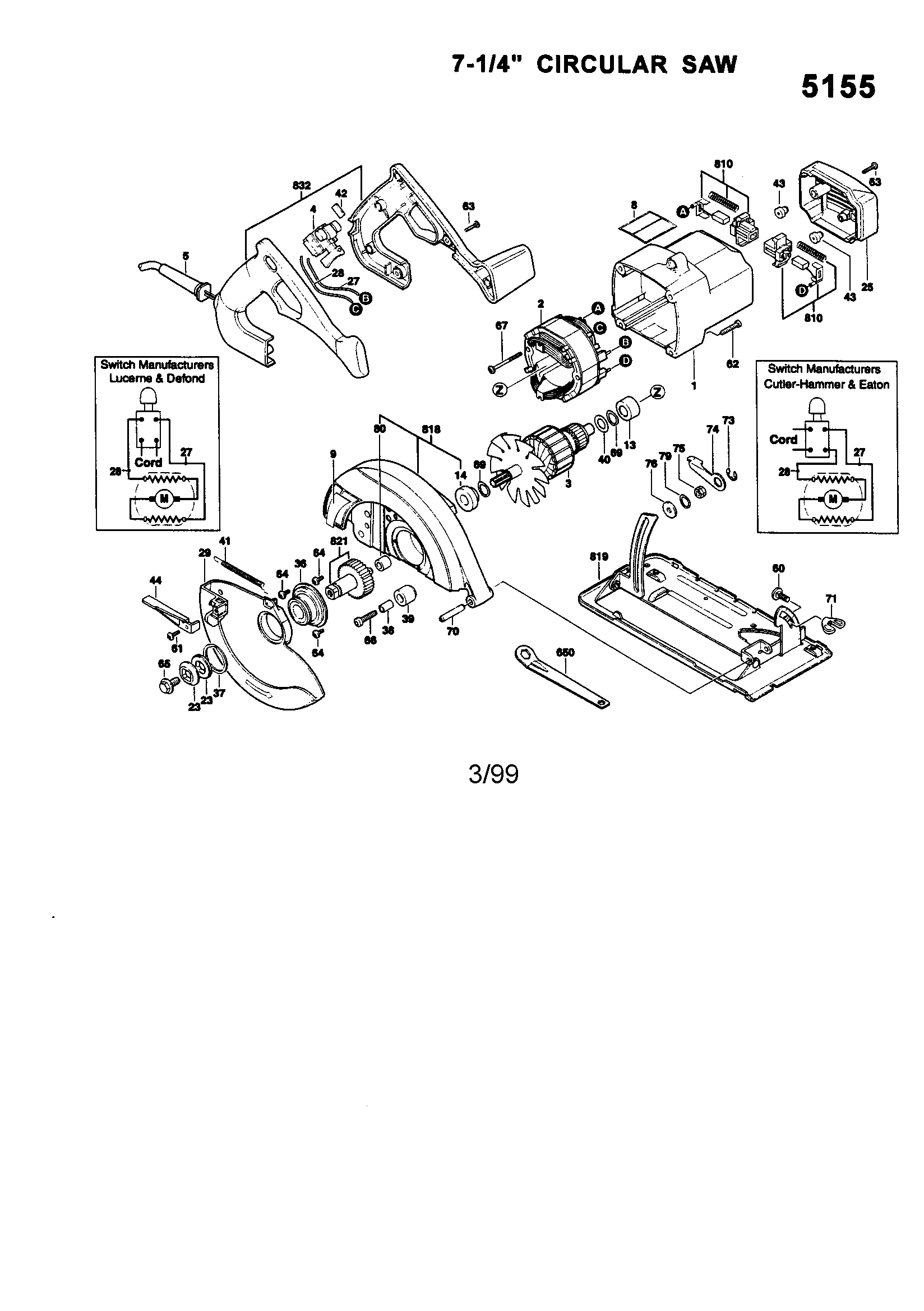

7-1/4" circular saw diagram

Armature with fan, 120-volt

Part #2610341306

The manufacturer no longer makes this part, and there's no substitute part

Skil Housing 2610904250
#1

7-1/4" circular saw diagram

Skil housing

Part #2610904250

The manufacturer no longer makes this part, and there's no substitute part

Skil Nut 2610901988
#75

7-1/4" circular saw diagram

Skil nut

Part #2610901988

The manufacturer no longer makes this part, and there's no substitute part

Skil Cable 2610341378
#28

7-1/4" circular saw diagram

Skil cable

Part #2610341378

The manufacturer no longer makes this part, and there's no substitute part

Screw 2610341365
#64

7-1/4" circular saw diagram

Screw

Part #2610341365

The manufacturer no longer makes this part, and there's no substitute part

Bosch Cir Clip 2610341354
#73

7-1/4" circular saw diagram

Bosch cir clip

Part #2610341354

The manufacturer no longer makes this part, and there's no substitute part

Bosch Spring Washer 2610069183
#79

7-1/4" circular saw diagram

Bosch spring washer

Part #2610069183

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2610341364
#63

7-1/4" circular saw diagram

Bosch screw

Part #2610341364

The manufacturer no longer makes this part, and there's no substitute part

Screw 2610347103
#67

7-1/4" circular saw diagram

Screw

Part #2610347103

The manufacturer no longer makes this part, and there's no substitute part

Skil Nameaplate 2610996436
#8

7-1/4" circular saw diagram

Skil nameaplate

Part #2610996436

The manufacturer no longer makes this part, and there's no substitute part
