Model # 085335 Official Dirt Devil featherlite vacuum cleaner

Here are the diagrams and repair parts for Official Dirt Devil 085335 featherlite vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Vacuum Switch 2-210385-000
#17

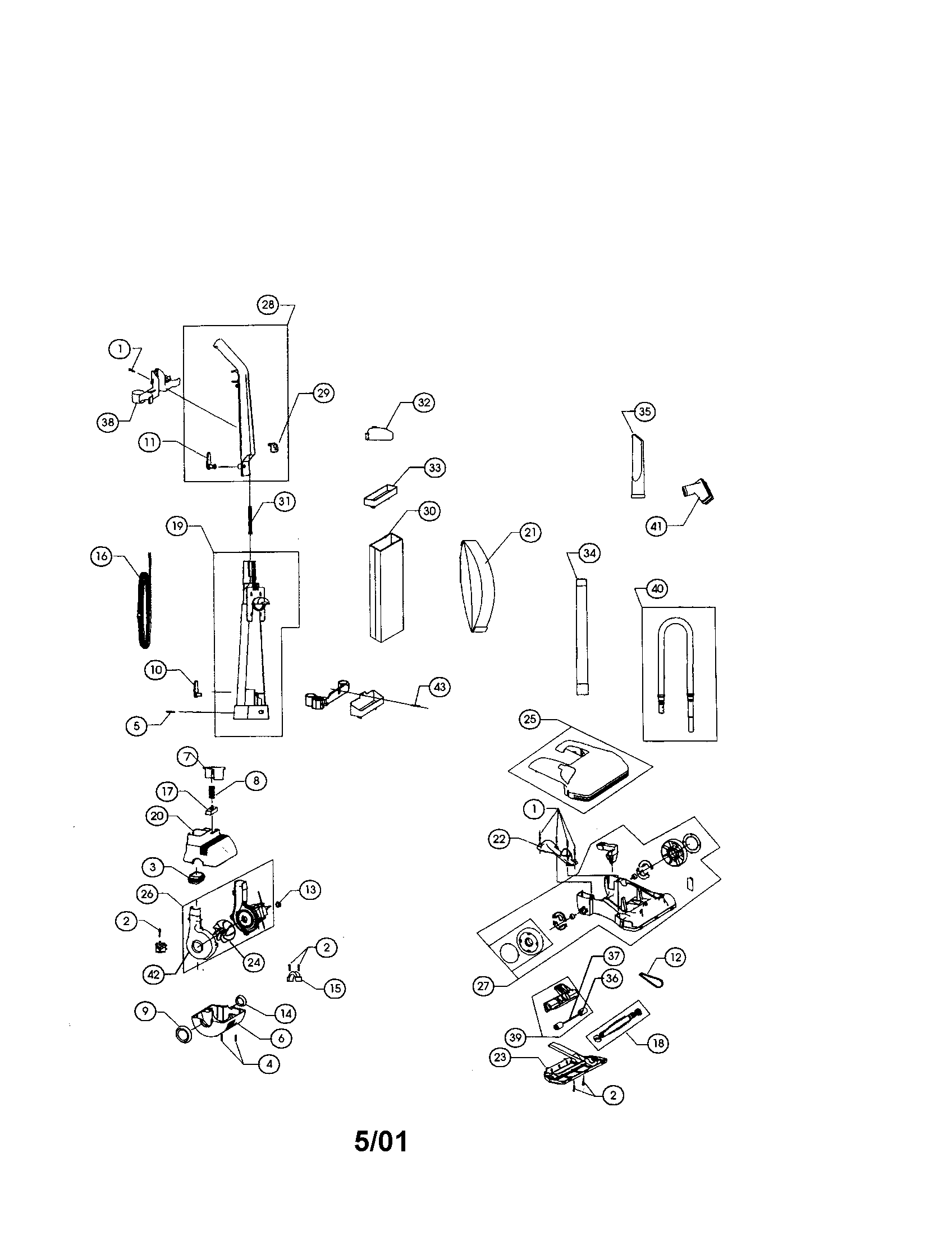

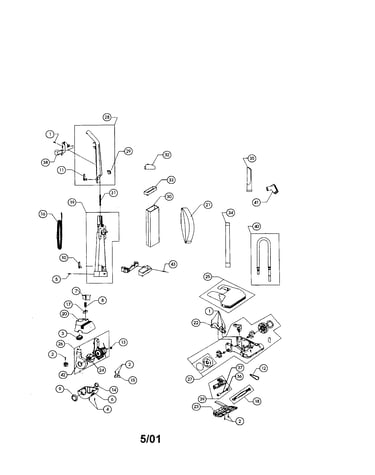

Featherlite frame diagram

Vacuum switch

Part #2-210385-000

The manufacturer no longer makes this part, and there's no substitute part

Tool 1-502801-600
#35

Featherlite frame diagram

Tool

Part #1-502801-600

The manufacturer no longer makes this part, and there's no substitute part

Base 2-520106-600
#27

Featherlite frame diagram

Base

Part #2-520106-600

The manufacturer no longer makes this part, and there's no substitute part

Motor 2-536075-000
#26A

Featherlite frame diagram

Motor

Part #2-536075-000

The manufacturer no longer makes this part, and there's no substitute part

Handle 2-520005-600
#28

Featherlite frame diagram

Handle

Part #2-520005-600

The manufacturer no longer makes this part, and there's no substitute part

Dirt Devil Vacuum Bag, Type D, 3-pack 3-670147-001
#21

Featherlite frame diagram

Dirt devil vacuum bag, type d, 3-pack

Part #3-670147-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-520180-000
#4

Featherlite frame diagram

Screw

Part #1-520180-000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag, 1-pack 2-520047-301
#30

Featherlite frame diagram

Vacuum bag, 1-pack

Part #2-520047-301

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1-720325-600
#13

Featherlite frame diagram

Grommet

Part #1-720325-600

The manufacturer no longer makes this part, and there's no substitute part

Wand 1-402803-600
#34

Featherlite frame diagram

Wand

Part #1-402803-600

The manufacturer no longer makes this part, and there's no substitute part
