Model # 38AN009121 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38AN009121 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Overload HN68GP147
#NI

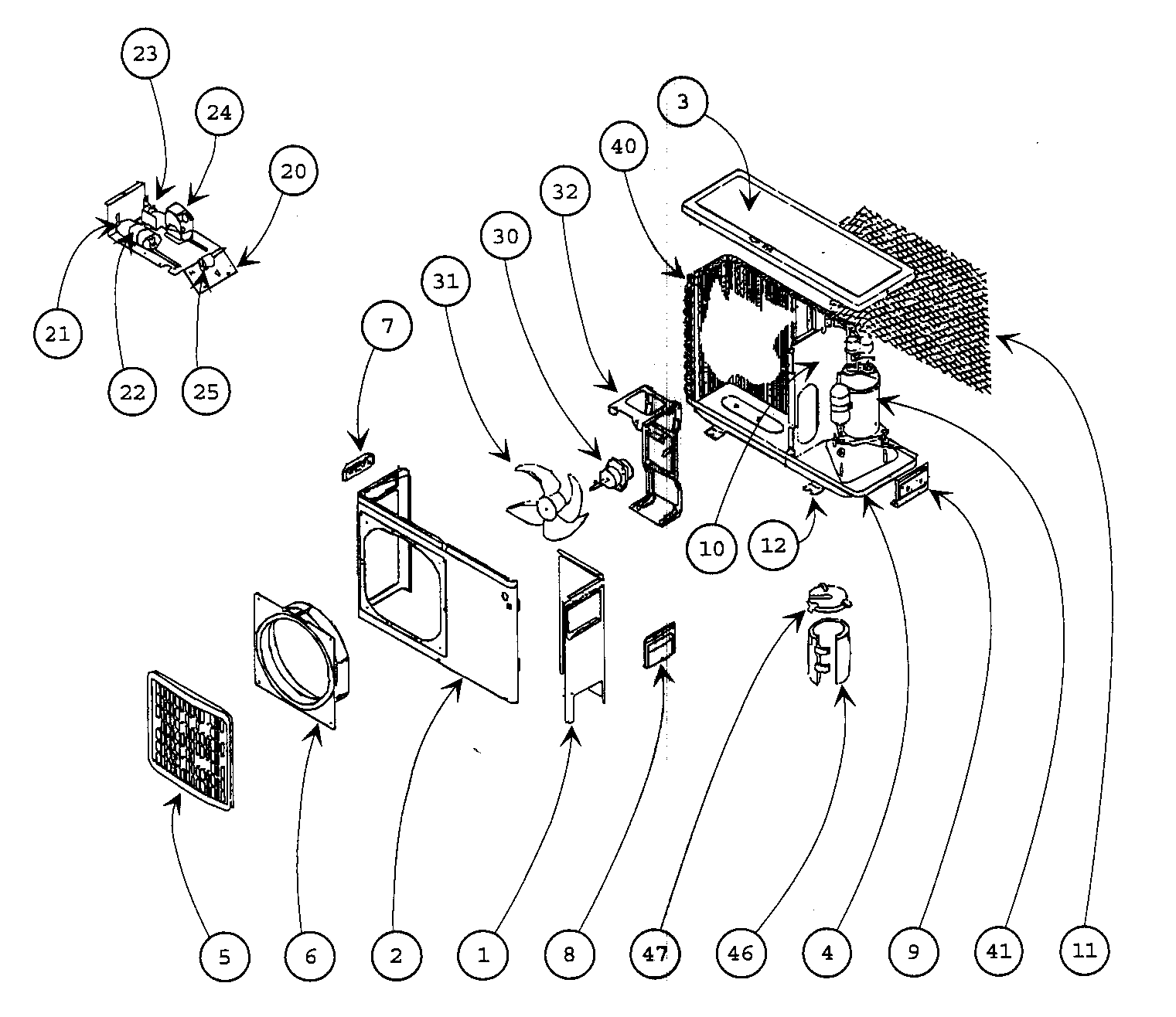

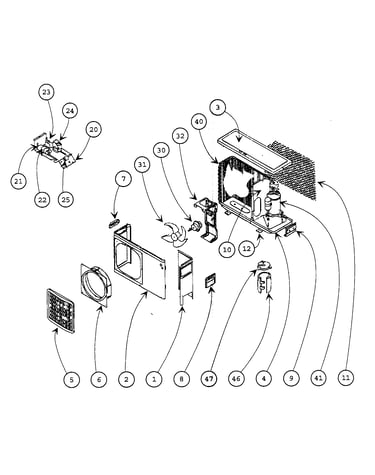

Cabinet parts diagram

Overload

Part #HN68GP147

$93.38
In Stock
Pre.switch HK02ZA226
#NI

Cabinet parts diagram

Pre.switch

Part #HK02ZA226

$392.82
In Stock
Cpctr Strap P281-0025
#22

Cabinet parts diagram

Cpctr strap

Part #P281-0025

$9.17
In Stock
Capactr Run P291-3003R
#21

Cabinet parts diagram

Capactr run

Part #P291-3003R

The manufacturer no longer makes this part, and there's no substitute part

Cap,mtr PCA05AE0160
#23

Cabinet parts diagram

Cap,mtr

Part #PCA05AE0160

The manufacturer no longer makes this part, and there's no substitute part

Grommet WS821A4904D
#NI

Cabinet parts diagram

Grommet

Part #WS821A4904D

The manufacturer no longer makes this part, and there's no substitute part

Panel,comp 38GBGA50140OZ
#1

Cabinet parts diagram

Panel,comp

Part #38GBGA50140OZ

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 38GA5A2109DOZ
#20

Cabinet parts diagram

Control panel

Part #38GA5A2109DOZ

The manufacturer no longer makes this part, and there's no substitute part

Fan Mtr PMO01AG099A
#30

Cabinet parts diagram

Fan mtr

Part #PMO01AG099A

The manufacturer no longer makes this part, and there's no substitute part

Sound Shield 53QN1G3930C
#46

Cabinet parts diagram

Sound shield

Part #53QN1G3930C

The manufacturer no longer makes this part, and there's no substitute part
