Model # GFD85ESMN0RS Official GE dryer

Here are the diagrams and repair parts for Official GE GFD85ESMN0RS dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

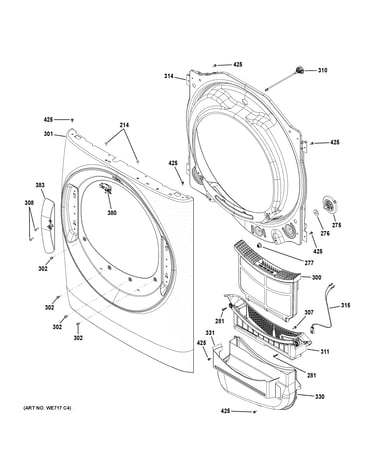

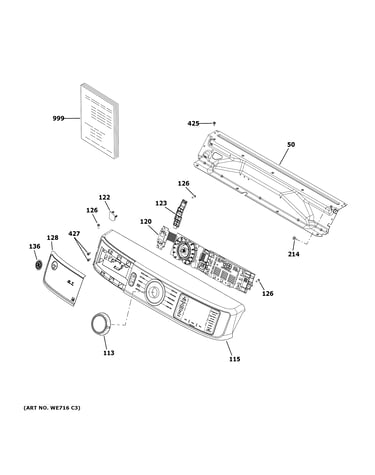

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Dryer Electronic Control Board WE22X29700
#233

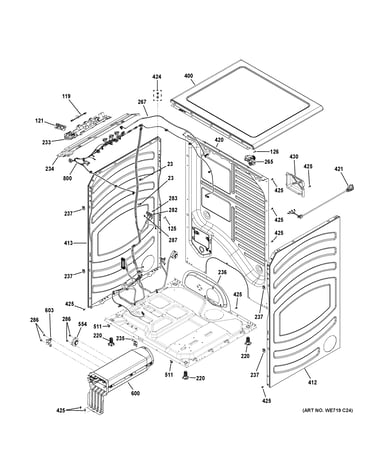

Cabinet & top panel diagram

Dryer electronic control board

Part #WE22X29700

Replaced by #WE22X36578

?
Manufacturer substitution
This part replaces WE22X29700. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$185.20
In Stock
Dryer Idler Assembly WE03X29817
#216

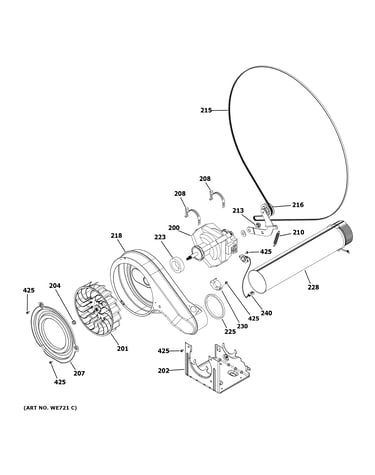

Blower & motor diagram

Dryer idler assembly

Part #WE03X29817

Replaced by #WE03X30657

?
Manufacturer substitution
This part replaces WE03X29817. Substitute parts can look different from the original.
BEST SELLER
$41.97
In Stock
Dryer Drum Belt WE03X29704
#215

Blower & motor diagram

Dryer drum belt

Part #WE03X29704

BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Dryer Drive Motor WE03X29703
#200

Blower & motor diagram

Dryer drive motor

Part #WE03X29703

Replaced by #WH03X32157

?
Manufacturer substitution
This part replaces WE03X29703. Substitute parts can look different from the original.
BEST SELLER
$136.36
In Stock
Dryer Blower Thermostat WE04X29714
#240

Blower & motor diagram

Dryer blower thermostat

Part #WE04X29714

BEST SELLER
$28.07 |
18% OFF Phone Price : $34.07
In Stock
Blower Wheel WE16X29715
#201

Blower & motor diagram

Blower wheel

Part #WE16X29715

Replaced by #WE16X33977

?
Manufacturer substitution
This part replaces WE16X29715. Substitute parts can look different from the original.
BEST SELLER
$28.07
In Stock
Dryer Outlet Backup Thermostat WE04X10190
#230

Blower & motor diagram

Dryer outlet backup thermostat

Part #WE04X10190

BEST SELLER
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Drum Baffle WE13X29725
#509

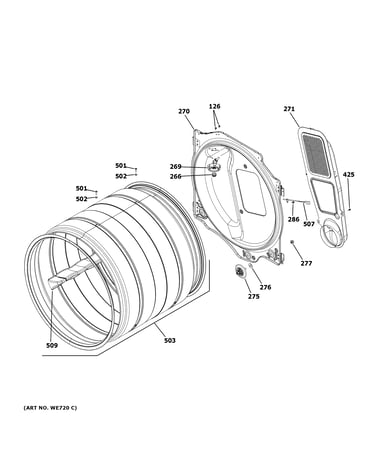

Drum diagram

Drum baffle

Part #WE13X29725

BEST SELLER
$33.71 |
15% OFF Phone Price : $39.71
In Stock
Dryer Door Assembly WE10X29748
#280

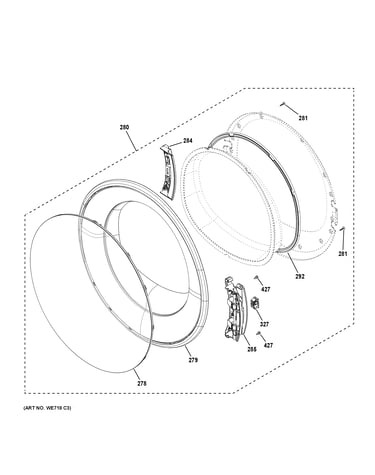

Door diagram

Dryer door assembly

Part #WE10X29748

$426.59 |
$12.00 OFF Phone Price : $438.59
In Stock
Dryer Door Latch WE01X29738
#327

Door diagram

Dryer door latch

Part #WE01X29738

This item is not returnable
$17.82 |
10% OFF Phone Price : $19.82
In Stock
