Model # 11081321150 Official Kenmore system 21 electric washer
Here are the diagrams and repair parts for Official Kenmore 11081321150 system 21 electric washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

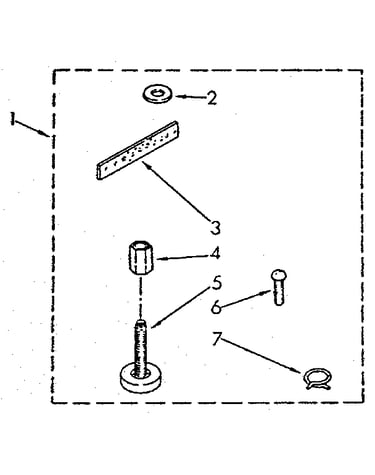

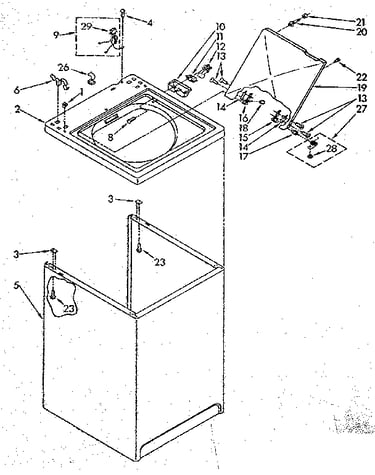

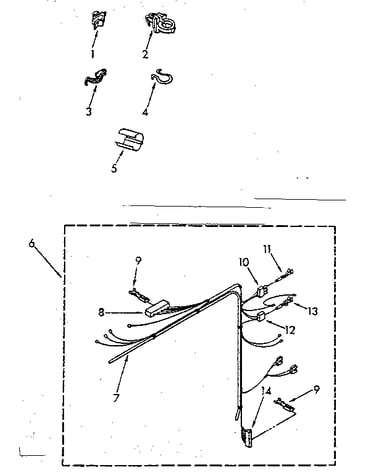

SELECT DIAGRAM
Browse Parts for
11081321150 System 21 Electric Washer
#13

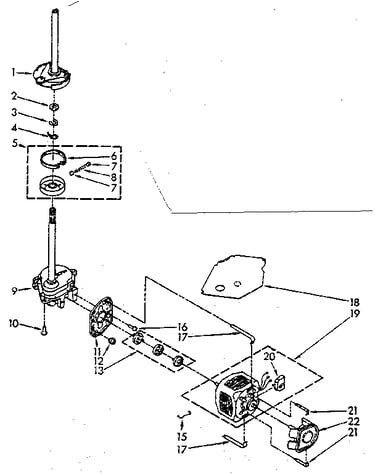

Brake, clutch, gearcase, motor and pump diagram
Coupling
Part #285140
Replaced by #285753A
?
Manufacturer substitution
This part replaces 285140. Substitute parts can look different from the original.
$21.03 |
22% OFF Phone Price : $27.03
In Stock
#25

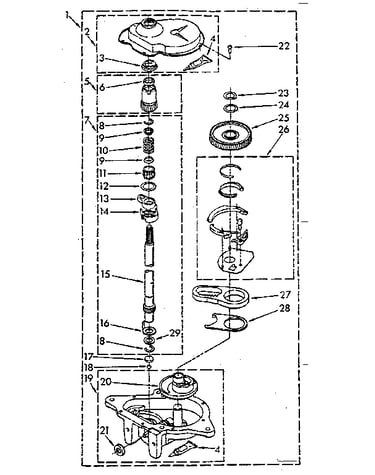

Gearcase diagram
Gear
Part #62570
Replaced by #3360629
?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
$237.92 |
5% OFF Phone Price : $249.92
In Stock
#5

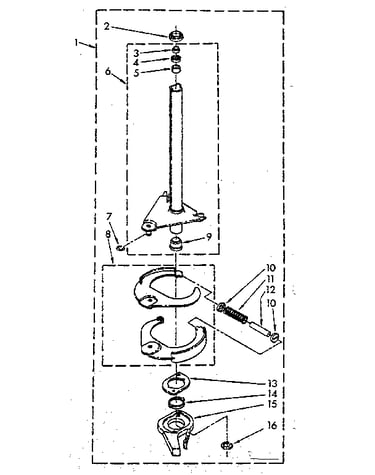

Brake, clutch, gearcase, motor and pump diagram
Clutch
Part #63174
Replaced by #285785
?
Manufacturer substitution
This part replaces 63174. Substitute parts can look different from the original.
$32.12 |
16% OFF Phone Price : $38.12
In Stock
Drive basket
Part #64033
Replaced by #W10820043
?
Manufacturer substitution
This part replaces 64033. Substitute parts can look different from the original.
$125.26 |
9% OFF Phone Price : $137.26
In Stock
#22
Brake, clutch, gearcase, motor and pump diagram
Pump
Part #64076
Replaced by #WP3363394
?
Manufacturer substitution
This part replaces 64076. Substitute parts can look different from the original.
$28.91 |
17% OFF Phone Price : $34.91
In Stock
#11

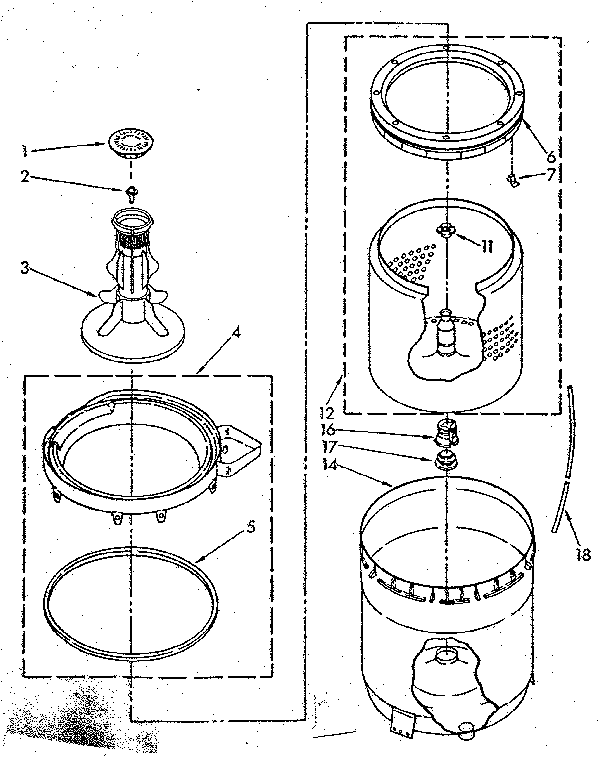

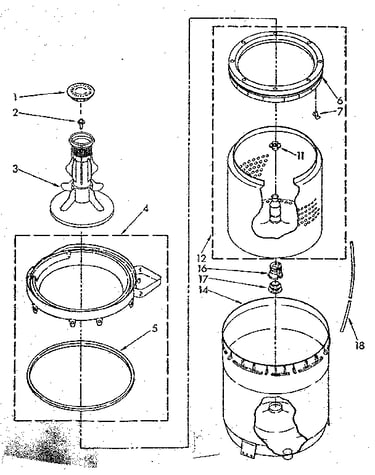

Agitator, basket and tub diagram
Washer spanner nut
Part #21366
Replaced by #WP21366
?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Gear case
Part #389246
The manufacturer no longer makes this part, and there's no substitute part
#18

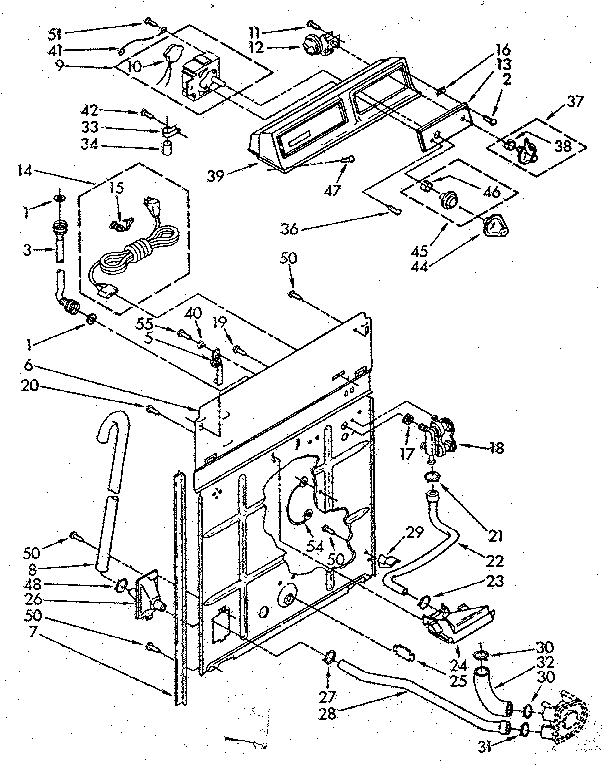

Controls and rear panel diagram
Valve
Part #358992
Replaced by #285805
?
Manufacturer substitution
This part replaces 358992. Substitute parts can look different from the original.
$26.81 |
18% OFF Phone Price : $32.81
In Stock
#3

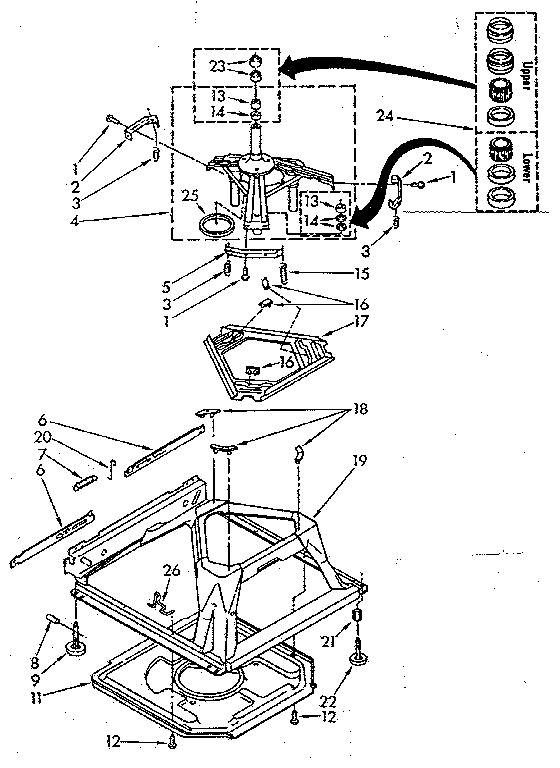

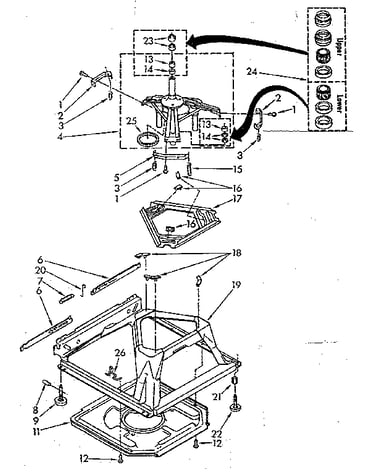

Machine base diagram
Washer suspension spring
Part #63907
Replaced by #WP63907
?
Manufacturer substitution
This part replaces 63907. Substitute parts can look different from the original.
$7.26 |
12% OFF Phone Price : $8.26
In Stock
#20
Machine base diagram
Retainer
Part #63207
Replaced by #WPW10250667
?
Manufacturer substitution
This part replaces 63207. Substitute parts can look different from the original.
This item is not returnable
$3.81 |
21% OFF Phone Price : $4.81
In Stock
