Amana
Countertop Microwave

Model # 7425.001 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 7425001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Cavity & Faceplate Assembly (includes Choke Filler, Rollers, & Shelf) M77D97
#2A

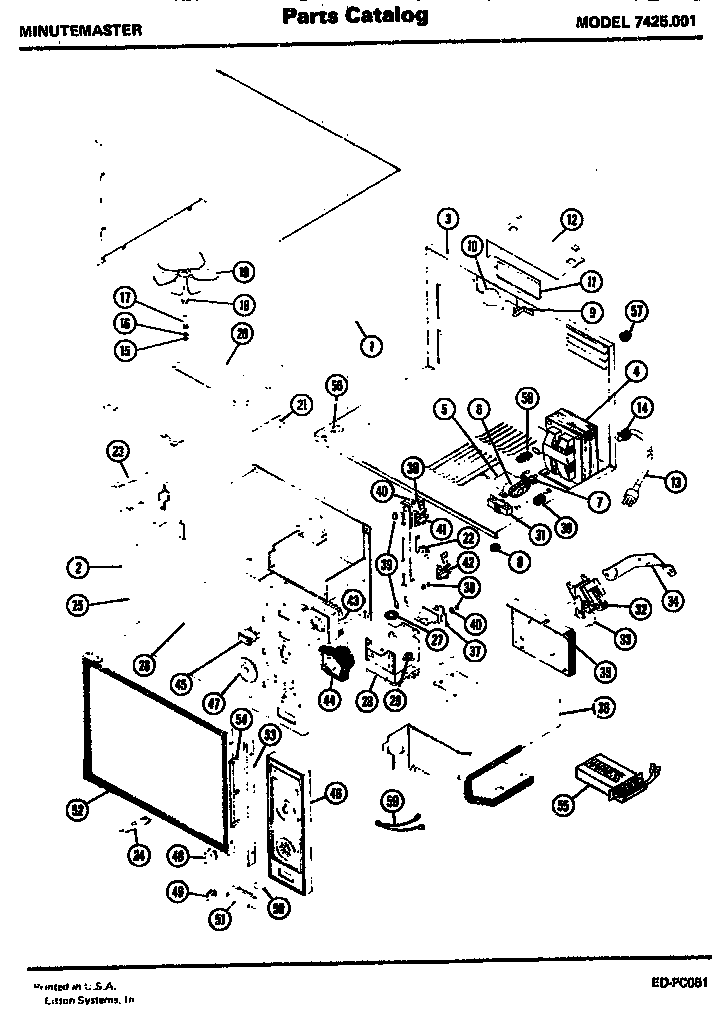

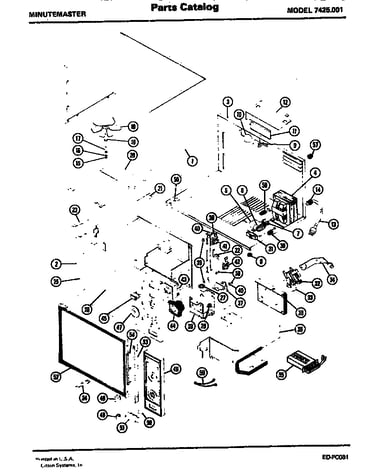

Replacement parts diagram

Cavity & faceplate assembly (includes choke filler, rollers, & shelf)

Part #M77D97

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mounting M1D618
#53B

Replacement parts diagram

Screw, handle mounting

Part #M1D618

The manufacturer no longer makes this part, and there's no substitute part

Magnetron Thermal Protector M4D49
#29A

Replacement parts diagram

Magnetron thermal protector

Part #M4D49

The manufacturer no longer makes this part, and there's no substitute part

Nut, Lead To Trans. M1D76
#15

Replacement parts diagram

Nut, lead to trans.

Part #M1D76

The manufacturer no longer makes this part, and there's no substitute part

Shelf (with Rtv Sealant) M50D14
#26A

Replacement parts diagram

Shelf (with rtv sealant)

Part #M50D14

The manufacturer no longer makes this part, and there's no substitute part

Jumper Wire M5D201
#59

Replacement parts diagram

Jumper wire

Part #M5D201

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover M7D253
#11A

Replacement parts diagram

Lamp cover

Part #M7D253

The manufacturer no longer makes this part, and there's no substitute part

Air Duct, Exhaust M65D123
#36A

Replacement parts diagram

Air duct, exhaust

Part #M65D123

The manufacturer no longer makes this part, and there's no substitute part

High Voltage Lead #32 M5D282
#55B

Replacement parts diagram

High voltage lead #32

Part #M5D282

The manufacturer no longer makes this part, and there's no substitute part

Hinge Bearing, Nylon M21D92
#23C

Replacement parts diagram

Hinge bearing, nylon

Part #M21D92

The manufacturer no longer makes this part, and there's no substitute part
