Model # 1163966181 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163966181 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Light Bulb 745362
#17

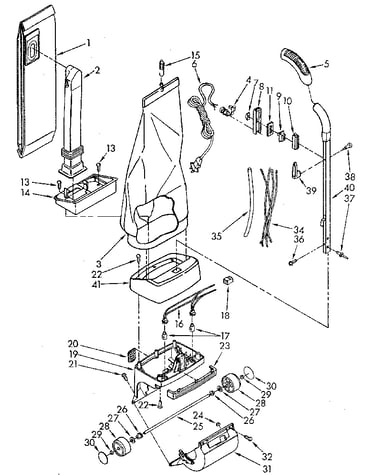

Handle and bag housing diagram

Light bulb

Part #745362

Replaced by #5248

?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 4152184
#2

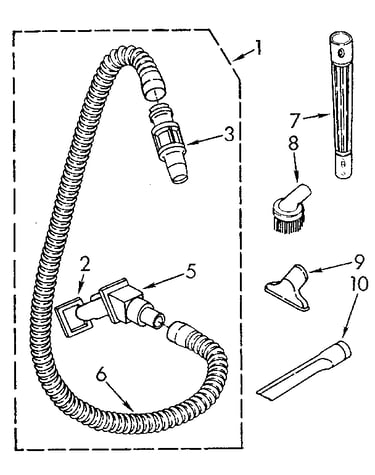

Hose and attachment diagram

Gasket

Part #4152184

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
#1

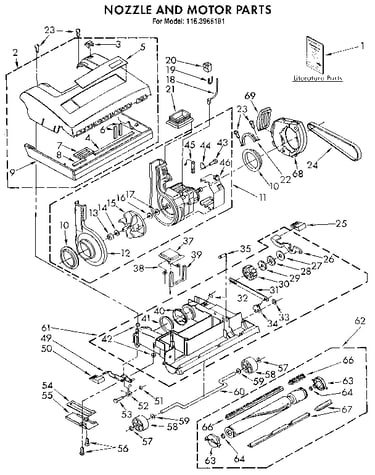

Nozzle and motor diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Hose 4151031
#1

Hose and attachment diagram

Hose

Part #4151031

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Adapter 4151036
#3

Hose and attachment diagram

Vacuum hose adapter

Part #4151036

The manufacturer no longer makes this part, and there's no substitute part

Wheel 745285
#28

Handle and bag housing diagram

Wheel

Part #745285

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4154257
#1B

Nozzle and motor diagram

Parts list

Part #LIT4154257

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Cover 4152577
#68

Nozzle and motor diagram

Exhaust cover

Part #4152577

The manufacturer no longer makes this part, and there's no substitute part

Side Switch 744785
#9

Handle and bag housing diagram

Side switch

Part #744785

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 4152117
#34

Handle and bag housing diagram

Lead wire

Part #4152117

The manufacturer no longer makes this part, and there's no substitute part
