Admiral
Electric Cooktop

Model # A8670PB Official Admiral electric counter unit cooktop

Here are the diagrams and repair parts for Official Admiral A8670PB electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

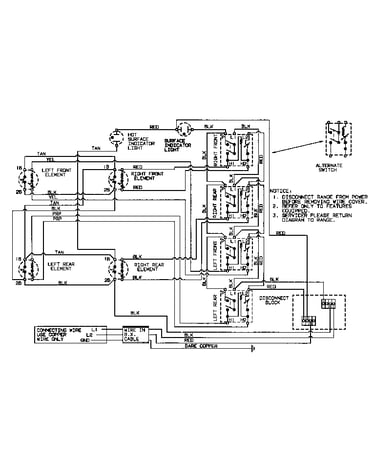

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
"cleaner, Elc" 8308P002-60
#9C

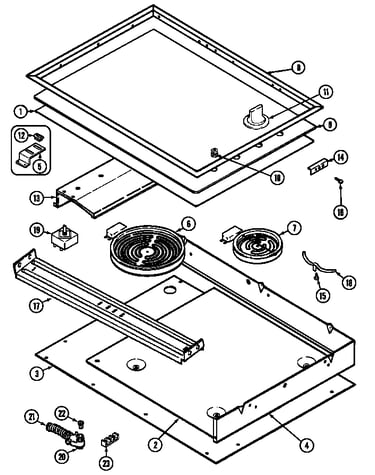

Top assembly diagram

"cleaner, elc"

Part #8308P002-60

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 8308P002-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Element W/re 7406P073-60
#6

Top assembly diagram

Element w/re

Part #7406P073-60

Replaced by #W10823707

?
Manufacturer substitution
This part replaces 7406P073-60. Substitute parts can look different from the original.
BEST SELLER
$126.43 |
9% OFF Phone Price : $138.43
In Stock
Screw 7101P059-60
#16

Top assembly diagram

Screw

Part #7101P059-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P059-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw (black) 7101P309-60
#19B

Top assembly diagram

Screw (black)

Part #7101P309-60

Replaced by #WP7101P309-60

?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Element W/re 7406P074-60
#7

Top assembly diagram

Element w/re

Part #7406P074-60

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 7406P074-60. Substitute parts can look different from the original.
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Range Burner Control Knob 7737P026-60
#11

Top assembly diagram

Range burner control knob

Part #7737P026-60

Replaced by #WP7737P026-60

?
Manufacturer substitution
This part replaces 7737P026-60. Substitute parts can look different from the original.
This item is not returnable
$22.65 |
21% OFF Phone Price : $28.65
In Stock
Screw 7101P042-60
#15

Top assembly diagram

Screw

Part #7101P042-60

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 7101P042-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Tubing Condenser 3414F035-44
#21

Top assembly diagram

Tubing condenser

Part #3414F035-44

The manufacturer no longer makes this part, and there's no substitute part

Insert, Manual (smooth T - Series 01 8112P105-60
#23D

Top assembly diagram

Insert, manual (smooth t - series 01

Part #8112P105-60

The manufacturer no longer makes this part, and there's no substitute part

Connector, R 7417P004-60
#20

Top assembly diagram

Connector, r

Part #7417P004-60

The manufacturer no longer makes this part, and there's no substitute part
