Frigidaire
Built-In Microwave

Model # FPMO209RFDY Official Frigidaire built-in microwave

Here are the diagrams and repair parts for Official Frigidaire FPMO209RFDY built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

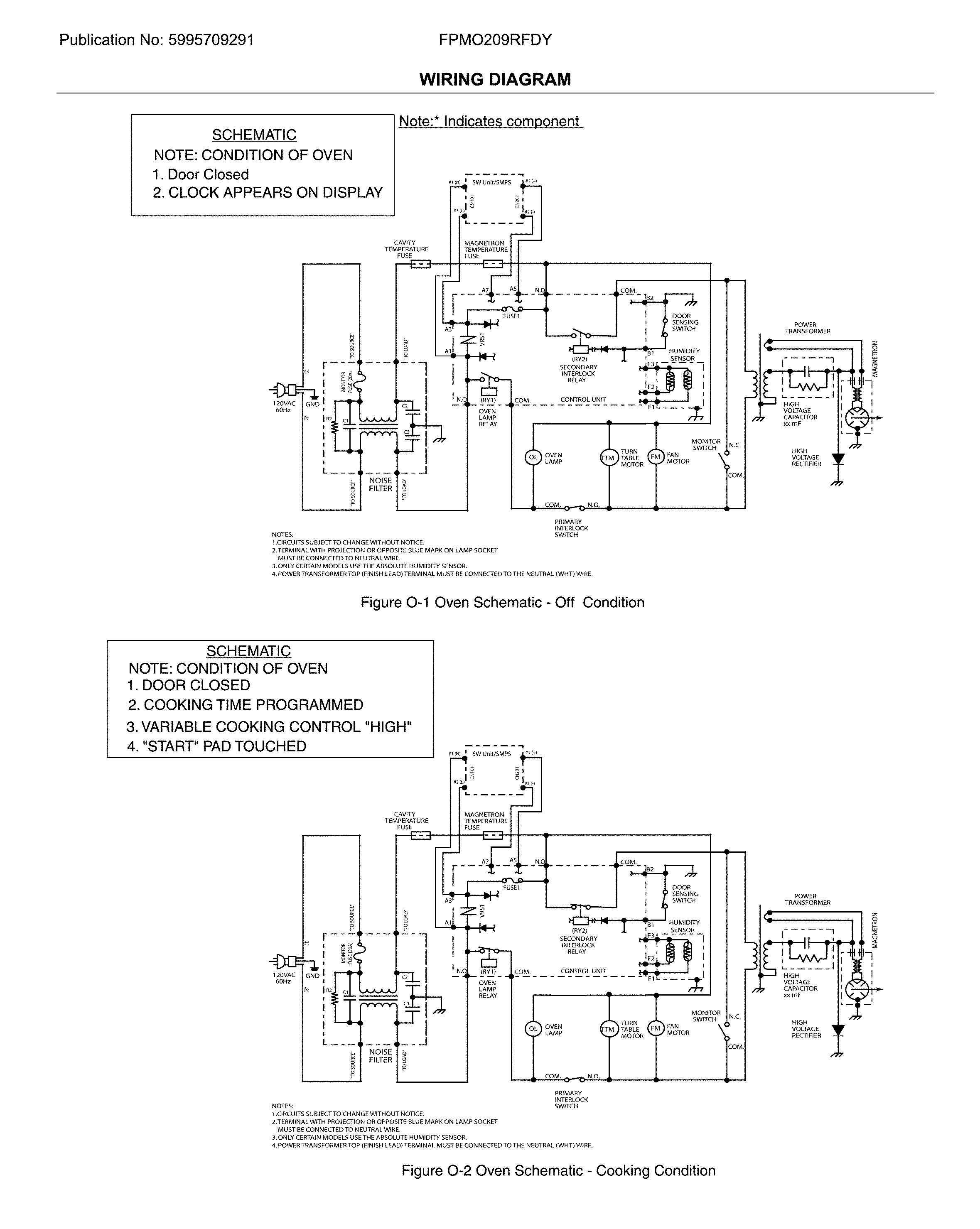

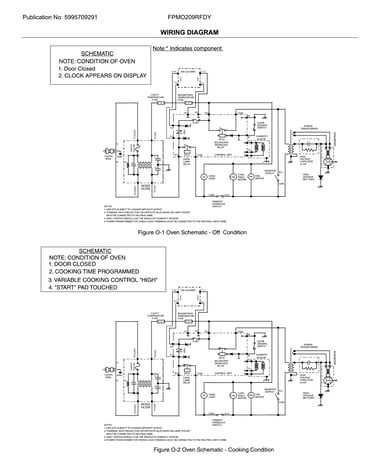

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Microwave Latch Body 5304503439
#23

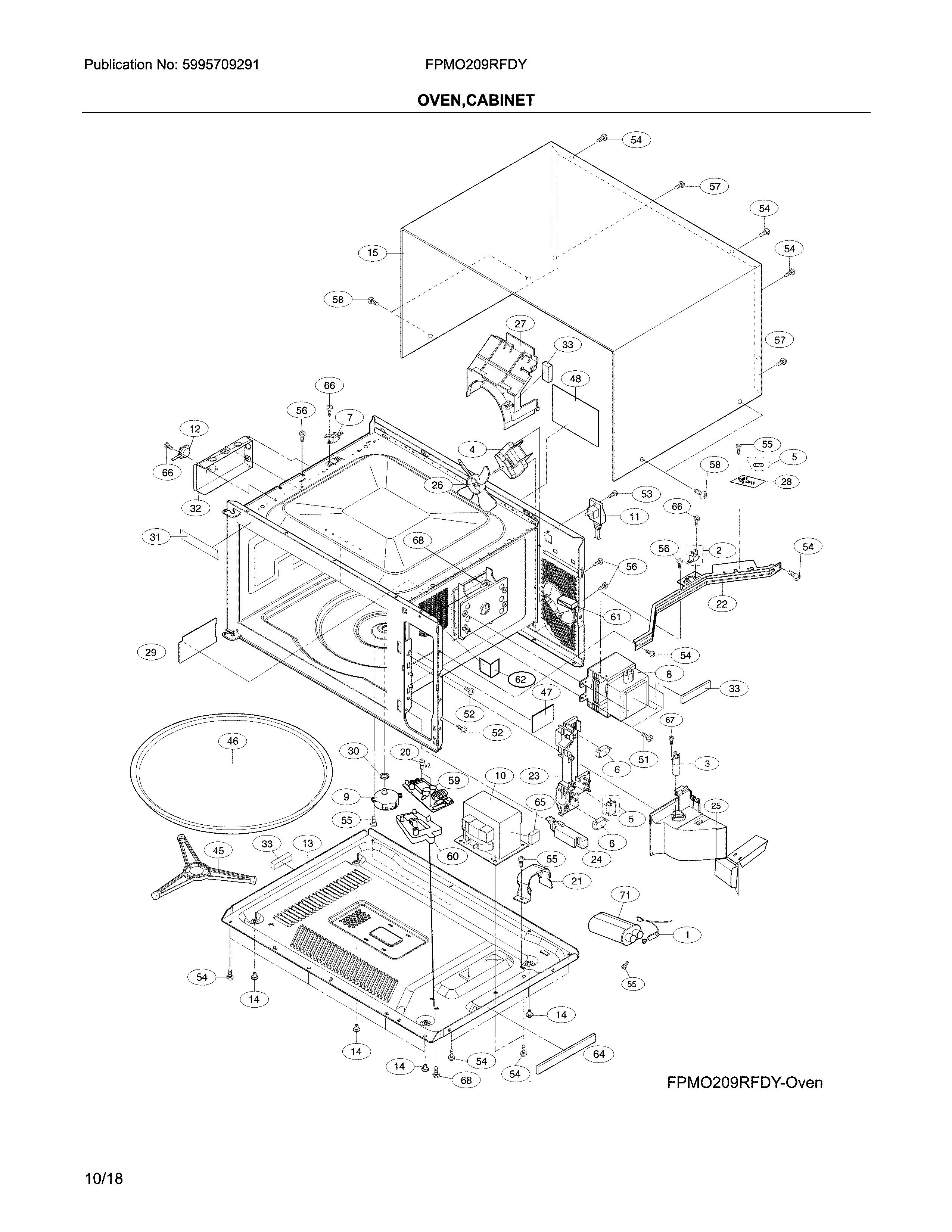

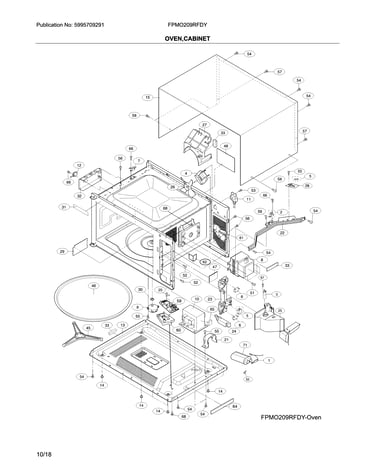

Oven,cabinet diagram

Microwave latch body

Part #5304503439

BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Lever 5304464899
#24

Oven,cabinet diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Microwave High-voltage Capacitor 5304493150
#1

Oven,cabinet diagram

Microwave high-voltage capacitor

Part #5304493150

BEST SELLER
This item is not returnable
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Wire 5304503442
#50

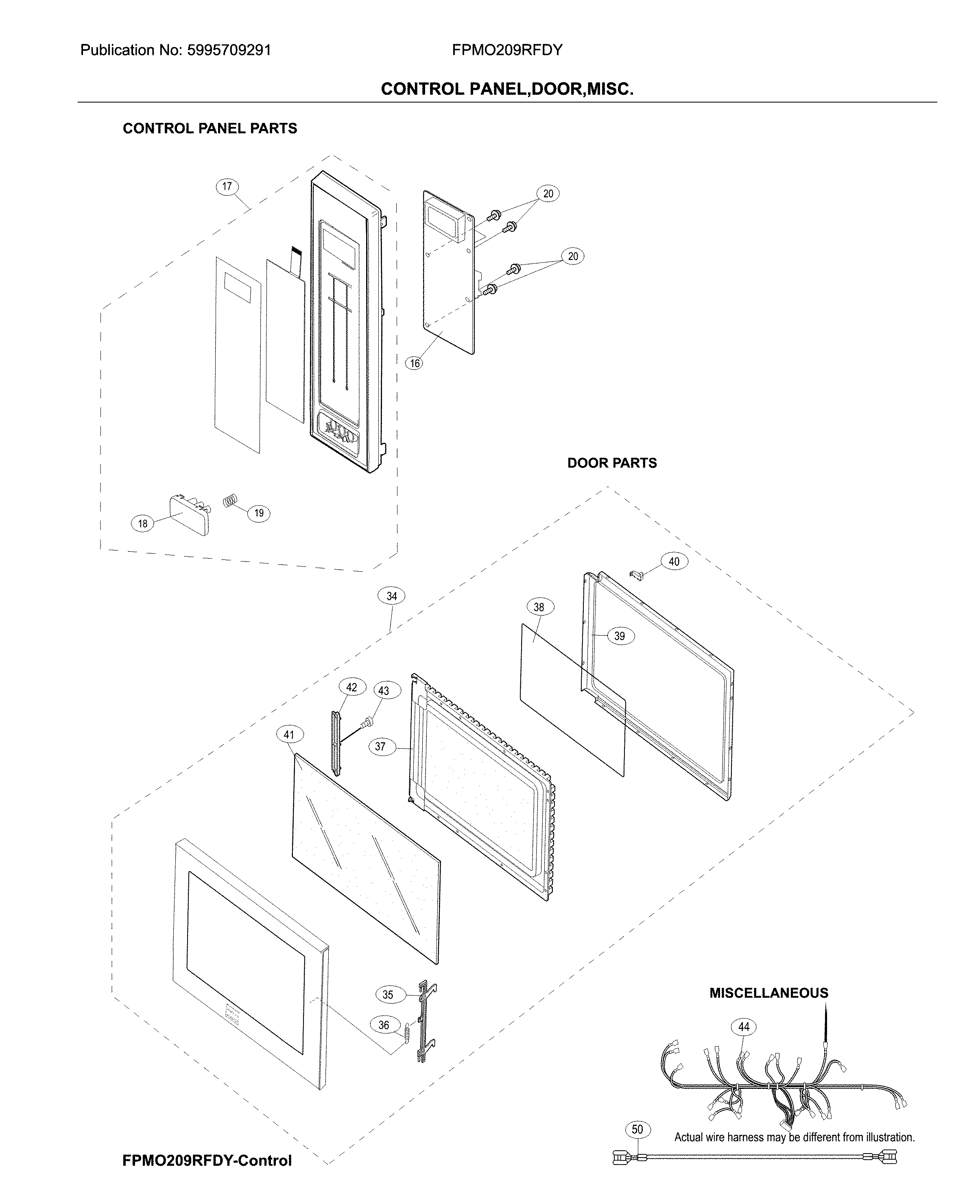

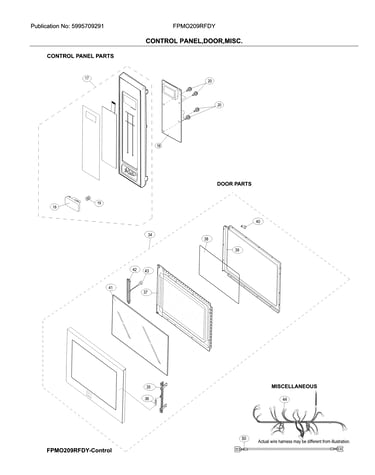

Control panel,door,misc diagram

Wire

Part #5304503442

Replaced by #5304493150

?
Manufacturer substitution
This part replaces 5304503442. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Microwave Door Latch Spring (replaces 75304440316) 5304440316
#36

Control panel,door,misc diagram

Microwave door latch spring (replaces 75304440316)

Part #5304440316

$49.59 |
11% OFF Phone Price : $55.59
In Stock
Wall Oven Microwave Thermal Fuse, 20-amp (replaces 75304440780) 5304440780
#7

Oven,cabinet diagram

Wall oven microwave thermal fuse, 20-amp (replaces 75304440780)

Part #5304440780

$69.79 |
8% OFF Phone Price : $75.79
In Stock
Microwave Glass Turntable Tray 5304440868
#46

Oven,cabinet diagram

Microwave glass turntable tray

Part #5304440868

Replaced by #5304529482

?
Manufacturer substitution
This part replaces 5304440868. Substitute parts can look different from the original.
$85.30 |
7% OFF Phone Price : $91.30
In Stock
Microwave Door Release Button Spring 5304440831
#19

Control panel,door,misc diagram

Microwave door release button spring

Part #5304440831

This item is not returnable
$21.91 |
21% OFF Phone Price : $27.91
In Stock
Microwave Power Control Board 5304507220
#59

Oven,cabinet diagram

Microwave power control board

Part #5304507220

$130.93 |
8% OFF Phone Price : $142.93
In Stock
Cord 5304440784
#11

Oven,cabinet diagram

Cord

Part #5304440784

$98.09 |
11% OFF Phone Price : $110.09
In Stock
