Tecumseh
Lawn & Garden Engine

Model # TYPE 642-20 Official Tecumseh engine

Here are the diagrams and repair parts for Official Tecumseh TYPE-642-20 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
O-ring 631028
#25

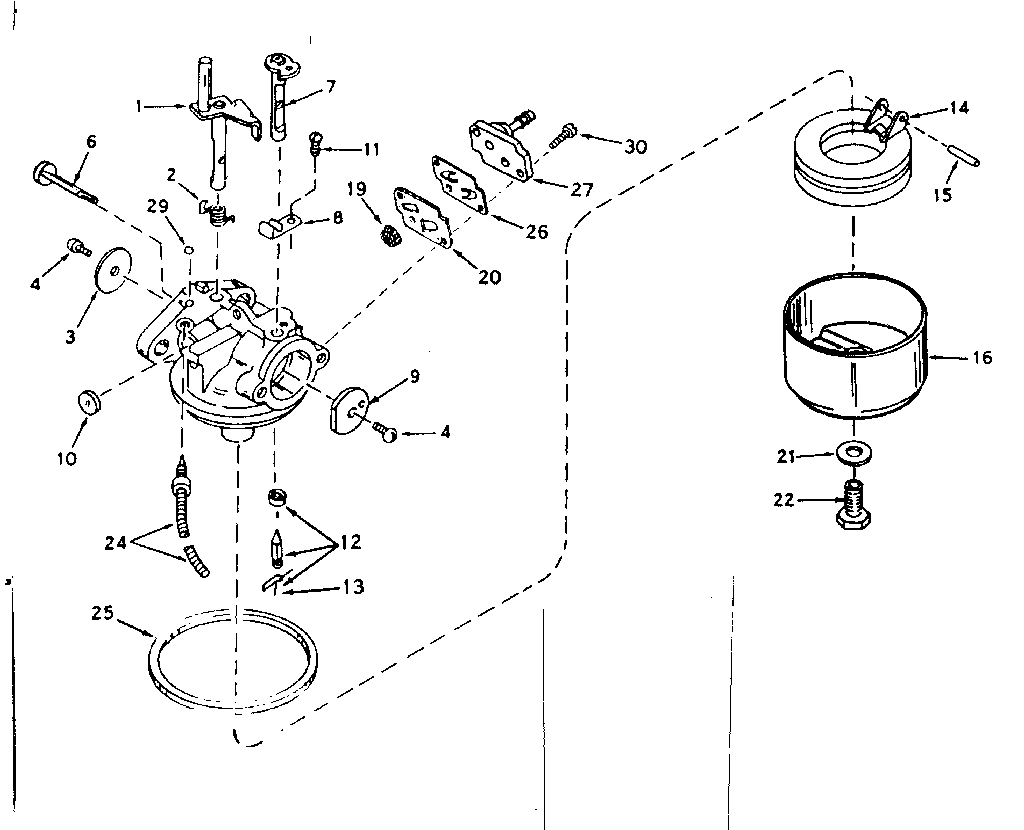

Carburetor no. 631895 diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

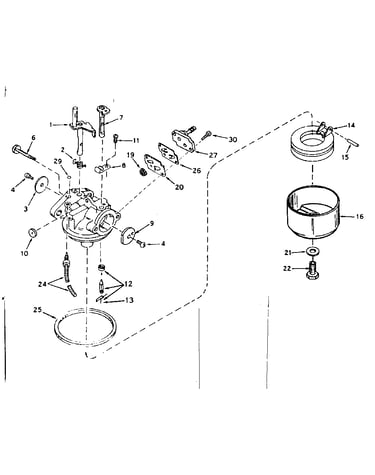

Carburetor no. 631895 diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

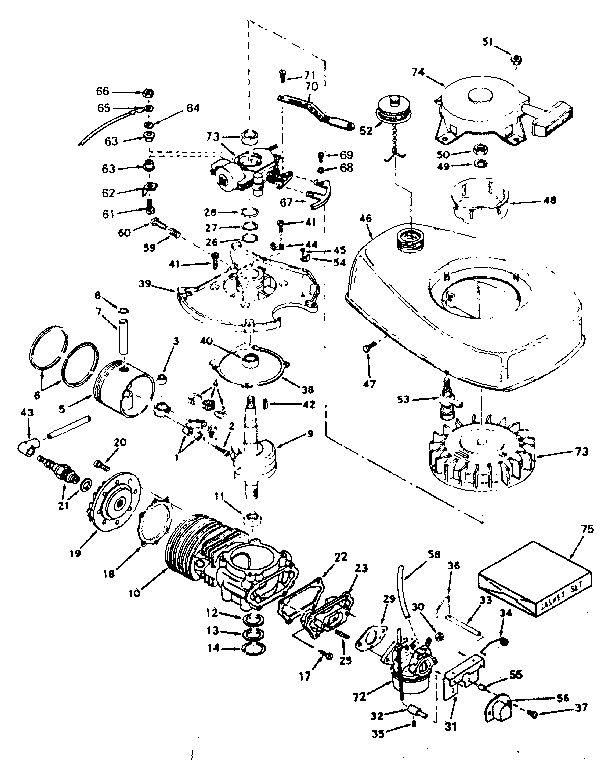

Basic engine diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#28

Basic engine diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Dog Sprng Rh 590412
#5

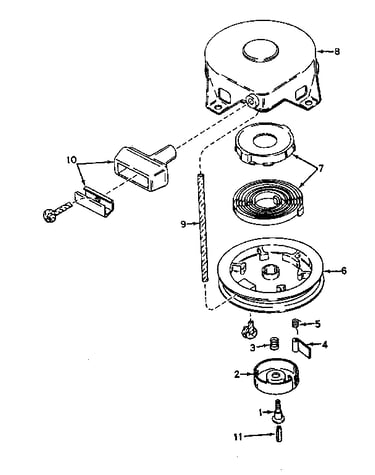

Rewind starter no. 590420 diagram

Dog sprng rh

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor no. 631895 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#27

Basic engine diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Nut 650390
#50

Basic engine diagram

Nut

Part #650390

The manufacturer no longer makes this part, and there's no substitute part

Coil 30560A
#11

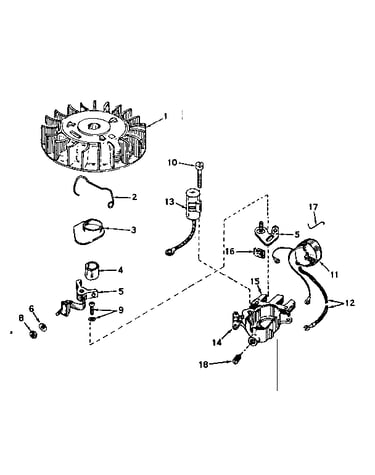

Magneto no. 610832a diagram

Coil

Part #30560A

The manufacturer no longer makes this part, and there's no substitute part

Carb. Stud 650794
#25

Basic engine diagram

Carb. stud

Part #650794

The manufacturer no longer makes this part, and there's no substitute part
