Model # DH100P Official DeLonghi dehumidifier
Here are the diagrams and repair parts for Official DeLonghi DH100P dehumidifier, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
DH100P Dehumidifier
#54

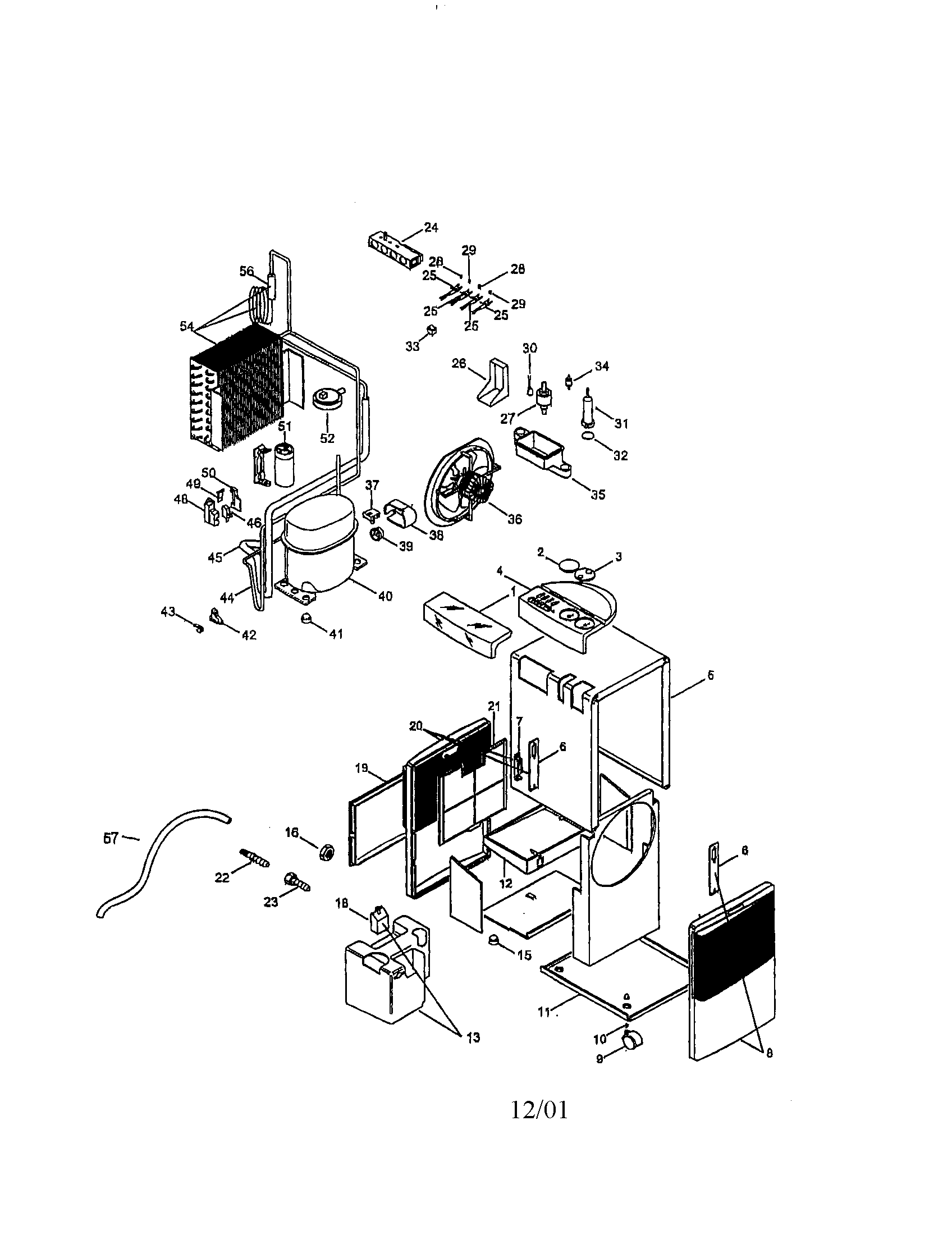

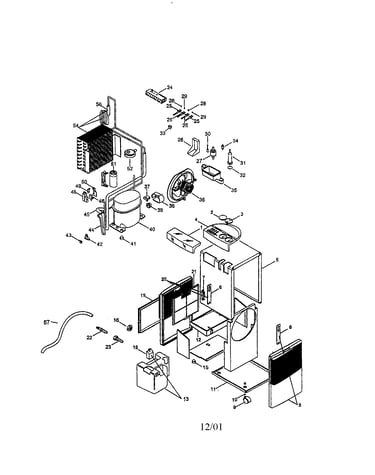

Dehumidifier diagram
Delonghi evaporator
Part #5548001800
The manufacturer no longer makes this part, and there's no substitute part
#12
Dehumidifier diagram
Delonghi tray
Part #5348005600
The manufacturer no longer makes this part, and there's no substitute part
#34
Dehumidifier diagram
Delonghi dehumidifier air filter
Part #VT205651
The manufacturer no longer makes this part, and there's no substitute part
#4
Dehumidifier diagram
Delonghi control panel
Part #5948005100
The manufacturer no longer makes this part, and there's no substitute part
#40
Dehumidifier diagram
Condenser pump
Part #5148000500
The manufacturer no longer makes this part, and there's no substitute part
#20
Dehumidifier diagram
Delonghi panel
Part #734974
The manufacturer no longer makes this part, and there's no substitute part
#11
Dehumidifier diagram
Delonghi base
Part #6948000200
The manufacturer no longer makes this part, and there's no substitute part
#22
Dehumidifier diagram
Delonghi coupling
Part #5348006100
The manufacturer no longer makes this part, and there's no substitute part
#43
Dehumidifier diagram
Delonghi wire clamp
Part #551991
The manufacturer no longer makes this part, and there's no substitute part
#21
Dehumidifier diagram
Delonghi filter
Part #536822
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your dehumidifiers
Choose a symptom to see related dehumidifier repairs.
Main causes: weak or dead batteries, out of range, radio frequency interference…
Main causes: collection bucket not installed, collection bucket full of water…
Main causes: dehumidifier too small for the space, bad humidity sensor, faulty evaporator thermistor, low refrigerant, b…
Main causes: room temperature below 65 degrees Fahrenheit, control system failure…
Main causes: lack of electrical power, wiring failure, electronic control board failure, user interface control failure…
Main causes: clogged drain hose, drain hose not properly connected…
Main causes: loose fan motor mounting screws, loose compressor mounting bracket screws, bad fan, faulty compressor…
Main causes: dirty air filter, clogged grill, dehumidifier placed too close to the wall, dehumidifier too small for the …
Main causes: collection bucket not installed correctly, cracked collection bucket, loose drain hose connection…
Most common repair guides to help fix your dehumidifiers
These step-by-step repair guides will help you safely fix what’s broken on your dehumidifier.

How to replace a dehumidifier user interface control board
If the dehumidifier doesn’t respond when you try to set it, follow these steps to replace it.…
Repair difficulty
Time required
30 minutes or less

How to replace a dehumidifier sensor assembly
If the humidifier sensor doesn’t properly detect humidity or evaporator temperature, install a new sensor assembly, foll…
Repair difficulty
Time required
45 minutes or less

How to replace a dehumidifier electronic control board
If the dehumidifier won’t power up because the control board has failed, use the steps in this repair guide to replace t…
Repair difficulty
Time required
45 minutes or less
Effective articles & videos to help repair your dehumidifiers
Use the advice and tips in these articles to get the most out of your dehumidifier.

Learn some of the most common symbols found in a wiring diagram and what they mean.…

Learn how to repair broken, frayed or damaged wires in your appliances.…

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
