Model # EV9.16 Official Nautilus elliptical machine

Here are the diagrams and repair parts for Official Nautilus EV916 elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

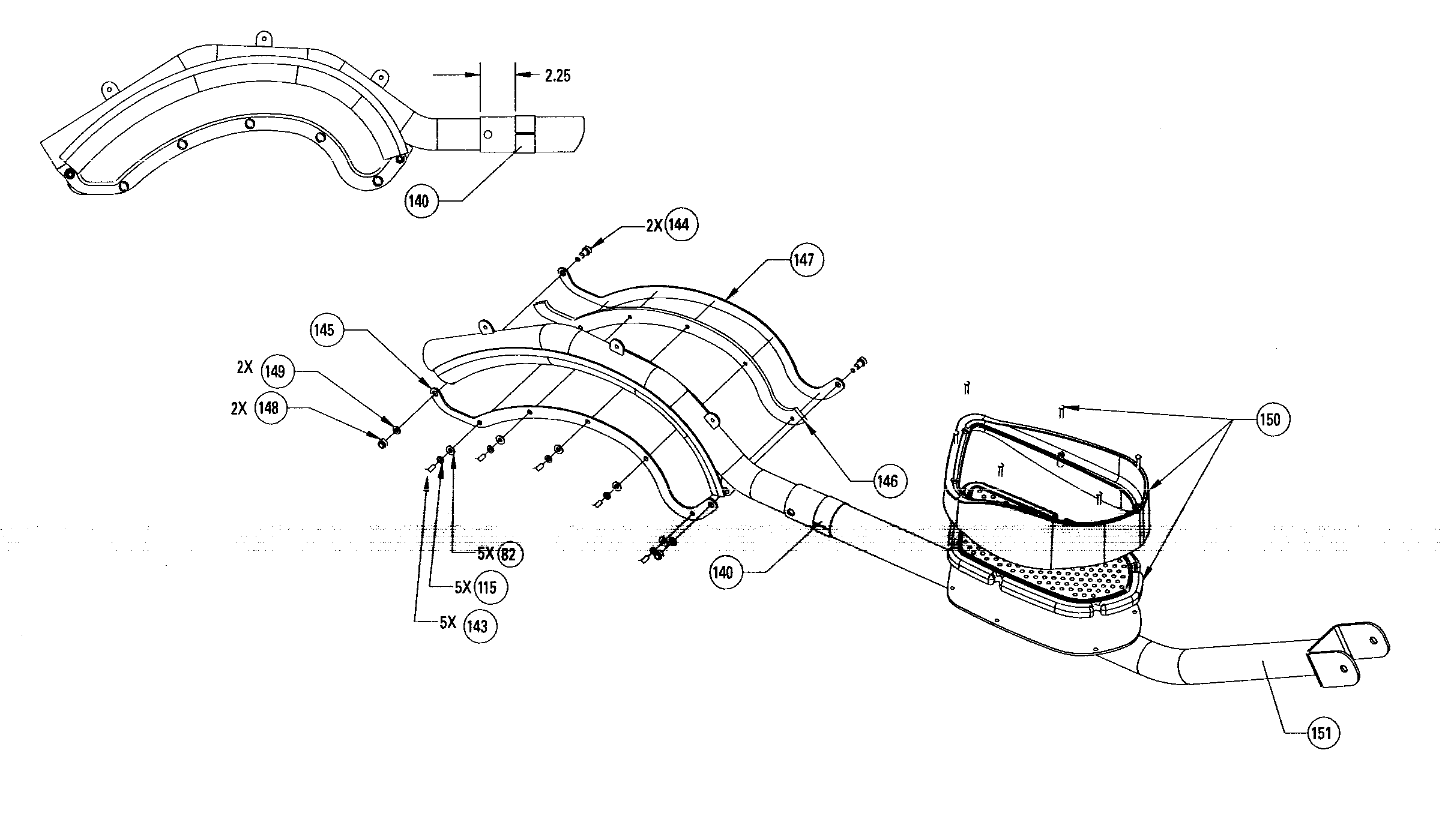

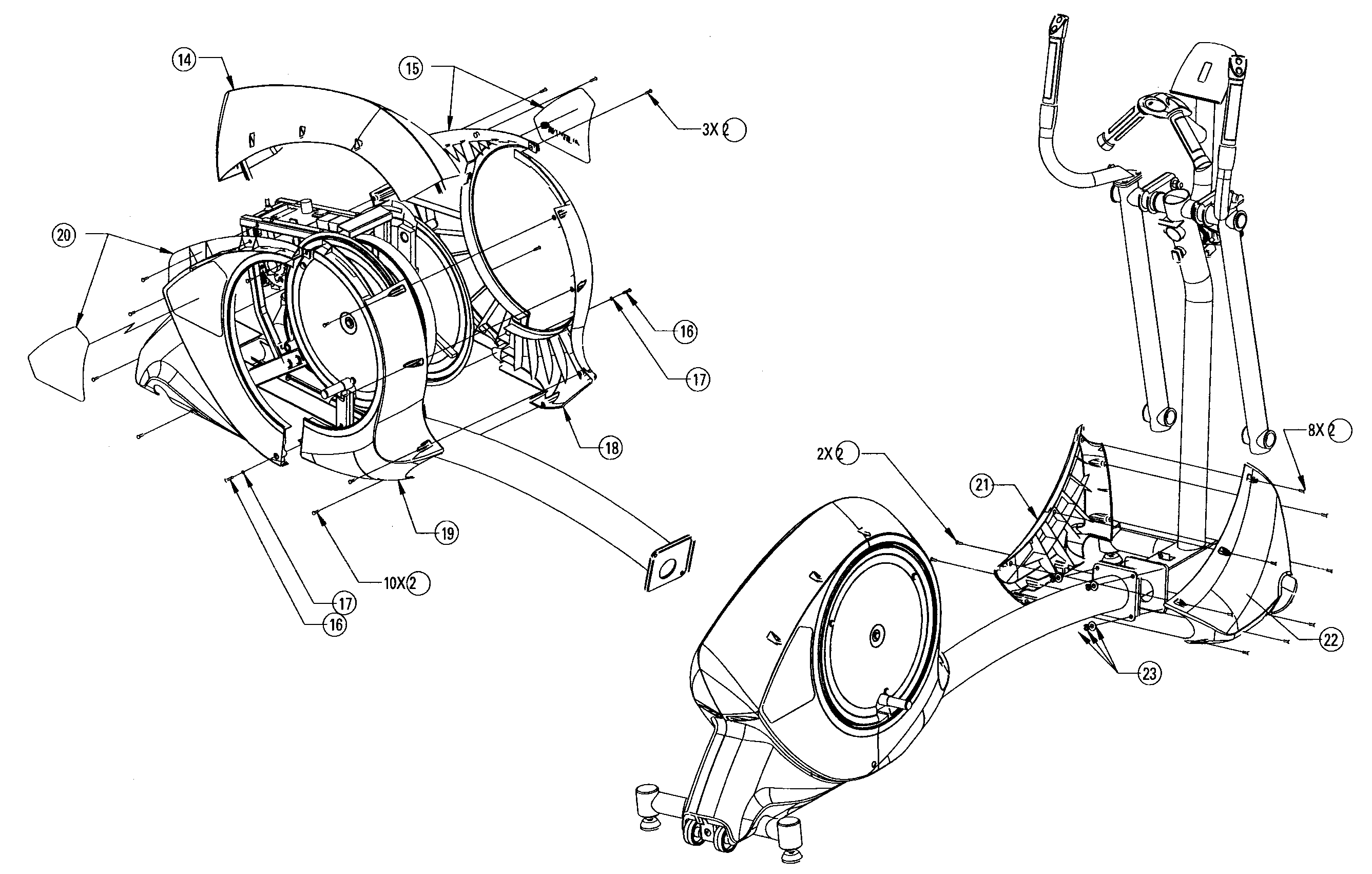

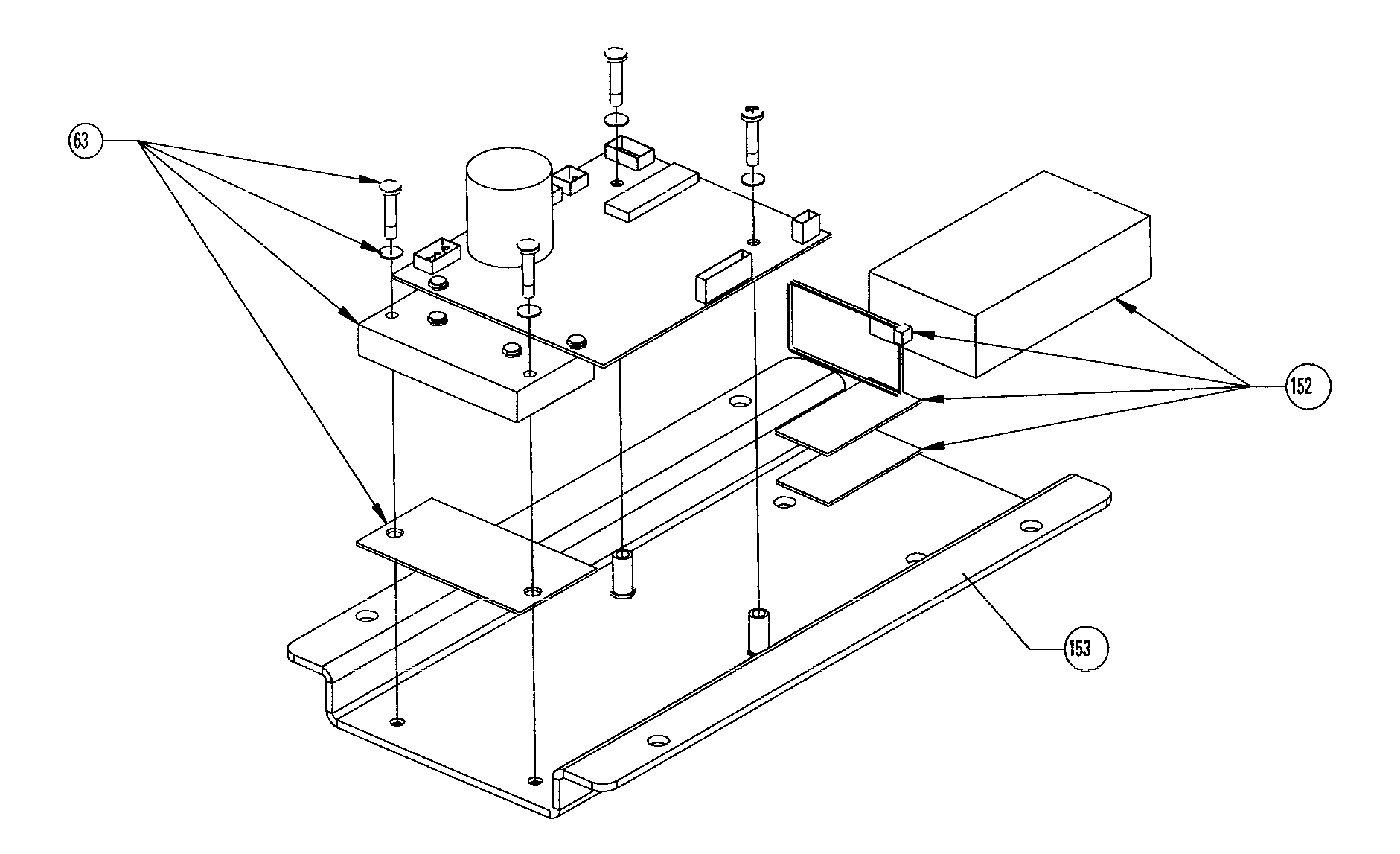

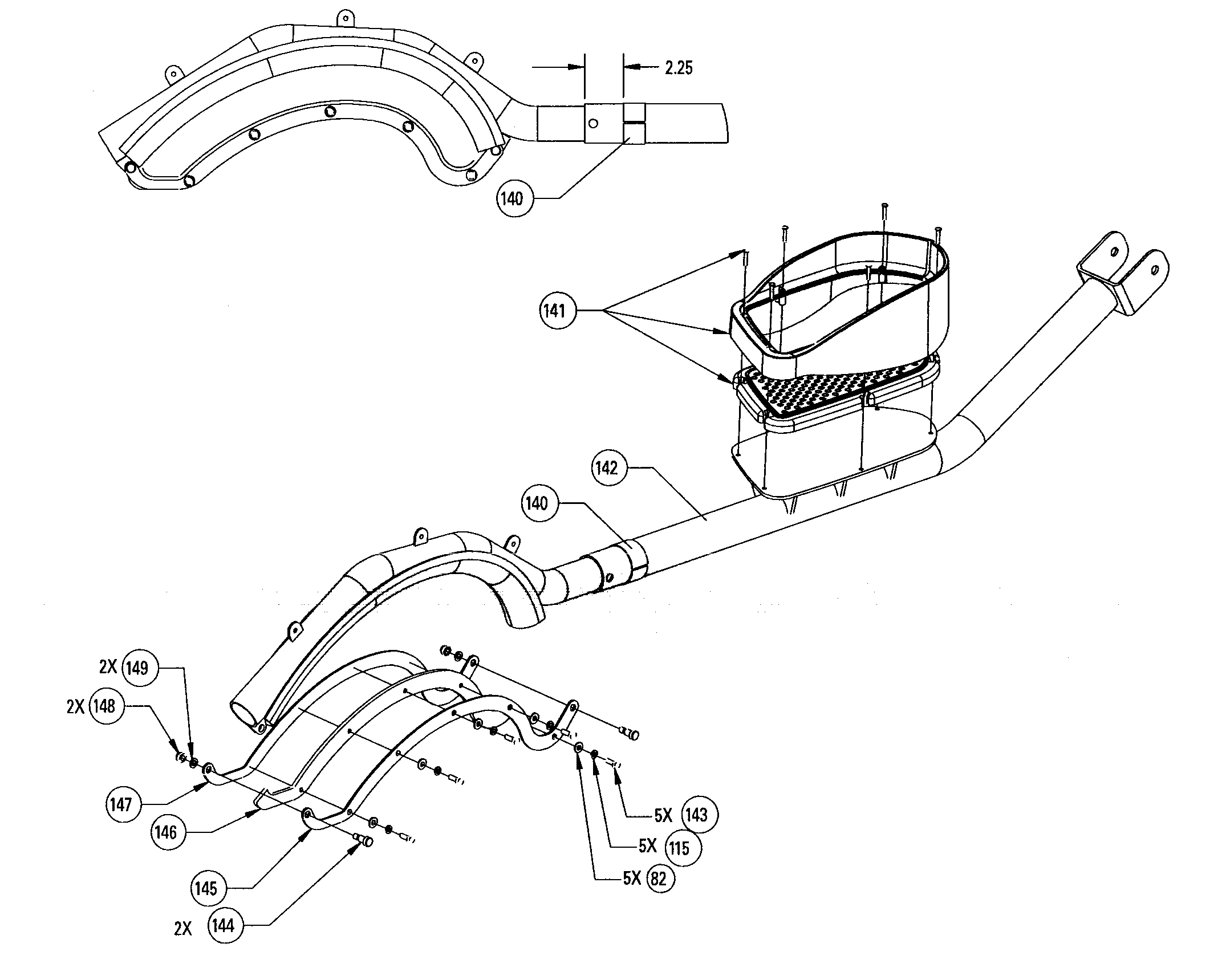

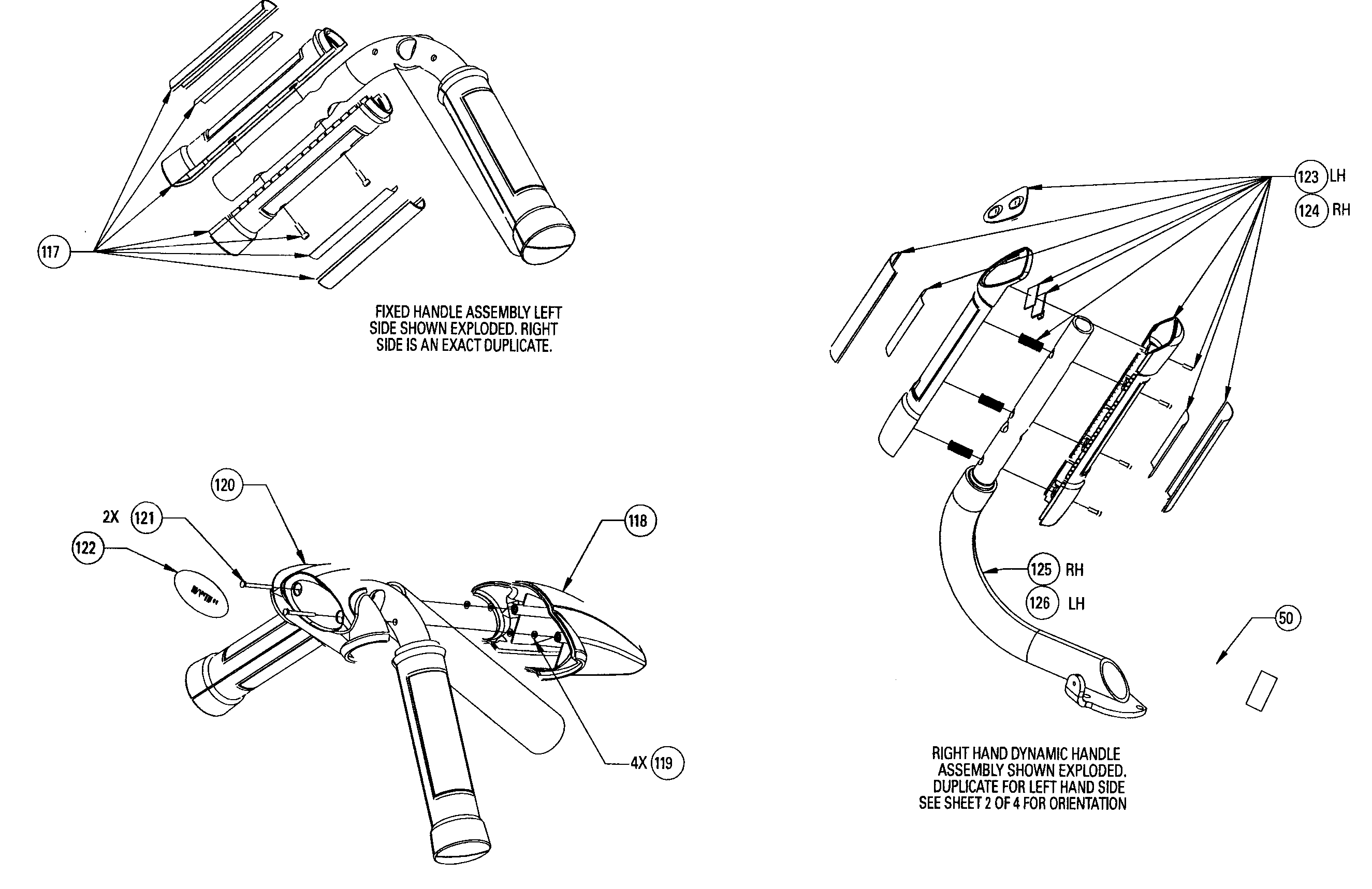

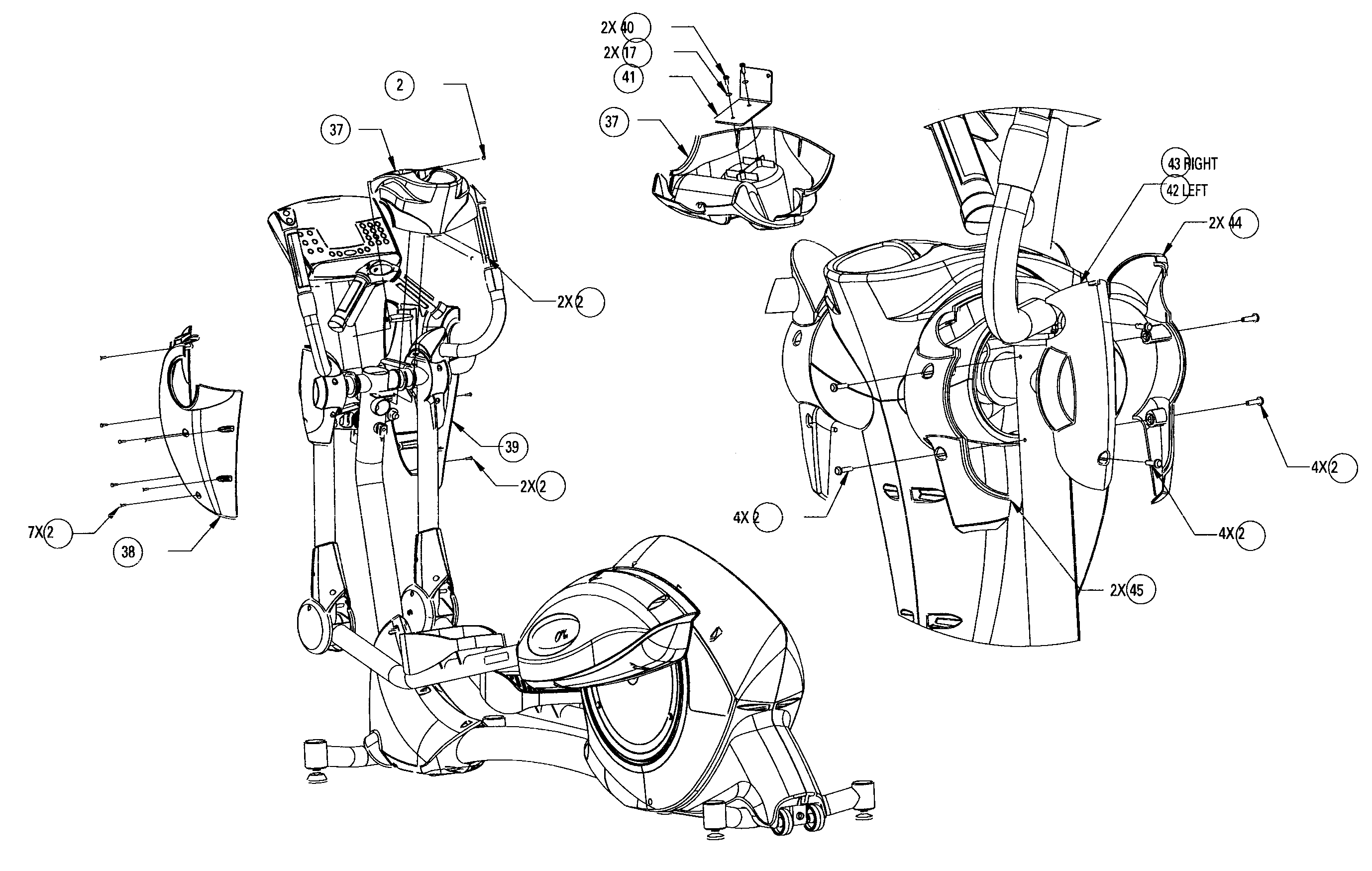

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Oom,flexible SM21135
#136

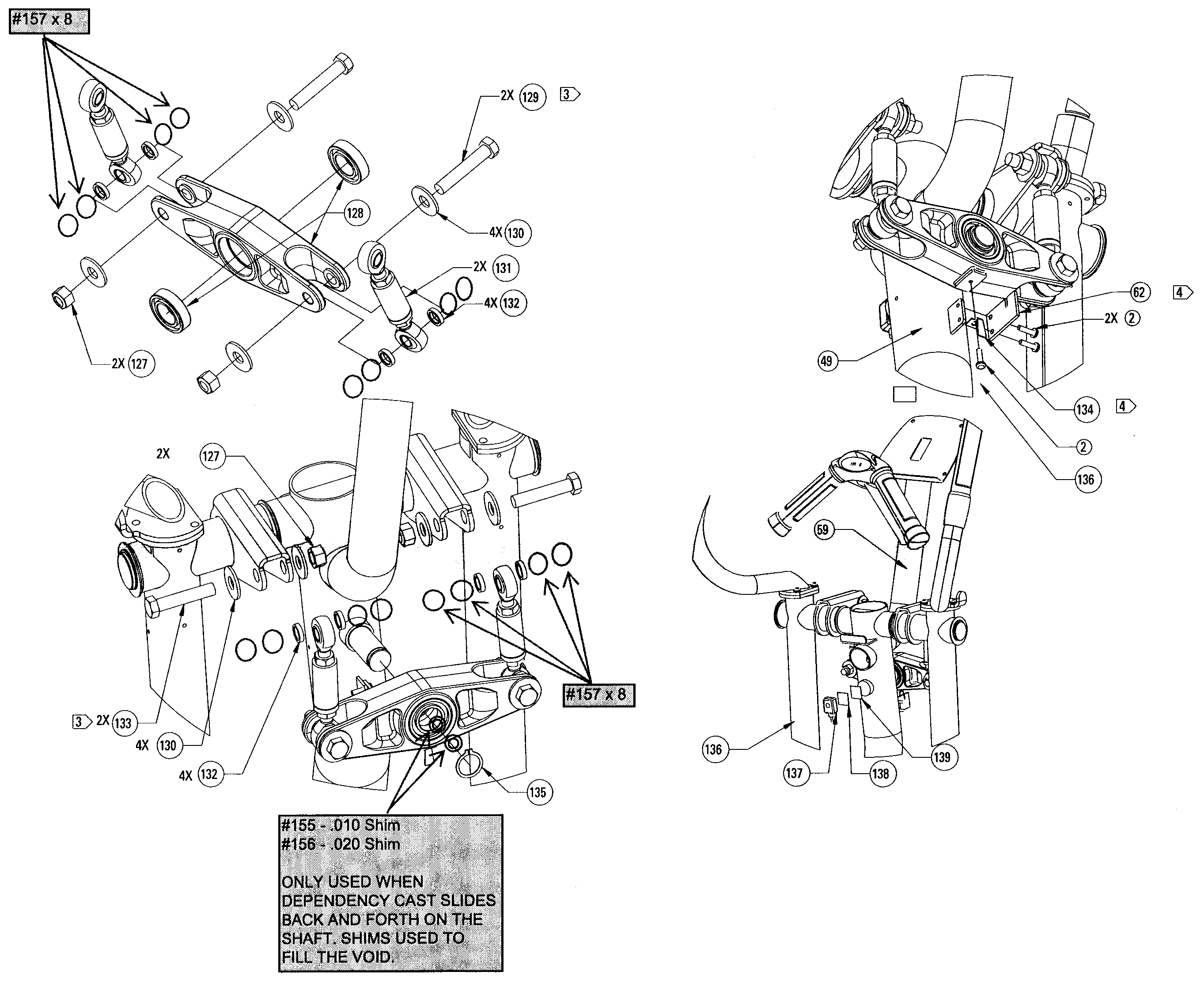

Gears assy diagram

Oom,flexible

Part #SM21135

The manufacturer no longer makes this part, and there's no substitute part

Main Power Asy,ellipt SM40677
#5

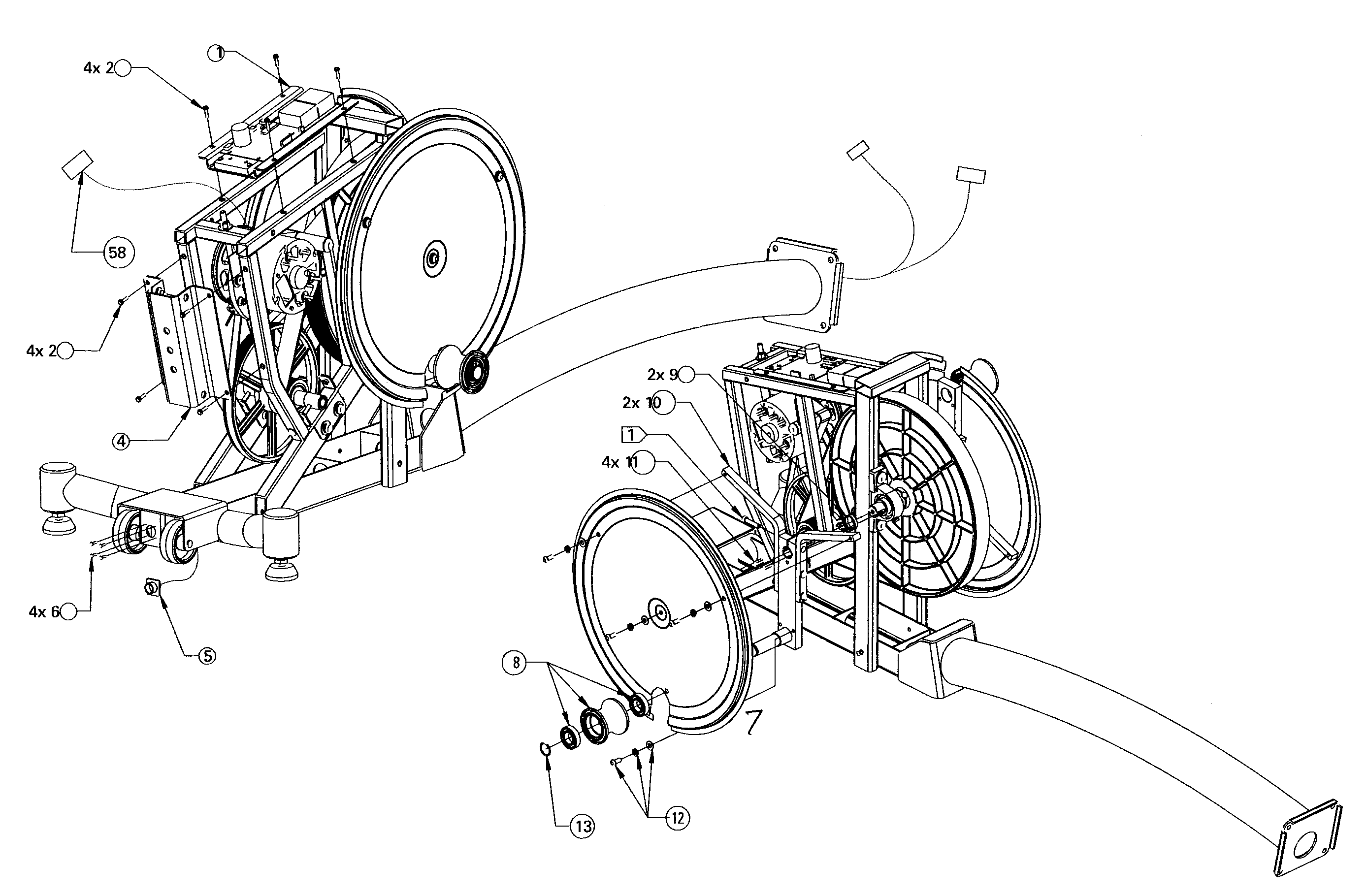

Crank assy diagram

Main power asy,ellipt

Part #SM40677

The manufacturer no longer makes this part, and there's no substitute part

Screw SM22663
#6

Crank assy diagram

Screw

Part #SM22663

The manufacturer no longer makes this part, and there's no substitute part

Screw,1/2-13x2.75 SM40347
#129

Gears assy diagram

Screw,1/2-13x2.75

Part #SM40347

The manufacturer no longer makes this part, and there's no substitute part

Kit,swing Arm Hardware SM40234
#110

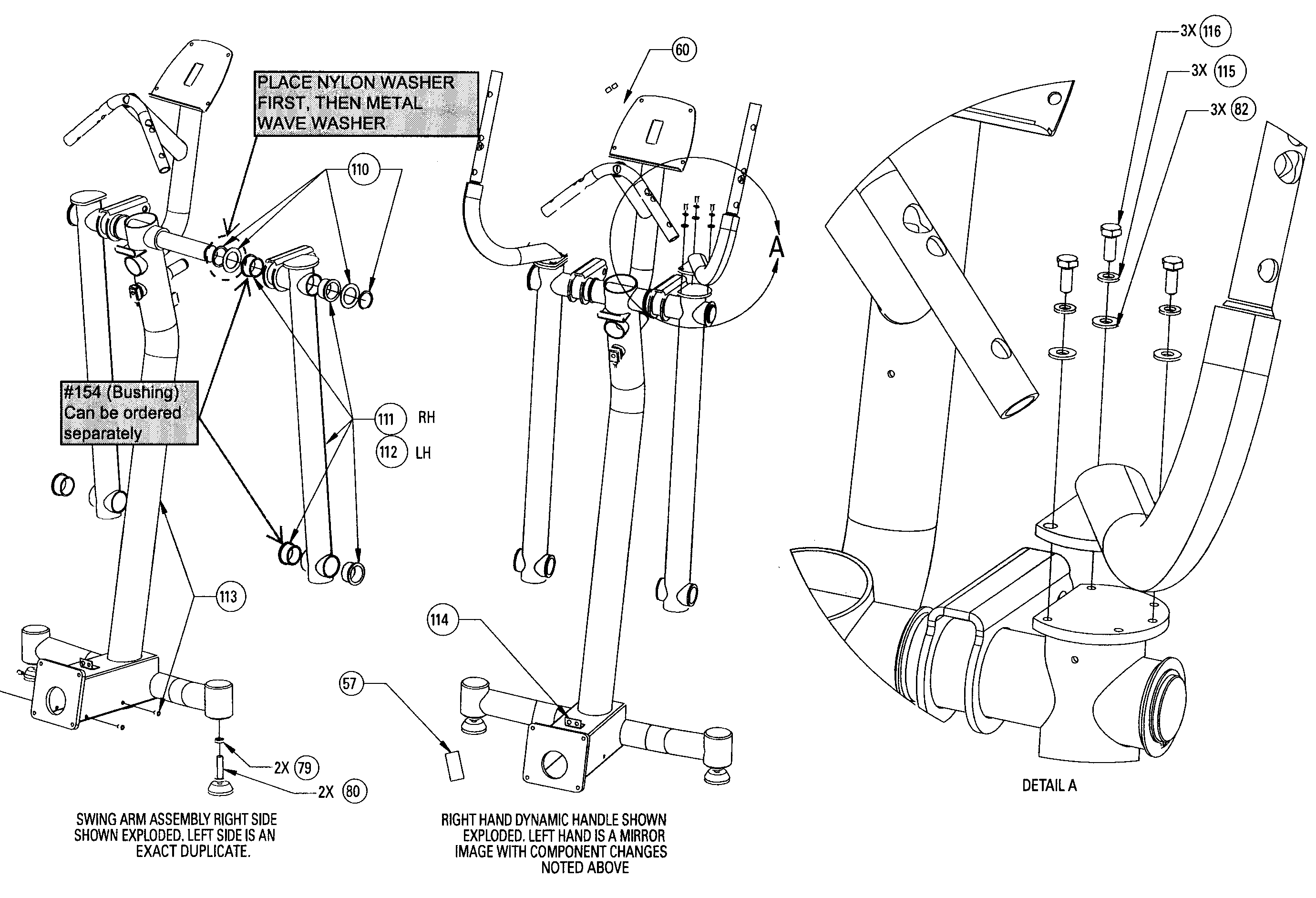

Arms assy diagram

Kit,swing arm hardware

Part #SM40234

The manufacturer no longer makes this part, and there's no substitute part

Screw SM22878
#72

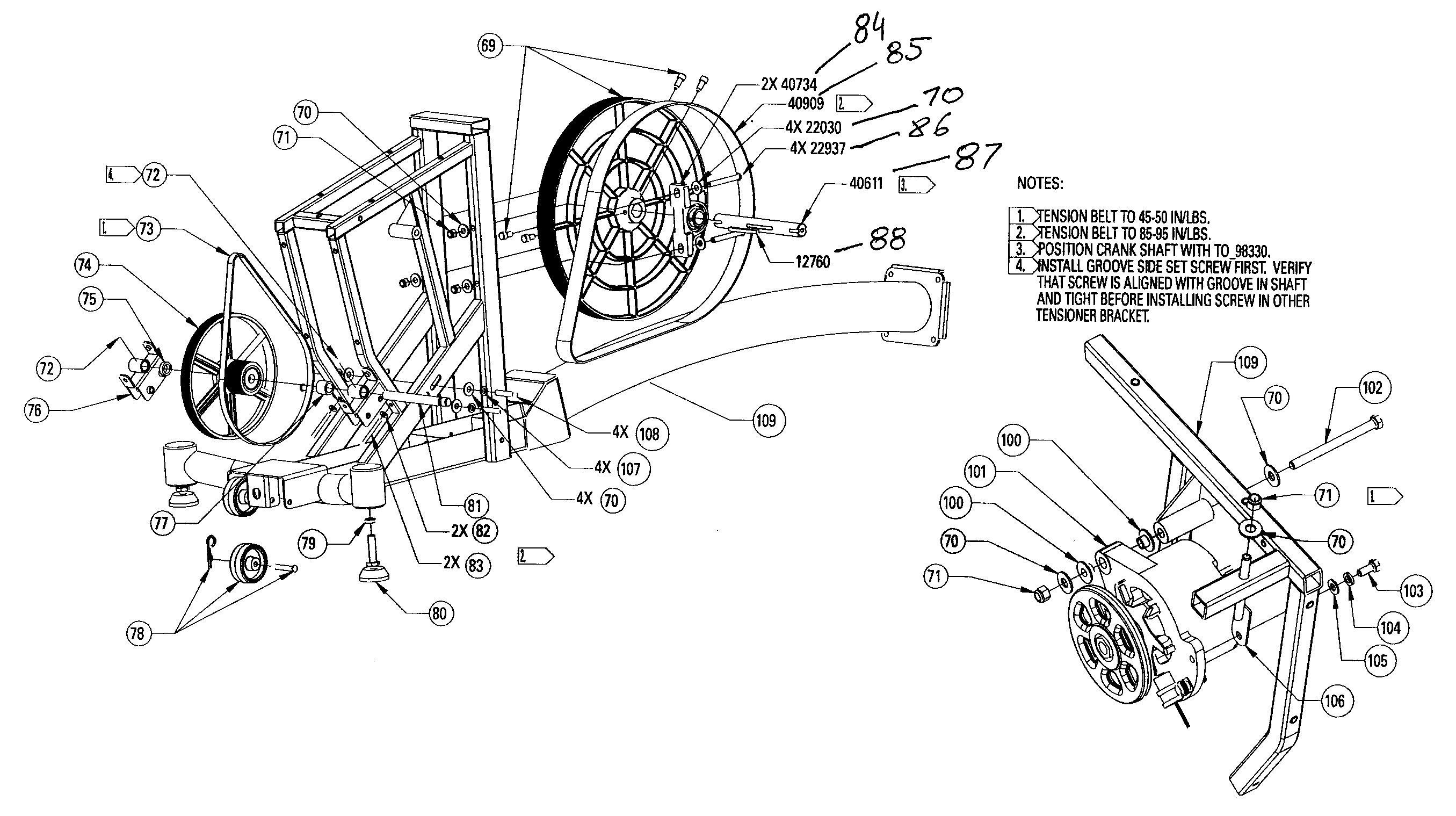

Belt assy diagram

Screw

Part #SM22878

The manufacturer no longer makes this part, and there's no substitute part

Spacer,crank Shaft SM40616
#9

Crank assy diagram

Spacer,crank shaft

Part #SM40616

The manufacturer no longer makes this part, and there's no substitute part

Cover Cam Inside-r Asy SM40491
#30

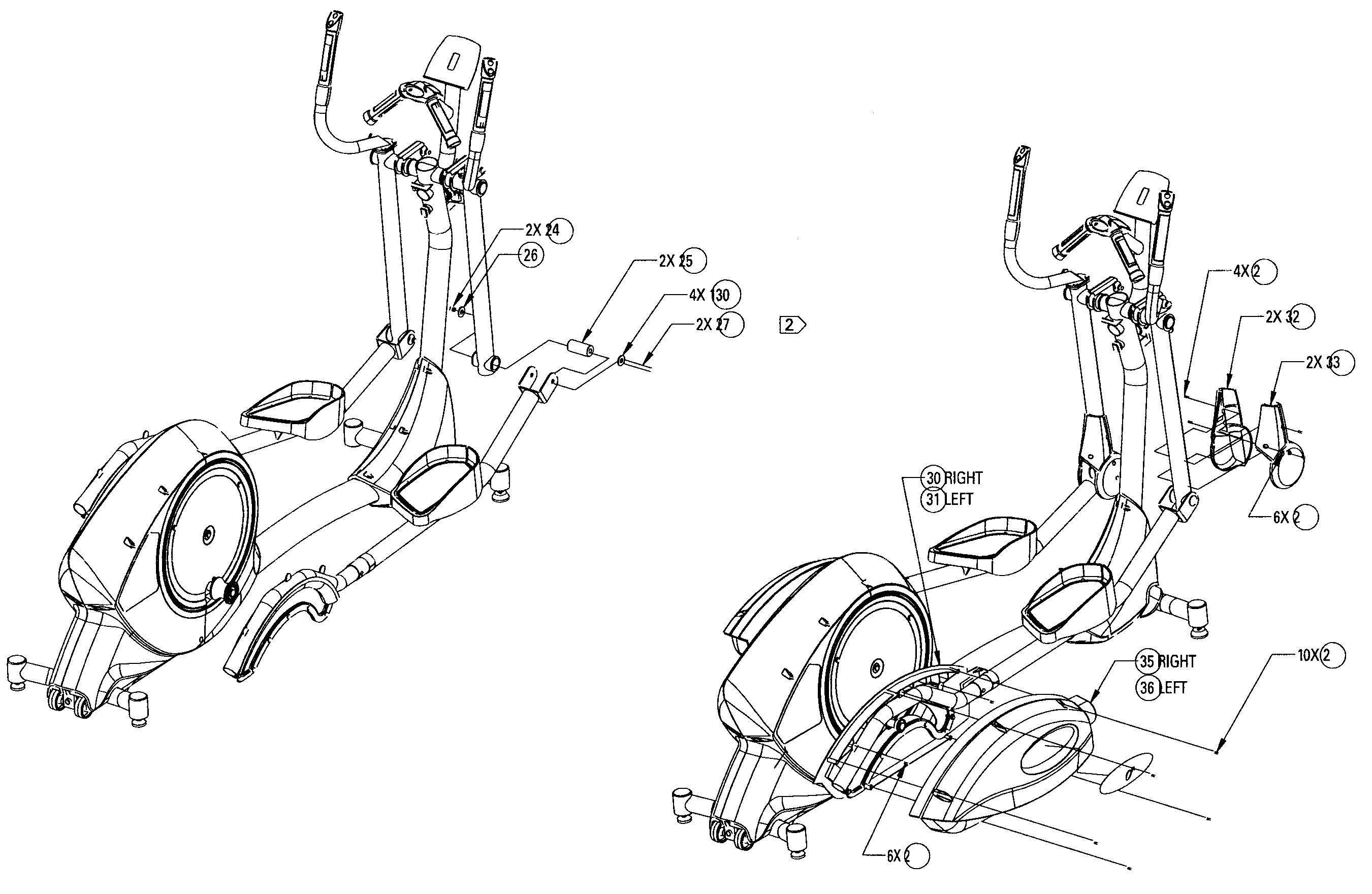

Covers 2 assy diagram

Cover cam inside-r asy

Part #SM40491

The manufacturer no longer makes this part, and there's no substitute part

Spacer,depend Rod-end SM40396-05
#132

Gears assy diagram

Spacer,depend rod-end

Part #SM40396-05

The manufacturer no longer makes this part, and there's no substitute part

Screw SM40670
#47

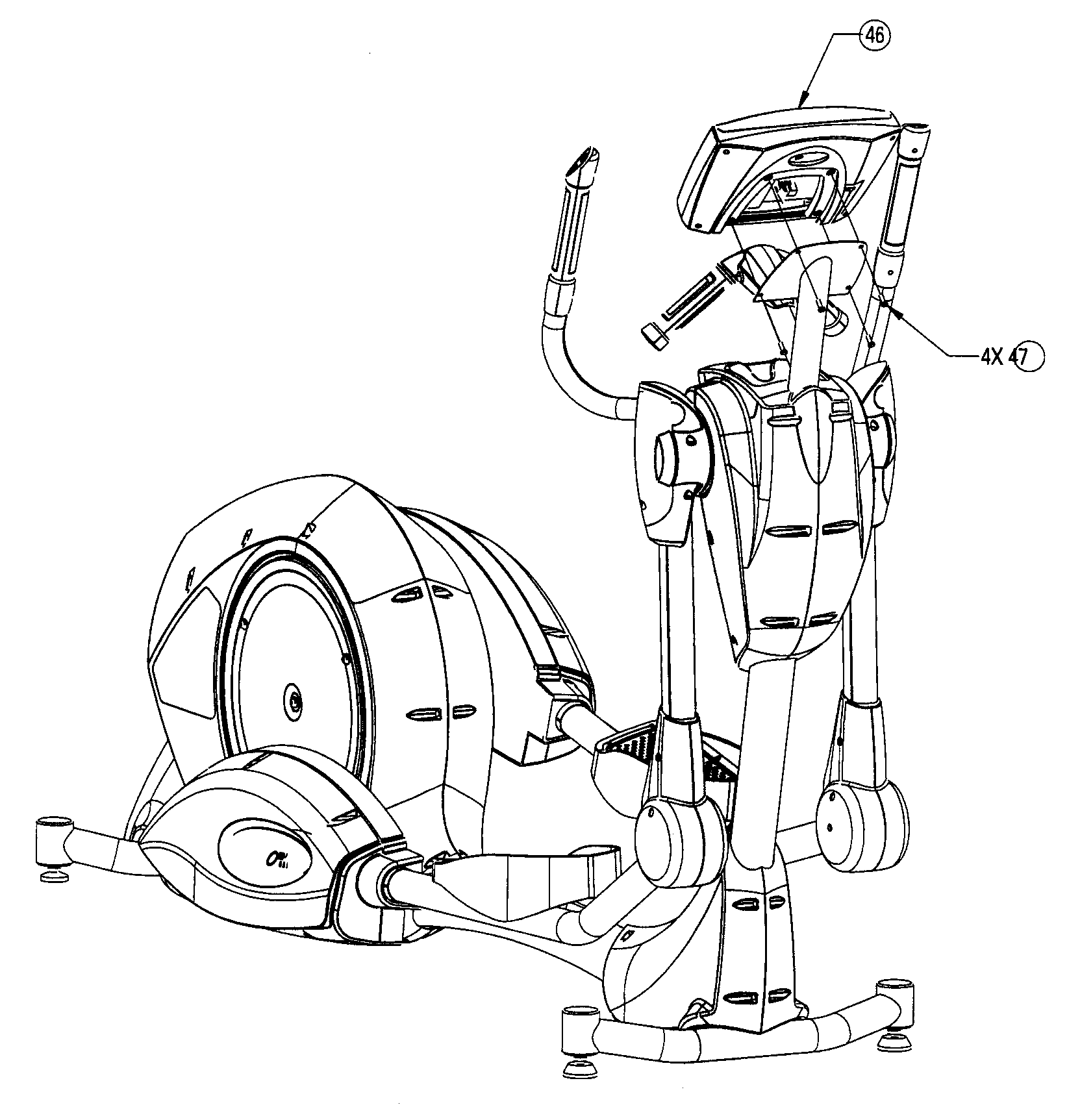

Console assy diagram

Screw

Part #SM40670

The manufacturer no longer makes this part, and there's no substitute part
