Treadmill

Model # IMTL30262 Official Image access 3000 treadmill

Here are the diagrams and repair parts for Official Image IMTL30262 access 3000 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

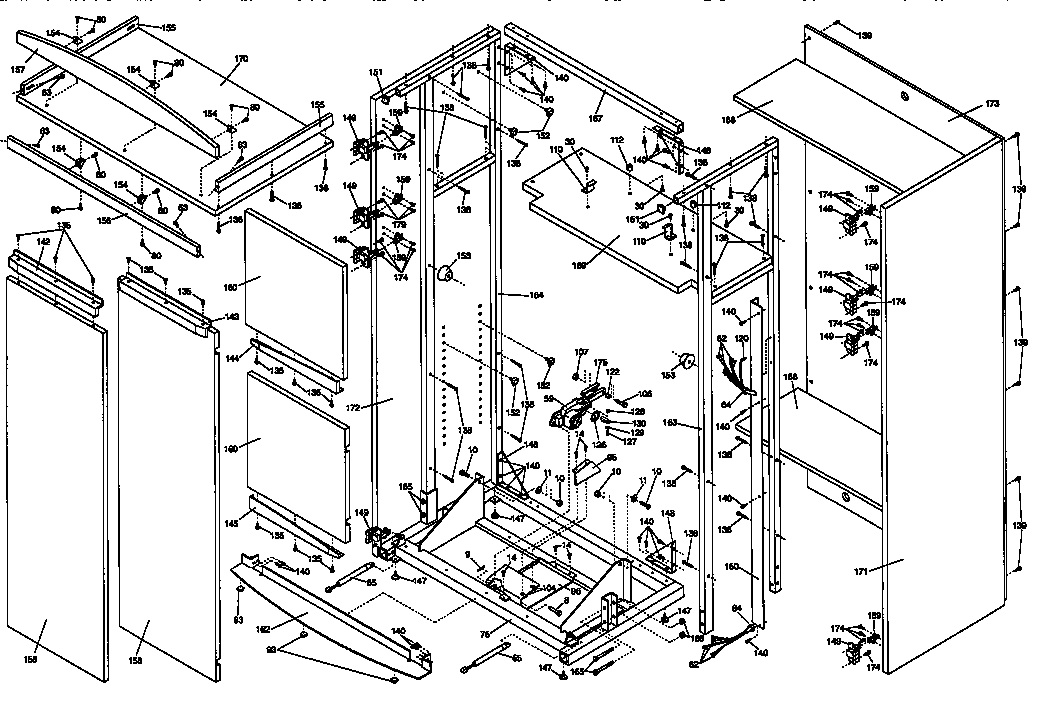

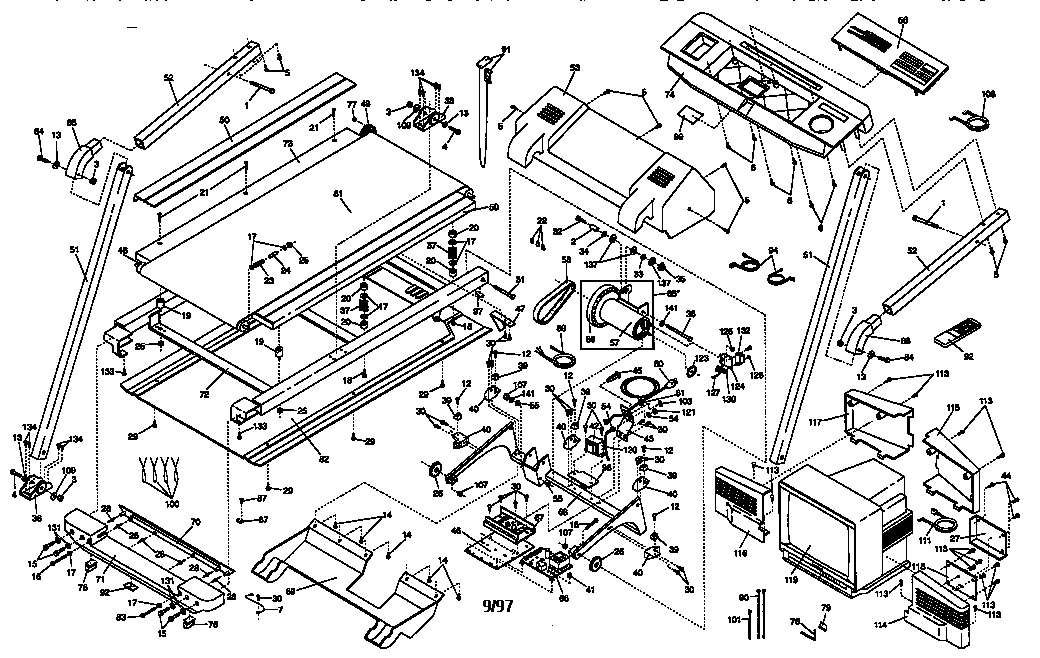

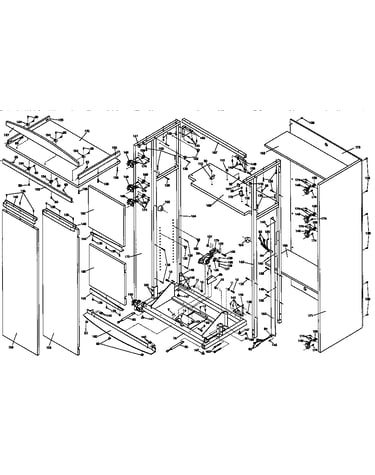

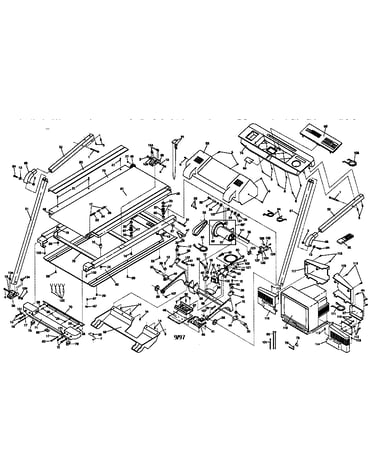

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#91

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
Back Order
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#45

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Magnet,rnd,m 100498

#77

All parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Treadmill Line Filter 130993

#42

All parts diagram

Treadmill line filter

Part #130993

$34.19 |
15% OFF Phone Price : $40.19
Back Order
Black & Decker Treadmill Washer 014063

#131

All parts diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Weider Exercise Equipment Optic Sensor 102955

#130

All parts diagram

Weider exercise equipment optic sensor

Part #102955

This item is not returnable
$9.29 |
10% OFF Phone Price : $10.29
In Stock
Cotter Pin,3 106334

#9

All parts diagram

Cotter pin,3

Part #106334

This item is not returnable
$2.16
In Stock
Screw,phrwhm 135351

#138

All parts diagram

Screw,phrwhm

Part #135351

This item is not returnable
$2.16
In Stock
Wire,14 Awg, 101951

#NI

All parts diagram

Wire,14 awg,

Part #101951

This item is not returnable
$2.99
In Stock
Treadmill Motor Hood Bracket 132394

#40

All parts diagram

Treadmill motor hood bracket

Part #132394

This item is not returnable
$2.16
In Stock
