Model # PRD48JDSGU/07 Official Thermador dual-fuel range

Here are the diagrams and repair parts for Official Thermador PRD48JDSGU-07 dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

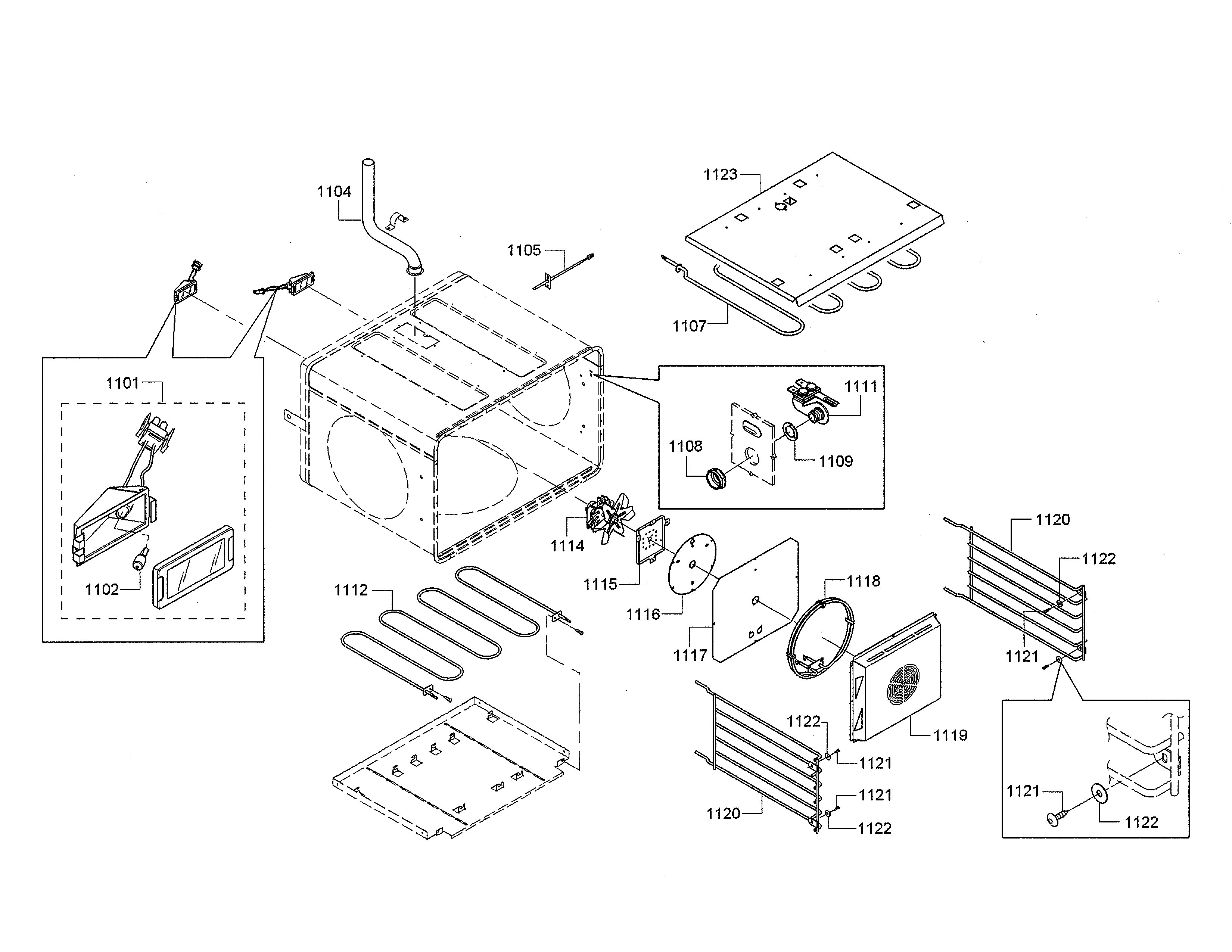

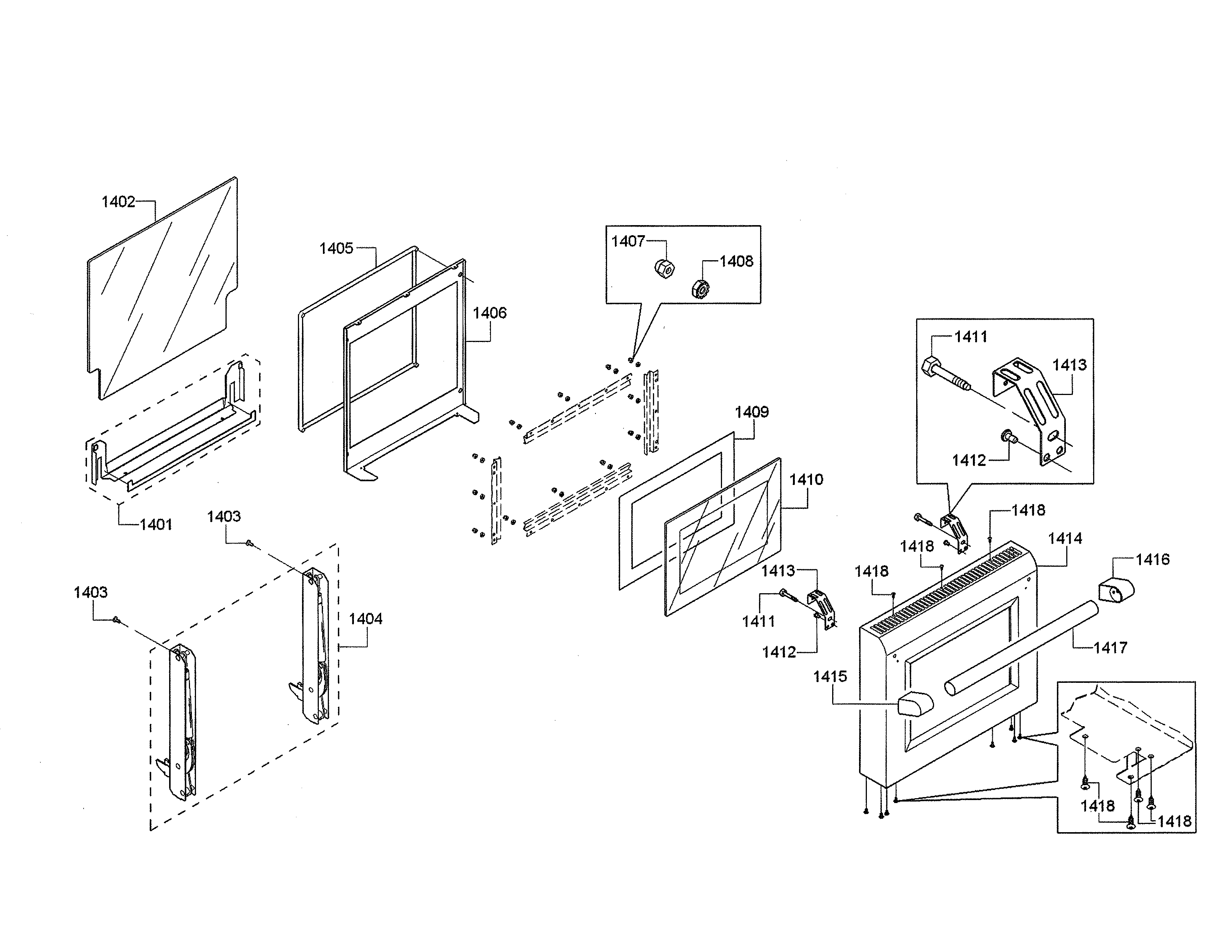

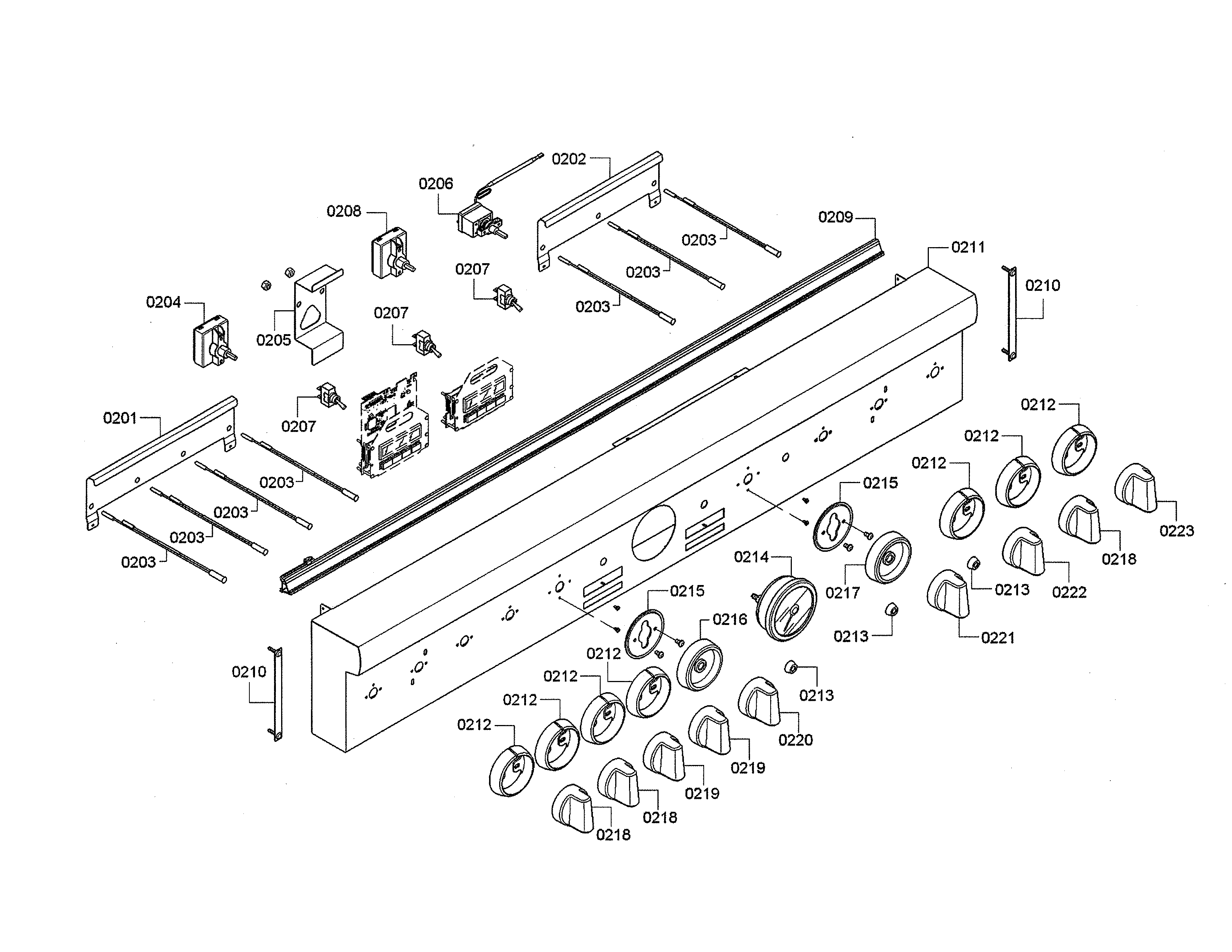

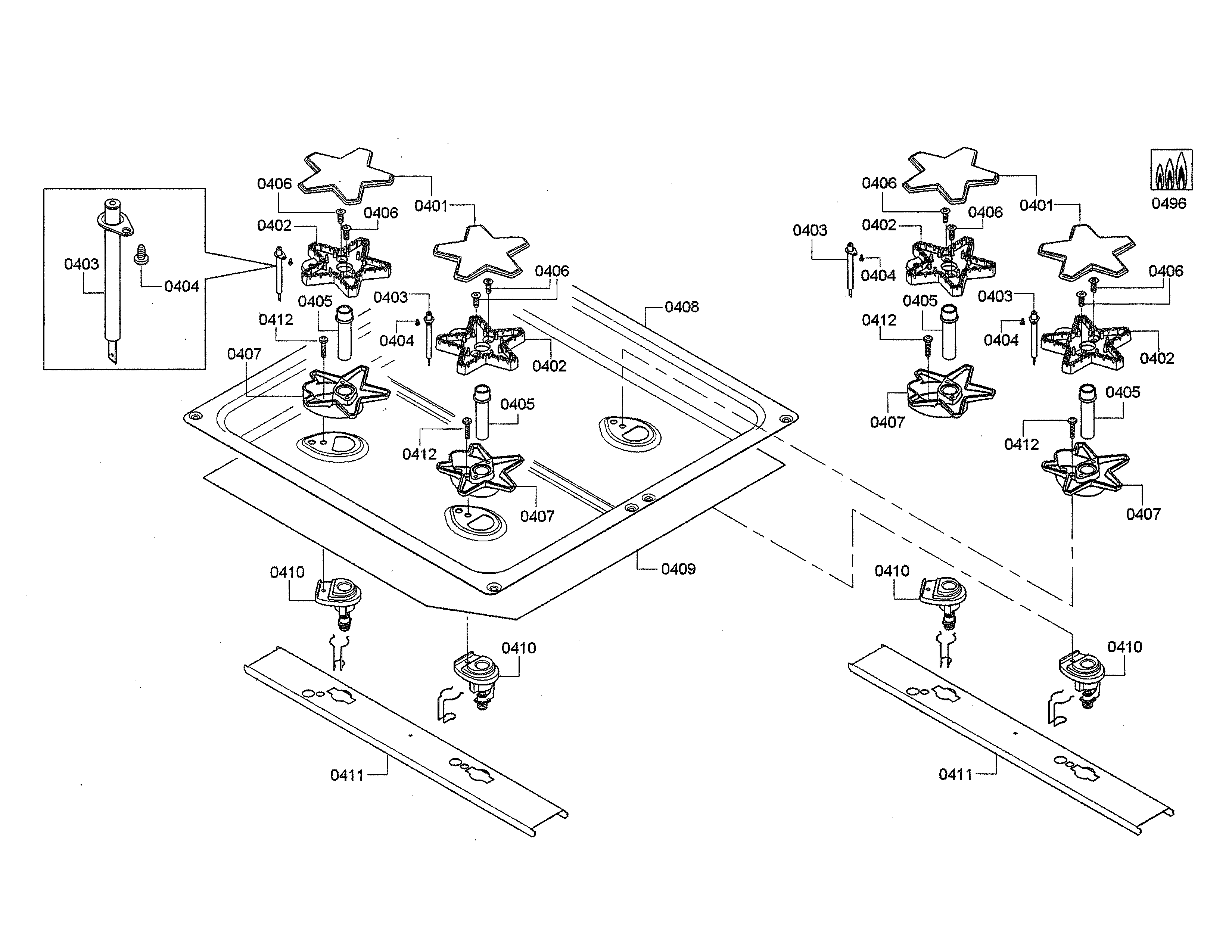

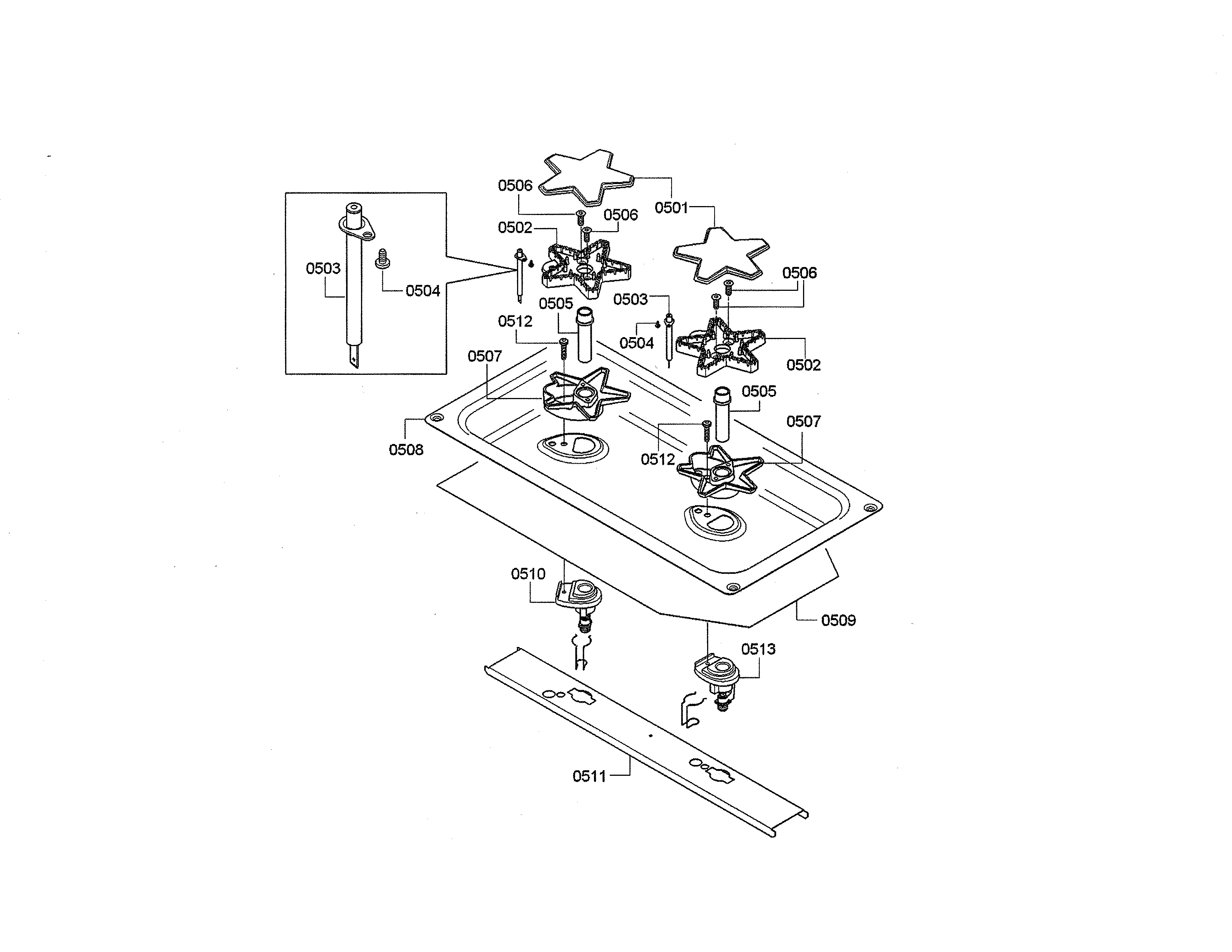

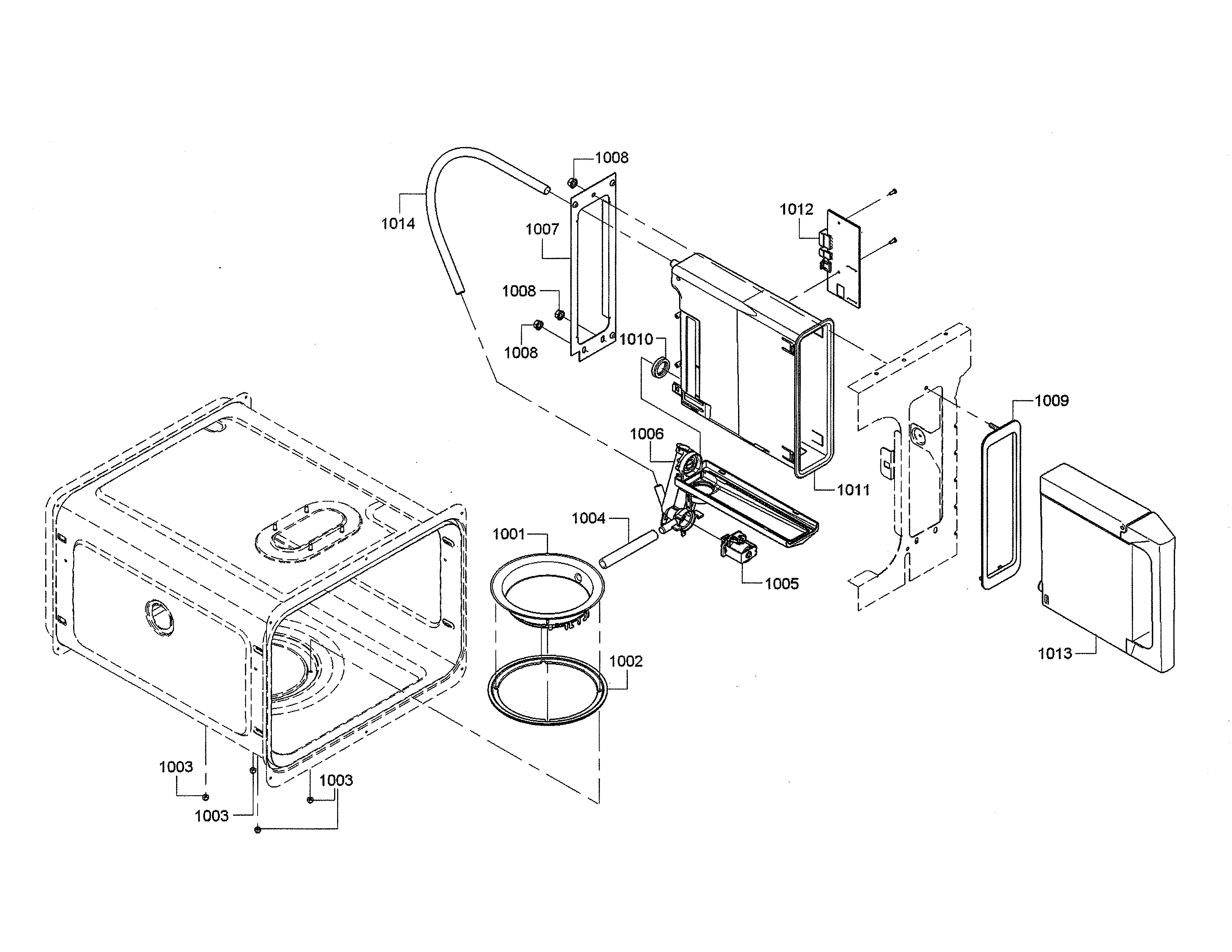

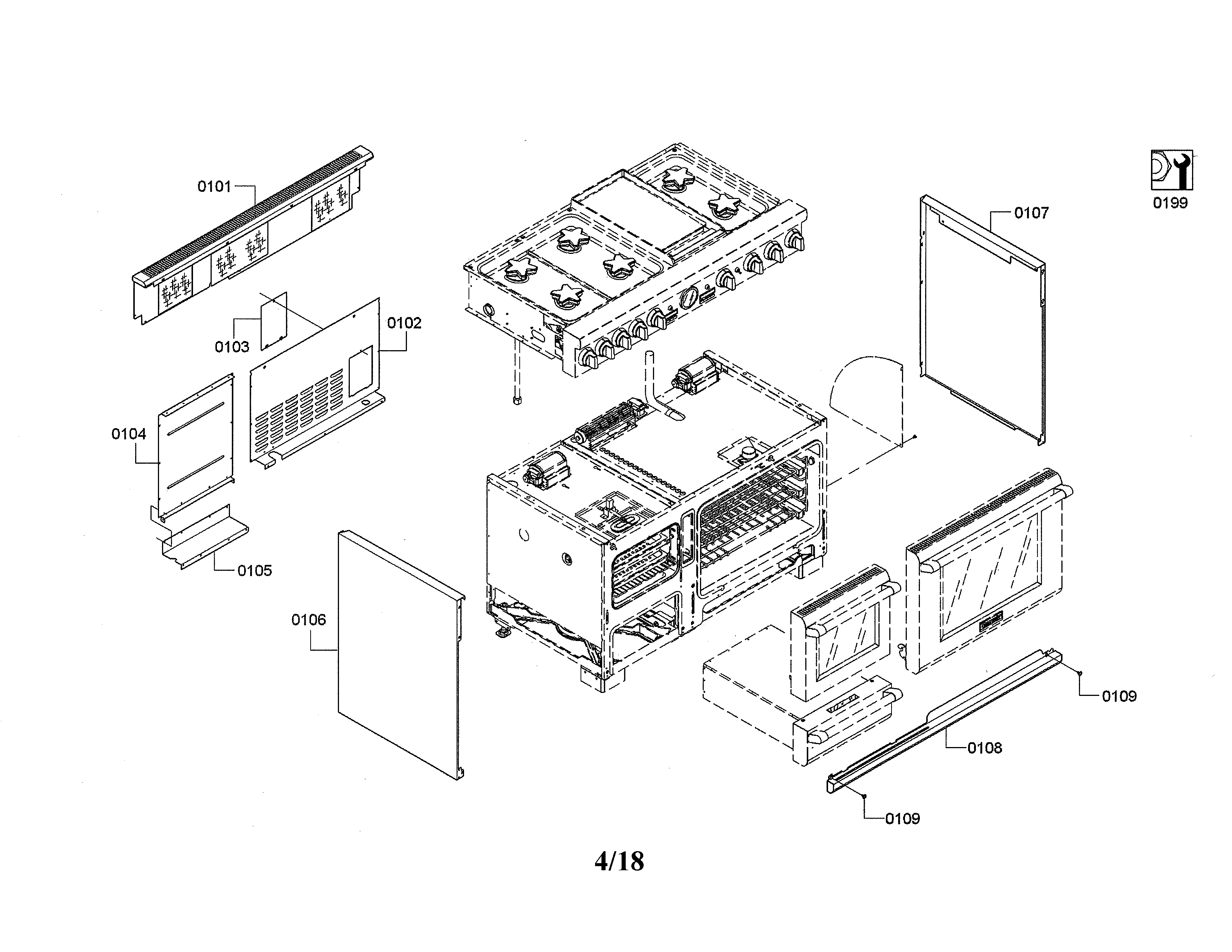

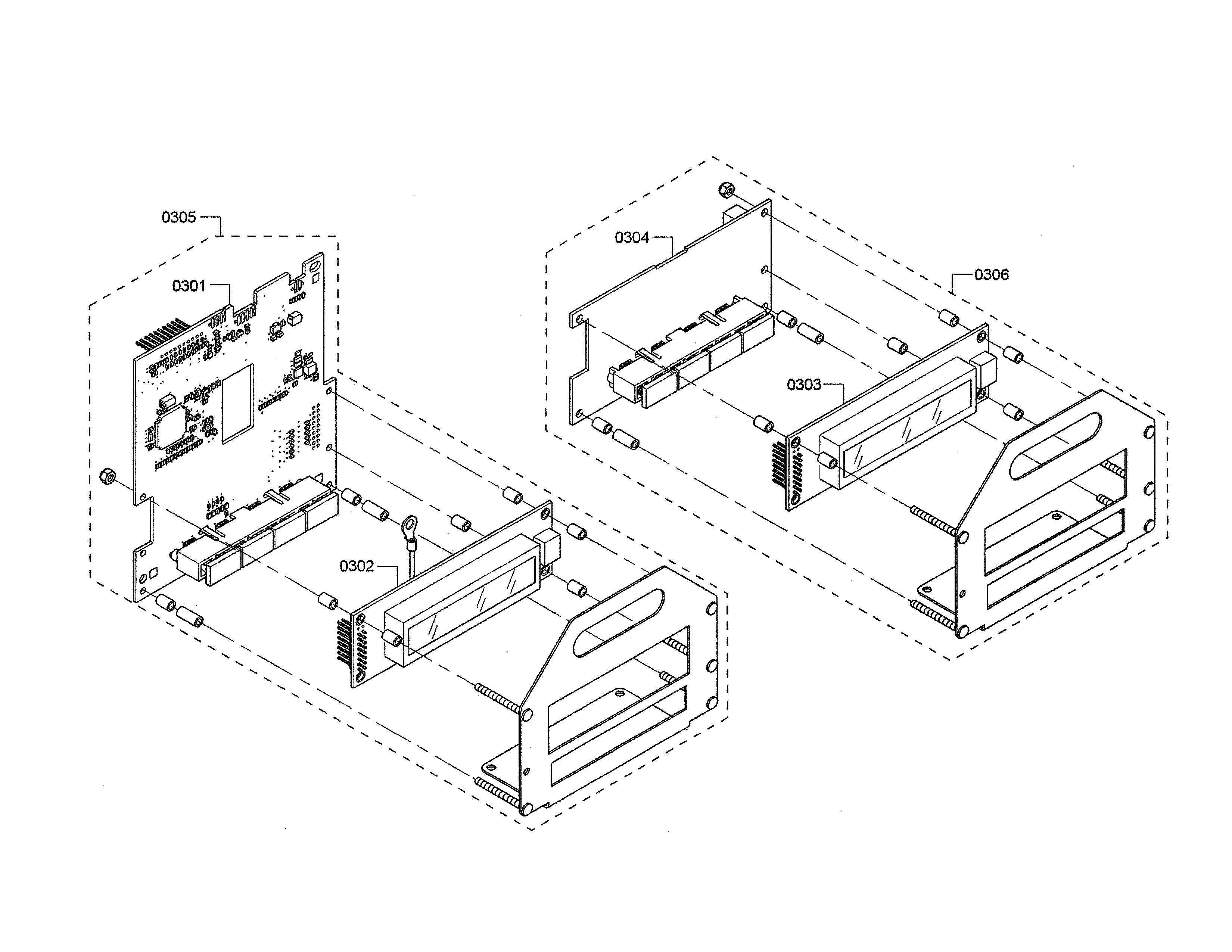

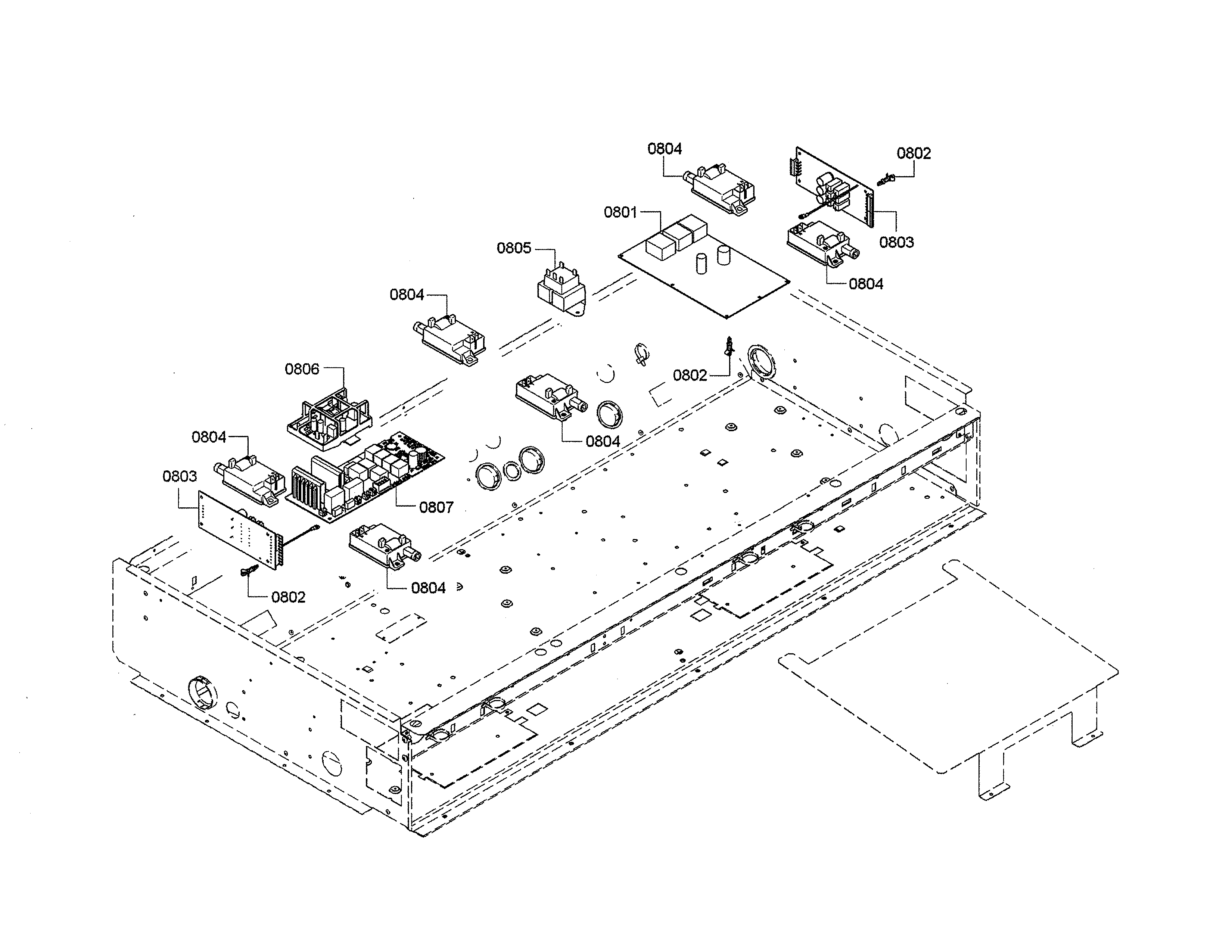

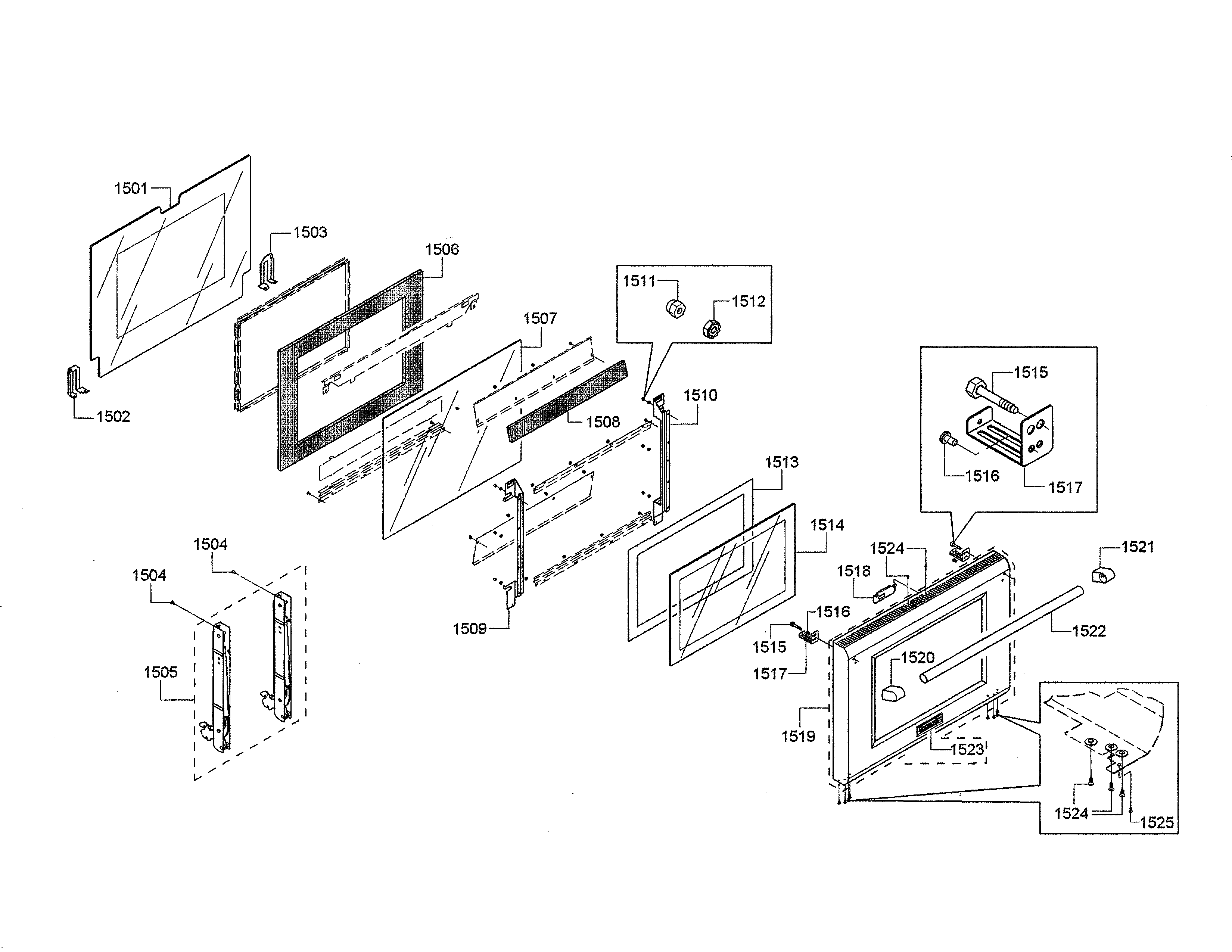

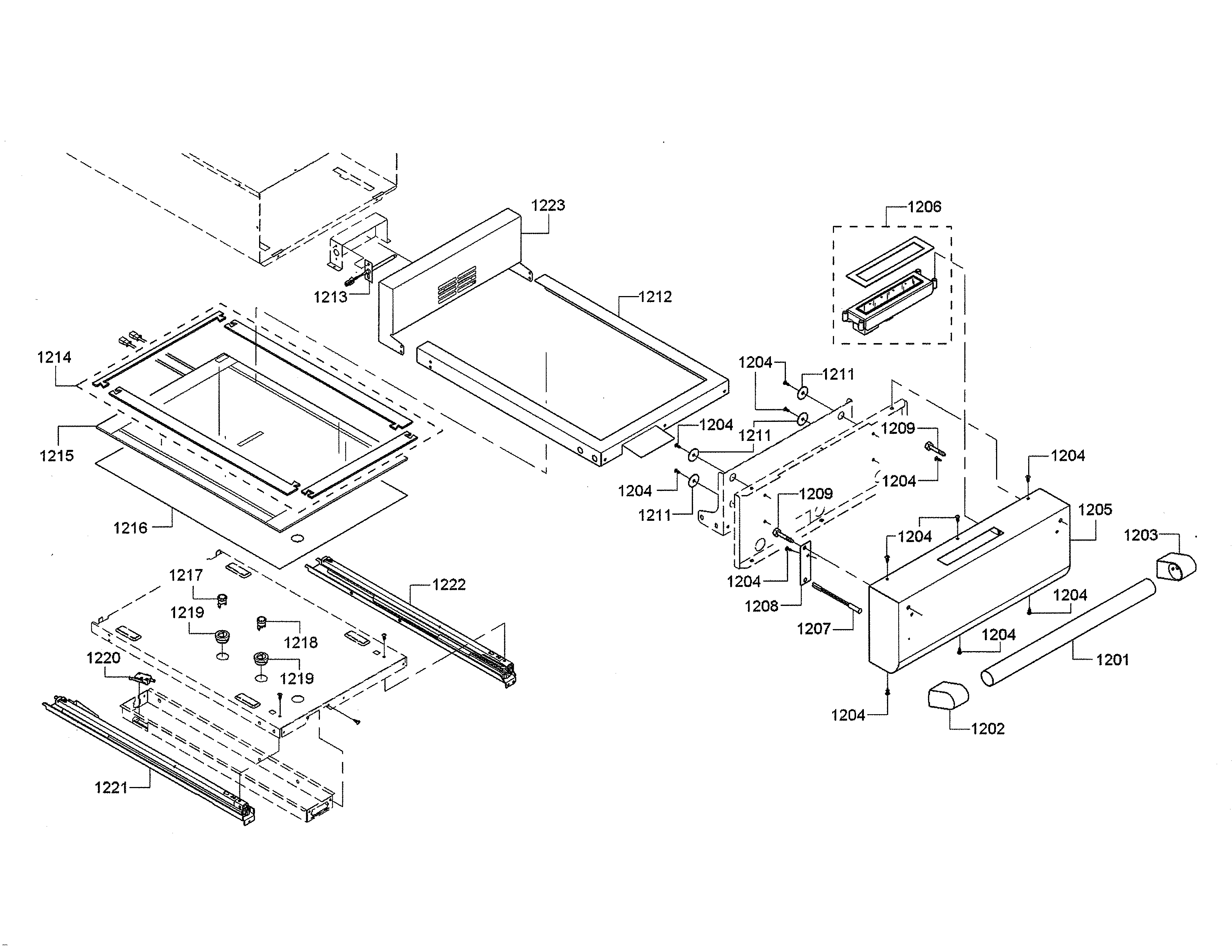

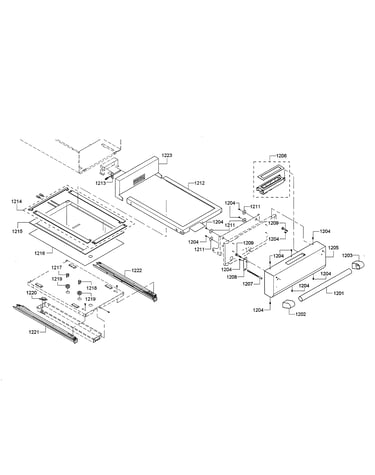

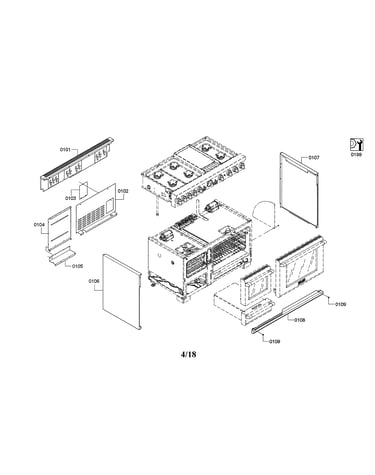

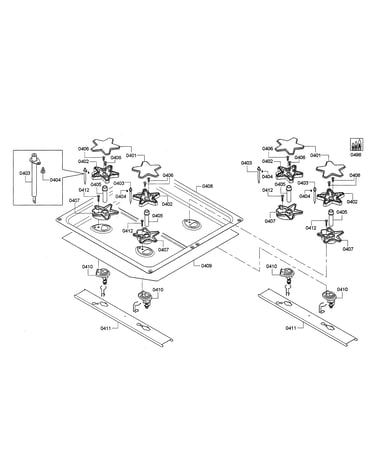

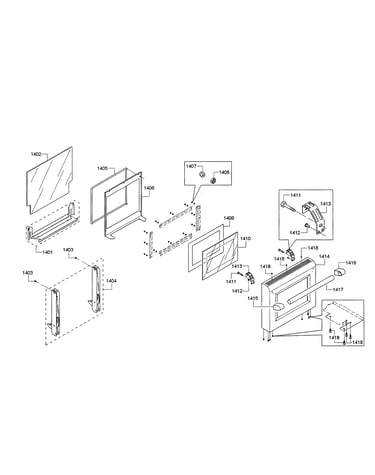

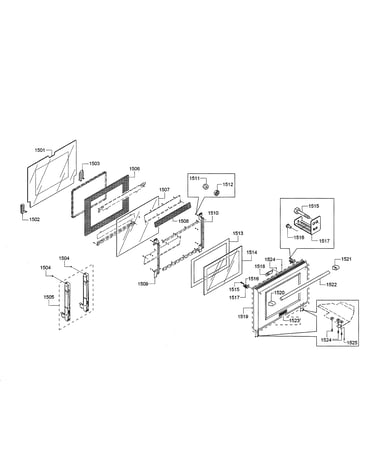

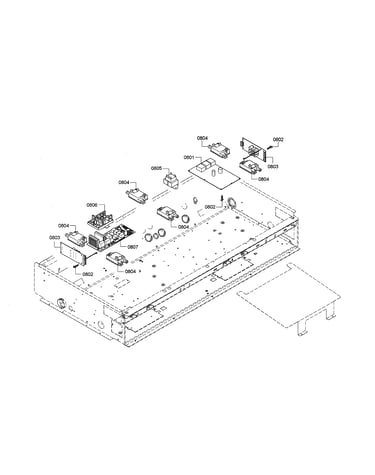

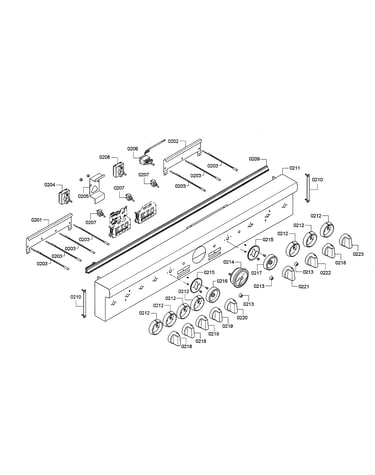

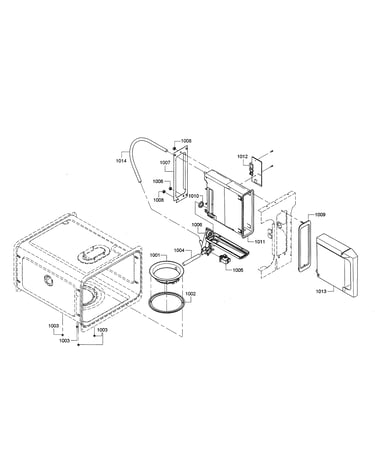

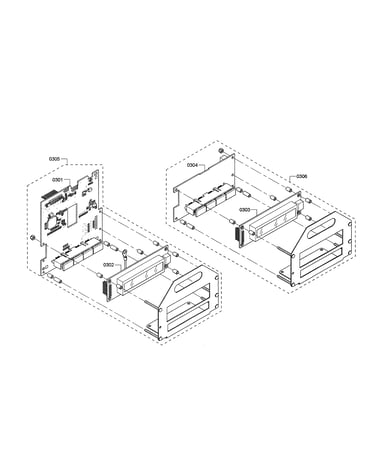

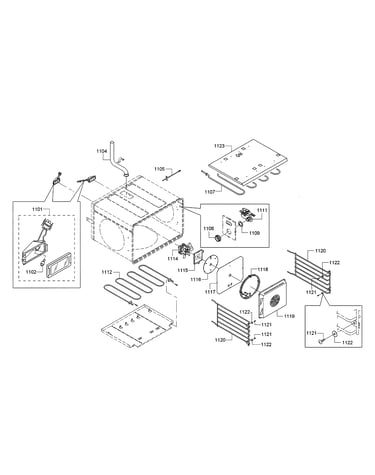

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Plate 00677035
#701

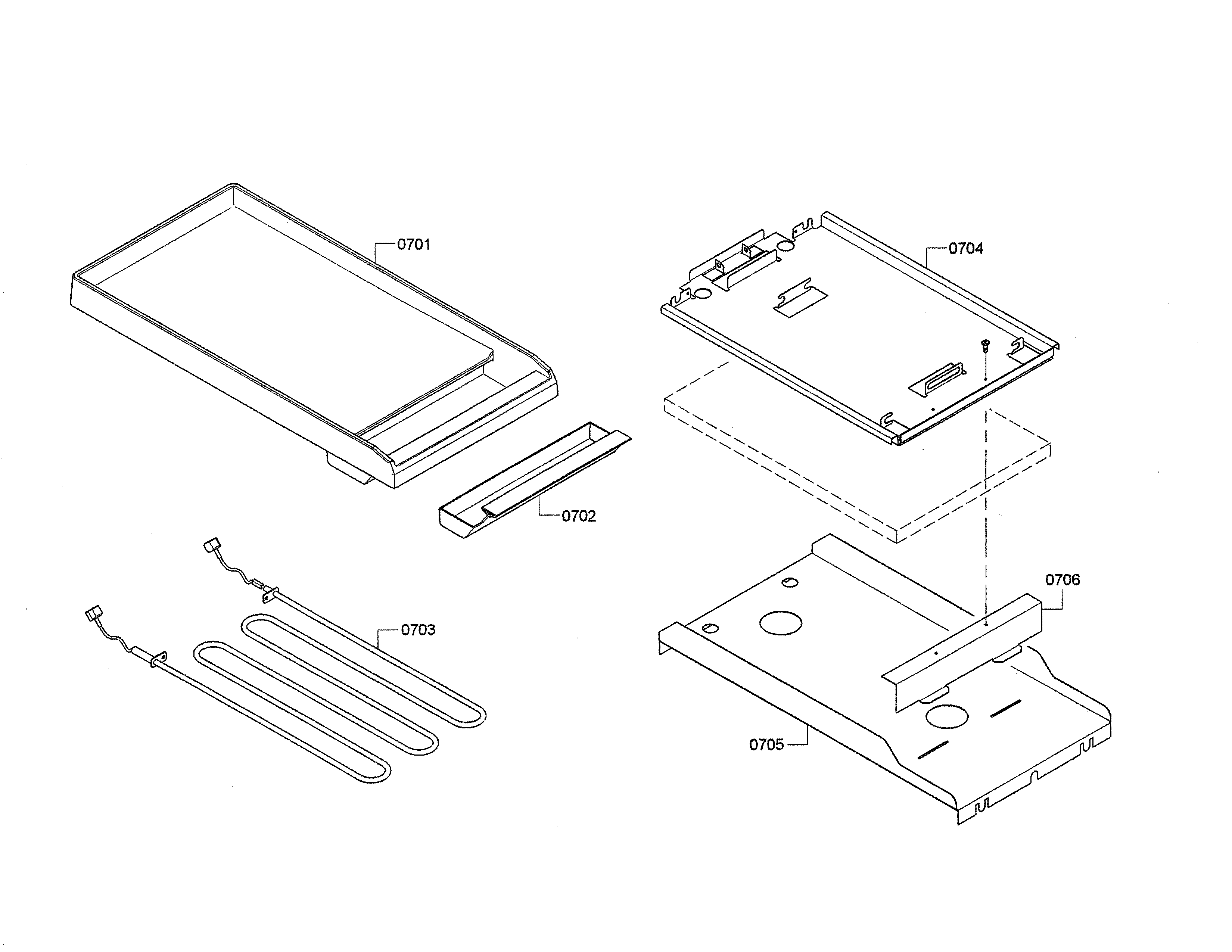

Griddle & element diagram

Plate

Part #00677035

Replaced by #11003854

?
Manufacturer substitution
This part replaces 00677035. Substitute parts can look different from the original.
$392.37 |
$12.00 OFF Phone Price : $404.37
In Stock
Range Surface Burner Igniter Switch 00629722
#614

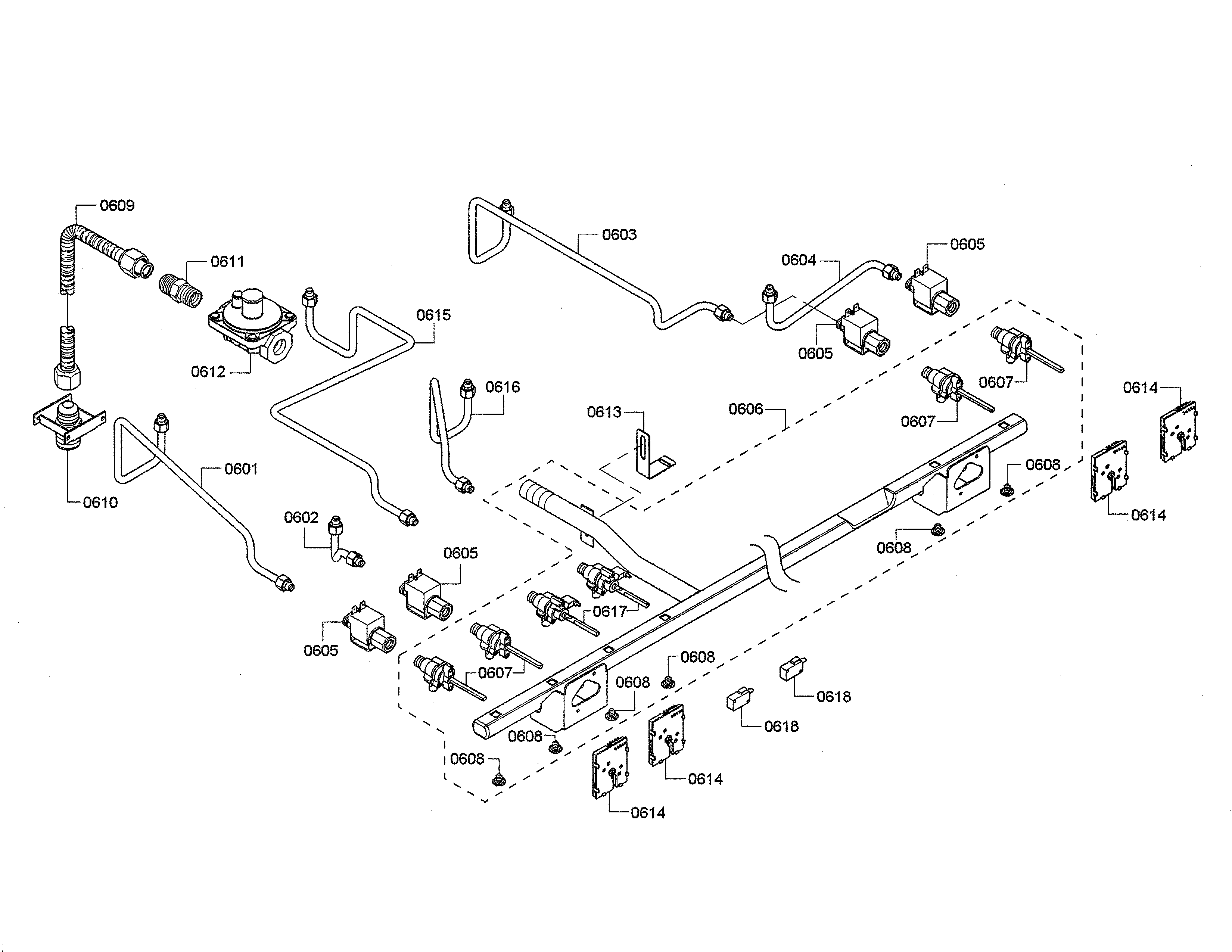

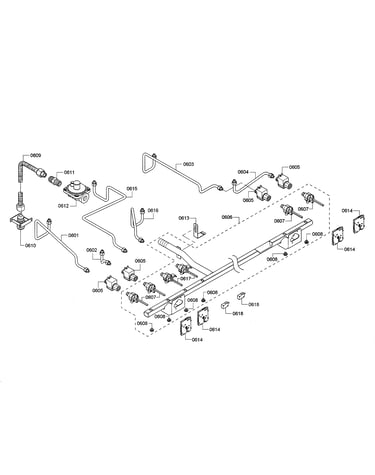

Manifold/regulator diagram

Range surface burner igniter switch

Part #00629722

$50.89 |
11% OFF Phone Price : $56.89
In Stock
Cooktop Burner Grate Pad 00618112
#1602

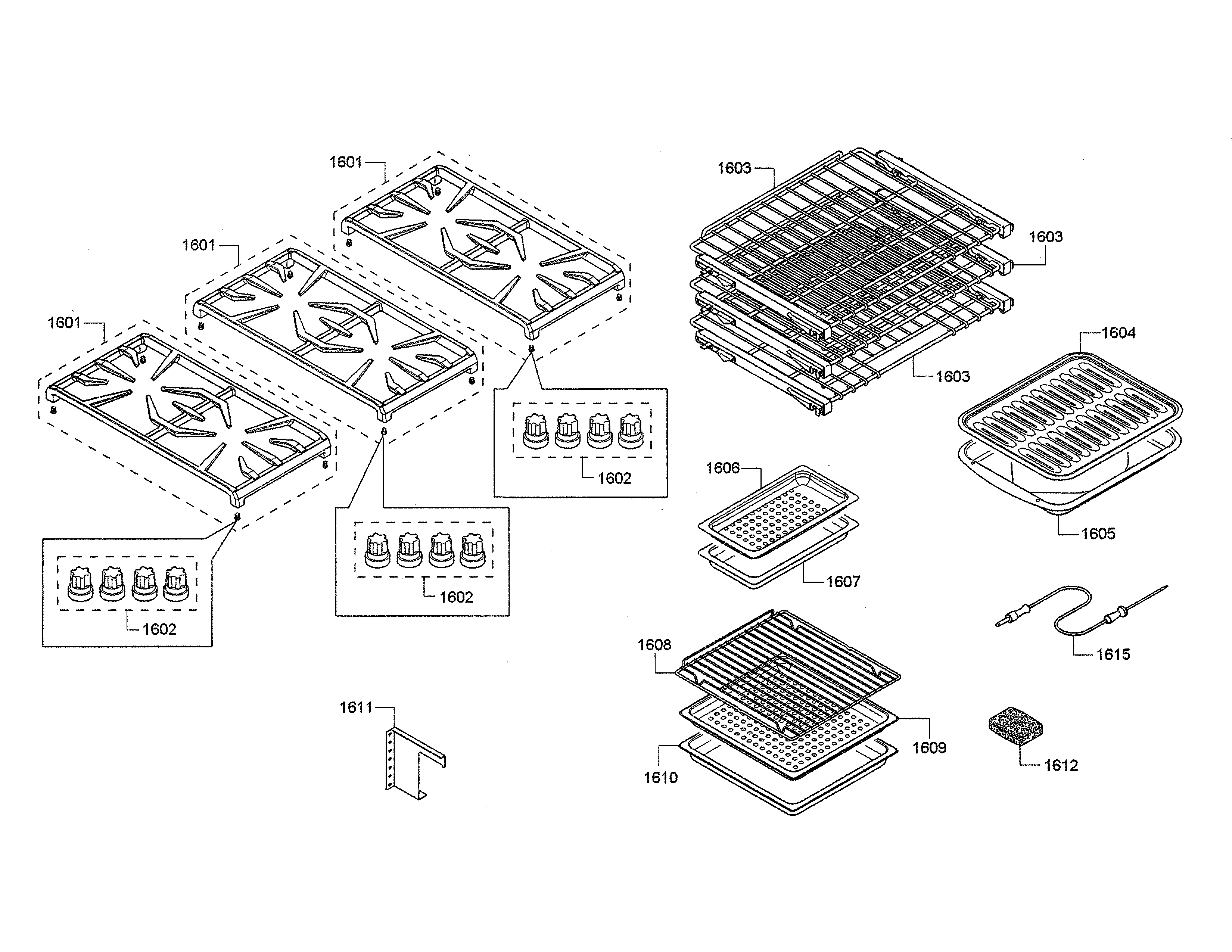

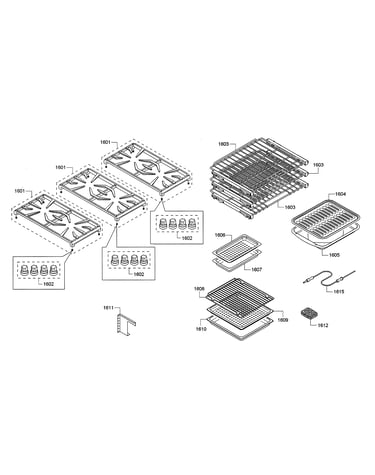

Grates/racks diagram

Cooktop burner grate pad

Part #00618112

Replaced by #00637940

?
Manufacturer substitution
This part replaces 00618112. Substitute parts can look different from the original.
$60.09 |
9% OFF Phone Price : $66.09
In Stock
Tray 00649362
#702

Griddle & element diagram

Tray

Part #00649362

Replaced by #11006314

?
Manufacturer substitution
This part replaces 00649362. Substitute parts can look different from the original.
$130.09 |
8% OFF Phone Price : $142.09
In Stock
Screw 00615096
Screw

Part #00615096

This item is not returnable
$4.34
In Stock
Bosch Grid 00741833
#914

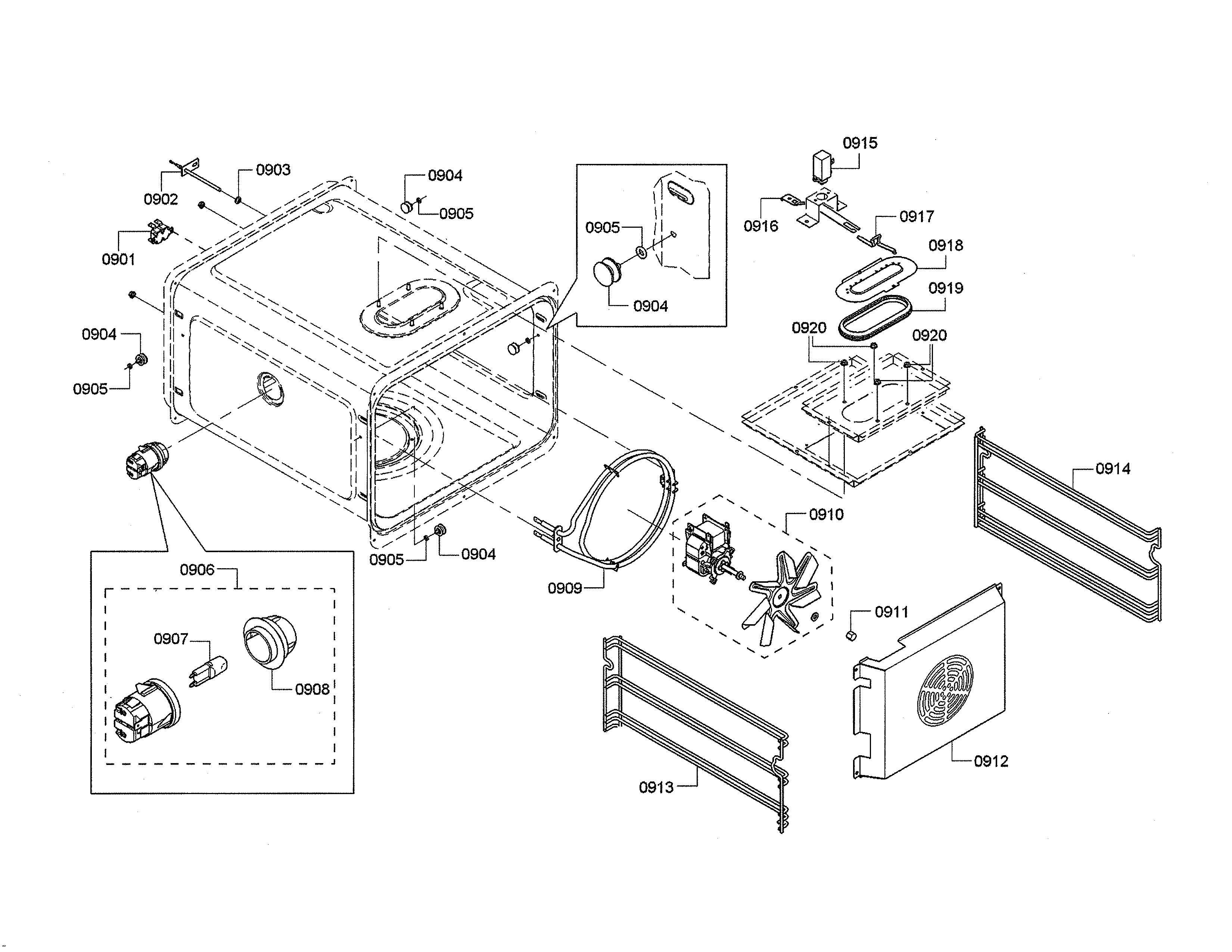

Rack support/fan diagram

Bosch grid

Part #00741833

$102.58
In Stock
Cover 00623570
#1311

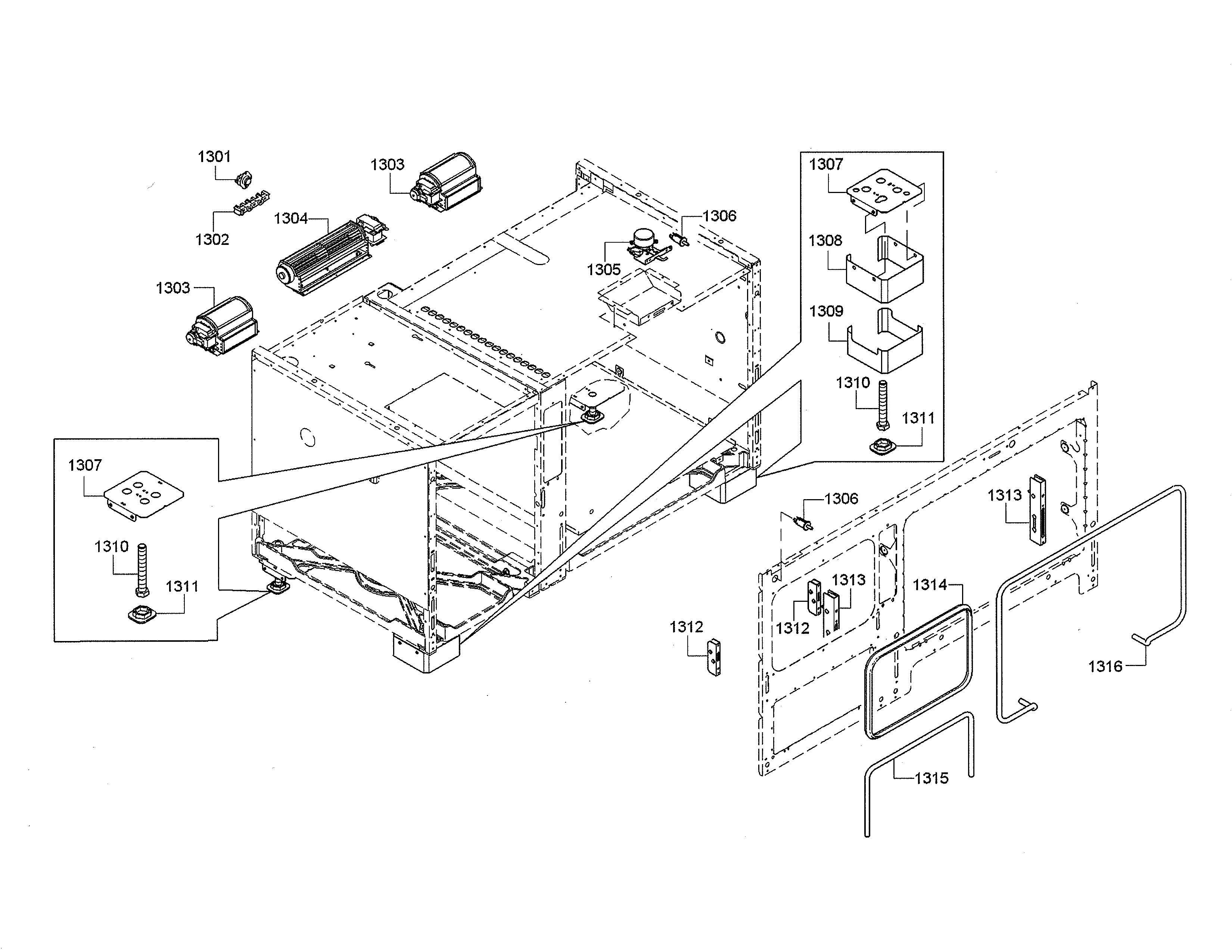

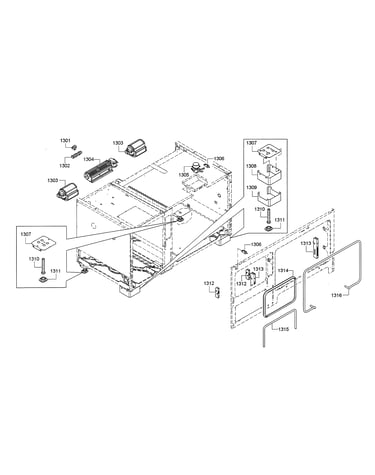

Blower fan diagram

Cover

Part #00623570

$10.60
In Stock
Screw 10x1/2 00618862
Screw 10x1/2

Part #00618862

This item is not returnable
$4.77
In Stock
Fan Motor 00706796
#1303

Blower fan diagram

Fan motor

Part #00706796

$201.57 |
6% OFF Phone Price : $213.57
In Stock
Bosch Drive 00614466
#915

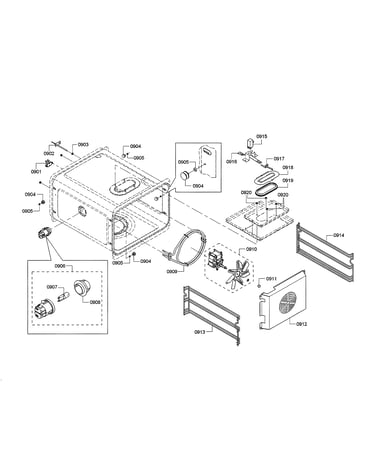

Rack support/fan diagram

Bosch drive

Part #00614466

$70.24
In Stock
