Model # 58052300200 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58052300200 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Caster 4441A30001B
Caster

Part #4441A30001B

Replaced by #MHA62753001

?
Manufacturer substitution
This part replaces 4441A30001B. Substitute parts can look different from the original.
$14.51
In Stock
Fan 5900A20007A
#1-B

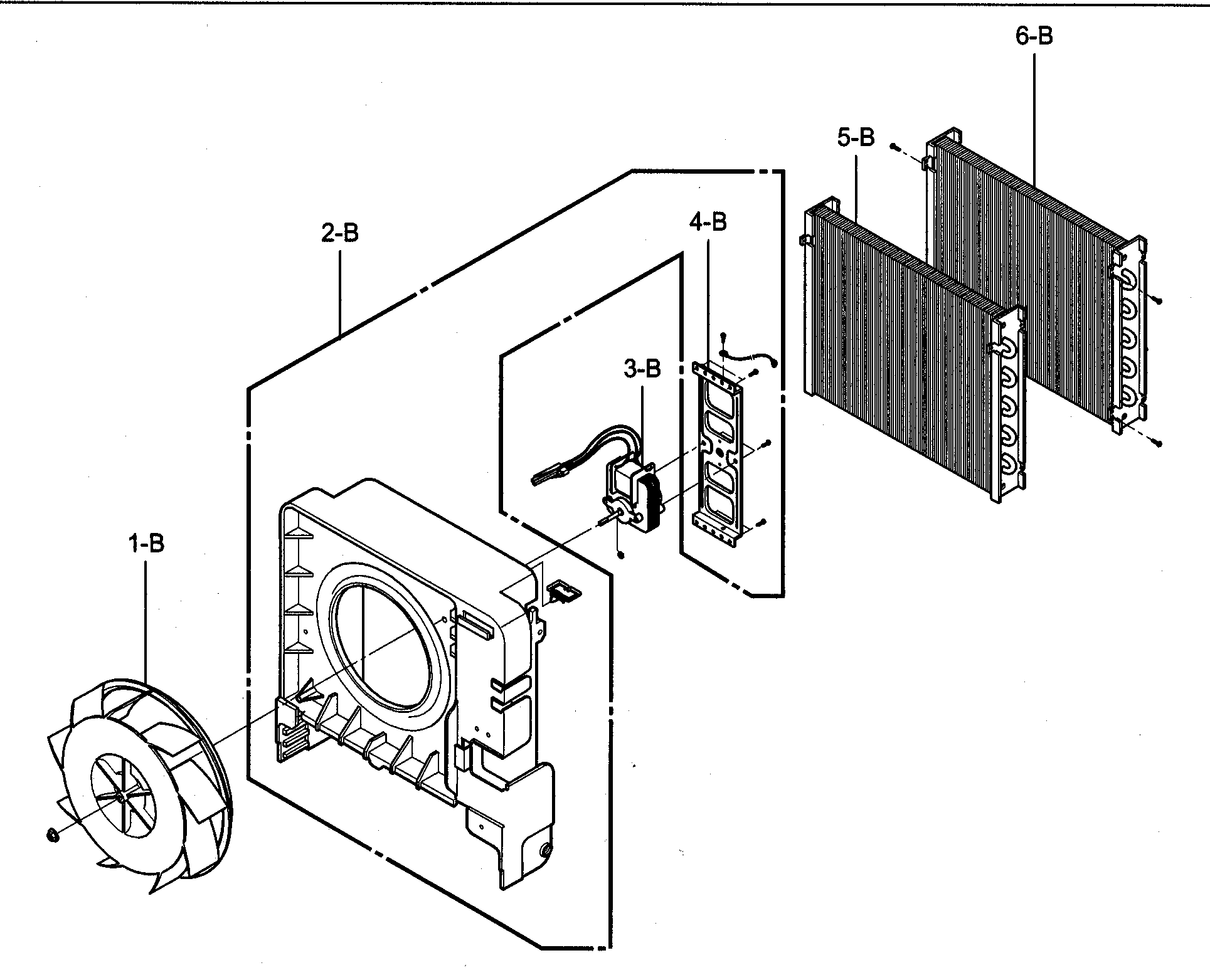

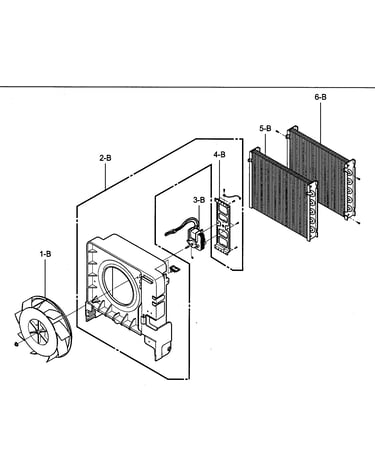

Cycle parts diagram

Fan

Part #5900A20007A

Replaced by #5900A20007B

?
Manufacturer substitution
This part replaces 5900A20007A. Substitute parts can look different from the original.
This item is not returnable
$10.60
In Stock
P.t.c. 6748C-0003A
#2-C

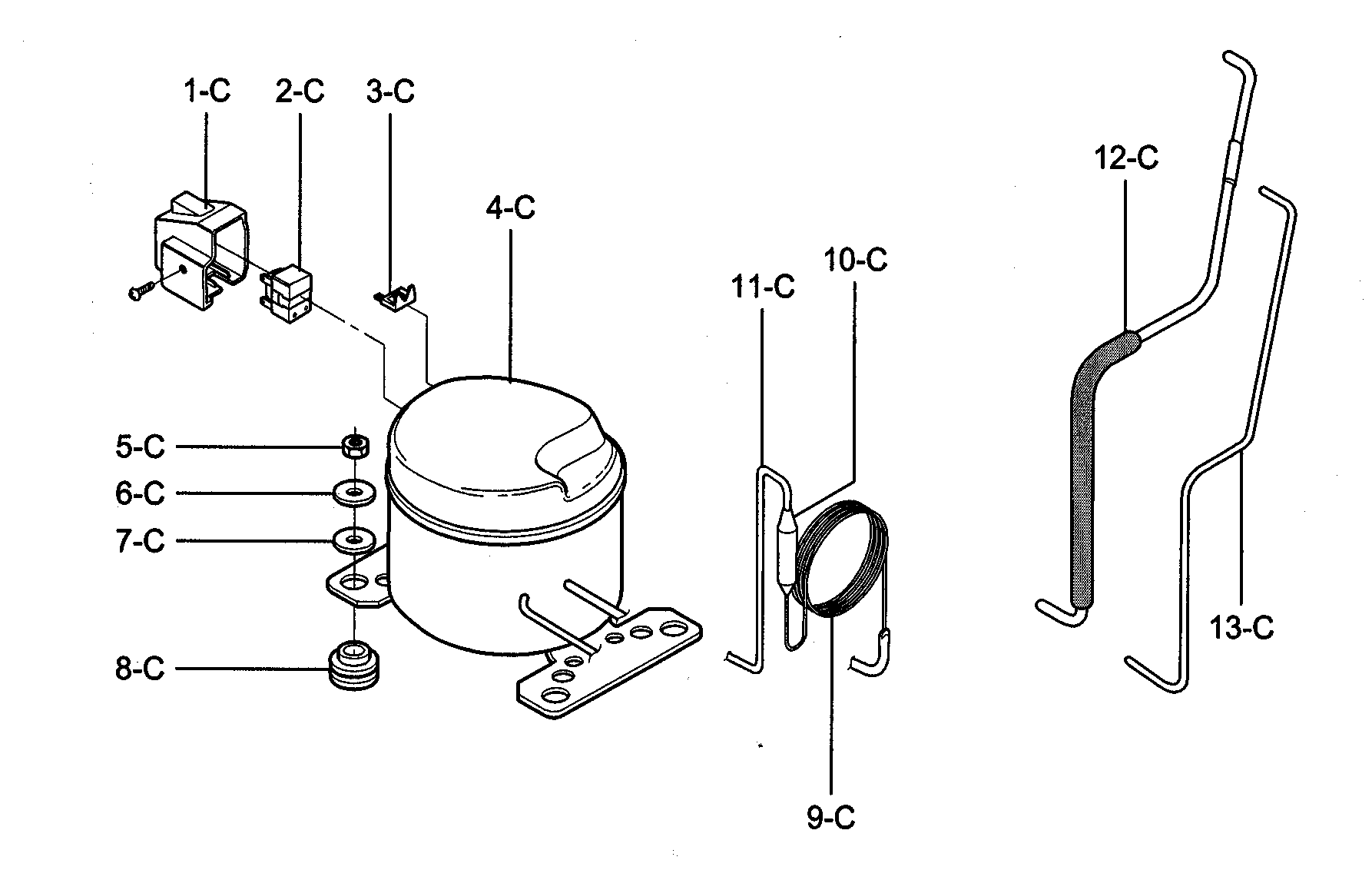

Compressor parts diagram

P.t.c.

Part #6748C-0003A

$25.20
In Stock
Hex Nut 1NHA0801206
#5-C

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Washer 4H00972G
#6-C

Compressor parts diagram

Washer

Part #4H00972G

This item is not returnable
$4.51
In Stock
Washer 4H01029A
#7-C

Compressor parts diagram

Washer

Part #4H01029A

This item is not returnable
$4.51
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#8-C

Compressor parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Evaporator 5421A10009B
#6-B

Cycle parts diagram

Evaporator

Part #5421A10009B

Replaced by #ADL73080901

?
Manufacturer substitution
This part replaces 5421A10009B. Substitute parts can look different from the original.
$71.93
In Stock
Terminal Cover 3550C-0013A
#1-C

Compressor parts diagram

Terminal cover

Part #3550C-0013A

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water Bucket Safety Switch 6600A30003C
#3-A

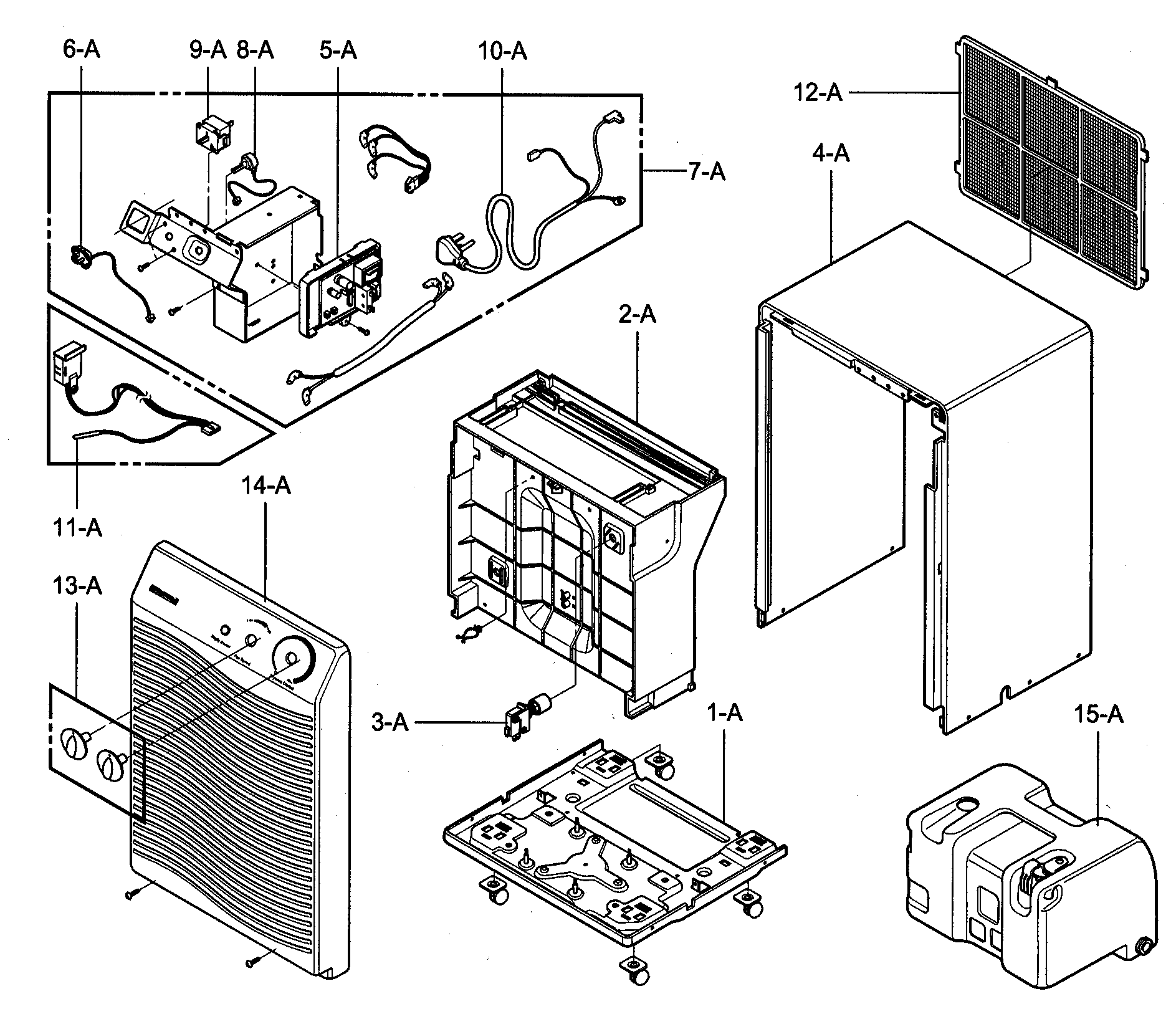

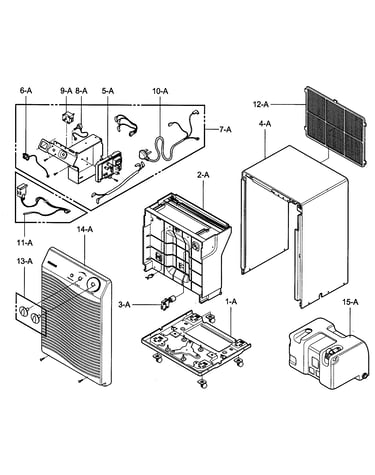

Outer case/control parts diagram

Dehumidifier water bucket safety switch

Part #6600A30003C

The manufacturer no longer makes this part, and there's no substitute part
