Snapper
Gas Walk-Behind Mower

Model # NS2265 (7800228) Official Snapper lawn mower

Here are the diagrams and repair parts for Official Snapper NS2265-7800228 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

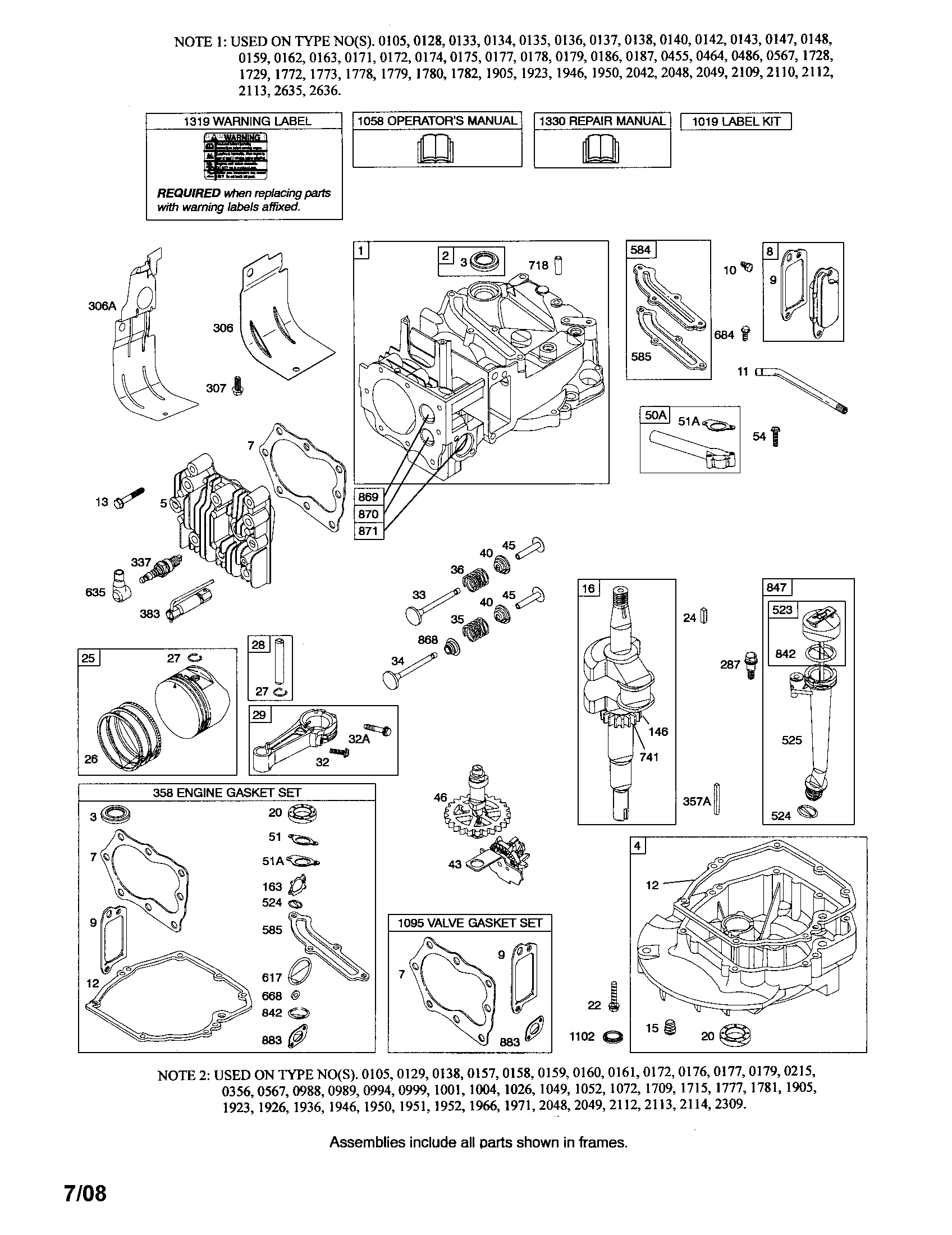

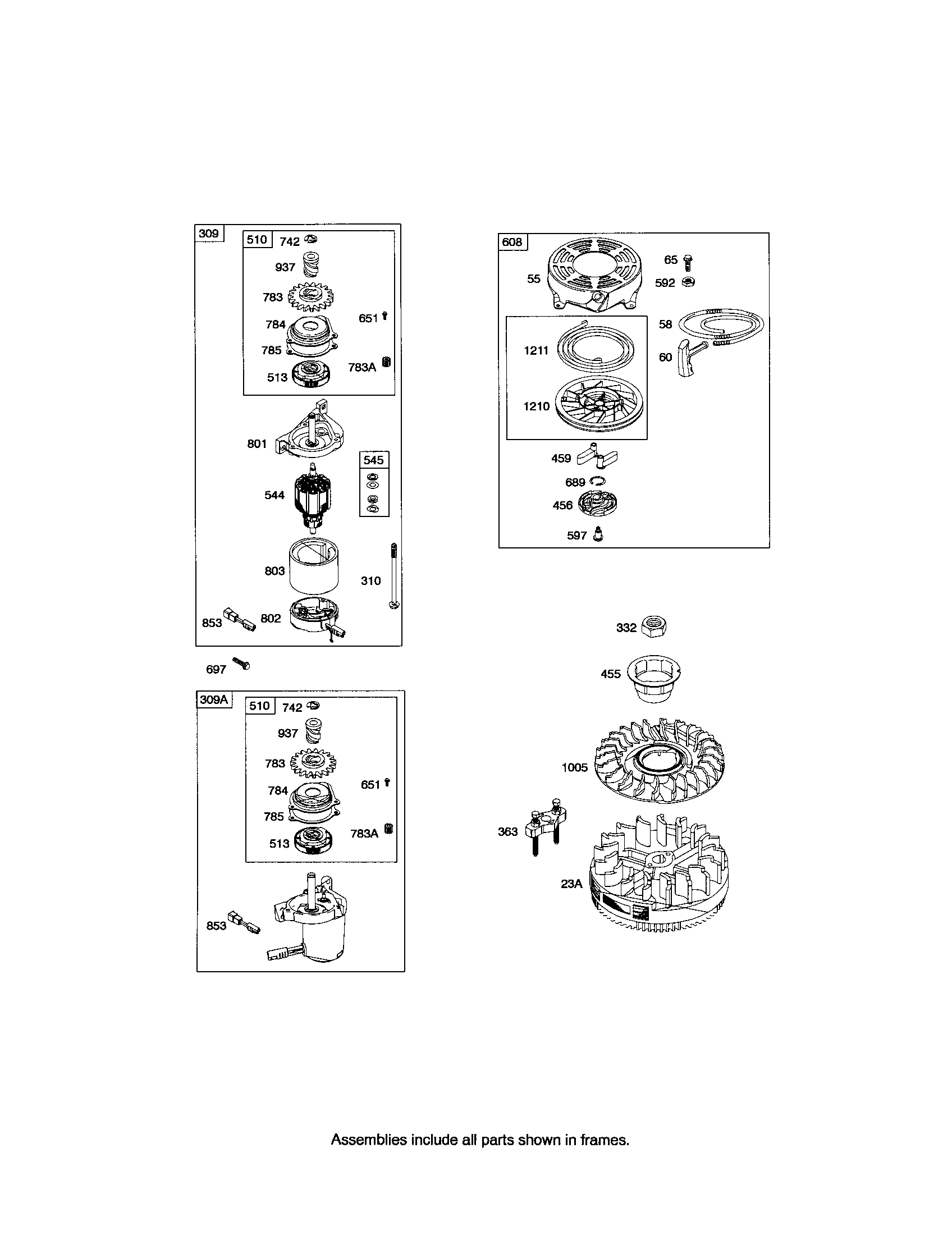

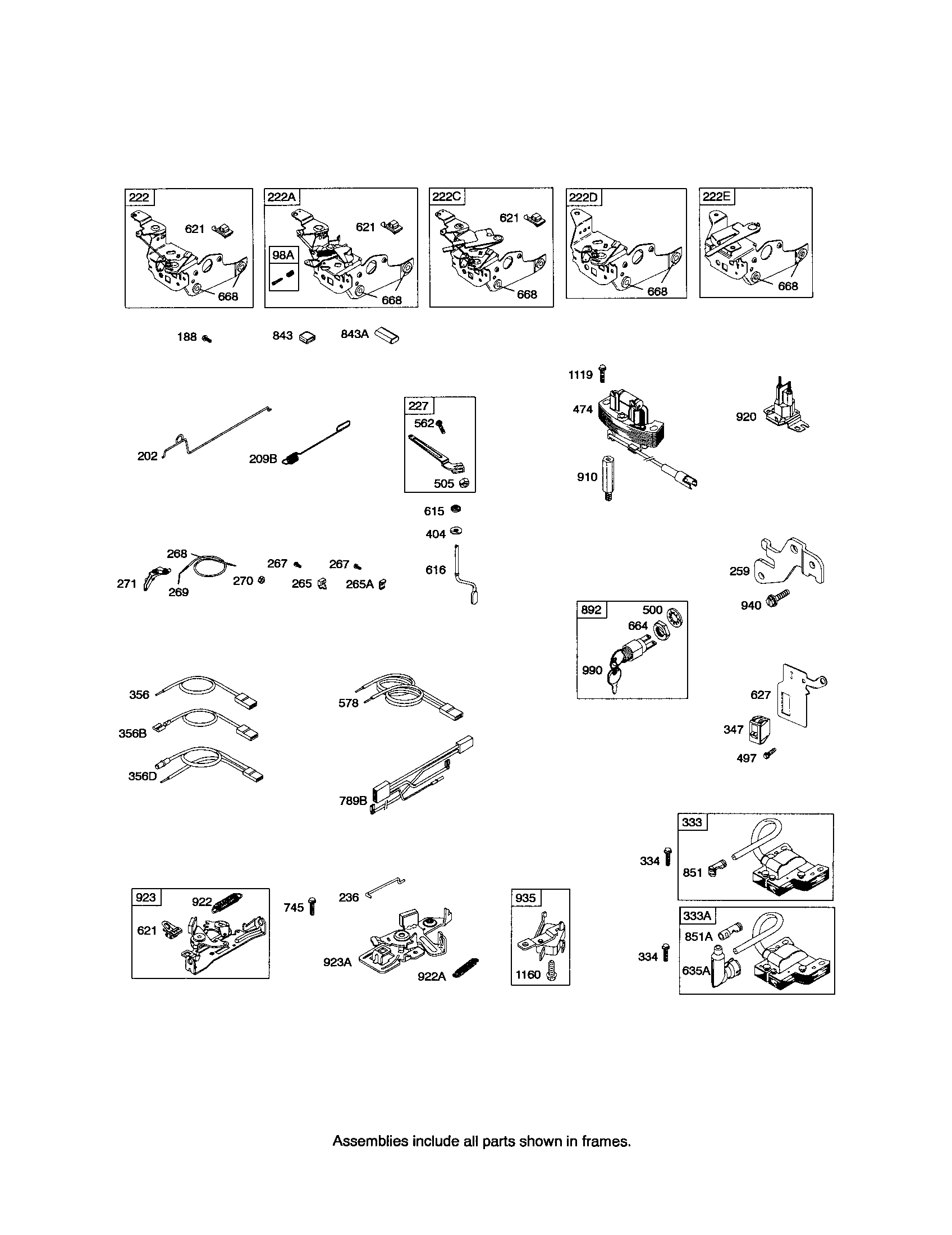

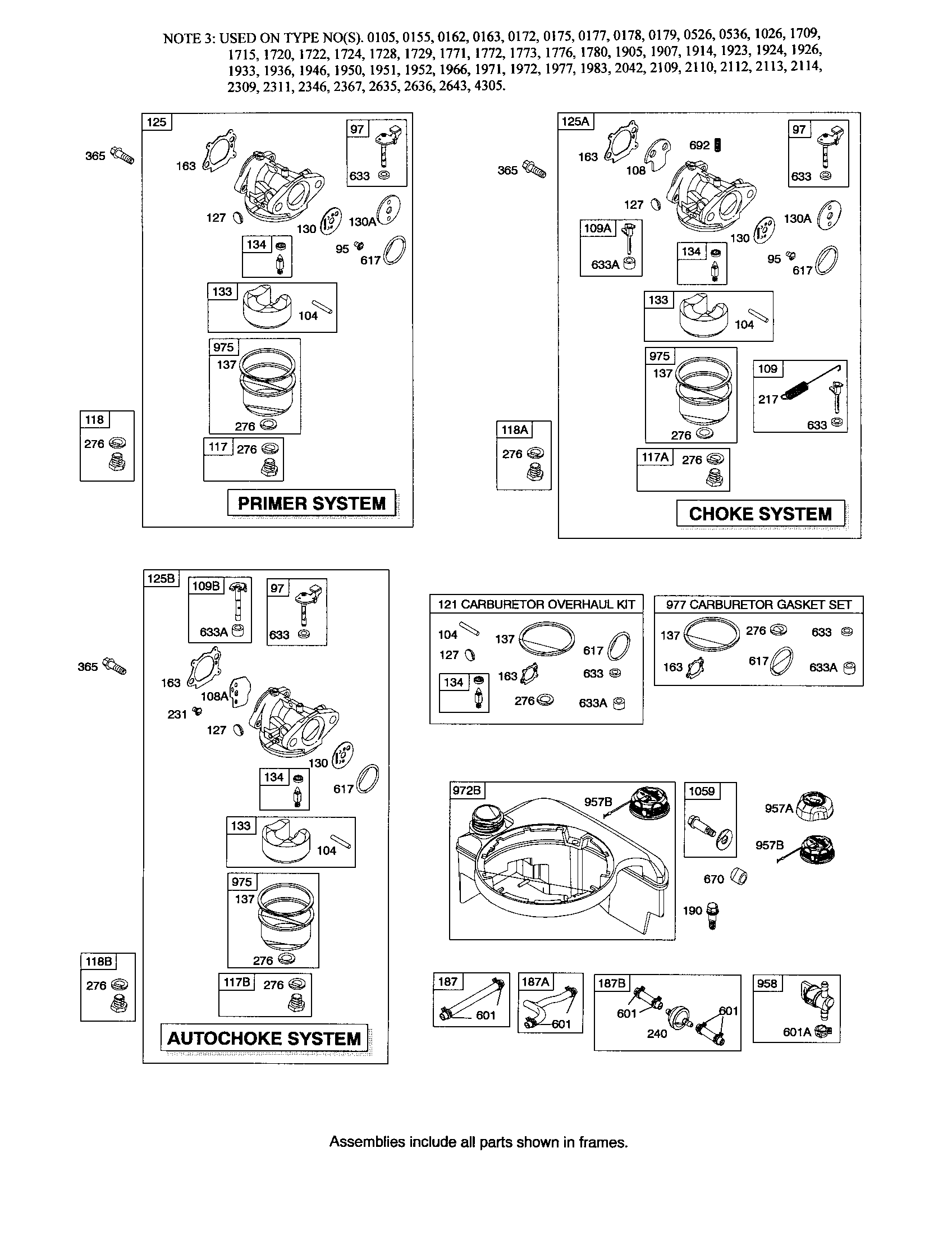

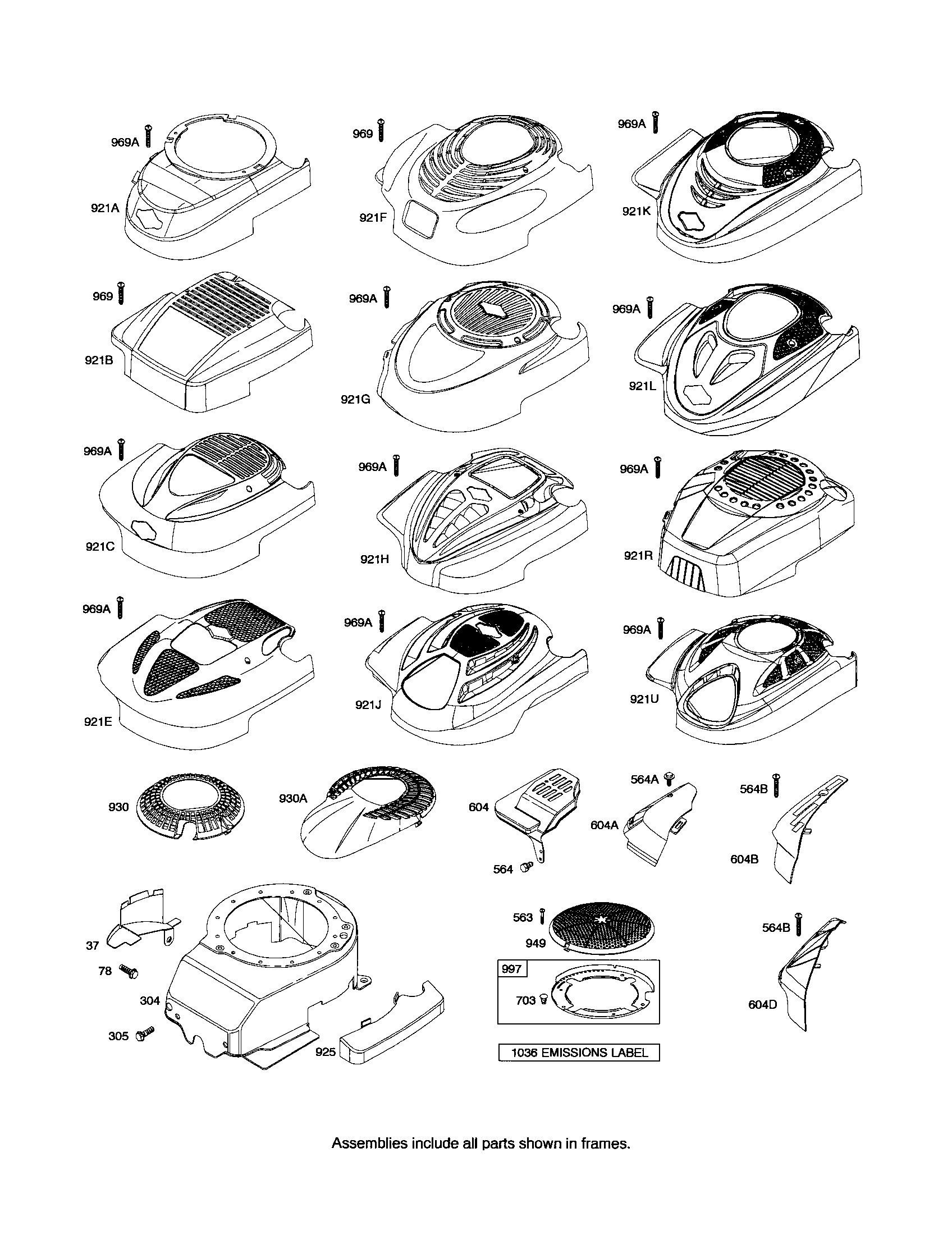

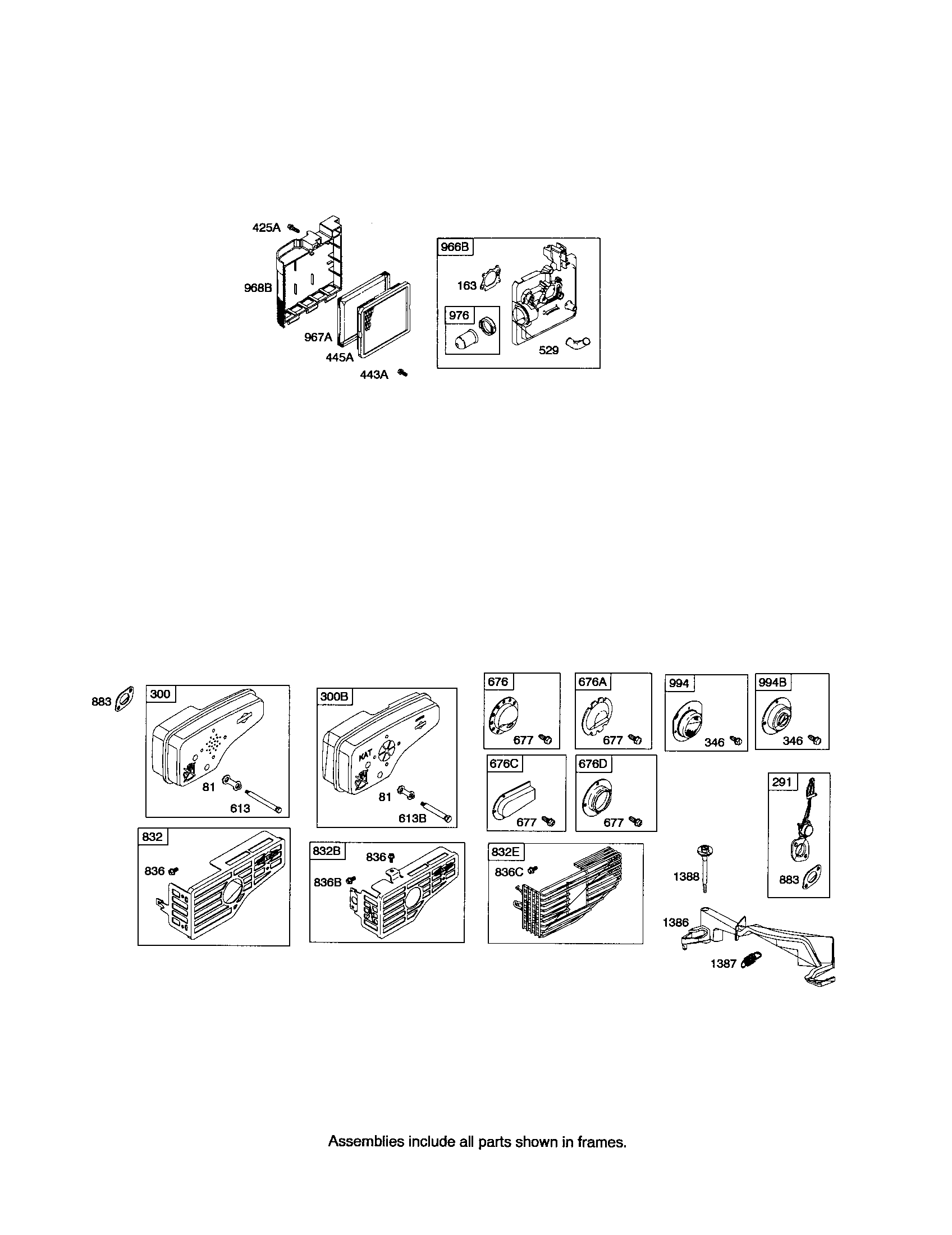

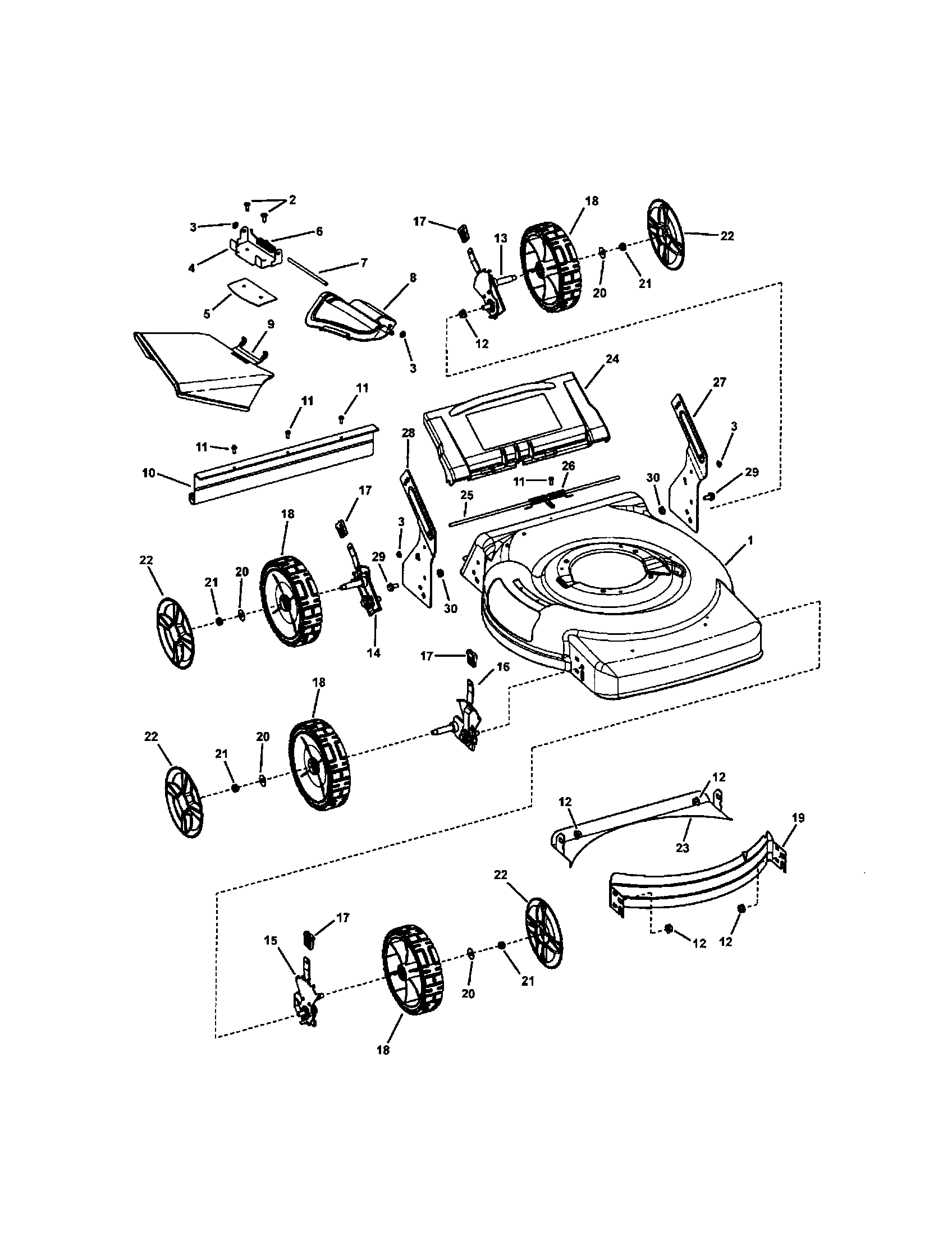

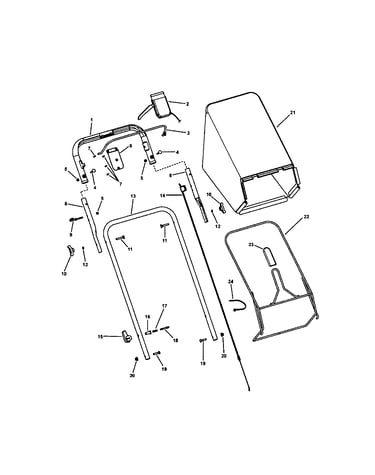

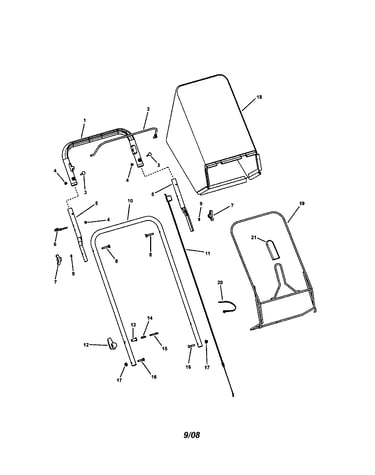

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 436 parts  |
Pushnut 1/4 7091020
Pushnut 1/4

Part #7091020

Replaced by #704005

?
Manufacturer substitution
This part replaces 7091020. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Lawn Mower Wheel 7500542
#19

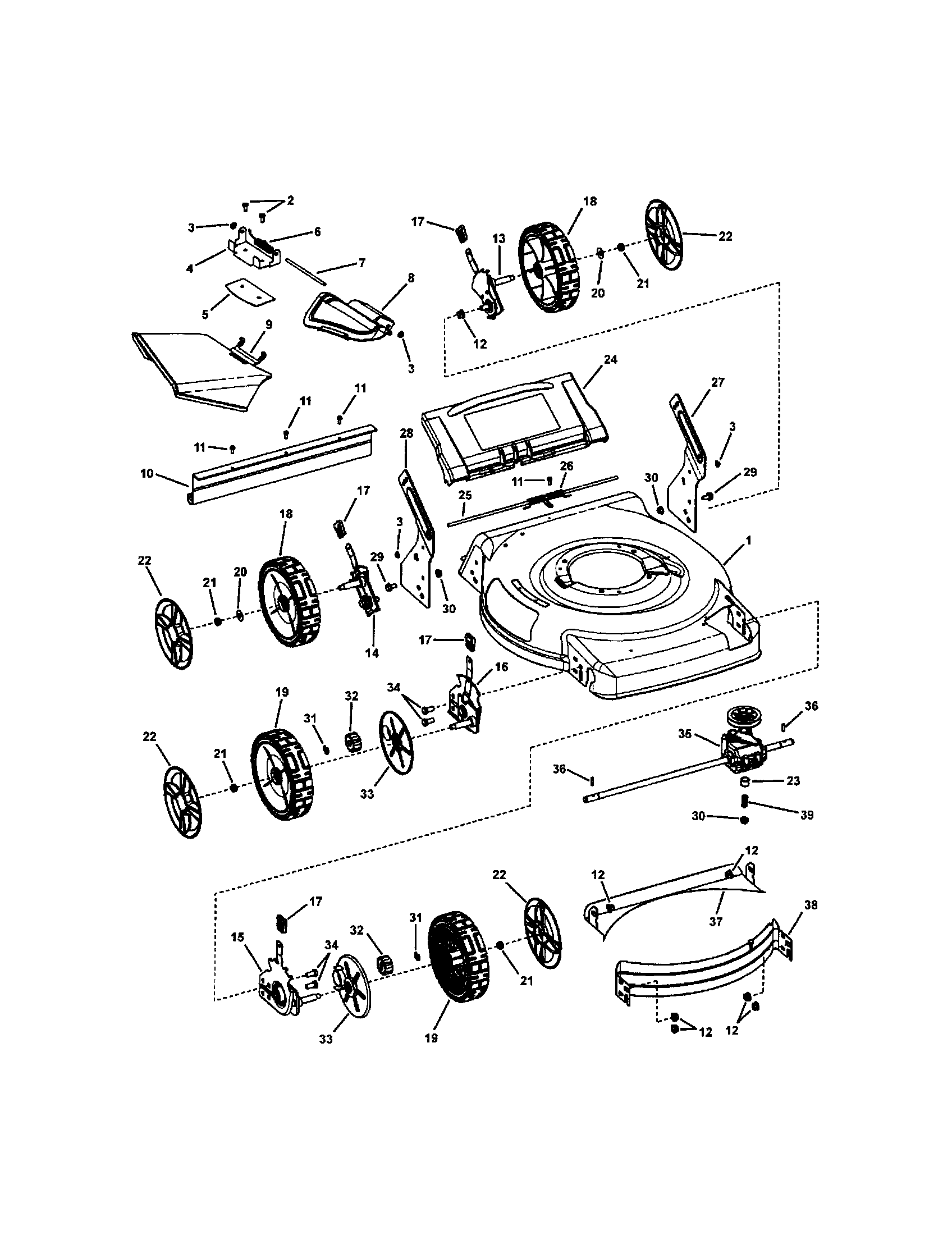

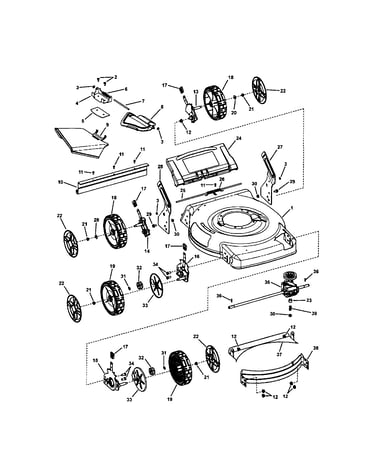

Deck assembly (self-propelled) diagram

Lawn mower wheel

Part #7500542

Replaced by #7500542YP

?
Manufacturer substitution
This part replaces 7500542. Substitute parts can look different from the original.
$50.58 |
11% OFF Phone Price : $56.58
In Stock

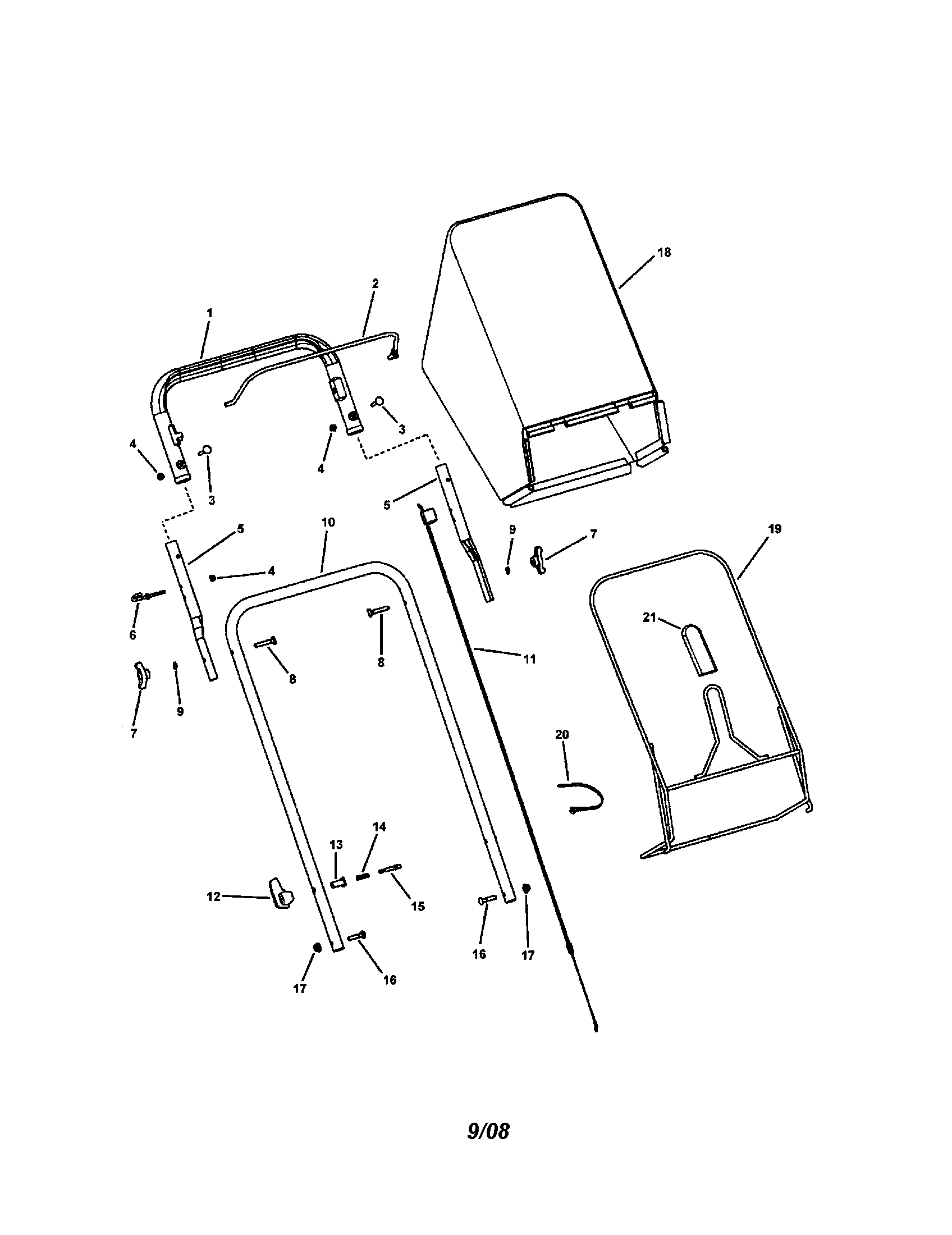

Knob 7035744
Knob

Part #7035744

Replaced by #703065

?
Manufacturer substitution
This part replaces 7035744. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock

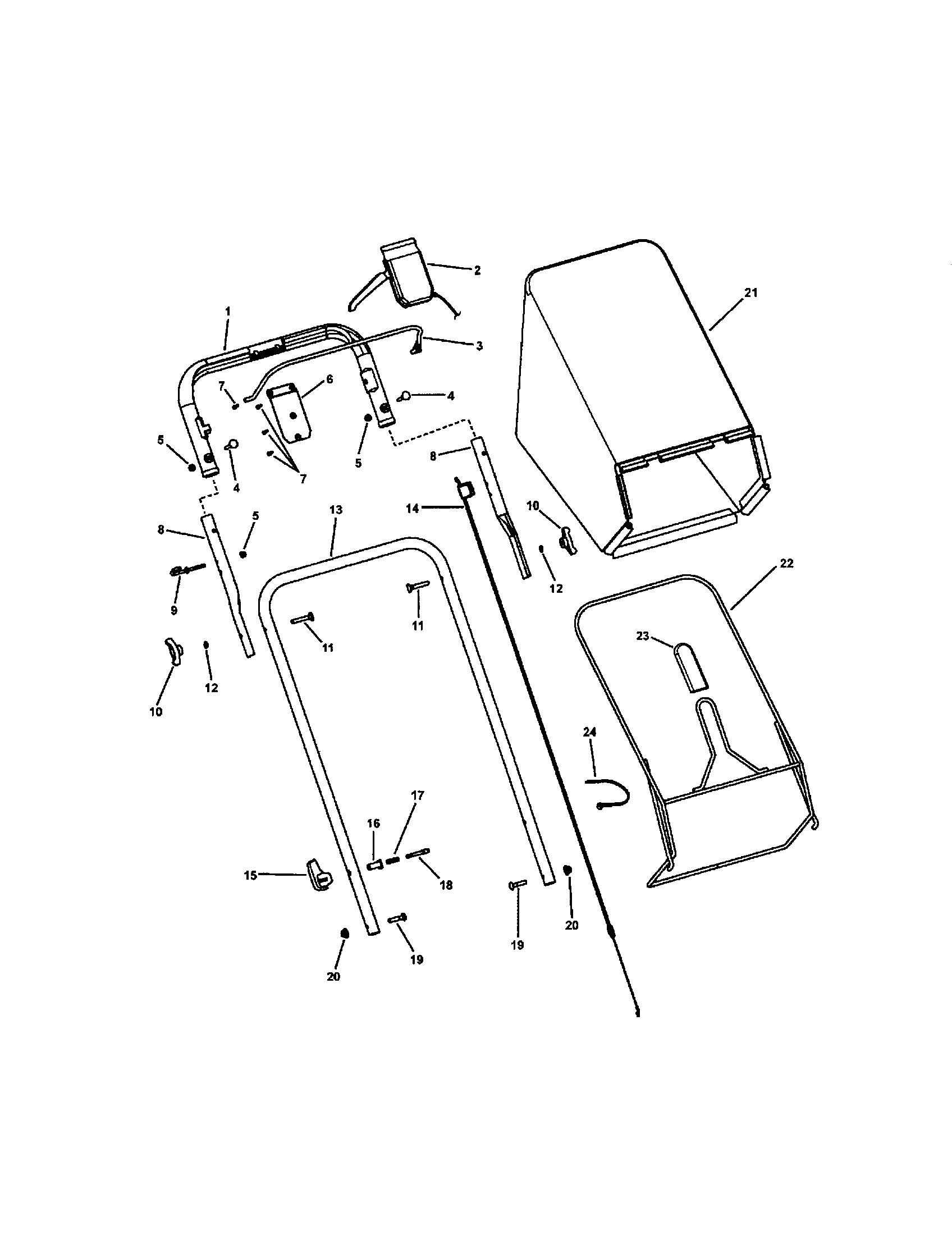

Cable 7101395
Cable

Part #7101395

Replaced by #7101395YP

?
Manufacturer substitution
This part replaces 7101395. Substitute parts can look different from the original.
This item is not returnable
$23.39 |
20% OFF Phone Price : $29.39
In Stock
Retaining Ring 7014341
#31

Deck assembly (self-propelled) diagram

Retaining ring

Part #7014341

Replaced by #703976

?
Manufacturer substitution
This part replaces 7014341. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock

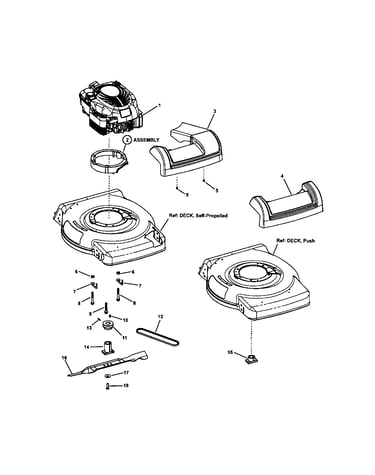

Cover 7101195
#3

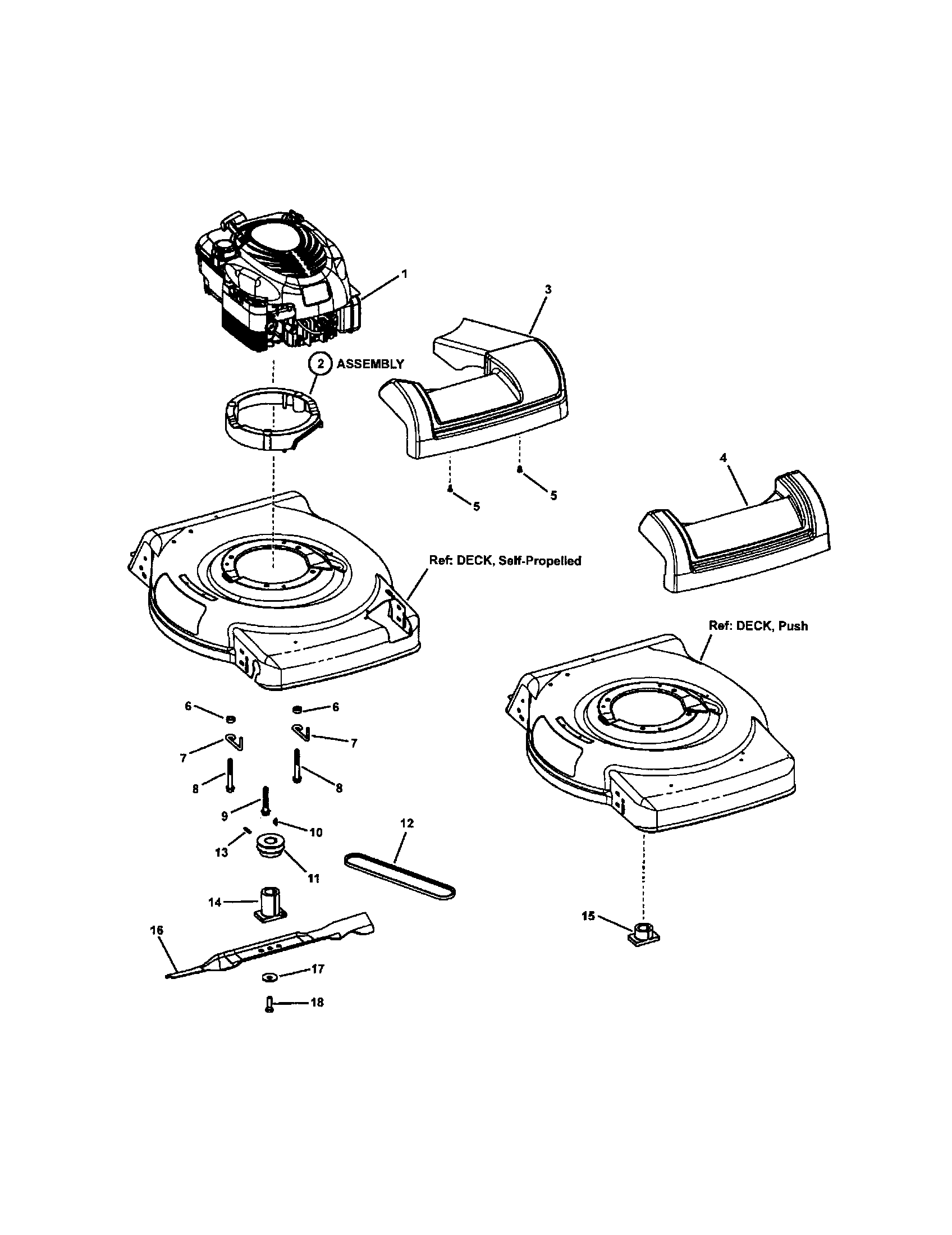

Engine/blades/front cover diagram

Cover

Part #7101195

Replaced by #7101195YP

?
Manufacturer substitution
This part replaces 7101195. Substitute parts can look different from the original.
$106.28
In Stock
Asy Rear Axl 7500409
#11

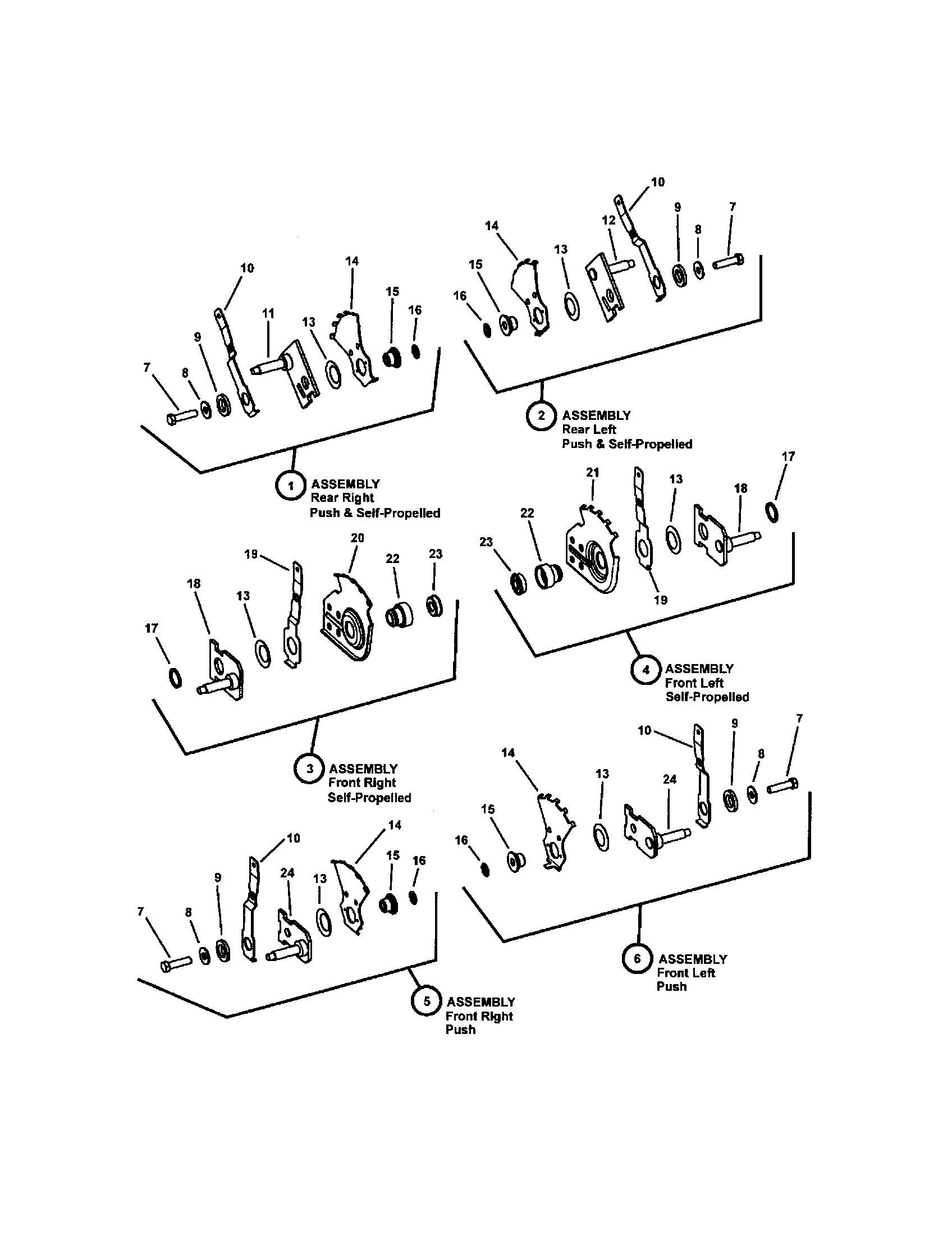

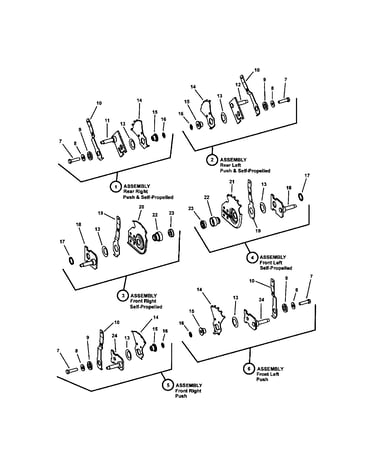

Height-of-cut assemblies diagram

Asy rear axl

Part #7500409

Replaced by #7500409YP

?
Manufacturer substitution
This part replaces 7500409. Substitute parts can look different from the original.
$23.20
In Stock
Chsnb 5/16 7091189
Chsnb 5/16

Part #7091189

Replaced by #703059

?
Manufacturer substitution
This part replaces 7091189. Substitute parts can look different from the original.
$7.77
In Stock
Hwst 10 7091286
Hwst 10

Part #7091286

Replaced by #7091286YP

?
Manufacturer substitution
This part replaces 7091286. Substitute parts can look different from the original.
$8.26
In Stock

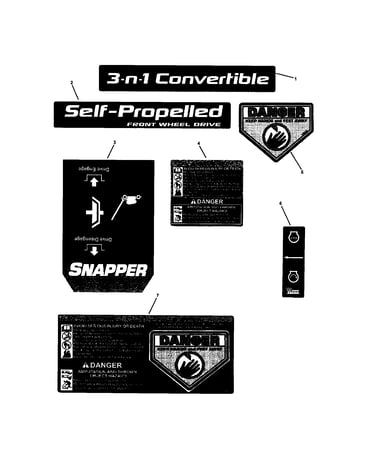

Lawn Mower Decal 7101429
#3

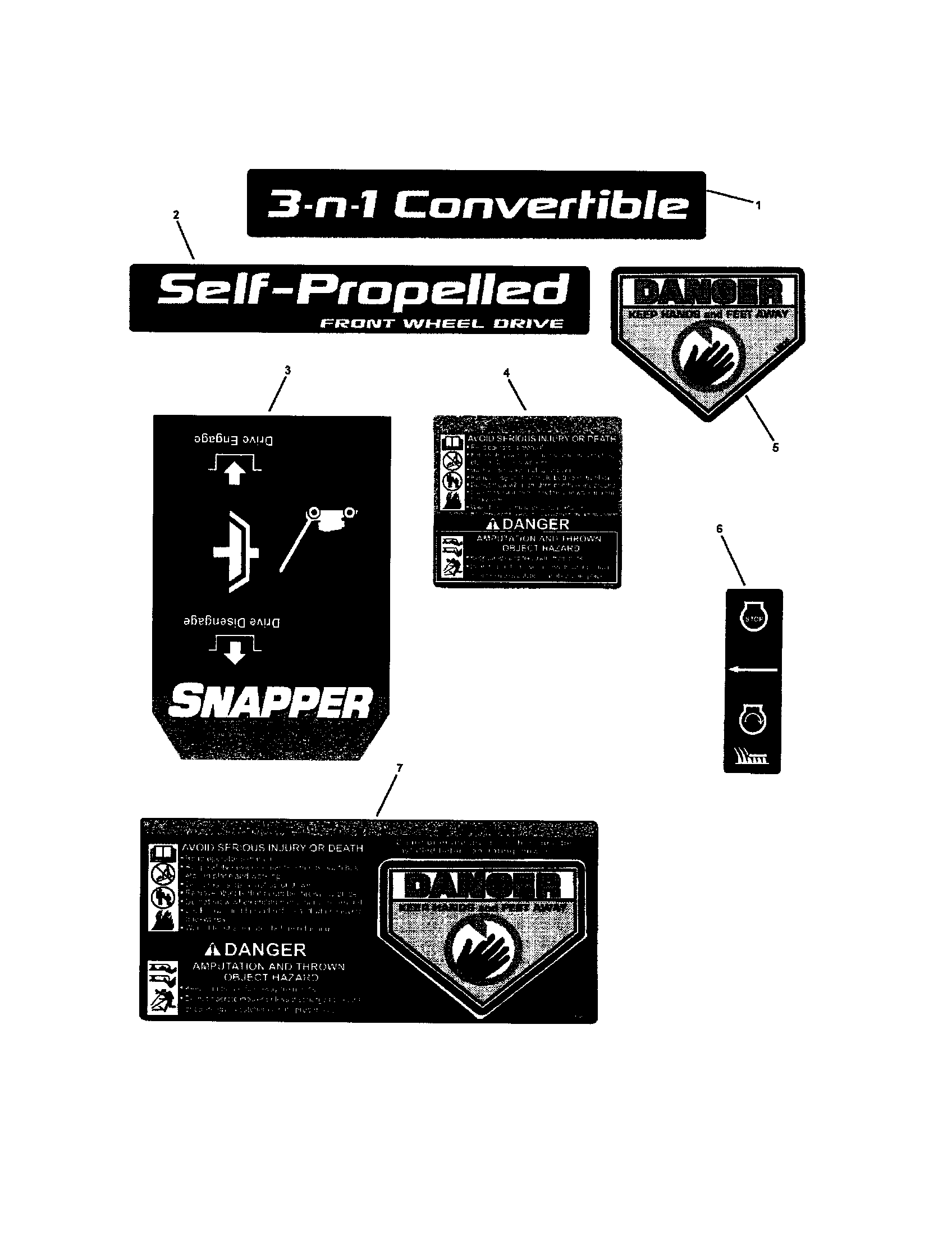

Decals diagram

Lawn mower decal

Part #7101429

Replaced by #7101429YP

?
Manufacturer substitution
This part replaces 7101429. Substitute parts can look different from the original.
$19.37
In Stock
