Model # 502474870 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502474870 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

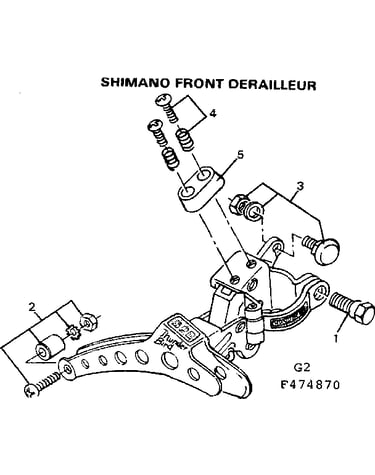

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Skylark 302806
Skylark

Part #302806

The manufacturer no longer makes this part, and there's no substitute part

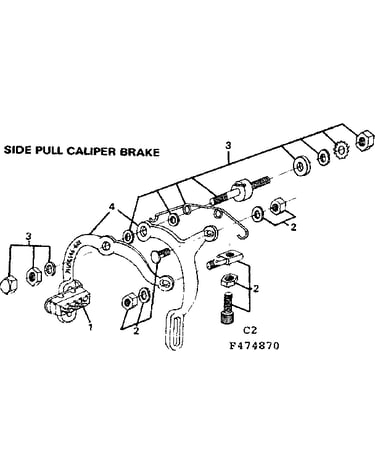

Brake Shoe 308697
Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Axle Mx 303520
#11

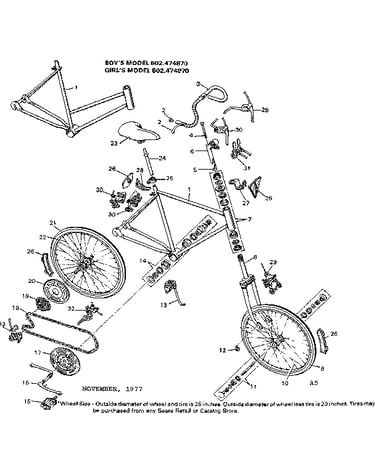

Unit parts diagram

Axle mx

Part #303520

The manufacturer no longer makes this part, and there's no substitute part

Bushing 300519
#16

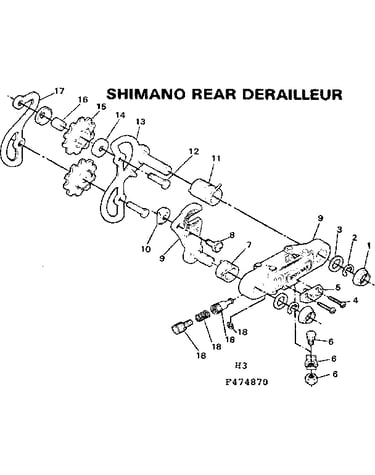

Shimano rear derailleur diagram

Bushing

Part #300519

The manufacturer no longer makes this part, and there's no substitute part

Adj Plate 300931
#5

Shimano rear derailleur diagram

Adj plate

Part #300931

The manufacturer no longer makes this part, and there's no substitute part

Cable Bridge 304223
#7

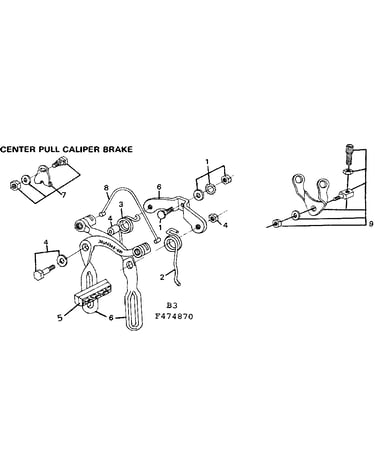

Center pull caliper brake diagram

Cable bridge

Part #304223

The manufacturer no longer makes this part, and there's no substitute part

Ring 300505
#2

Shimano rear derailleur diagram

Ring

Part #300505

The manufacturer no longer makes this part, and there's no substitute part

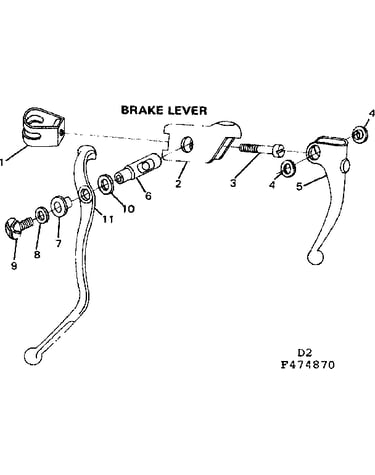

Lh Lever Asm 302300

#NI

All parts diagram

Lh lever asm

Part #302300

The manufacturer no longer makes this part, and there's no substitute part

Lever 304233

#NI

All parts diagram

Lever

Part #304233

The manufacturer no longer makes this part, and there's no substitute part
