Sharp
Countertop Microwave

Model # R-307KK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-307KK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Magnetron RV-MZA288WRE0
#1-11

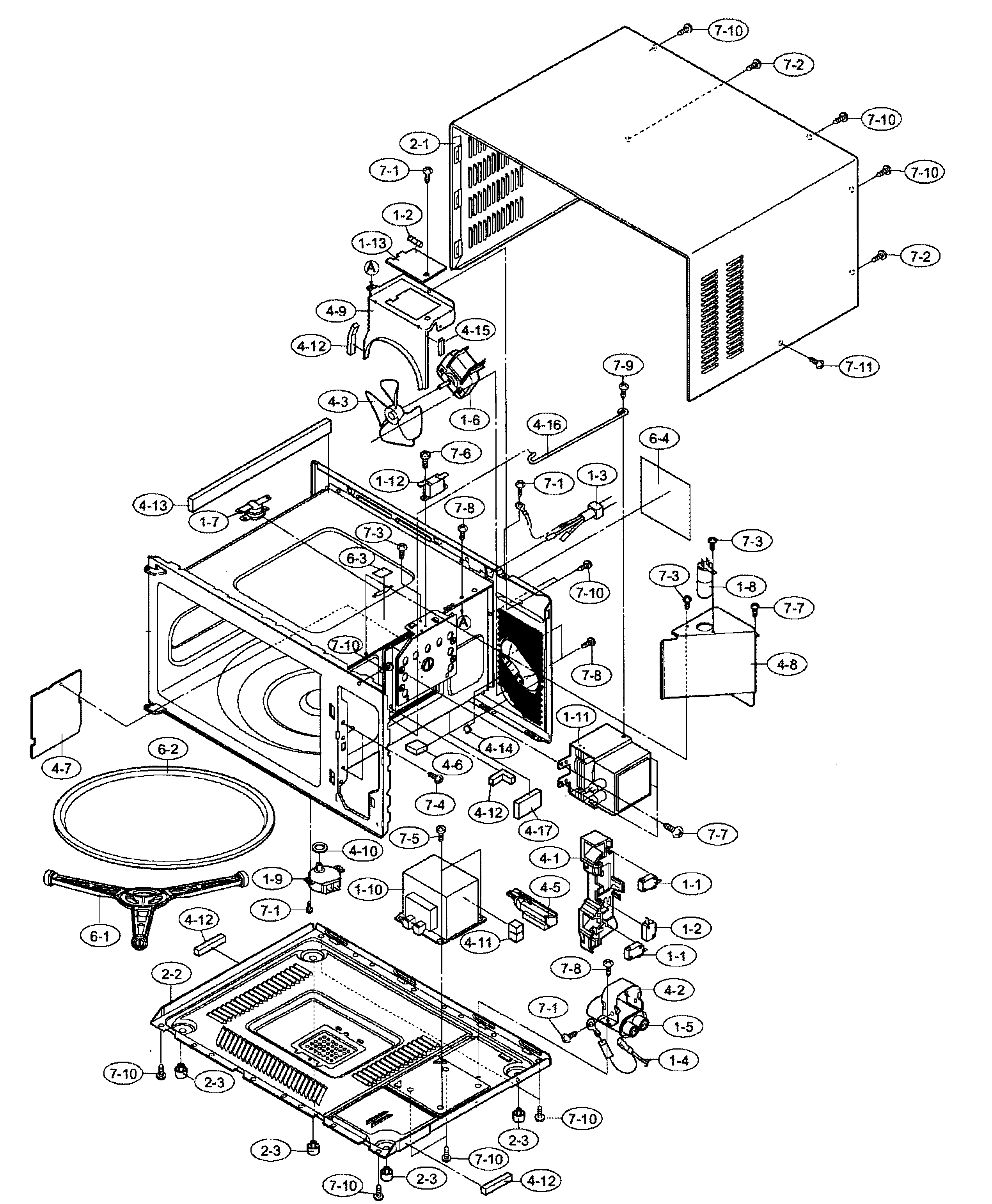

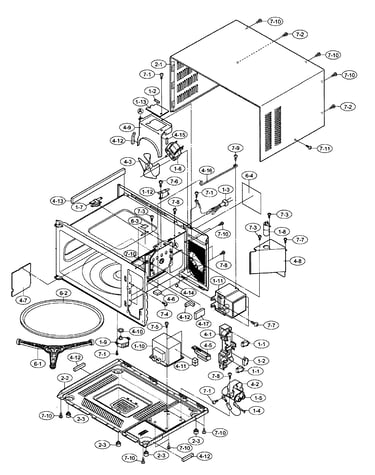

Cabinet parts diagram

Magnetron

Part #RV-MZA288WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sharp Door Screen HPNL-A854WRRZ
#5-4

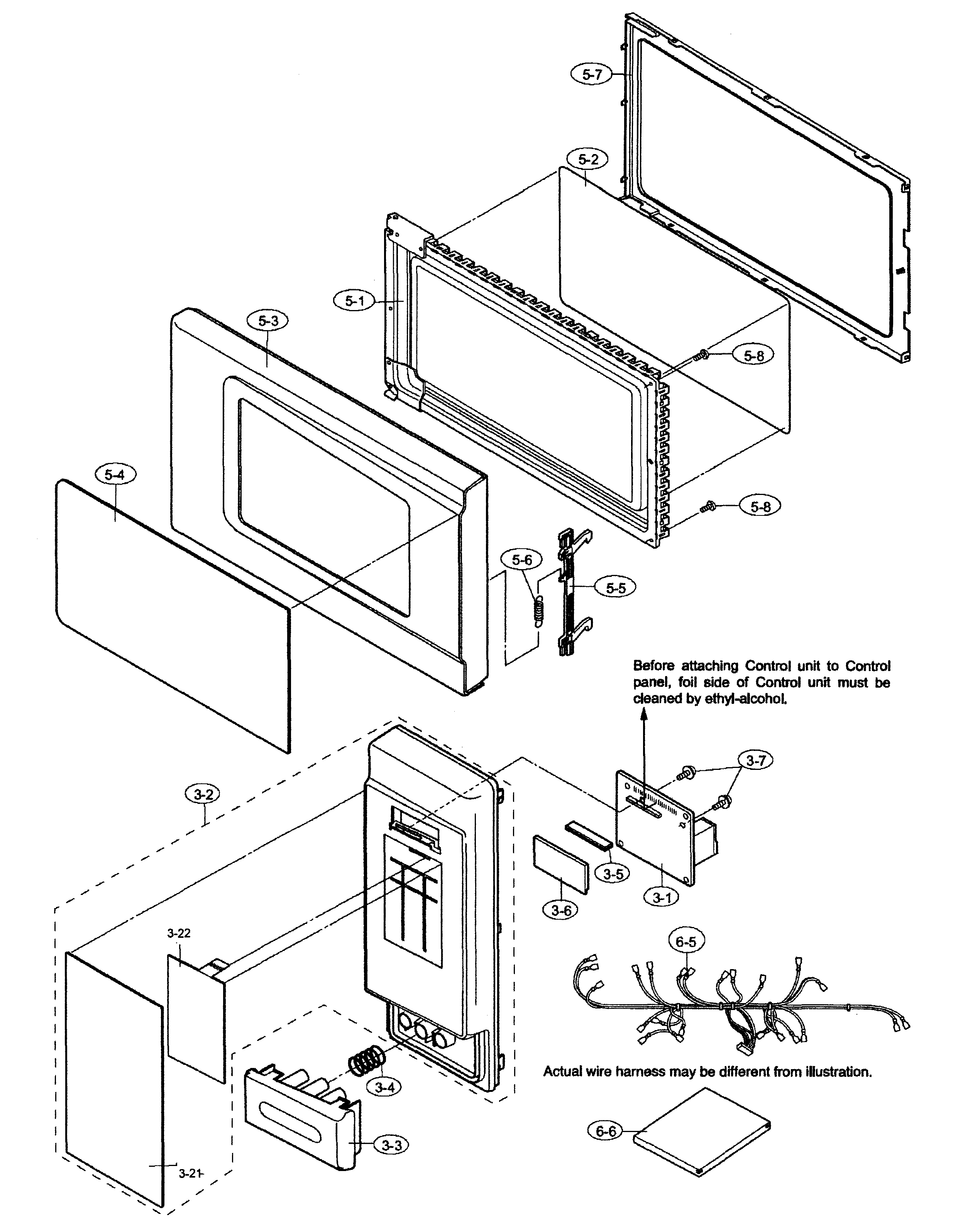

Door and control panel diagram

Sharp door screen

Part #HPNL-A854WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Cooling Fan Motor RMOTEA433WRZZ
#1-6

Cabinet parts diagram

Microwave cooling fan motor

Part #RMOTEA433WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Glass Turntable Tray NTNT-A117WREZ
#6-2

Cabinet parts diagram

Microwave glass turntable tray

Part #NTNT-A117WREZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Thermal Cut-off RTHM-A119WRE0
#1-7

Cabinet parts diagram

Microwave thermal cut-off

Part #RTHM-A119WRE0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-A729WRZZ
#1-10

Cabinet parts diagram

Transformer

Part #RTRN-A729WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XEPS740P08000
#5-8

Door and control panel diagram

Screw

Part #XEPS740P08000

The manufacturer no longer makes this part, and there's no substitute part

Sharp Graph Sheet PSHEPB160WREZ
#3-21

Door and control panel diagram

Sharp graph sheet

Part #PSHEPB160WREZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray Support FROLPA101WRKZ
#6-1

Cabinet parts diagram

Microwave turntable tray support

Part #FROLPA101WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Holder LBNDKA163WRPZ
#4-2

Cabinet parts diagram

Holder

Part #LBNDKA163WRPZ

The manufacturer no longer makes this part, and there's no substitute part
