Model # MED25P3 Official White-Westinghouse dehumidifier - 5995242152

Here are the diagrams and repair parts for Official White-Westinghouse MED25P3 dehumidifier - 5995242152, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 56 parts |

Screw

Part #08016435

This item is not returnable

$2.16

In Stock

Qty

#33

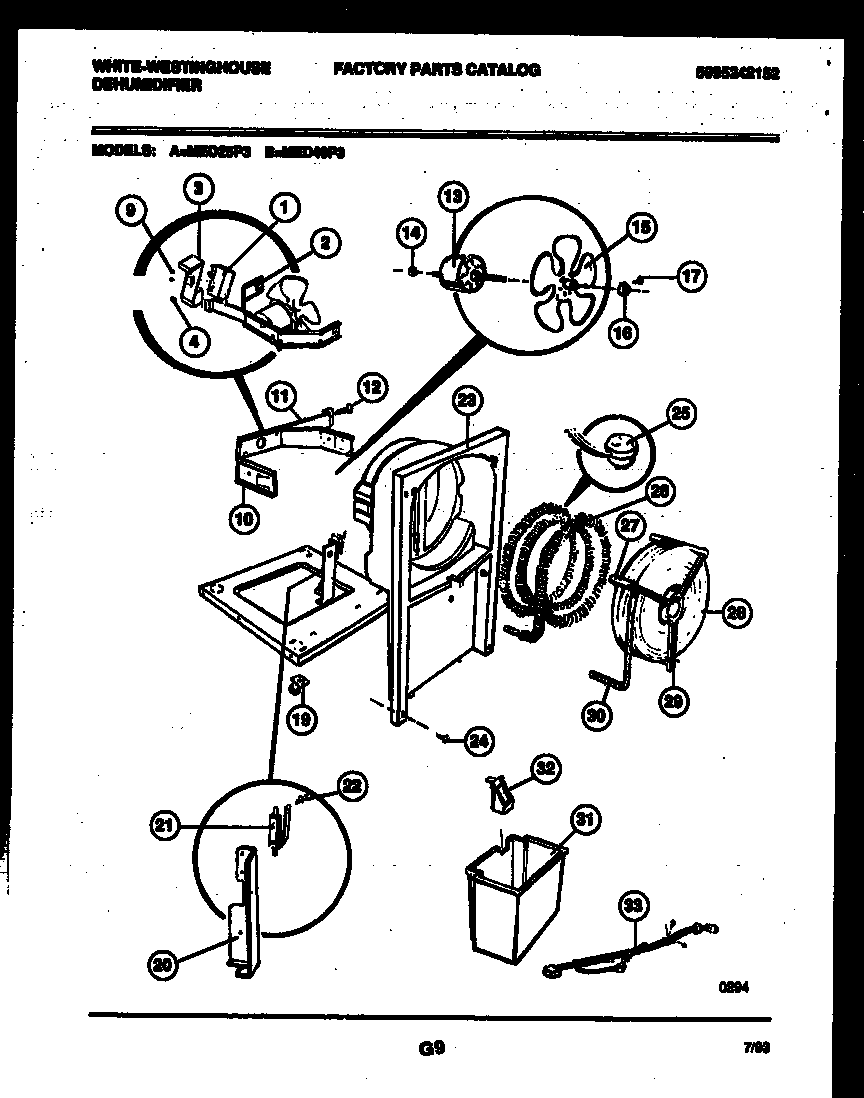

Air, water and condensing parts diagram

Gibson electronic harness

Part #5303289839

$51.49

In Stock

Qty

Kelvinator Room Air Conditioner Lock Nut 08007481

#14

Air, water and condensing parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable

$5.74

In Stock

Qty

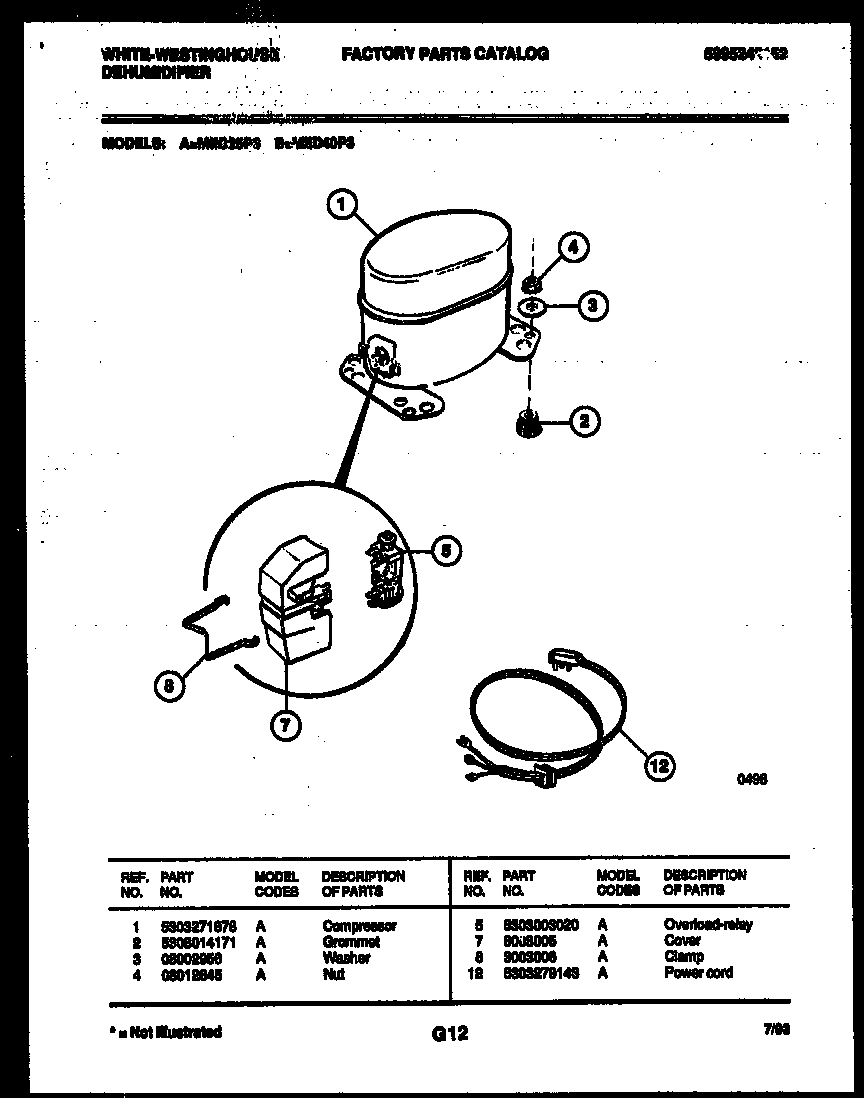

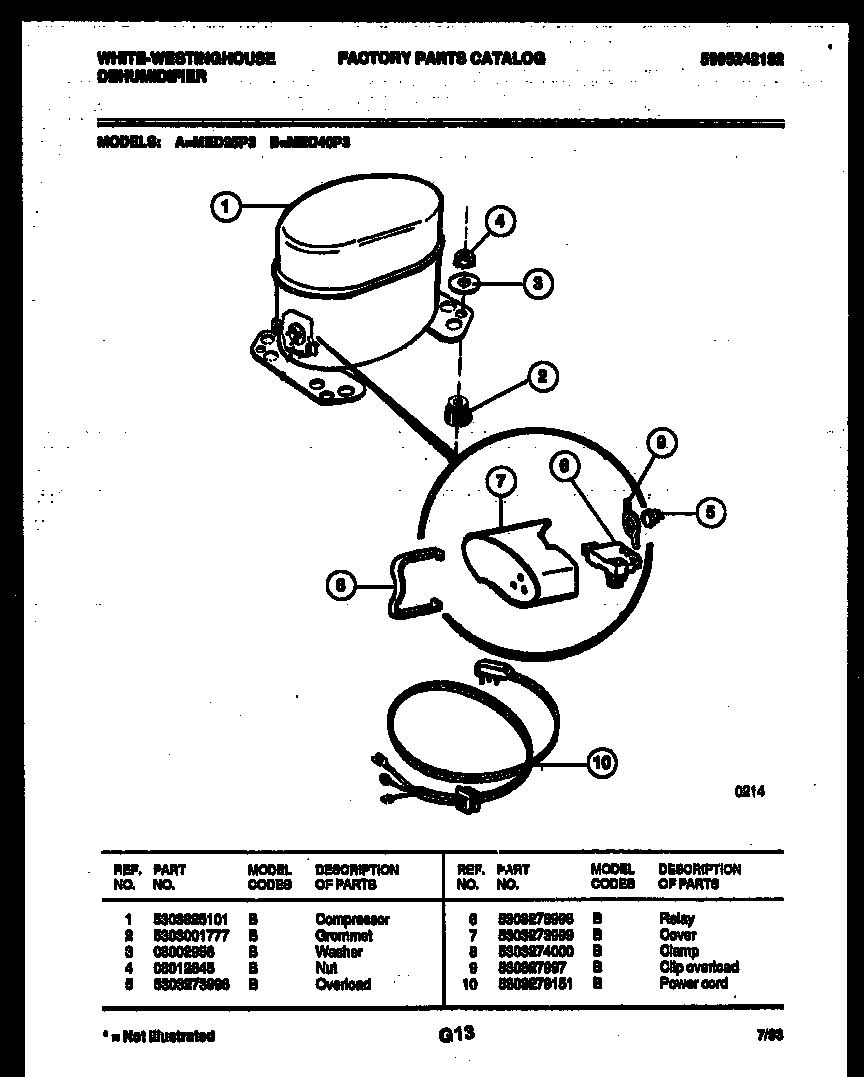

Compressor parts diagram

Relay

Part #5303273998

Replaced by #216594300

$53.69 |

10% OFF Phone Price : $59.69

In Stock

Qty

#17

Air, water and condensing parts diagram

Screw

Part #5308007473

Replaced by #5304455651

$13.26

In Stock

Qty

Compressor parts diagram

Grommet

Part #5303001777

The manufacturer no longer makes this part, and there's no substitute part

#10

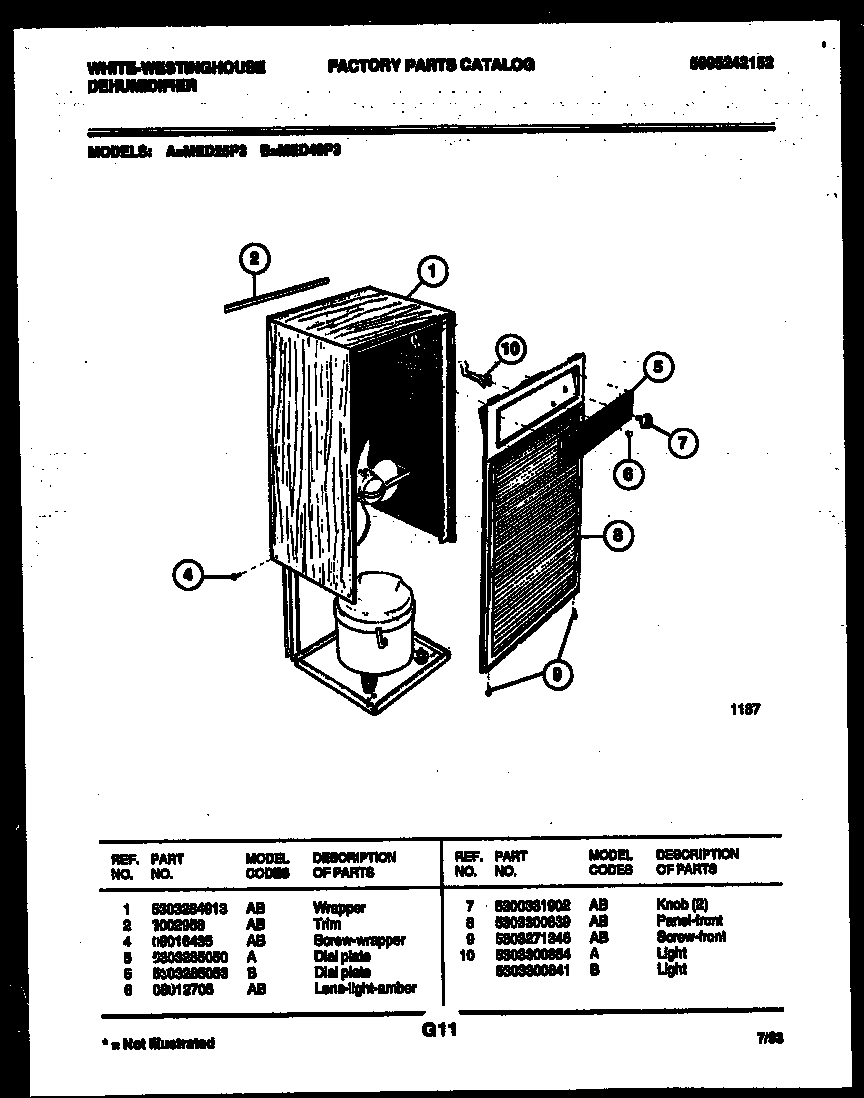

Cabinet and control parts diagram

Light

Part #5303300854

The manufacturer no longer makes this part, and there's no substitute part

#20

Air, water and condensing parts diagram

Bracket

Part #3016969

The manufacturer no longer makes this part, and there's no substitute part

#30

Air, water and condensing parts diagram

Tube

Part #5308017120

The manufacturer no longer makes this part, and there's no substitute part

Air, water and condensing parts diagram

Control bracket

Part #5303211050

The manufacturer no longer makes this part, and there's no substitute part
