Model # 66515821690 Official Kenmore dishwasher
Here are the diagrams and repair parts for Official Kenmore 66515821690 dishwasher, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

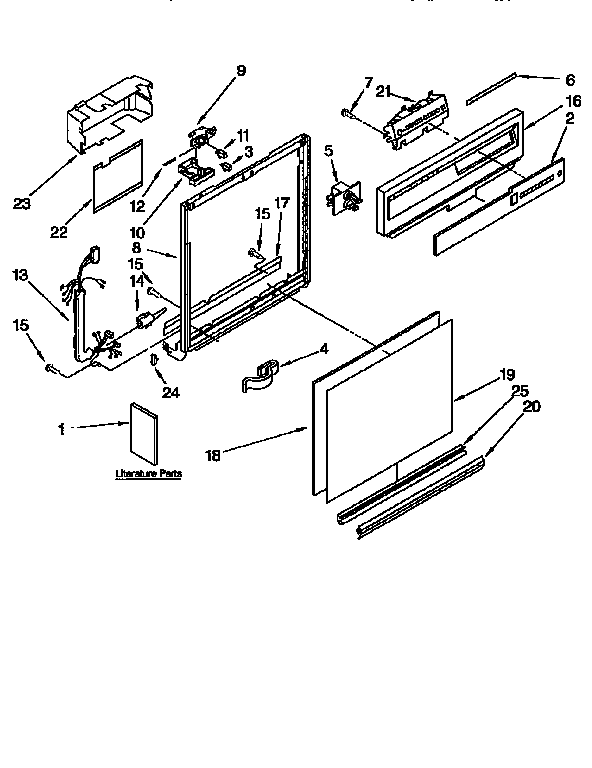

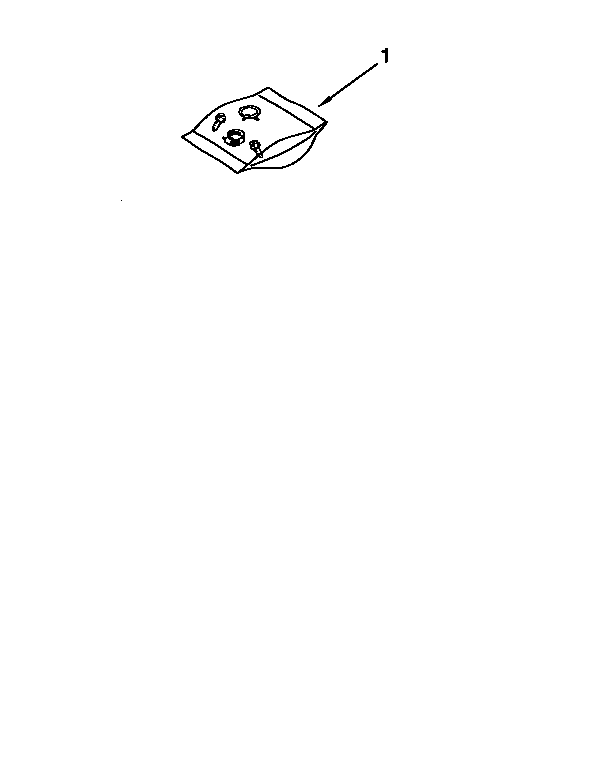

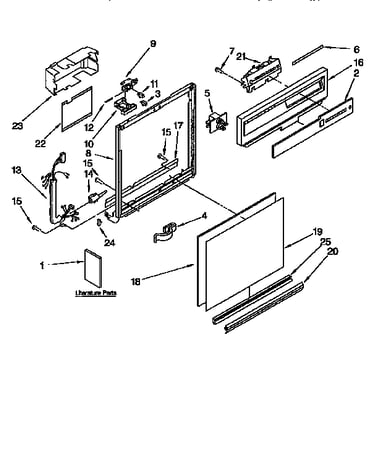

SELECT DIAGRAM
Browse Parts for66515821690 Dishwasher
- #18

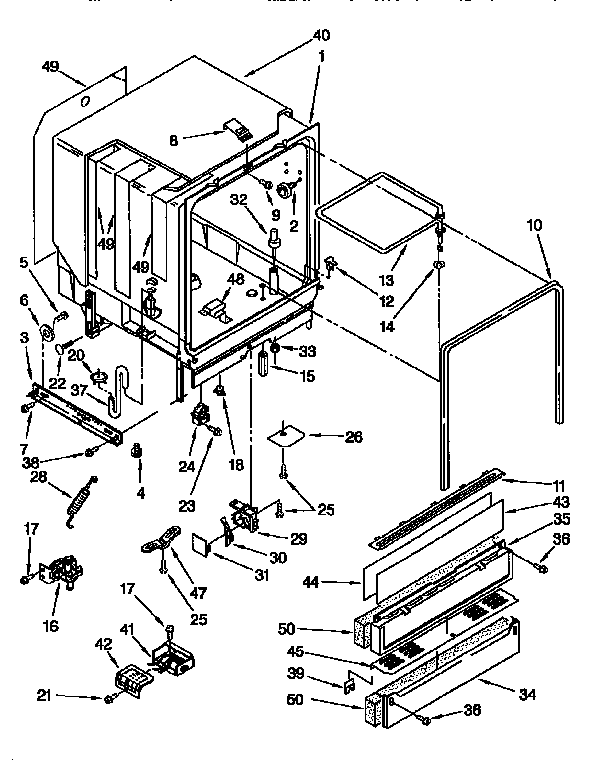

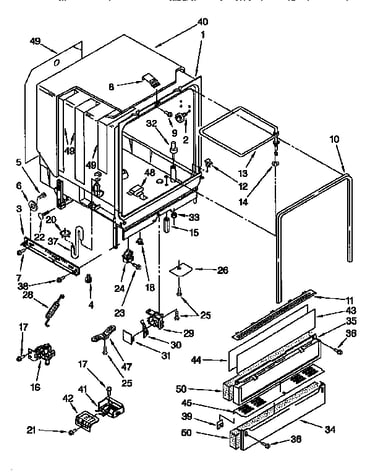

Tub assembly diagram
ThermostatPart #3369777
Replaced by #WP661566
?Manufacturer substitutionThis part replaces 3369777. Substitute parts can look different from the original.$20.69 |22% OFF Phone Price : $26.69In Stock - #10
Tub assembly diagram
Dishwasher door sealPart #3376927
Replaced by #WPW10509257
?Manufacturer substitutionThis part replaces 3376927. Substitute parts can look different from the original.$39.13 |13% OFF Phone Price : $45.13In Stock - #28

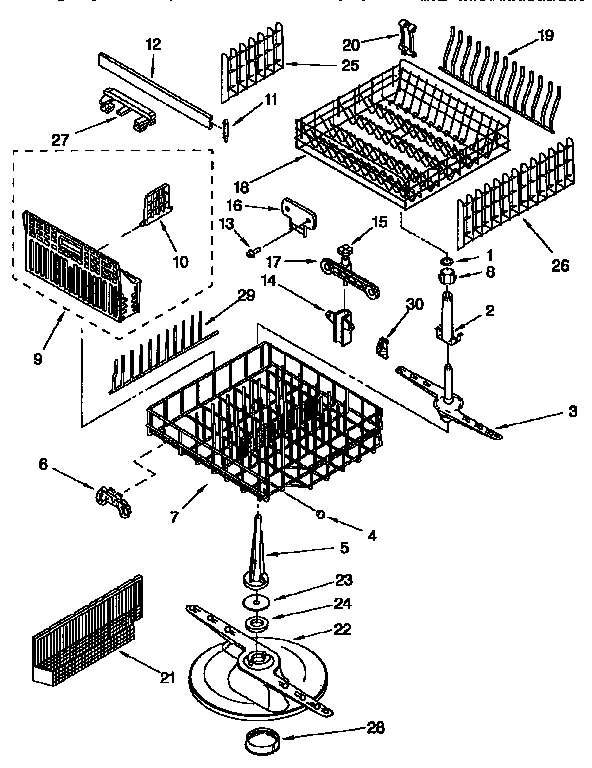

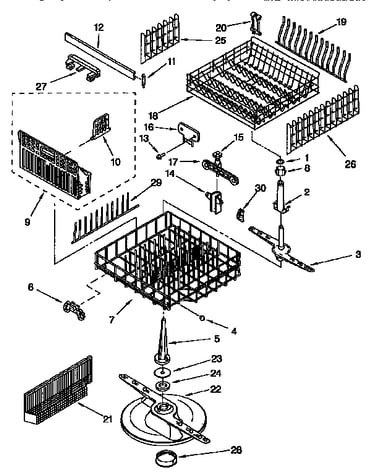

Dishrack diagram
Dishwasher lower spray arm sealPart #3376846
Replaced by #WP3376846
?Manufacturer substitutionThis part replaces 3376846. Substitute parts can look different from the original.$8.54 |33% OFF Phone Price : $12.84In Stock - #20
Tub assembly diagram
ClampPart #301958
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 301958. Substitute parts can look different from the original.This item is not returnable$4.31 |16% OFF Phone Price : $5.15In Stock - #13
Dishrack diagram
ScrewPart #301077
Replaced by #WP9741232
?Manufacturer substitutionThis part replaces 301077. Substitute parts can look different from the original.This item is not returnable$4.31 |16% OFF Phone Price : $5.15In Stock - #3

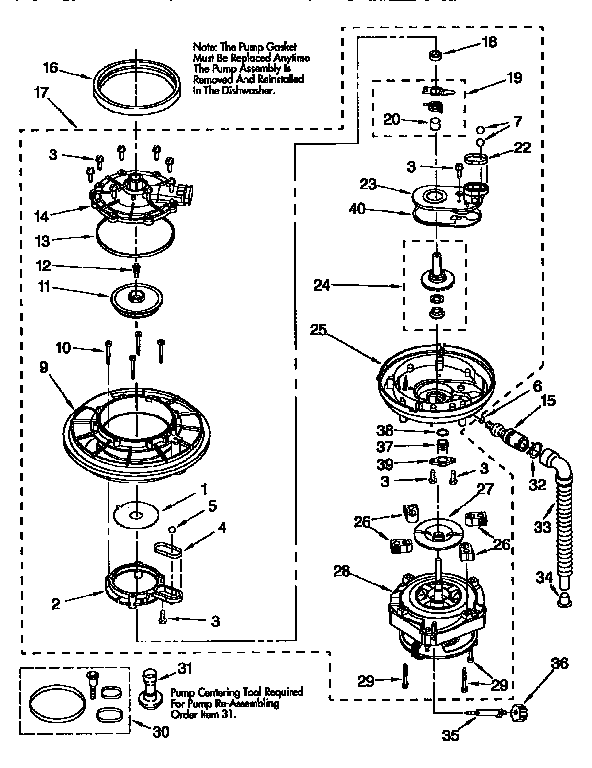

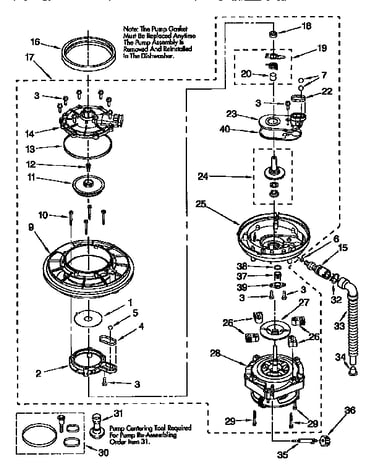

Pump and motor diagram
Dishwasher screwPart #9741232
Replaced by #WP9741232
?Manufacturer substitutionThis part replaces 9741232. Substitute parts can look different from the original.This item is not returnable$4.31 |16% OFF Phone Price : $5.15In Stock - #36
Tub assembly diagram
Dishwasher screwPart #302868
Replaced by #WP302868
?Manufacturer substitutionThis part replaces 302868. Substitute parts can look different from the original.This item is not returnable$4.33 |16% OFF Phone Price : $5.17In Stock - #13

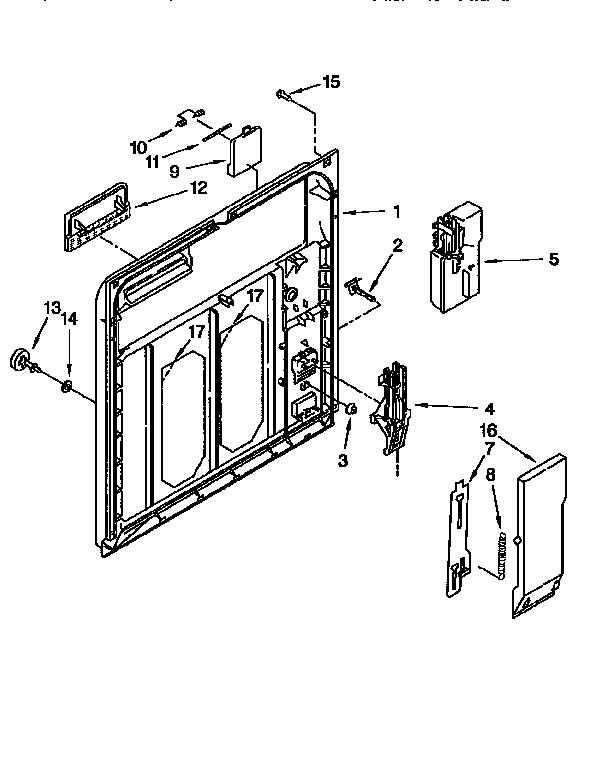

Inner door diagram
CapPart #3369512
Replaced by #WP3378134
?Manufacturer substitutionThis part replaces 3369512. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - #14
Inner door diagram
SealPart #3369155
Replaced by #WP3378134
?Manufacturer substitutionThis part replaces 3369155. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - #9
Inner door diagram
Cover dispenserPart #3376404
Replaced by #WP3378138
?Manufacturer substitutionThis part replaces 3376404. Substitute parts can look different from the original.$18.29 |7% OFF Phone Price : $19.76In Stock
