Model # 4-6971X1 Official Murray 16" girls' parkcycle hip attitude bicycle

Here are the diagrams and repair parts for Official Murray 4-6971X1 16" girls' parkcycle hip attitude bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Rim Strap 118X17
#7C

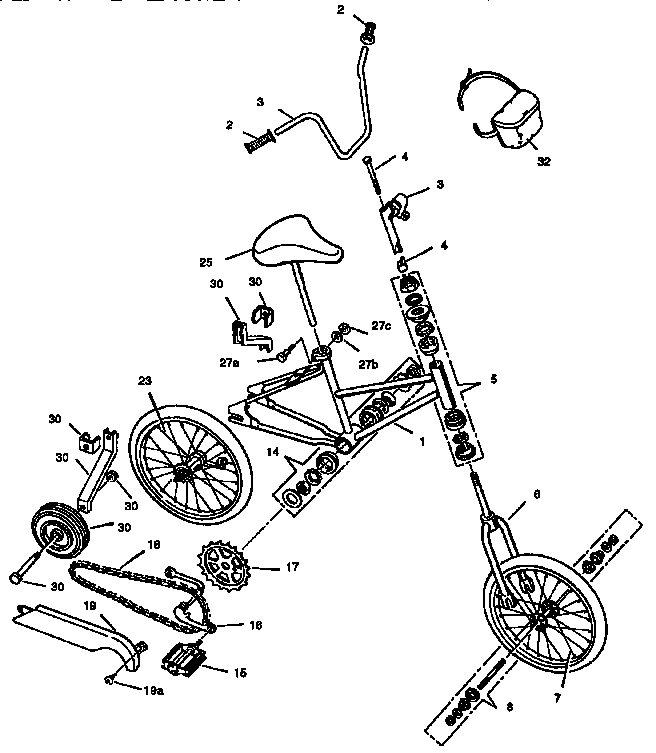

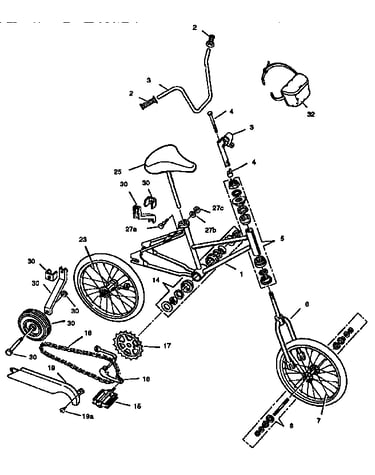

Girl's parkcycle diagram

Rim strap

Part #118X17

The manufacturer no longer makes this part, and there's no substitute part

Exp Bolt Wsh 40670
#4

Girl's parkcycle diagram

Exp bolt wsh

Part #40670

The manufacturer no longer makes this part, and there's no substitute part

Pedal 44962
#15

Girl's parkcycle diagram

Pedal

Part #44962

The manufacturer no longer makes this part, and there's no substitute part

Hndlbr/stem 40674E254
#3

Girl's parkcycle diagram

Hndlbr/stem

Part #40674E254

The manufacturer no longer makes this part, and there's no substitute part

Saddle 98X677
#25

Girl's parkcycle diagram

Saddle

Part #98X677

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel 303018E315
#7

Girl's parkcycle diagram

Front wheel

Part #303018E315

The manufacturer no longer makes this part, and there's no substitute part

(4-6) Expander Bolt, Washer, And Wedge N/P
(4-6) expander bolt, washer, and wedge

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Parts Bag 49834

#NI

All parts diagram

Parts bag

Part #49834

The manufacturer no longer makes this part, and there's no substitute part

Hip Bag 49558
#32

Girl's parkcycle diagram

Hip bag

Part #49558

The manufacturer no longer makes this part, and there's no substitute part

Screw 26X222
#19A

Girl's parkcycle diagram

Screw

Part #26X222

The manufacturer no longer makes this part, and there's no substitute part
