Frigidaire
Gas Cooktop

Model # FPGC3077RSC Official Frigidaire counter unit

Here are the diagrams and repair parts for Official Frigidaire FPGC3077RSC counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

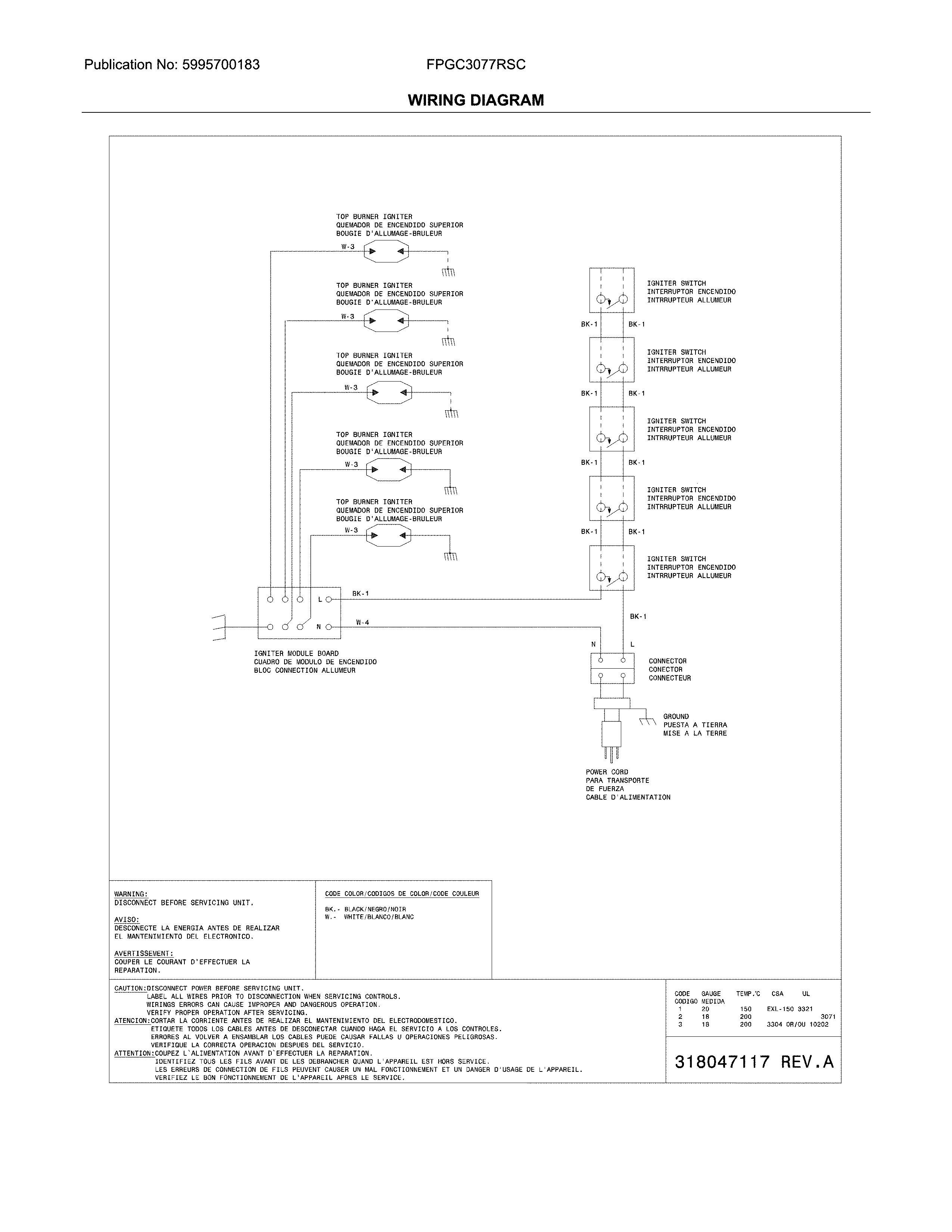

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Range Screw 5304472956
#4

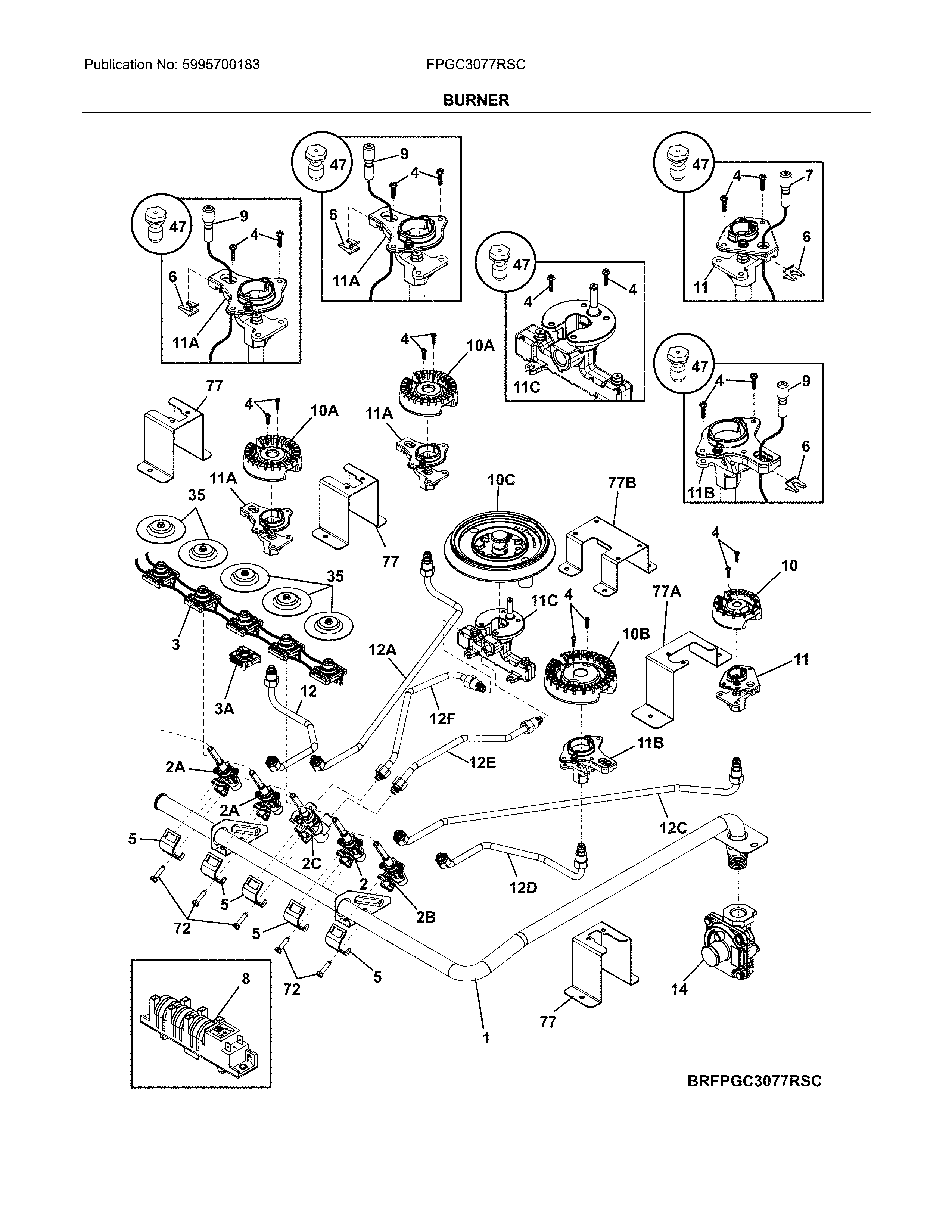

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Kenmore Pro Range Surface Burner Cap, 9,500-btu (black) (replaces 316261804) 5304508442
#22A

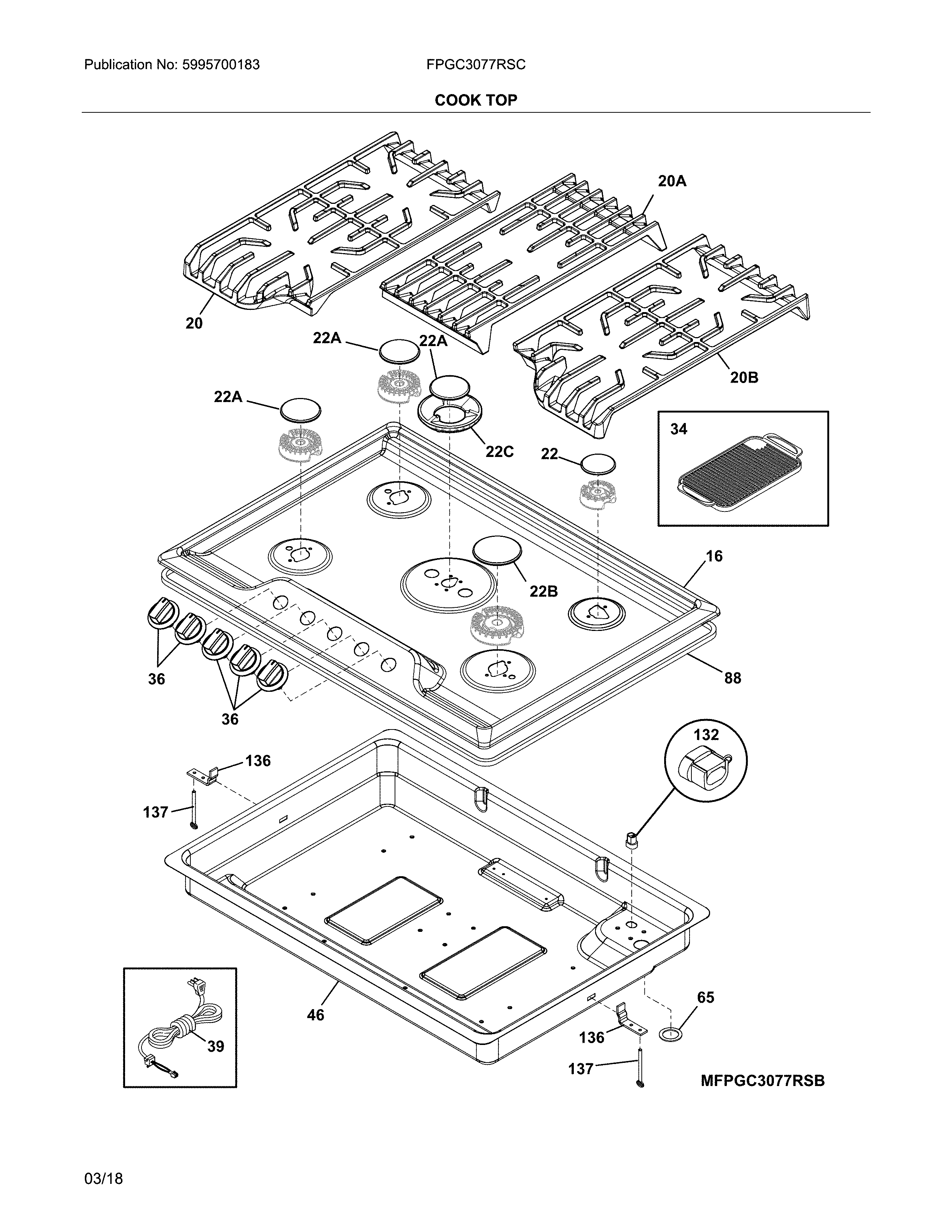

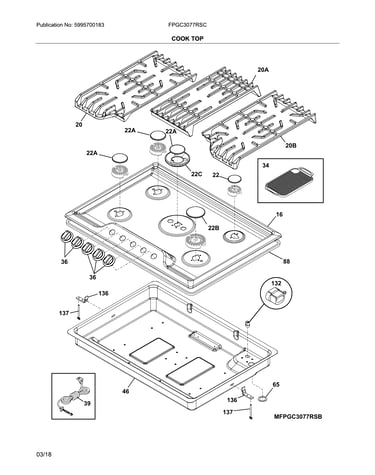

Cooktop diagram

Kenmore pro range surface burner cap, 9,500-btu (black) (replaces 316261804)

Part #5304508442

BEST SELLER
$27.10 |
18% OFF Phone Price : $33.10
In Stock
Kenmore Pro Cooktop Burner Cap, 5,000-btu (black) (replaces 316261704) 5304508441
#22

Cooktop diagram

Kenmore pro cooktop burner cap, 5,000-btu (black) (replaces 316261704)

Part #5304508441

BEST SELLER
This item is not returnable
$25.22 |
19% OFF Phone Price : $31.22
In Stock
Tappan Range Surface Burner Head (replaces 7316438600) 316438600
#10B

Burner diagram

Tappan range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
8% OFF Phone Price : $72.51
In Stock
Cooktop Burner Valve, 850-btu 5304505690
#2A

Burner diagram

Cooktop burner valve, 850-btu

Part #5304505690

$52.83 |
10% OFF Phone Price : $58.83
In Stock
Cooktop Blue Stem Burner Valve, 1,125-btu 5304505691
#2B

Burner diagram

Cooktop blue stem burner valve, 1,125-btu

Part #5304505691

$52.49 |
10% OFF Phone Price : $58.49
In Stock
Range Surface Burner Valve, 680-btu (orange) 5304505693
#2

Burner diagram

Range surface burner valve, 680-btu (orange)

Part #5304505693

$53.24 |
10% OFF Phone Price : $59.24
In Stock
Igniter 5304516453
#7

Burner diagram

Igniter

Part #5304516453

This item is not returnable
$16.09
In Stock
Ikea Range Griddle (replaces 316428000, 316526200, 318246100, 318251609, 7316432200) 5304495353
#34

Cooktop diagram

Ikea range griddle (replaces 316428000, 316526200, 318246100, 318251609, 7316432200)

Part #5304495353

$165.47 |
7% OFF Phone Price : $177.47
In Stock
Kenmore Elite Cooktop Lp Conversion Kit 5304508445
#47

Burner diagram

Kenmore elite cooktop lp conversion kit

Part #5304508445

$63.59 |
9% OFF Phone Price : $69.59
In Stock
