Frigidaire
Electric Wall Oven

Model # GLEB30S8CSA Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire GLEB30S8CSA electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

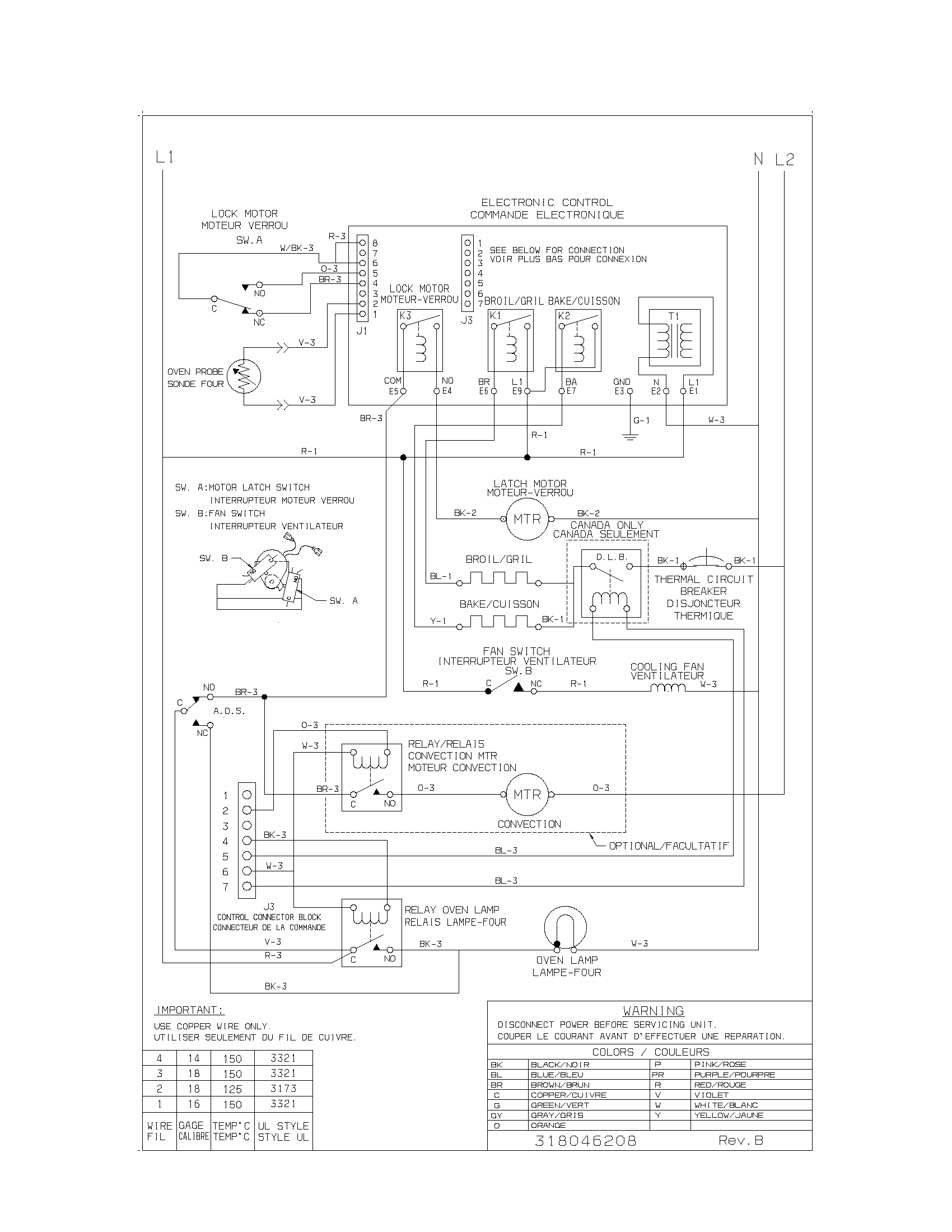

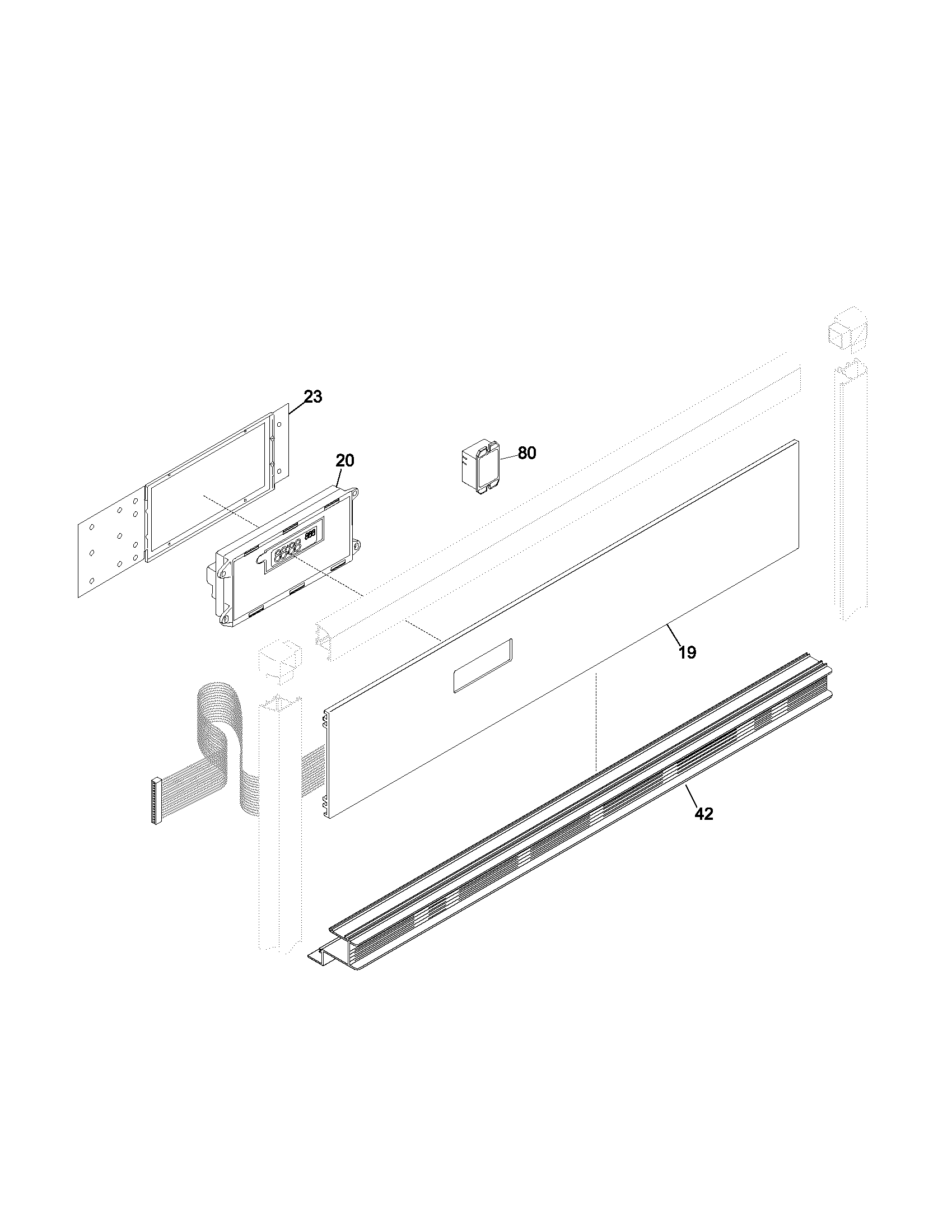

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Range Oven Light Bulb 5303013071
#15

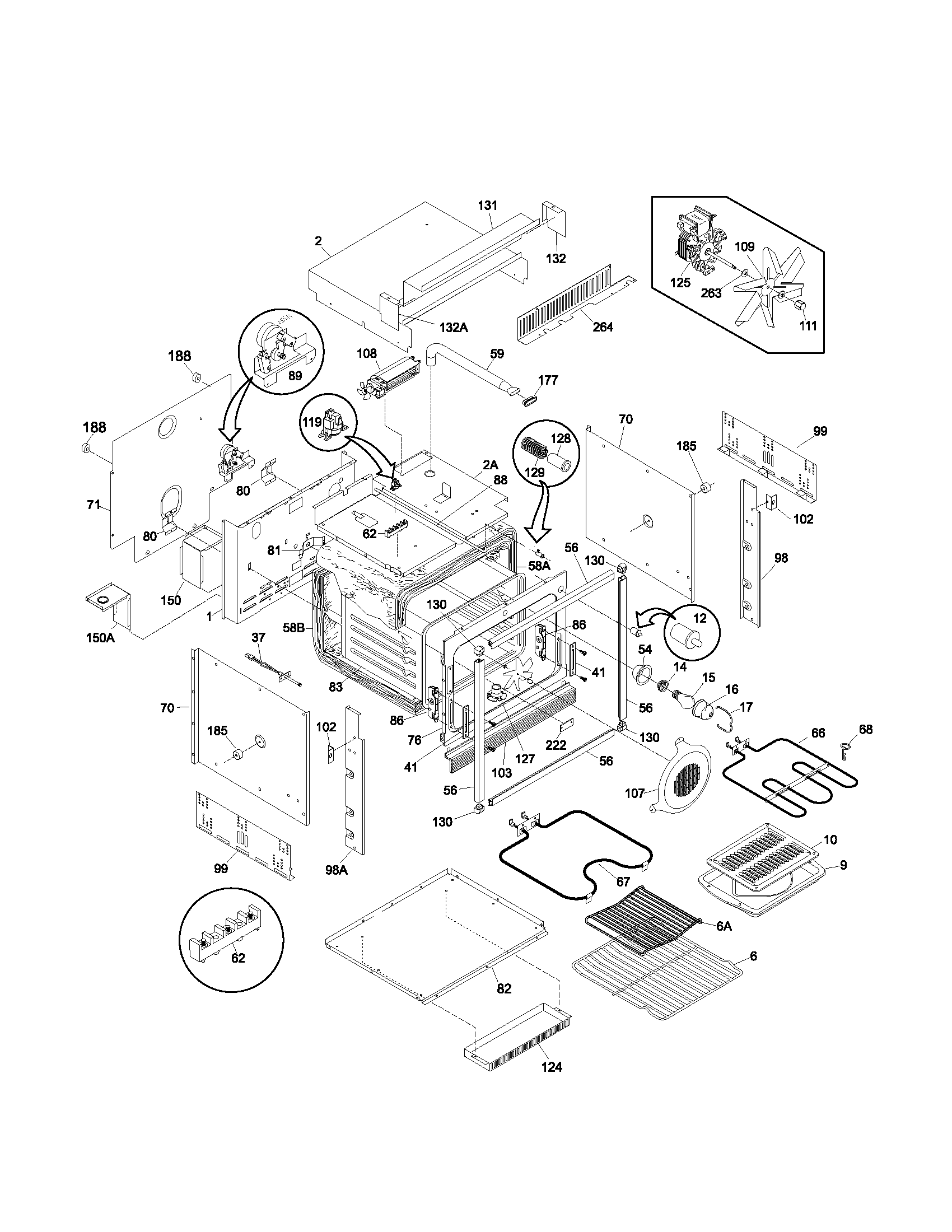

Oven body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Oven Bake Element 5303310512
#67

Oven body diagram

Oven bake element

Part #5303310512

Replaced by #318255006

?
Manufacturer substitution
This part replaces 5303310512. Substitute parts can look different from the original.
BEST SELLER
$150.14 |
7% OFF Phone Price : $162.14
In Stock
Terminal Block 5303310518
#62

Oven body diagram

Terminal block

Part #5303310518

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303310518. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Washer 316136500
#263

Oven body diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Receptacle 5308011085
#14

Oven body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Switch 318089913
#12

Oven body diagram

Oven switch

Part #318089913

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089913. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Range Oven Door Seal (replaces 318253001, 318253002) 318053103
#12

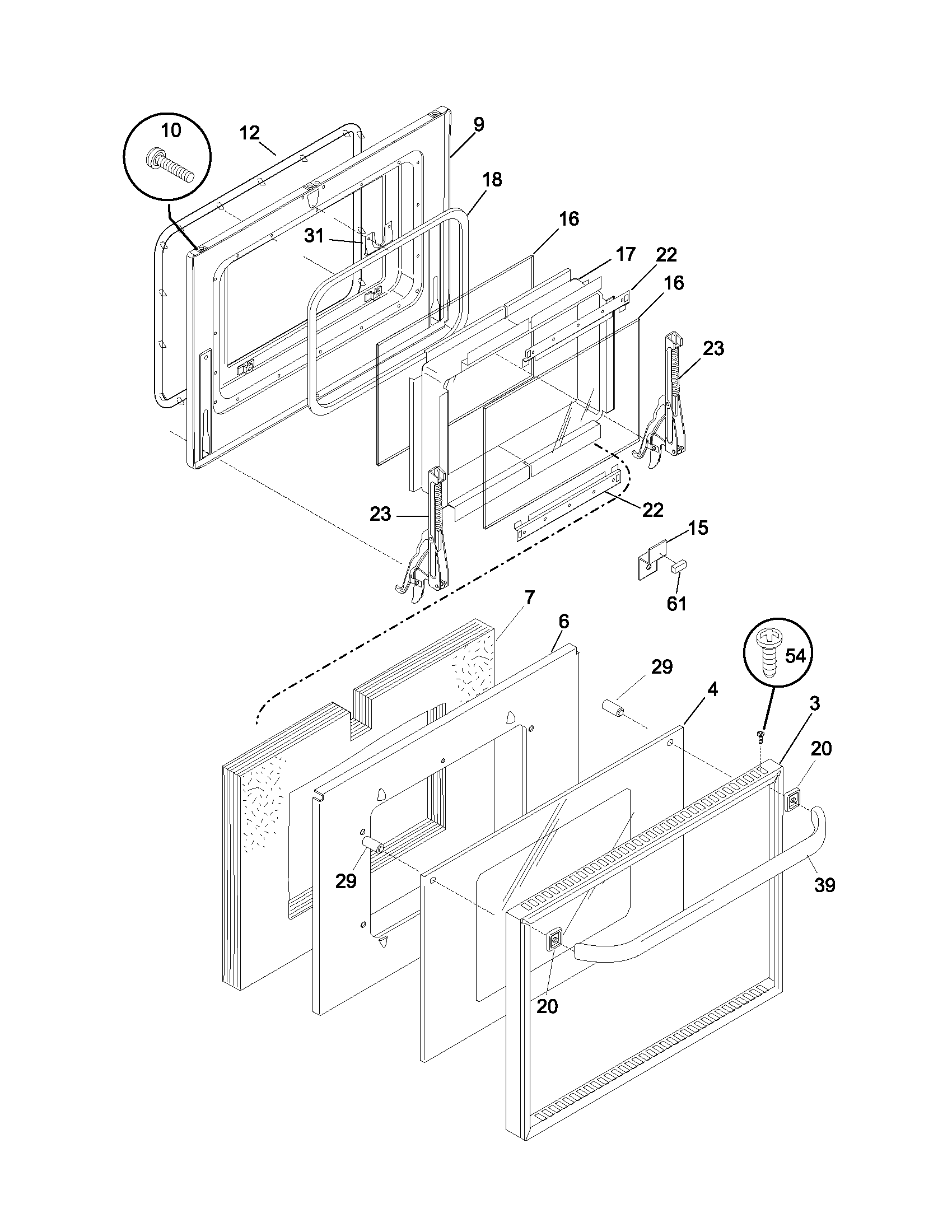

Door diagram

Range oven door seal (replaces 318253001, 318253002)

Part #318053103

$103.39 |
10% OFF Phone Price : $115.39
In Stock
Insert Broil 5303317976
#10

Oven body diagram

Insert broil

Part #5303317976

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 5303317976. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Broiler Pan 5303317977
#9

Oven body diagram

Broiler pan

Part #5303317977

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 5303317977. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Rack 318025308
#6

Oven body diagram

Rack

Part #318025308

Replaced by #318025314

?
Manufacturer substitution
This part replaces 318025308. Substitute parts can look different from the original.
$57.80 |
9% OFF Phone Price : $63.80
In Stock
