Modern Maid
Gas Cooktop

Model # PGT136UD-P1131480ND Official Modern Maid gas cooktop

Here are the diagrams and repair parts for Official Modern Maid PGT136UD-P1131480ND gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Tapng Scrw 8 0041792
#9999

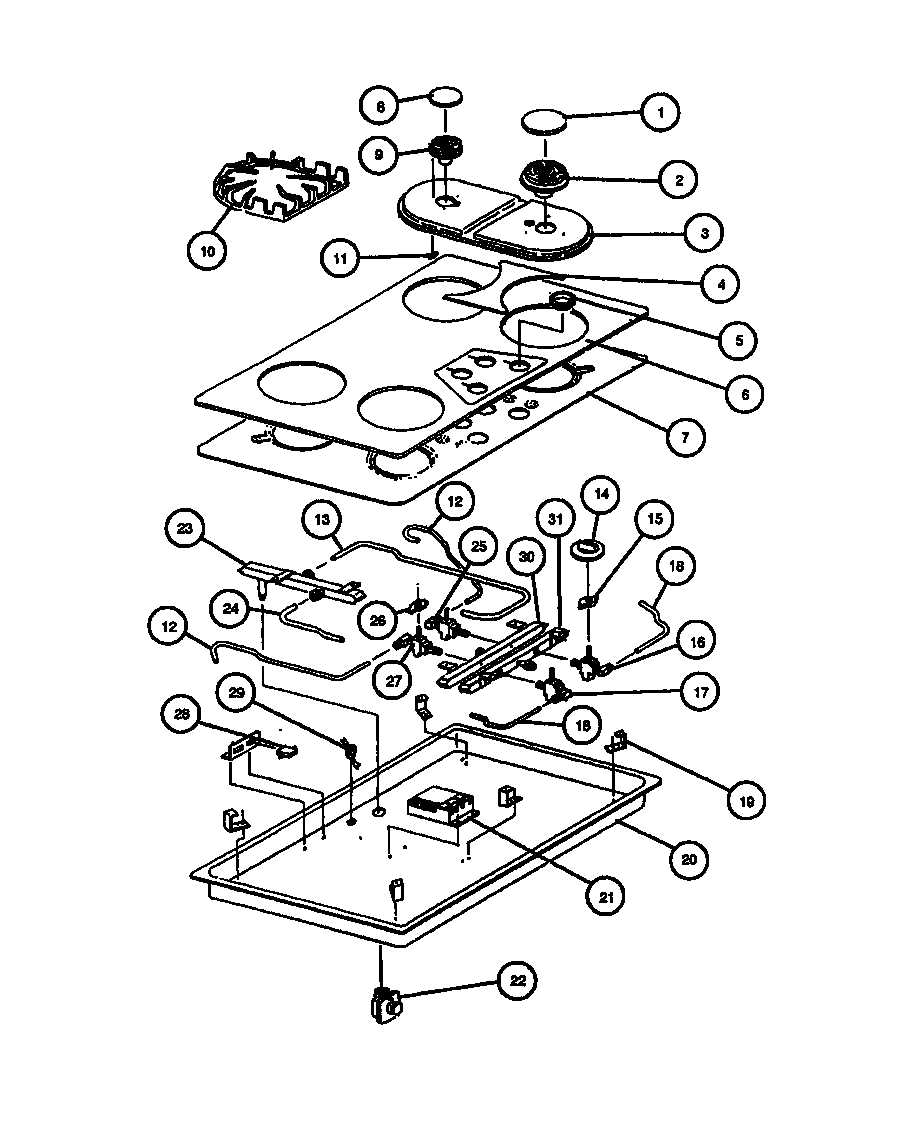

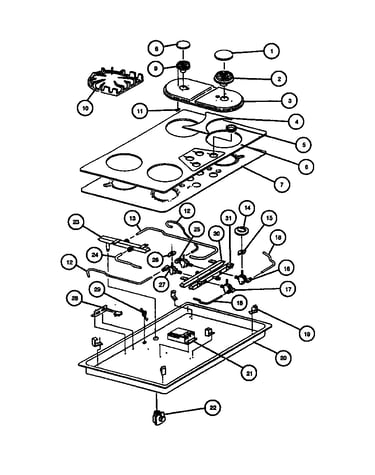

Page 2 diagram

Tapng scrw 8

Part #0041792

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 0041792. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Assy, Electr 0304357
#9999

Page 2 diagram

Assy, electr

Part #0304357

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 0304357. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Regulator 0304611
#22

Page 2 diagram

Regulator

Part #0304611

The manufacturer no longer makes this part, and there's no substitute part

Support Plate 36`` Glass 0303593
#7

Page 2 diagram

Support plate 36`` glass

Part #0303593

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 0042109
#9999

Page 2 diagram

Strain relief

Part #0042109

The manufacturer no longer makes this part, and there's no substitute part

Burner Plate 303525B
#3

Page 2 diagram

Burner plate

Part #303525B

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 0305003
#9999

Page 2 diagram

Mounting bracket

Part #0305003

The manufacturer no longer makes this part, and there's no substitute part

Inlet Tubing 0304925
#13

Page 2 diagram

Inlet tubing

Part #0304925

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 0304909
#9

Page 2 diagram

Burner body

Part #0304909

The manufacturer no longer makes this part, and there's no substitute part

Glass Top 36 0304845
#6

Page 2 diagram

Glass top 36

Part #0304845

The manufacturer no longer makes this part, and there's no substitute part
