Model # GCV160-LAOS3A Official Honda engine

Here are the diagrams and repair parts for Official Honda GCV160-LAOS3A engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

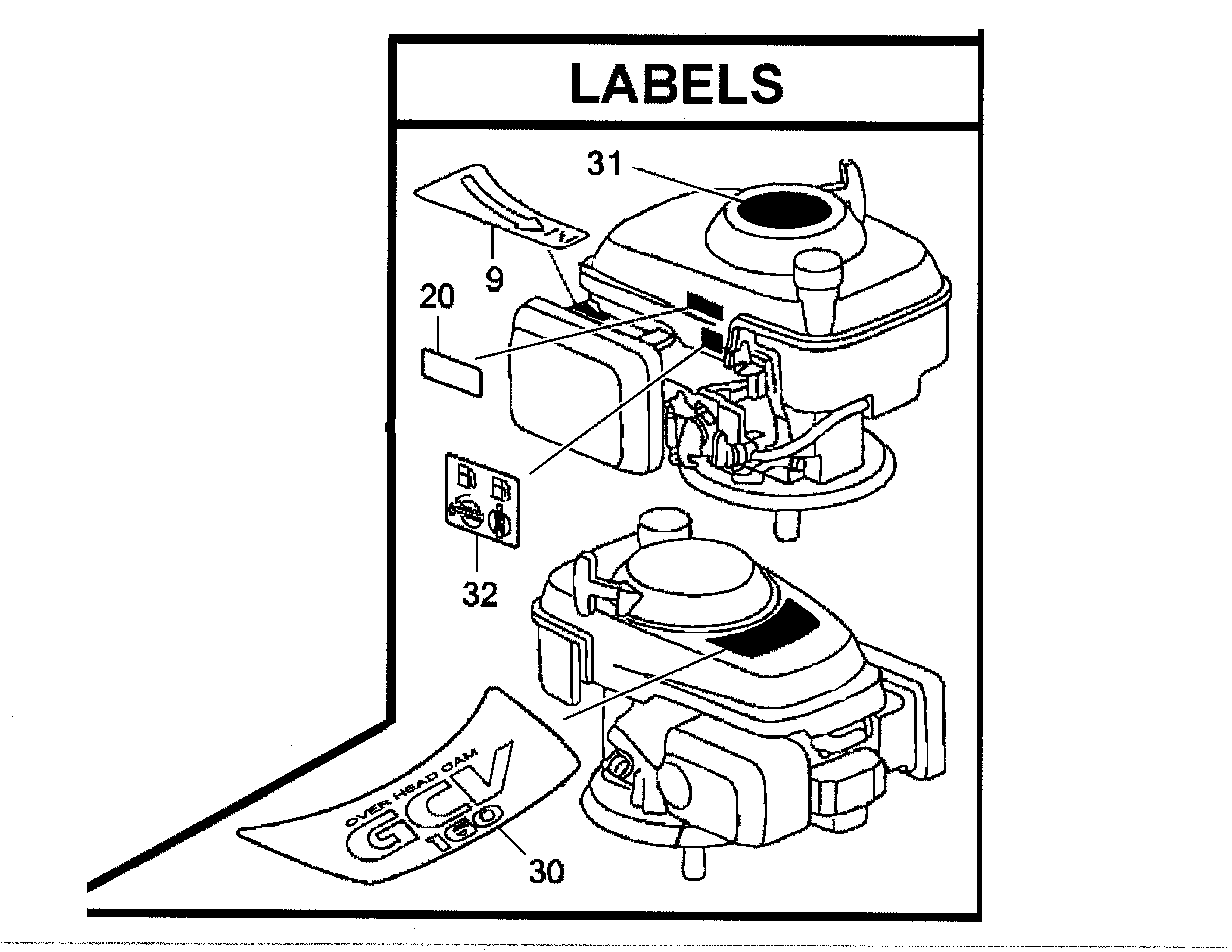

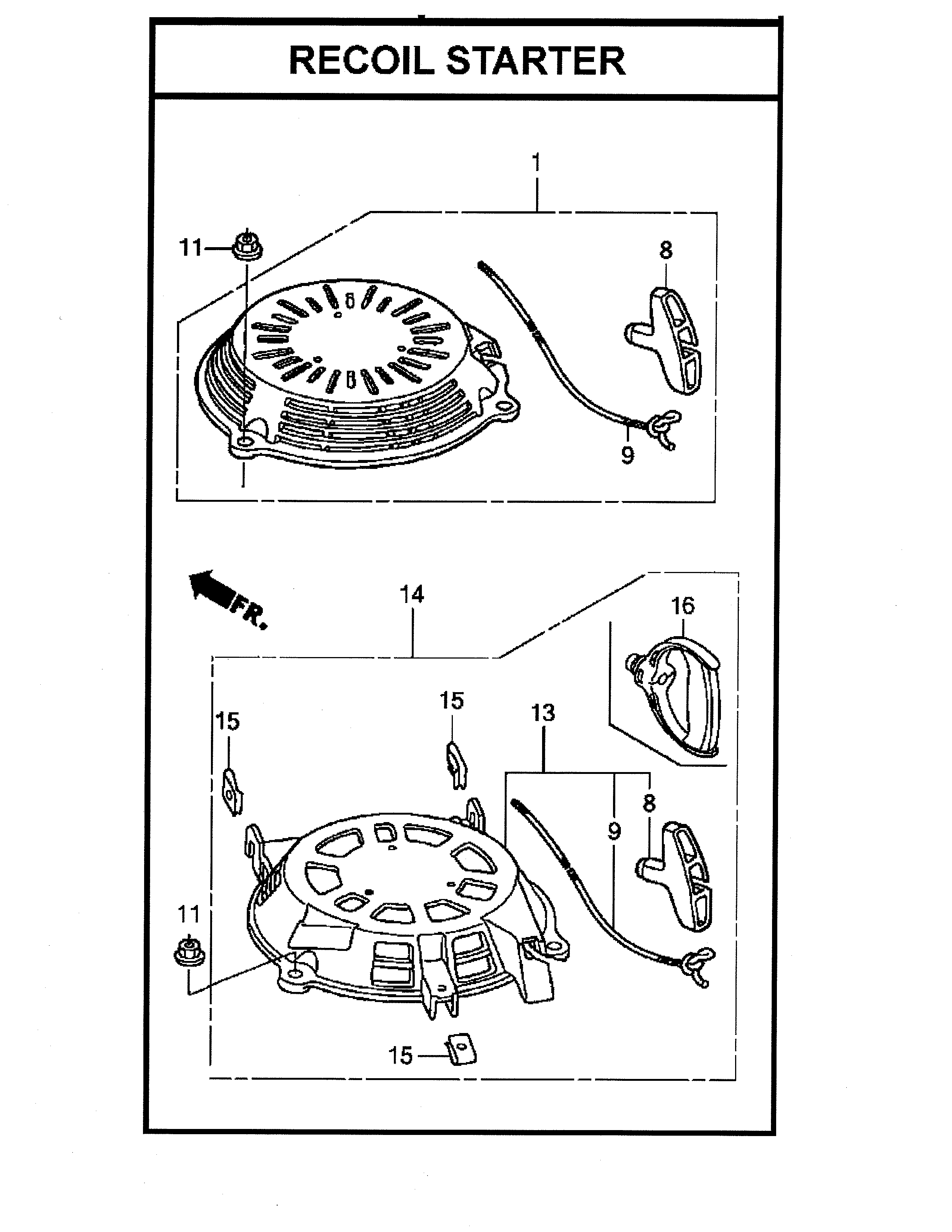

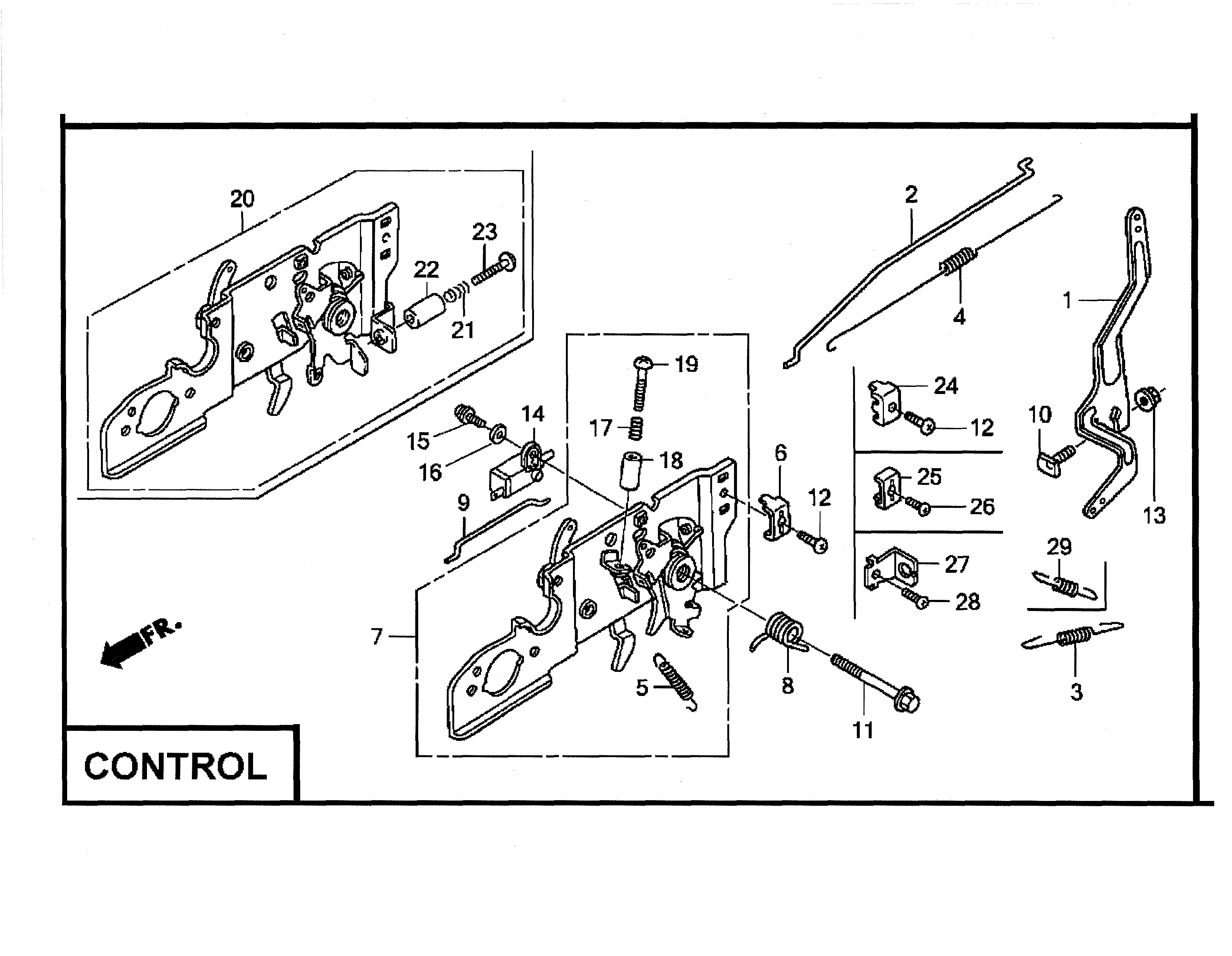

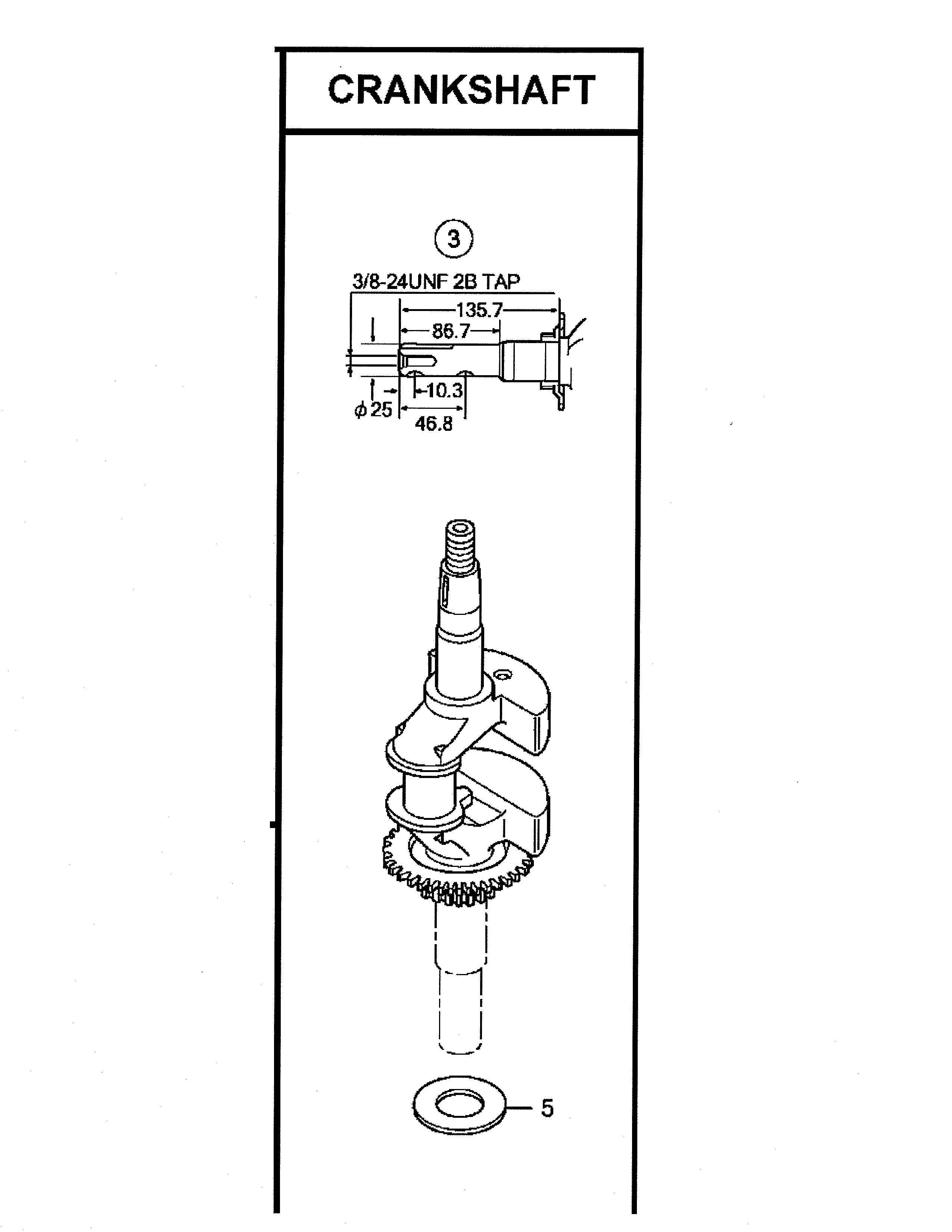

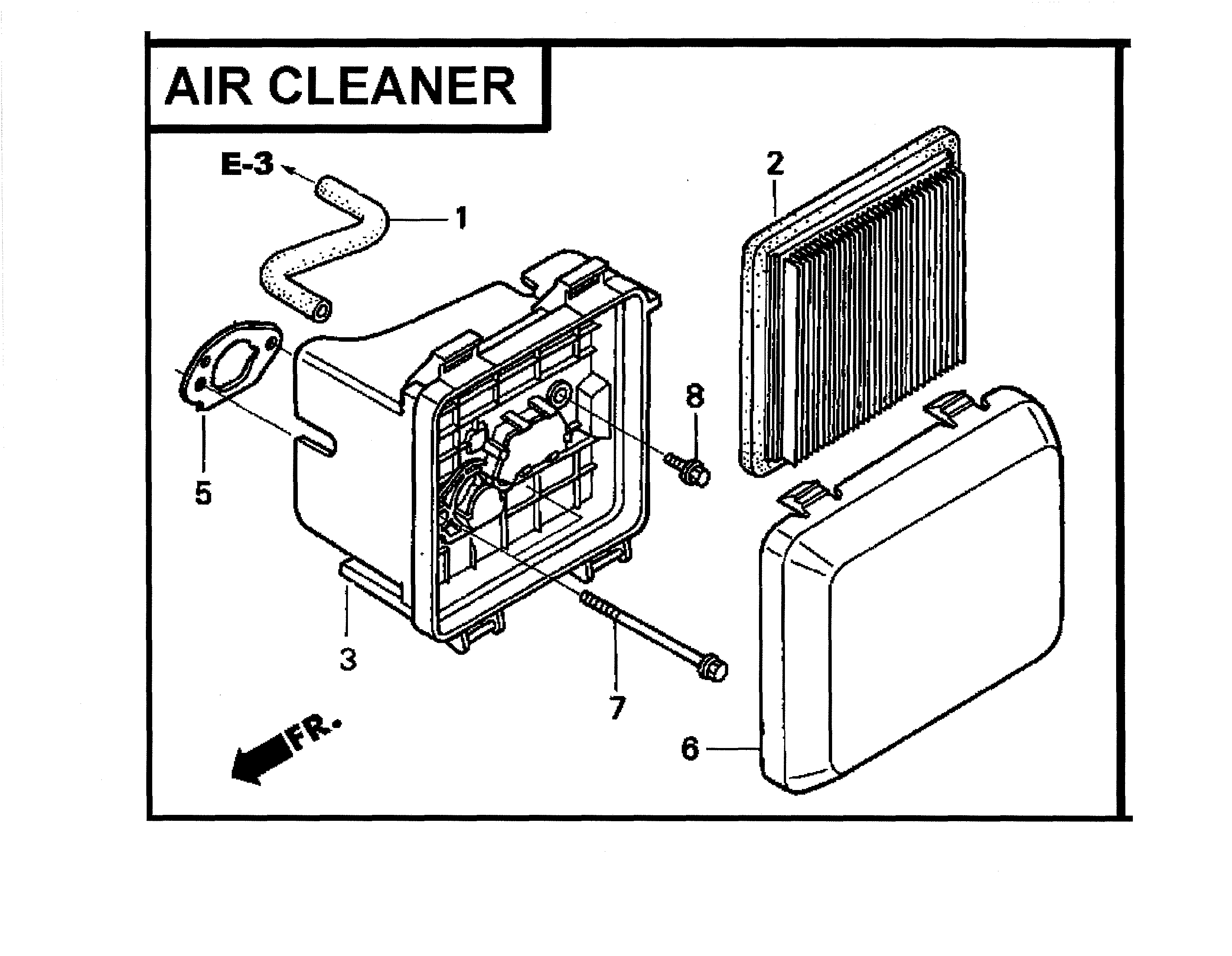

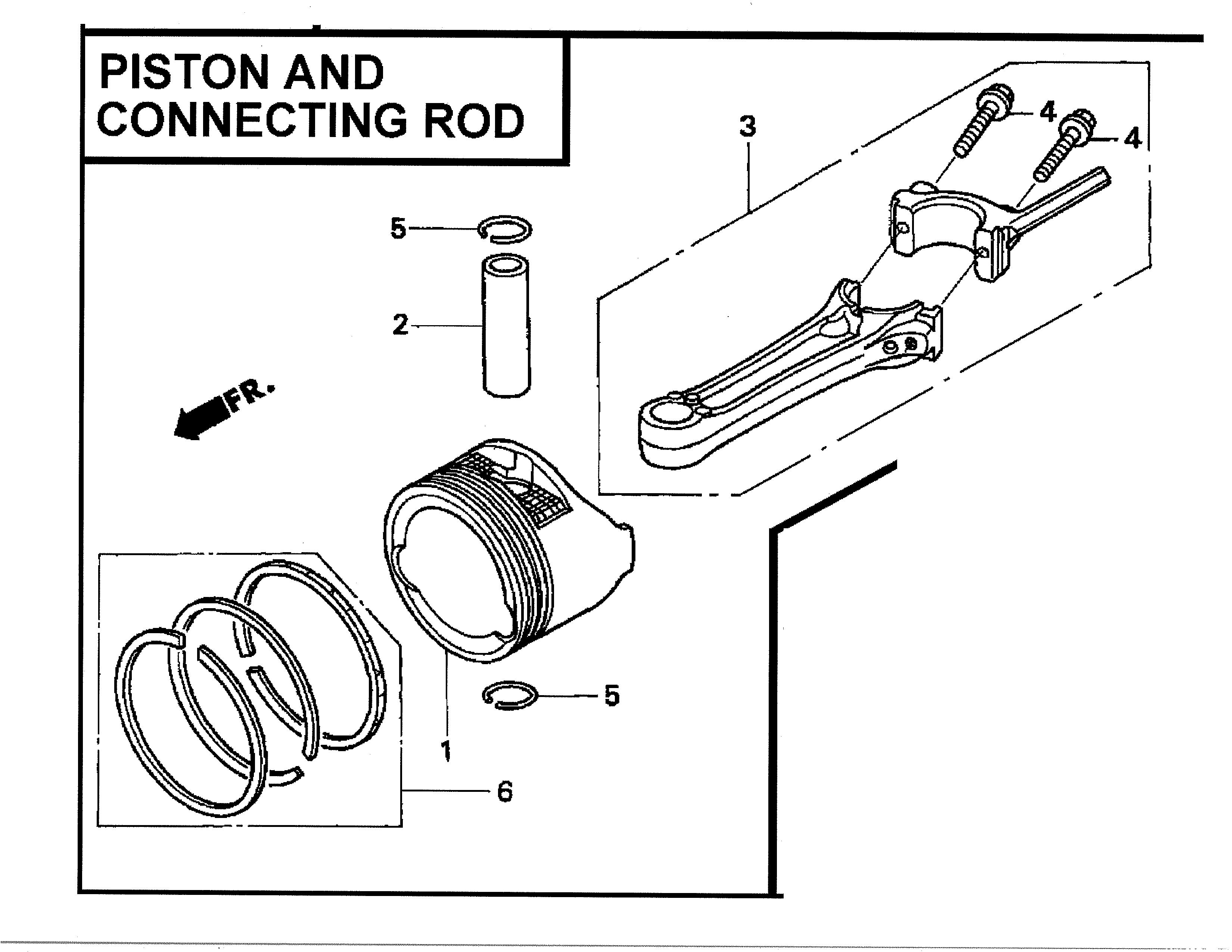

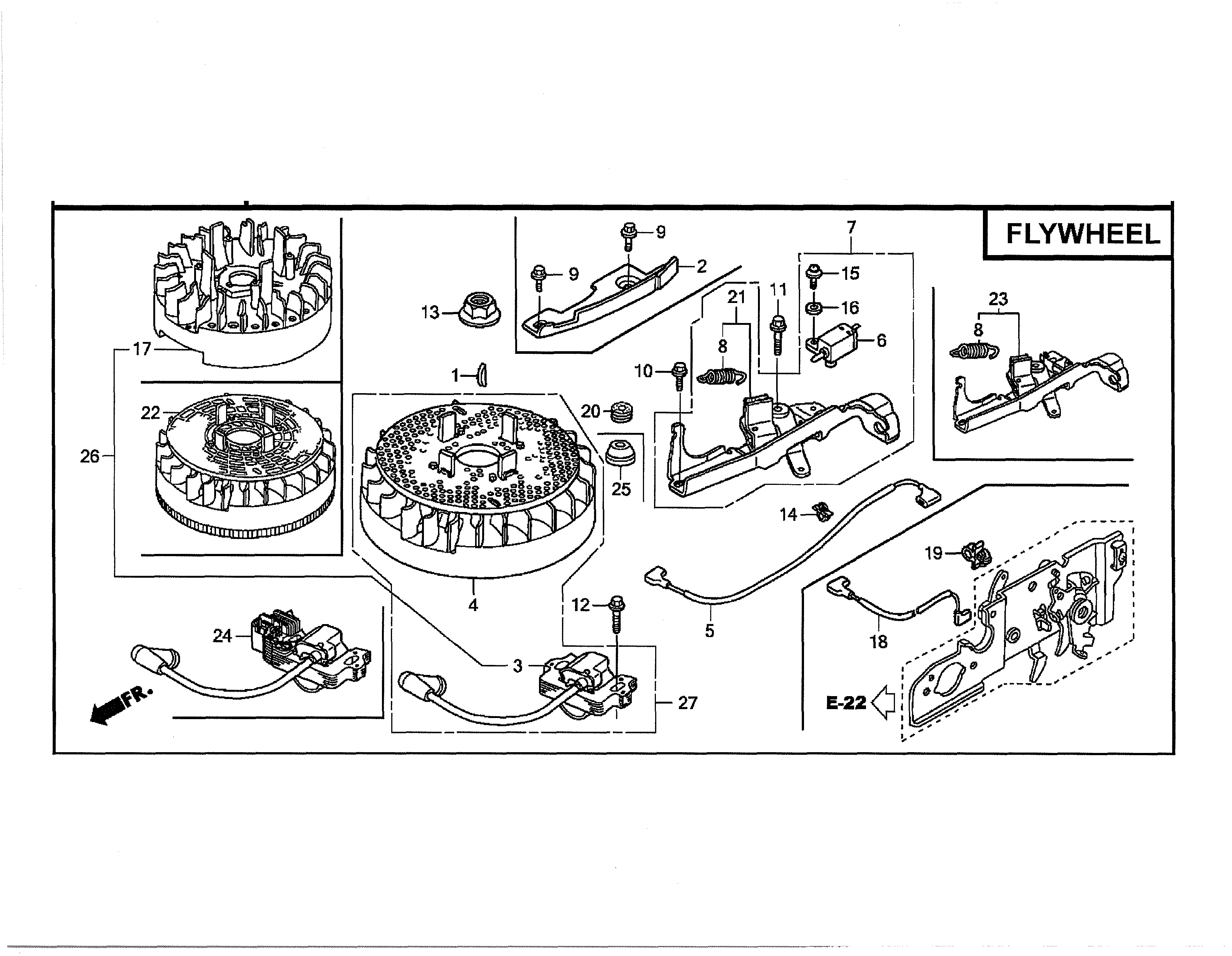

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Honda Return Spring 16592-Z2D-800
#2

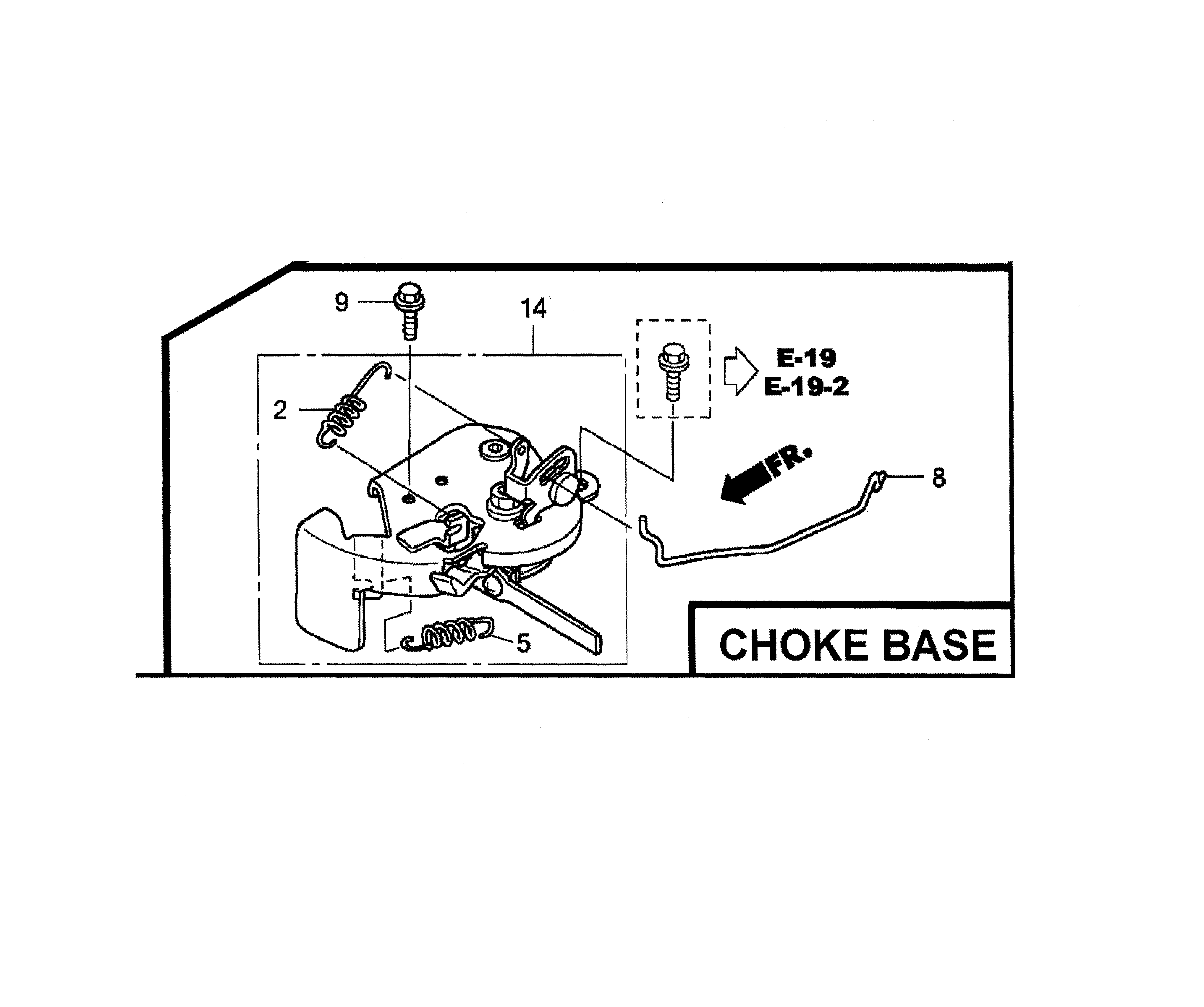

Choke base diagram

Honda return spring

Part #16592-Z2D-800

This item is not returnable
$5.09
In Stock
Governor Holder Clip 90602-ZE1-000
#18

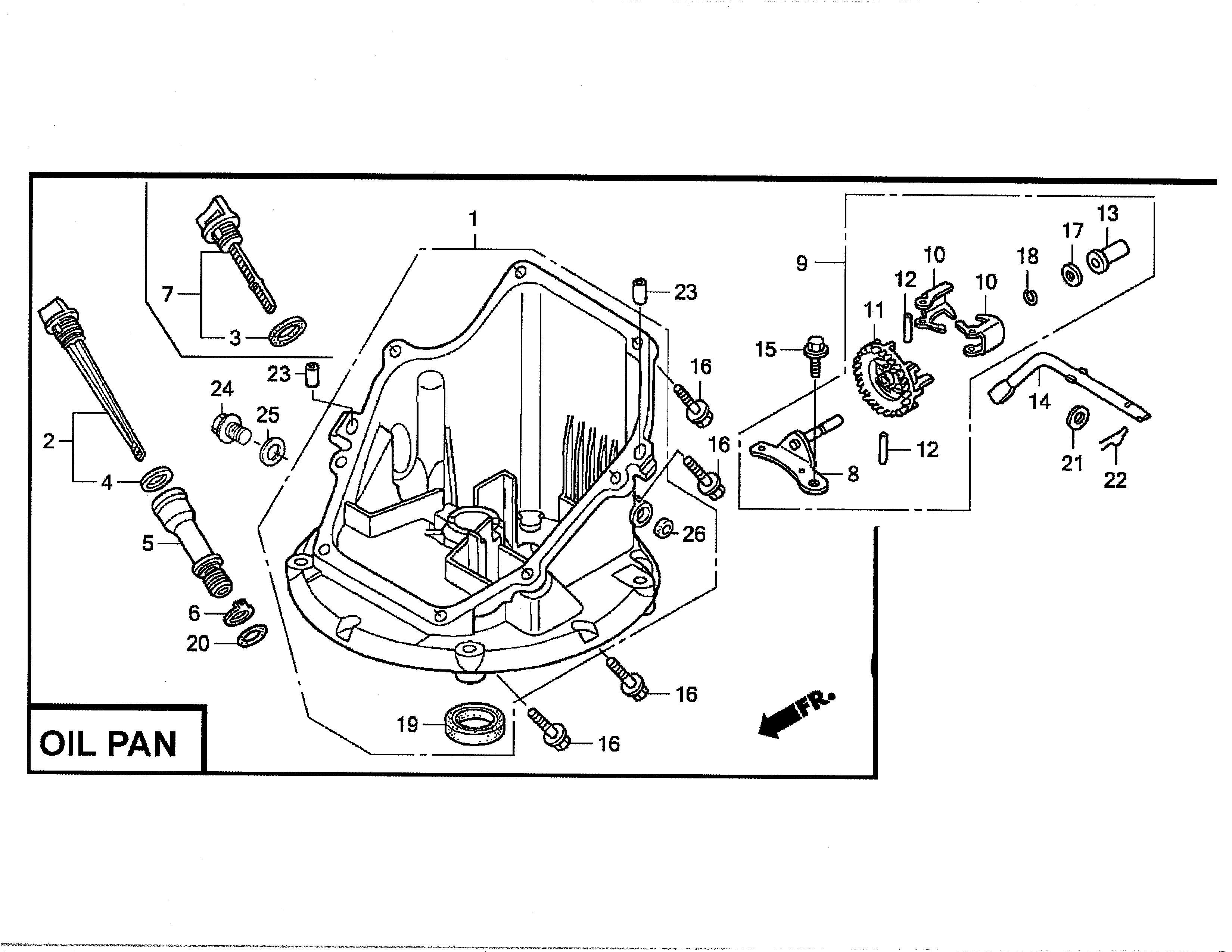

Oil pan diagram

Governor holder clip

Part #90602-ZE1-000

The manufacturer no longer makes this part, and there's no substitute part

Cover-fan Cr 19610-Z0L-861ZC
#21

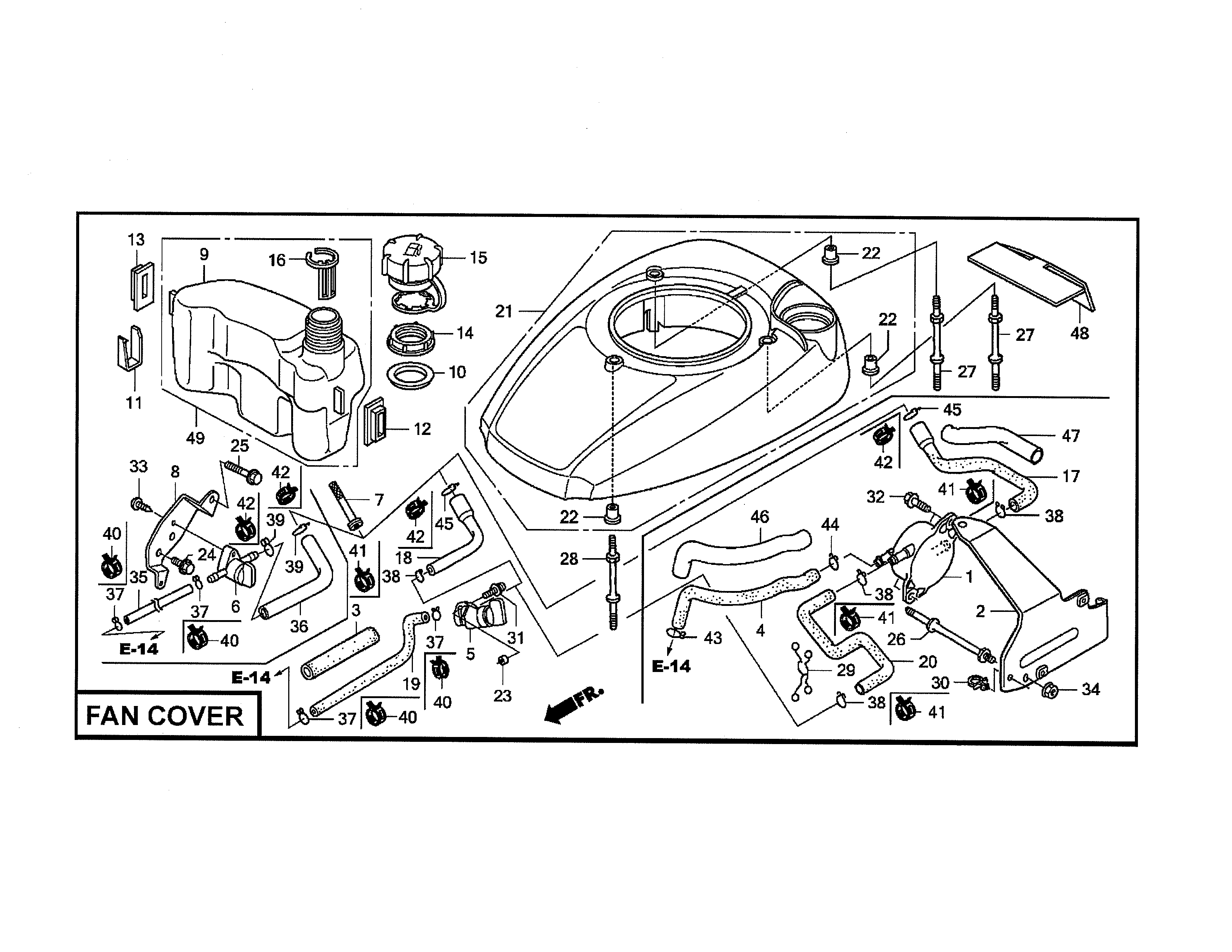

Fan cover diagram

Cover-fan cr

Part #19610-Z0L-861ZC

The manufacturer no longer makes this part, and there's no substitute part

Screw Set B 16028-ZE0-005
#5

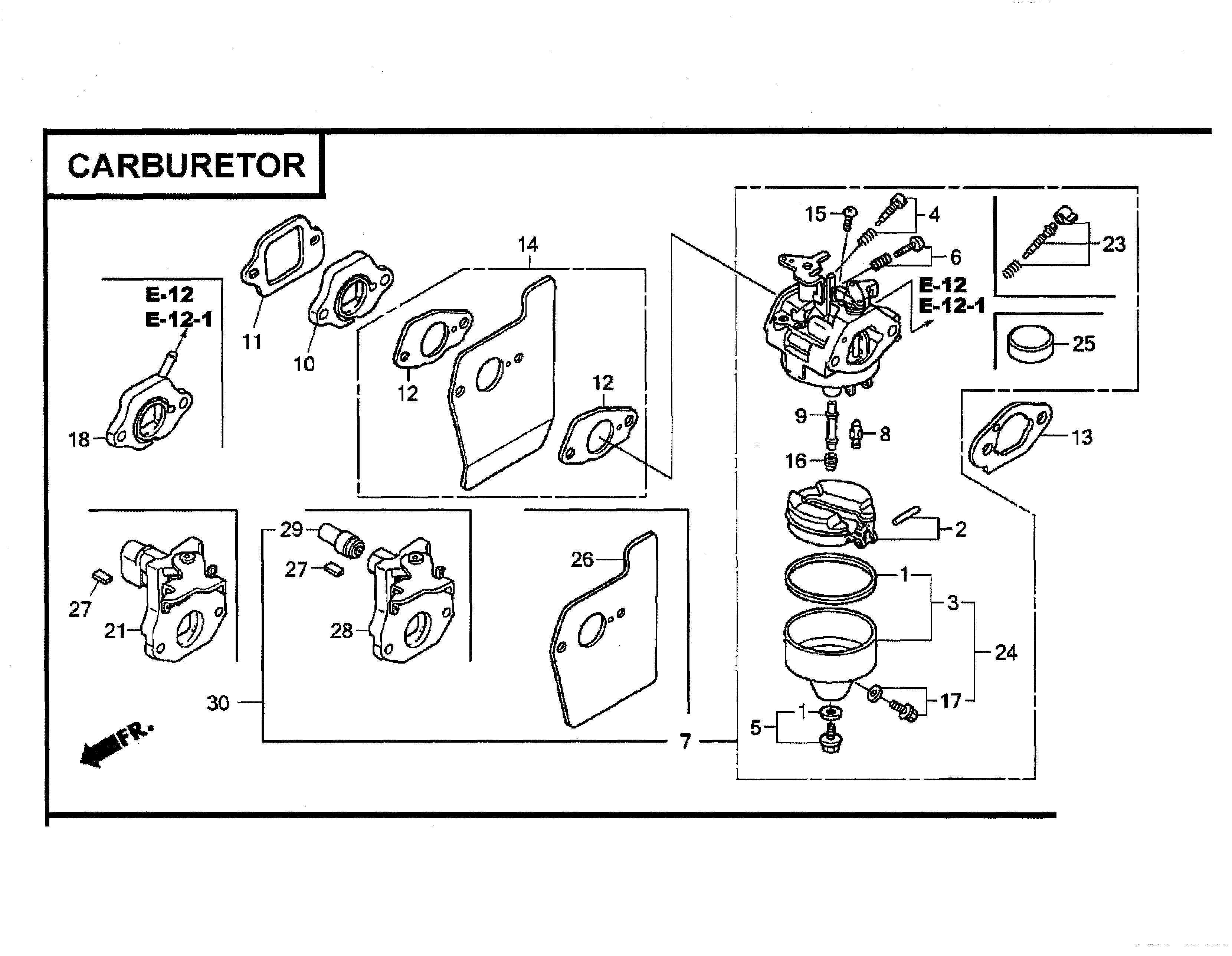

Carburetor diagram

Screw set b

Part #16028-ZE0-005

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine O-ring 91301-ZM0-V31
#13

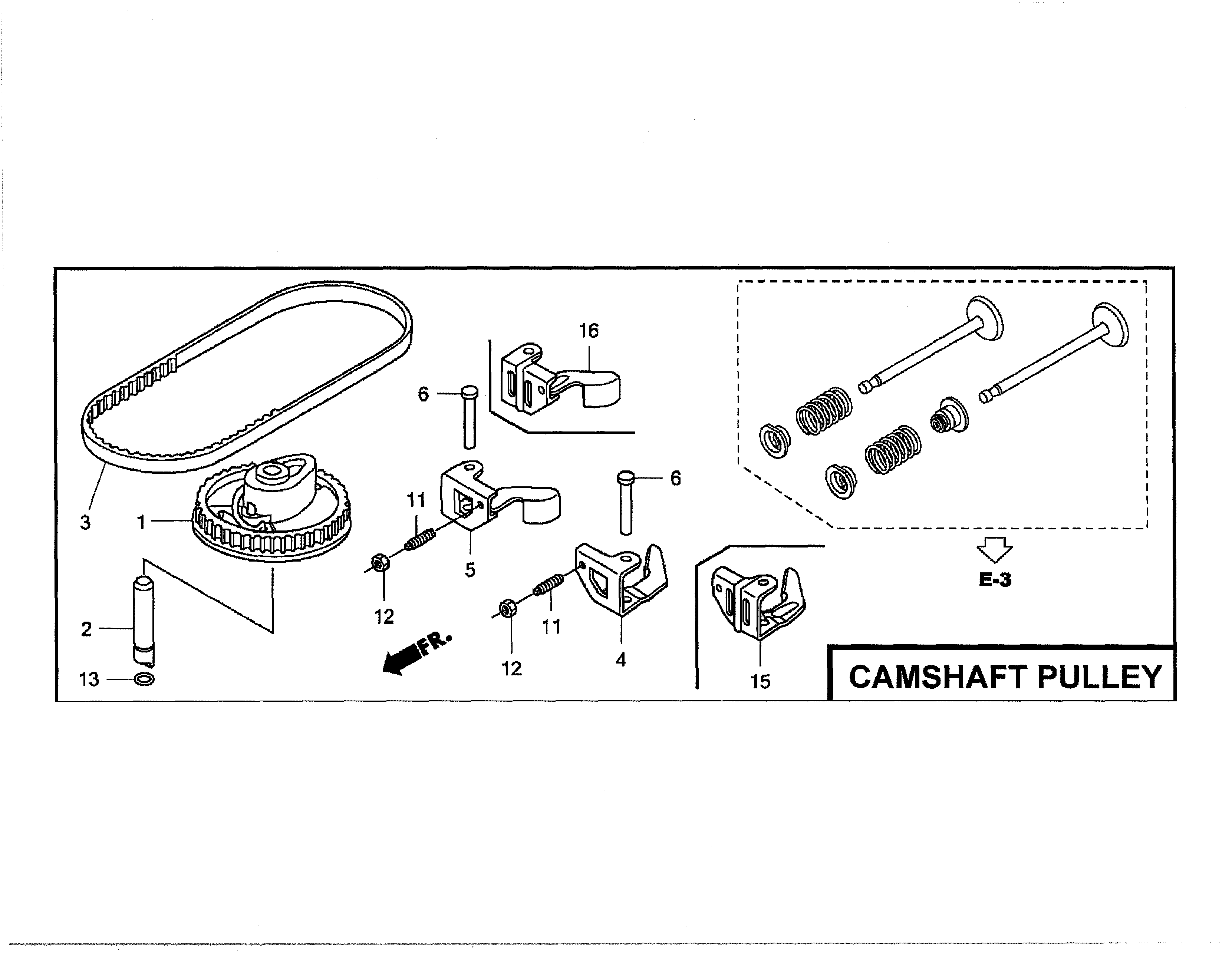

Camshaft pulley diagram

Lawn & garden equipment engine o-ring

Part #91301-ZM0-V31

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Oil Pan 11300-ZM0-811
#1

Oil pan diagram

Lawn & garden equipment engine oil pan

Part #11300-ZM0-811

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Assembly 12000-Z0L-406
#1

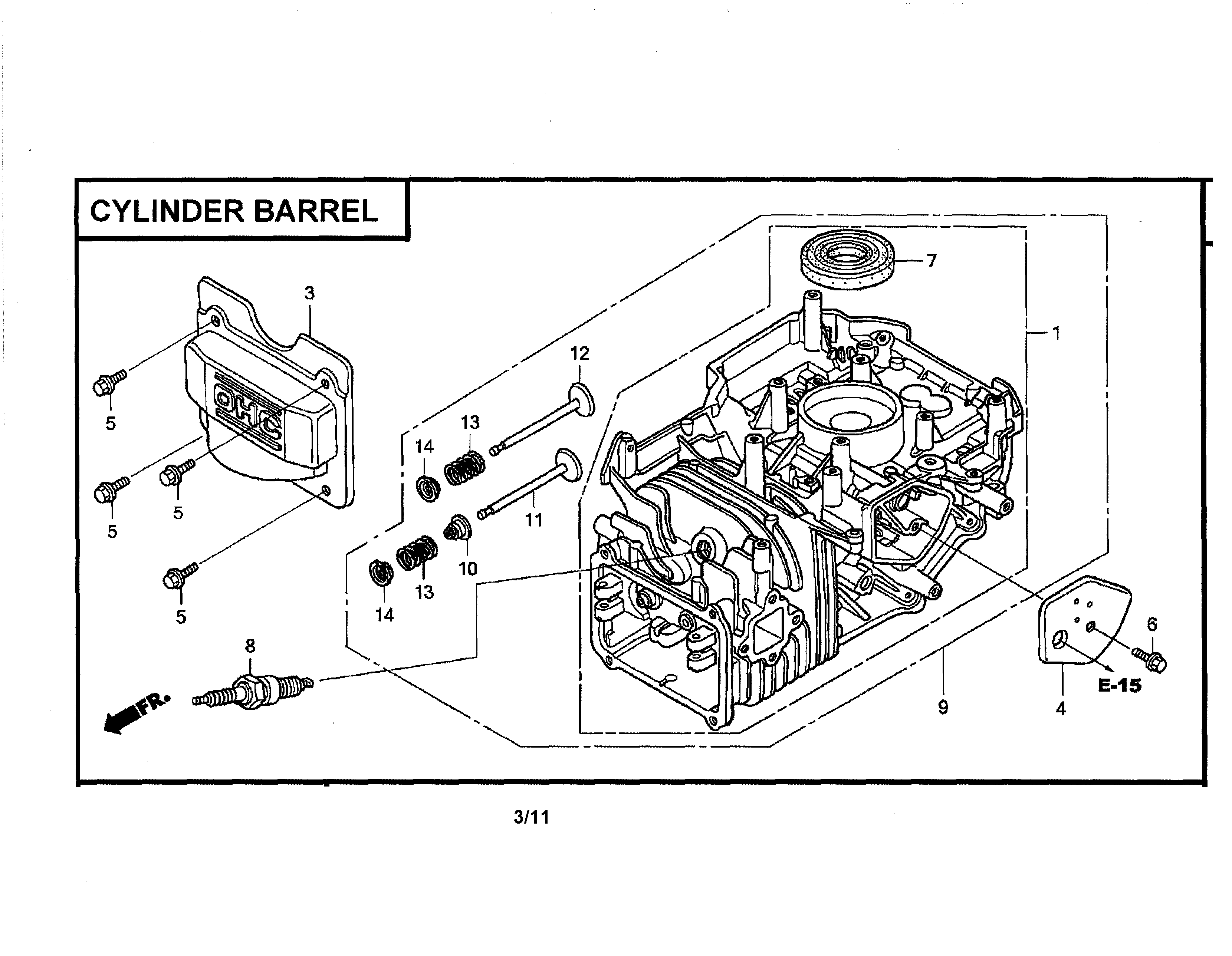

Cylinder barrel diagram

Cylinder assembly

Part #12000-Z0L-406

The manufacturer no longer makes this part, and there's no substitute part

Tappet Adjusting Screw 90112-333-000
#11

Camshaft pulley diagram

Tappet adjusting screw

Part #90112-333-000

The manufacturer no longer makes this part, and there's no substitute part

Gasket 15625-ZE6-000
#4

Oil pan diagram

Gasket

Part #15625-ZE6-000

The manufacturer no longer makes this part, and there's no substitute part

Governor 16510-ZM0-010
#9

Oil pan diagram

Governor

Part #16510-ZM0-010

The manufacturer no longer makes this part, and there's no substitute part
