Model # 58052650100 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58052650100 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Goldstar Cover 3550-CL001D
#2-C

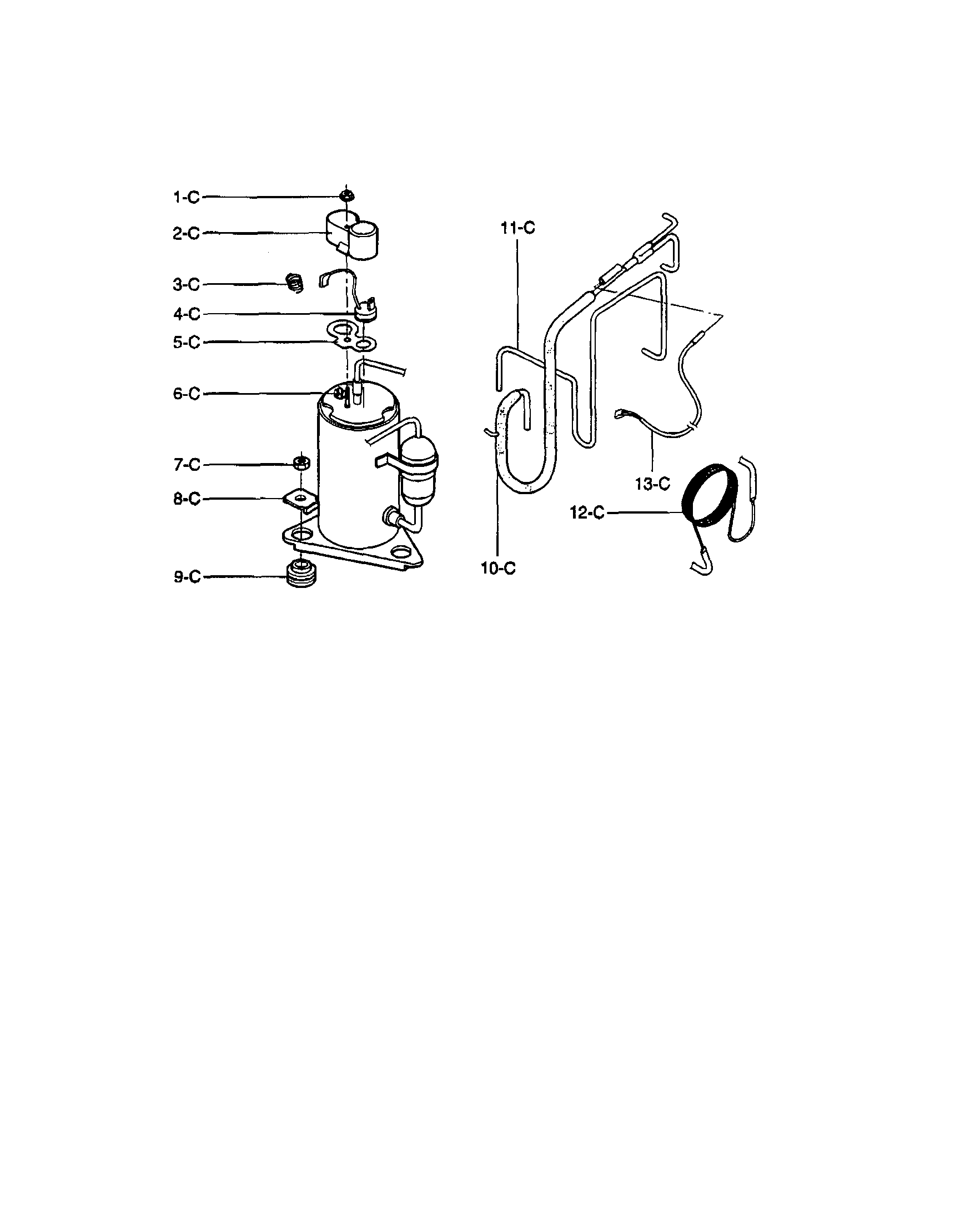

Compressor diagram

Goldstar cover

Part #3550-CL001D

$106.86
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L035A
#4-C

Compressor diagram

Room air conditioner compressor overload protector

Part #6750U-L035A

$23.07
In Stock
Lg Nut 4H02861A
#3-B

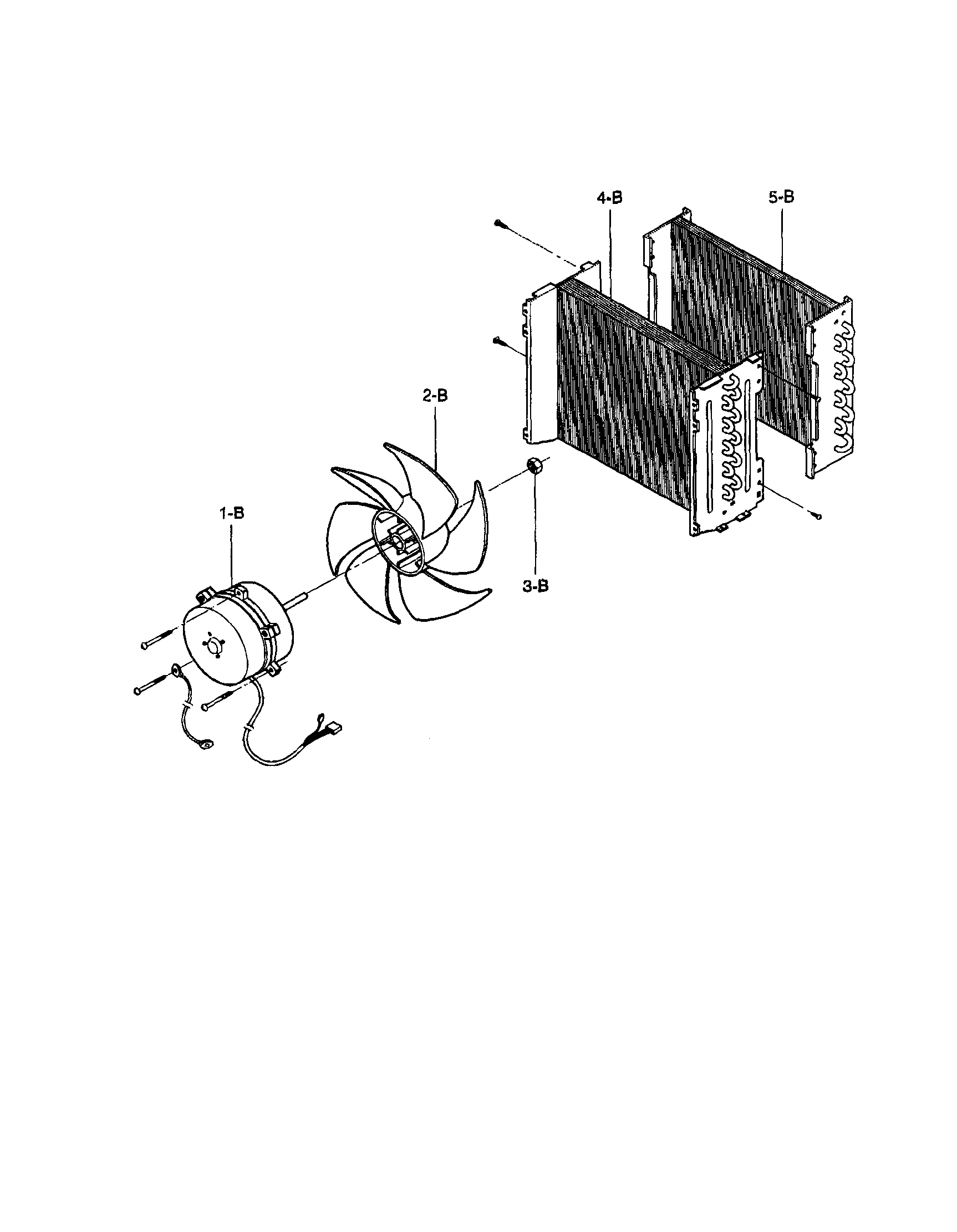

Cycle diagram

Lg nut

Part #4H02861A

This item is not returnable
$4.51
In Stock
Clamp 4H00442J
#10-A

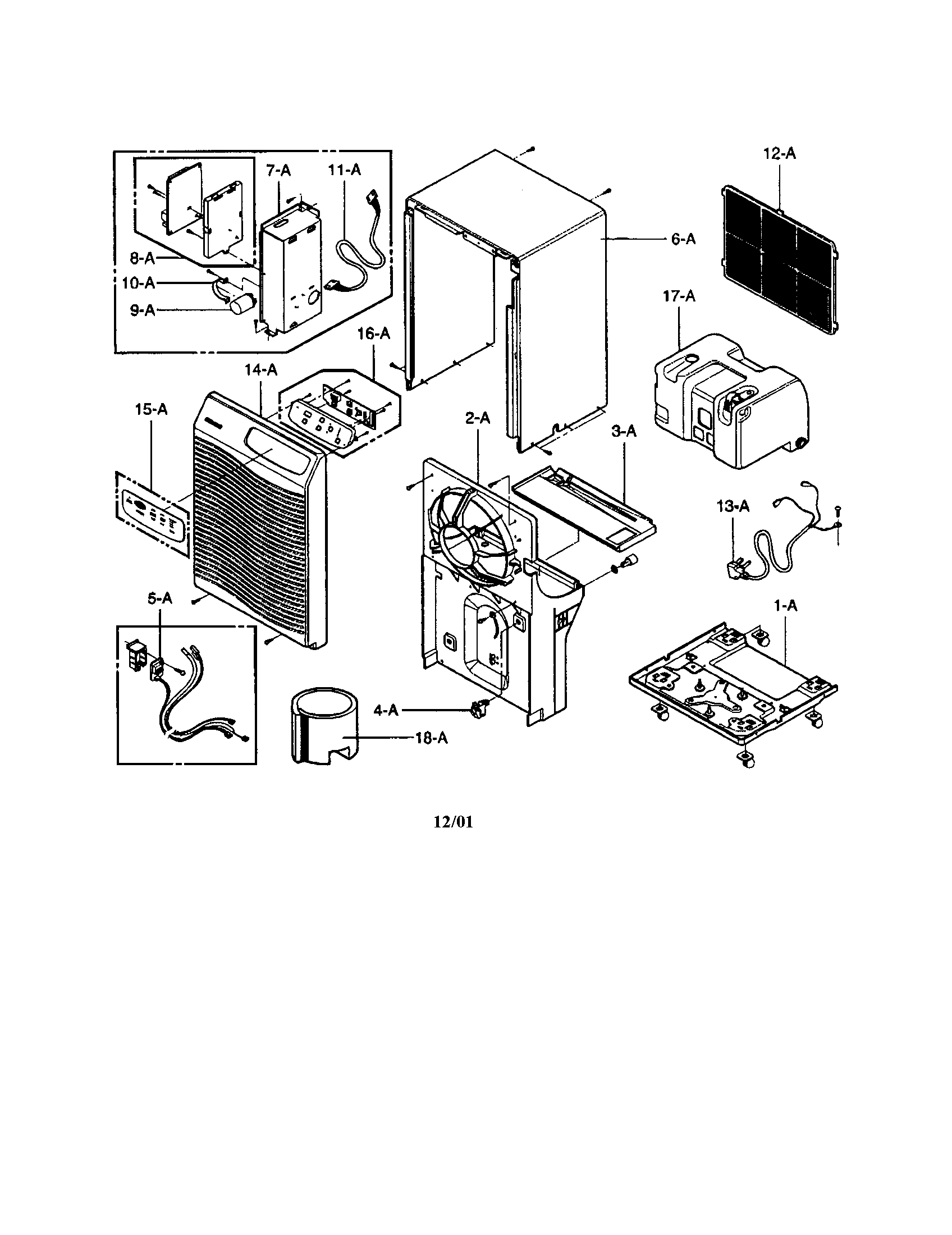

Outer case and control diagram

Clamp

Part #4H00442J

This item is not returnable
$4.51
In Stock
Brkt,wshr 4810AR4155A
#8-C

Compressor diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
Front Grille 3530A10006F
#14-A

Outer case and control diagram

Front grille

Part #3530A10006F

$26.93
In Stock
Nut 4H00947A
#1-C

Compressor diagram

Nut

Part #4H00947A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Dual-motor Run Capacitor 0CZZA20001F
#9-A

Outer case and control diagram

Room air conditioner dual-motor run capacitor

Part #0CZZA20001F

$35.96
In Stock
Hex Nut 1NHA0801206
#7-C

Compressor diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Bushing 4830A30005A
#9-C

Compressor diagram

Bushing

Part #4830A30005A

The manufacturer no longer makes this part, and there's no substitute part
