Kenmore
Floor Scrubber

Model # 10070701 Official Kenmore floor polisher

Here are the diagrams and repair parts for Official Kenmore 10070701 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Rod 31887-1
#23

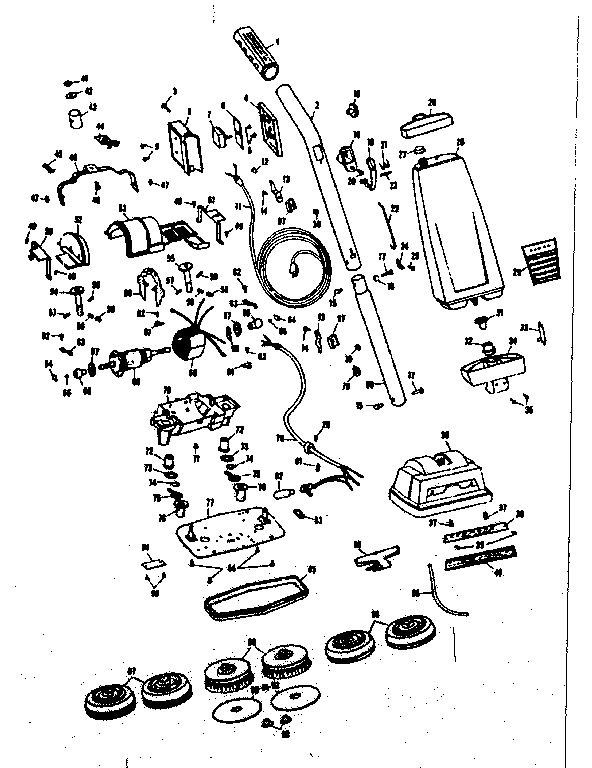

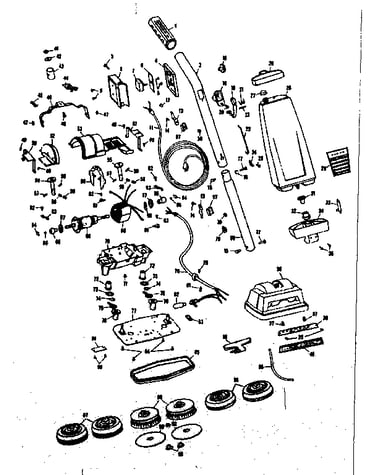

Floor polisher diagram

Rod

Part #31887-1

The manufacturer no longer makes this part, and there's no substitute part

Spring 32817
#21

Floor polisher diagram

Spring

Part #32817

The manufacturer no longer makes this part, and there's no substitute part

Shampoo Brush 655
#89

Floor polisher diagram

Shampoo brush

Part #655

The manufacturer no longer makes this part, and there's no substitute part

Plate 31888
#24

Floor polisher diagram

Plate

Part #31888

The manufacturer no longer makes this part, and there's no substitute part

Button 934164
#93

Floor polisher diagram

Button

Part #934164

The manufacturer no longer makes this part, and there's no substitute part

Block 34018-0046
#18

Floor polisher diagram

Block

Part #34018-0046

The manufacturer no longer makes this part, and there's no substitute part

Spindle Gear 937138-1
#55

Floor polisher diagram

Spindle gear

Part #937138-1

The manufacturer no longer makes this part, and there's no substitute part

Polish Brush 653
#88

Floor polisher diagram

Polish brush

Part #653

The manufacturer no longer makes this part, and there's no substitute part

Spring 37149-1
#58

Floor polisher diagram

Spring

Part #37149-1

The manufacturer no longer makes this part, and there's no substitute part

Scrub Pad 622
#92

Floor polisher diagram

Scrub pad

Part #622

The manufacturer no longer makes this part, and there's no substitute part
