Model # PCH2401 Official Porter Cable pressure washer

Here are the diagrams and repair parts for Official Porter Cable PCH2401 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 14 parts |

#11

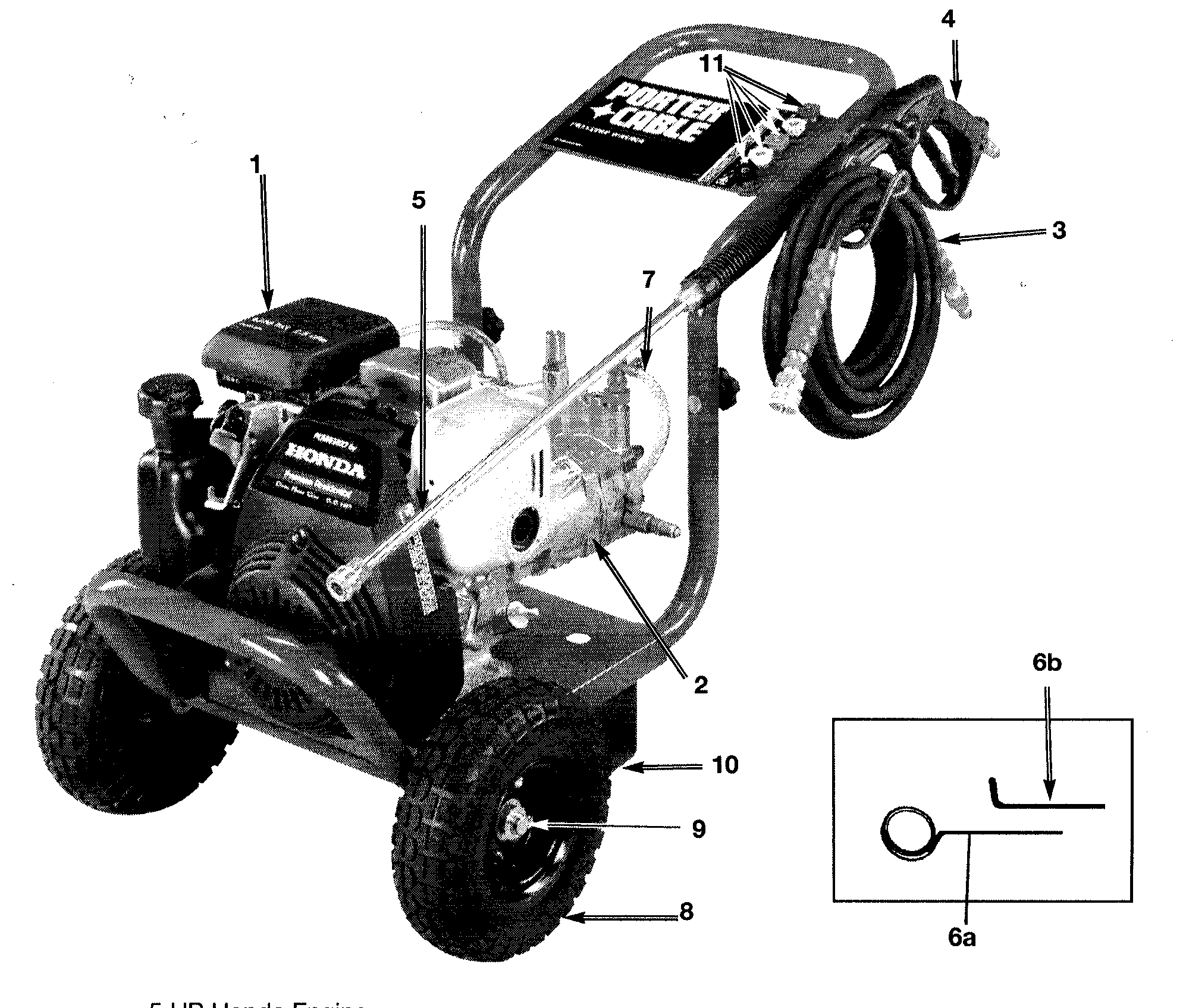

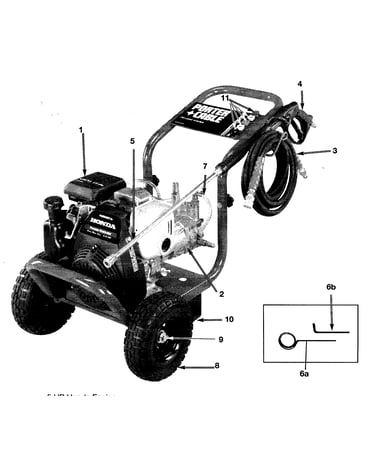

Pressure washer diagram

Porter cable nozzle kit

Part #D25573

The manufacturer no longer makes this part, and there's no substitute part

#10

Pressure washer diagram

Porter cable foot

Part #D22268

The manufacturer no longer makes this part, and there's no substitute part

Pressure washer diagram

Pump kit

Part #D23833

The manufacturer no longer makes this part, and there's no substitute part

#6A

Pressure washer diagram

Tool

Part #NCT001

The manufacturer no longer makes this part, and there's no substitute part

#6B

Pressure washer diagram

Wrench

Part #16797

The manufacturer no longer makes this part, and there's no substitute part

Pressure washer diagram

Triggr gun

Part #D24982

The manufacturer no longer makes this part, and there's no substitute part

Pressure washer diagram

Lance

Part #D24978

The manufacturer no longer makes this part, and there's no substitute part

Pressure washer diagram

Tire

Part #D22101

The manufacturer no longer makes this part, and there's no substitute part

Pressure washer diagram

Pal nut

Part #F464

The manufacturer no longer makes this part, and there's no substitute part

Pressure washer diagram

Hose

Part #H140

The manufacturer no longer makes this part, and there's no substitute part
