Black & Decker
Toaster Oven

Model # TRO515 TYPE 1 Official Black & Decker toaster oven

Here are the diagrams and repair parts for Official Black & Decker TRO515-TYPE-1 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Screw 164819-01
#12

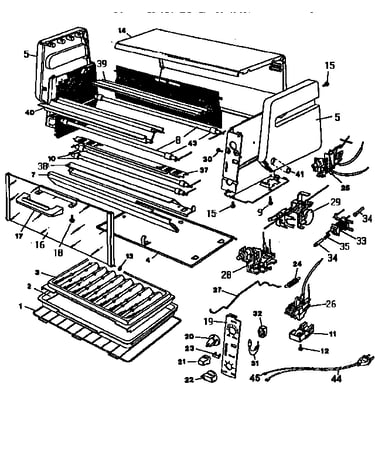

Replacement parts diagram

Screw

Part #164819-01

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Cover 170694-03
#41

Replacement parts diagram

Kenmore cover

Part #170694-03

The manufacturer no longer makes this part, and there's no substitute part

Latch Kit 167204-01
#29

Replacement parts diagram

Latch kit

Part #167204-01

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Frt Reflectr 168608-00
#38

Replacement parts diagram

Kenmore frt reflectr

Part #168608-00

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 239958-00
#11

Replacement parts diagram

Switch cover

Part #239958-00

The manufacturer no longer makes this part, and there's no substitute part

Frt Channl 182678-05
#7

Replacement parts diagram

Frt channl

Part #182678-05

The manufacturer no longer makes this part, and there's no substitute part

Screw 164836-00
#15

Replacement parts diagram

Screw

Part #164836-00

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 170934-13
#19

Replacement parts diagram

Escutcheon

Part #170934-13

The manufacturer no longer makes this part, and there's no substitute part

Reflector 164920-90
#40

Replacement parts diagram

Reflector

Part #164920-90

The manufacturer no longer makes this part, and there's no substitute part

Parts List TRO515

#NI

All parts diagram

Parts list

Part #TRO515

The manufacturer no longer makes this part, and there's no substitute part
