Model # W121-C Official Jenn-Air electric range

Here are the diagrams and repair parts for Official Jenn-Air W121-C electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Clip 700834
#4

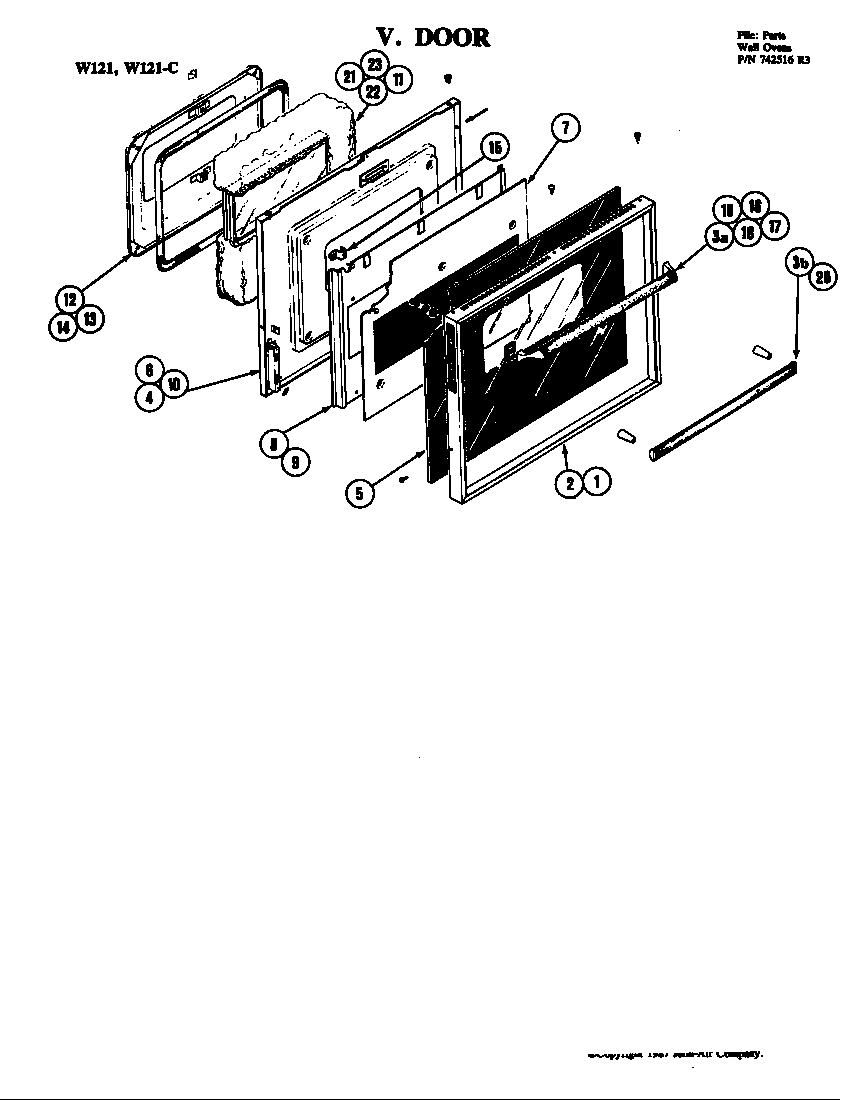

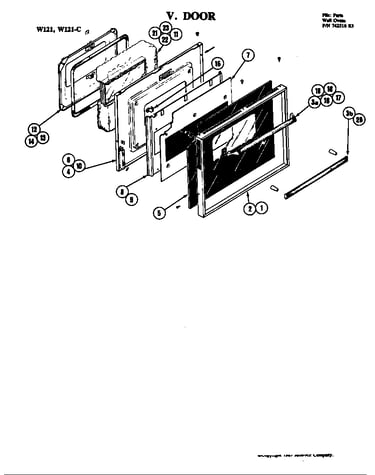

Door diagram

Clip

Part #700834

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 700834. Substitute parts can look different from the original.
BEST SELLER
$67.72 |
8% OFF Phone Price : $73.72
In Stock
Screw 700725
#11

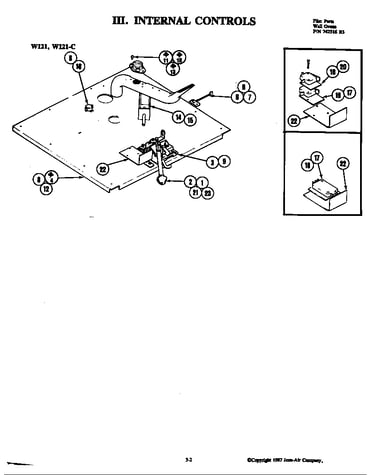

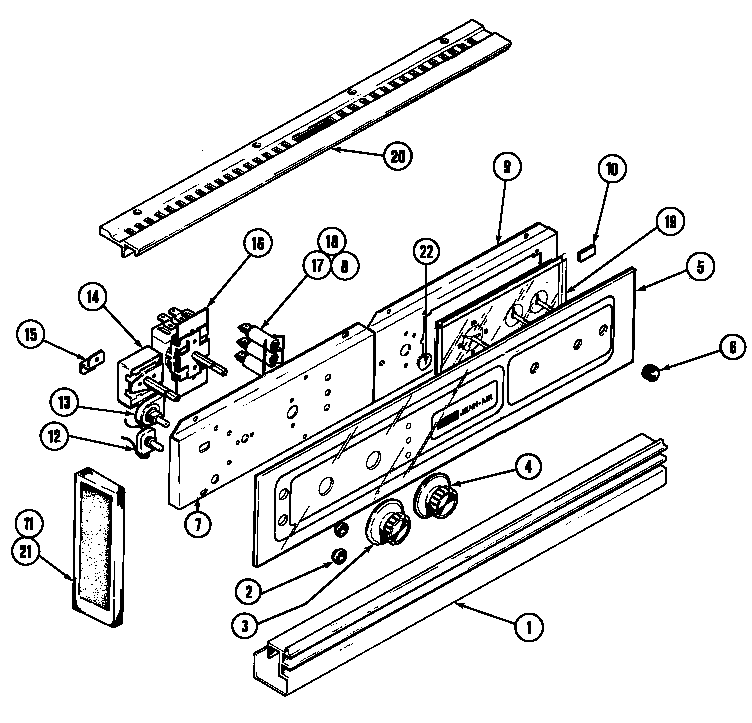

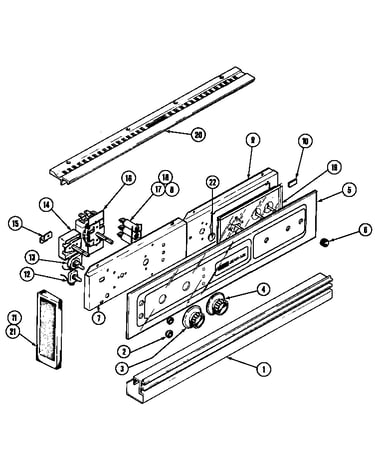

Internal controls diagram

Screw

Part #700725

Replaced by #WP355214

?
Manufacturer substitution
This part replaces 700725. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 700906
#14

Oven diagram

Screw

Part #700906

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 700906. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 707172
#13C

Internal controls diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Broiler Element 701729
#6

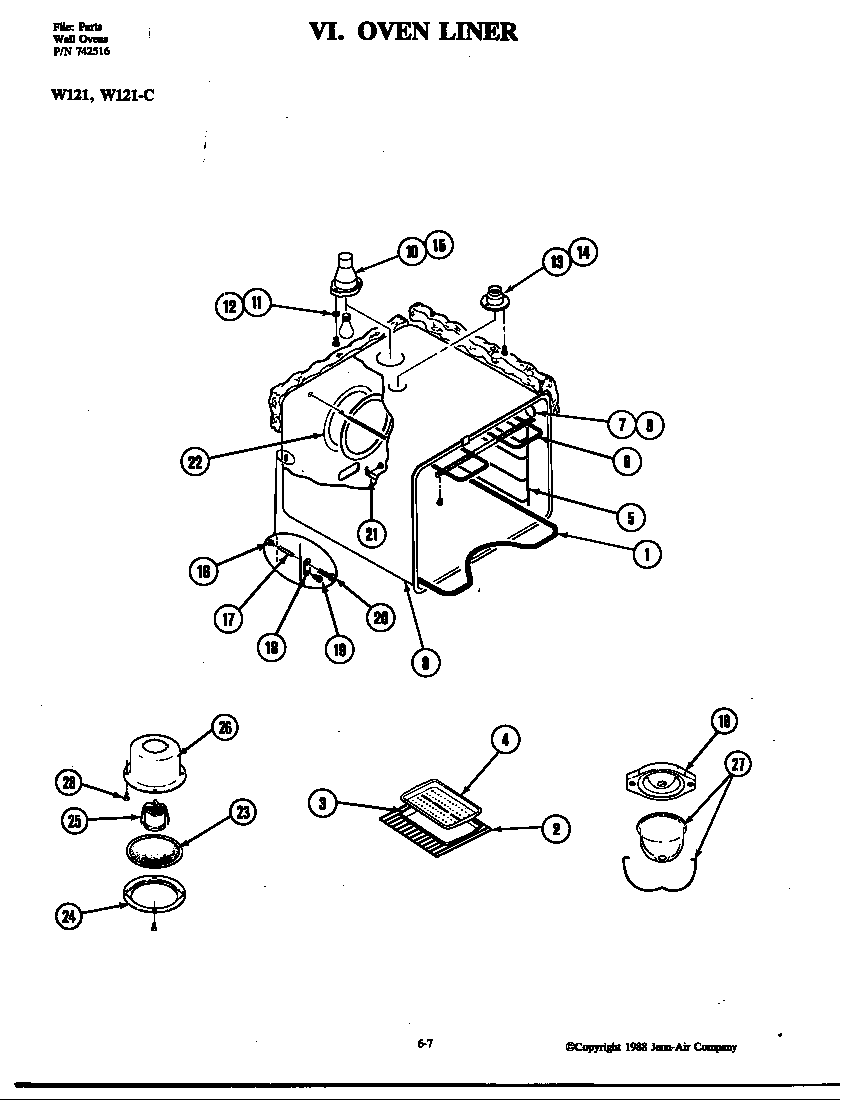

Oven diagram

Oven broiler element

Part #701729

Replaced by #WPY04100016

?
Manufacturer substitution
This part replaces 701729. Substitute parts can look different from the original.
$69.99 |
8% OFF Phone Price : $75.99
In Stock
Screw 708310
#24

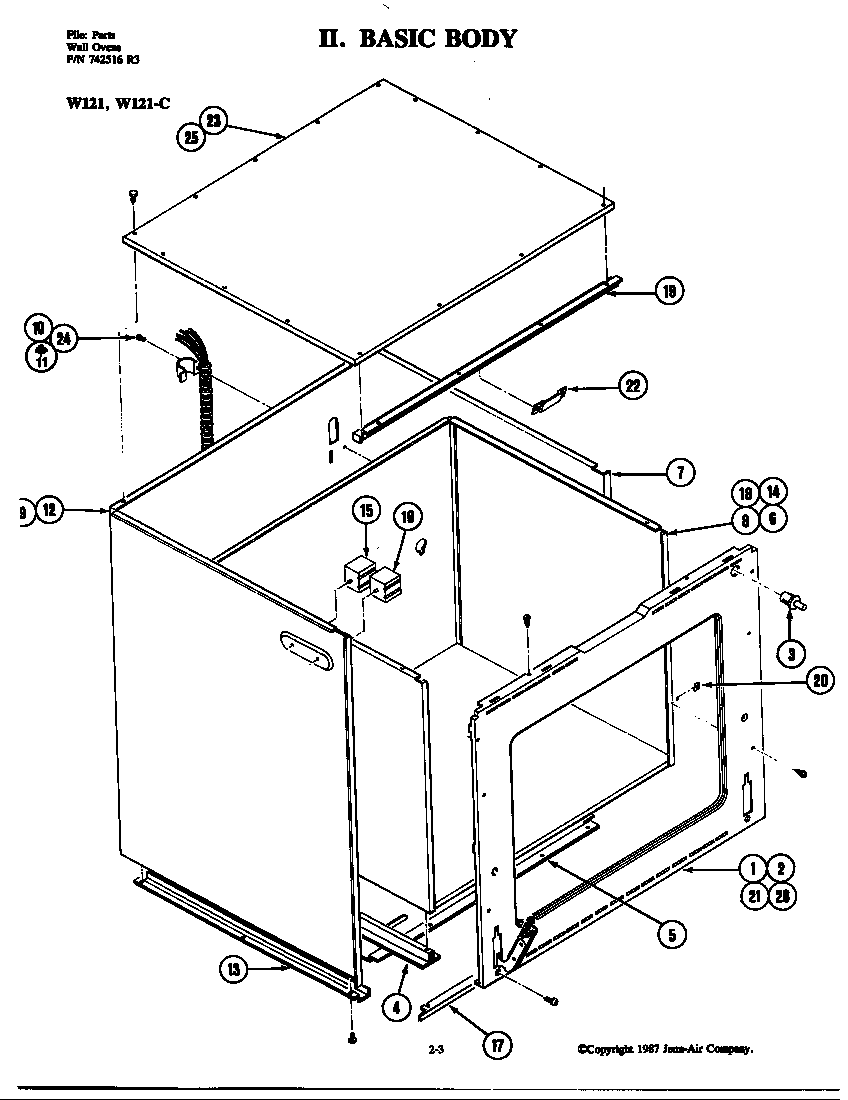

Body diagram

Screw

Part #708310

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 708310. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Pack Window 701648
#11

Door diagram

Pack window

Part #701648

Replaced by #WP5700M600-60

?
Manufacturer substitution
This part replaces 701648. Substitute parts can look different from the original.
$313.68 |
$12.00 OFF Phone Price : $325.68
In Stock
Screw 707745
#19

Oven diagram

Screw

Part #707745

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 707745. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Kenmore Range Screw 708861
#3

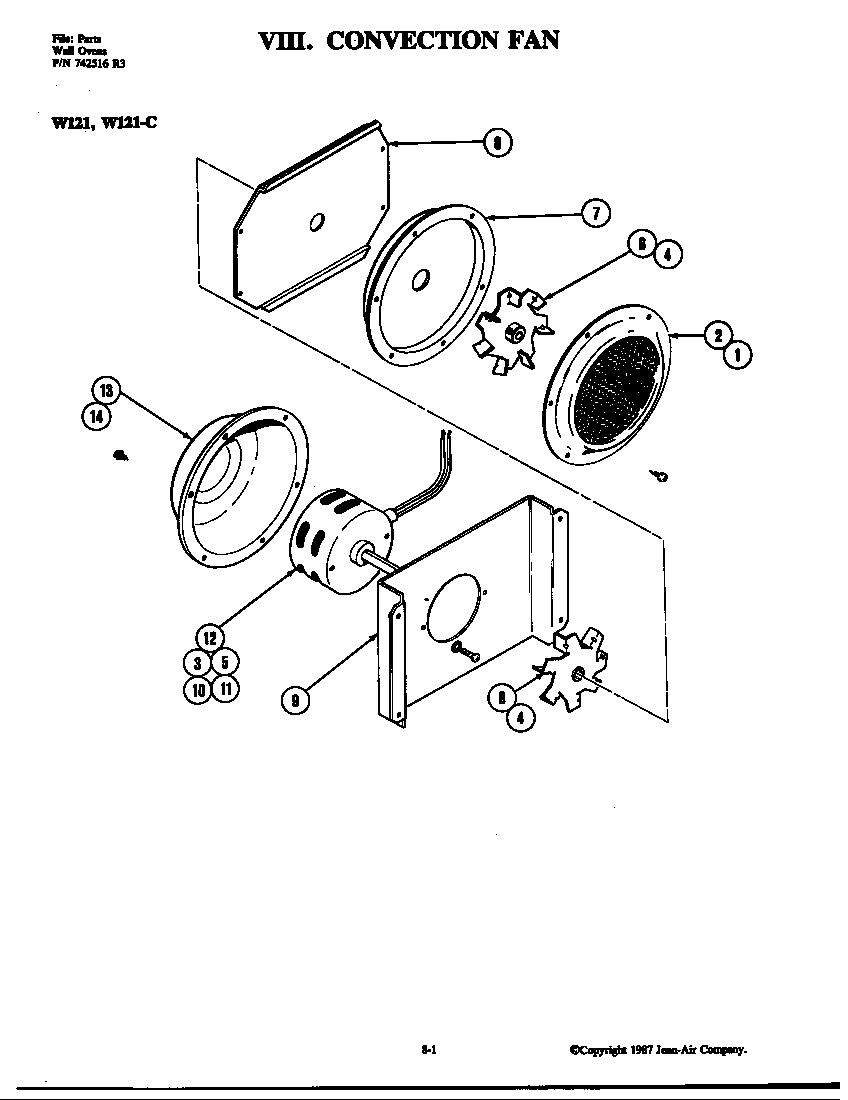

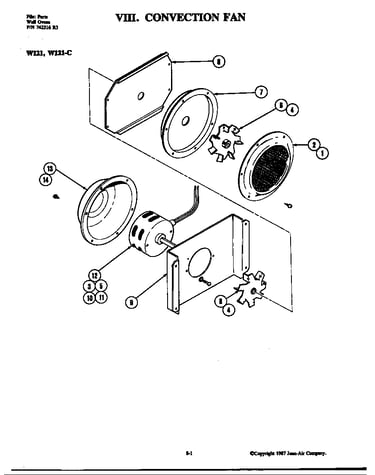

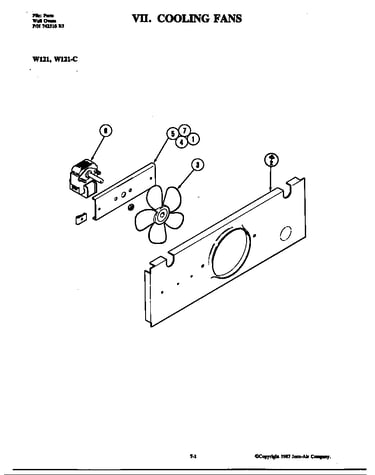

Convection fan diagram

Kenmore range screw

Part #708861

This item is not returnable
$4.22
In Stock
Magic Chef Range Screw 707407
#23

Internal controls diagram

Magic chef range screw

Part #707407

This item is not returnable
$5.09
In Stock
